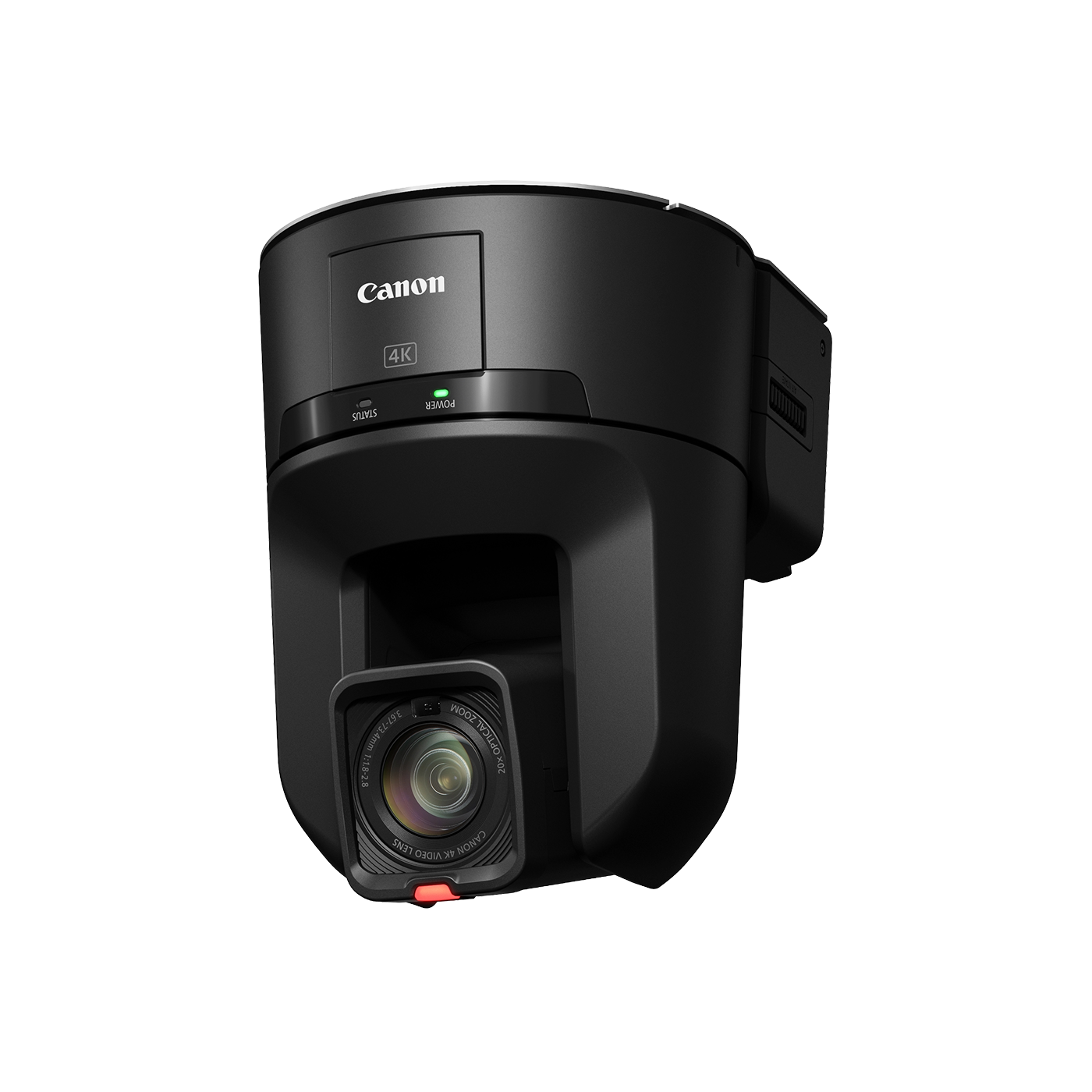

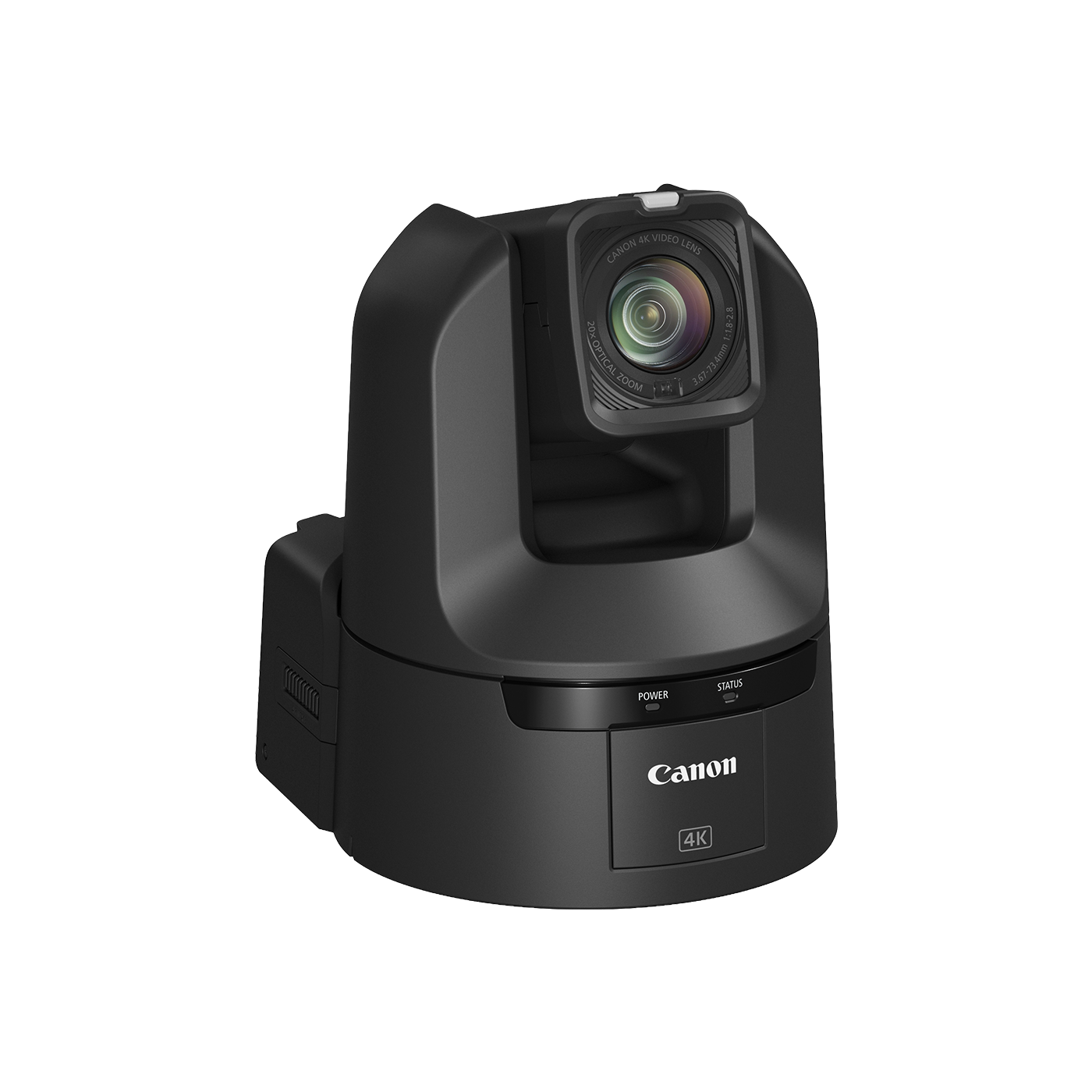

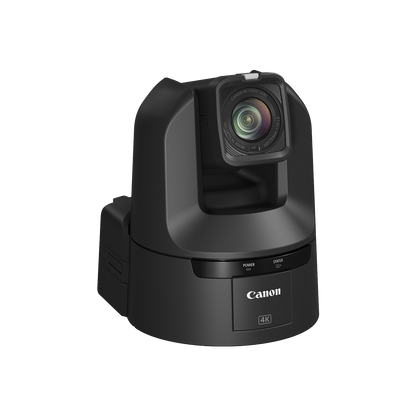

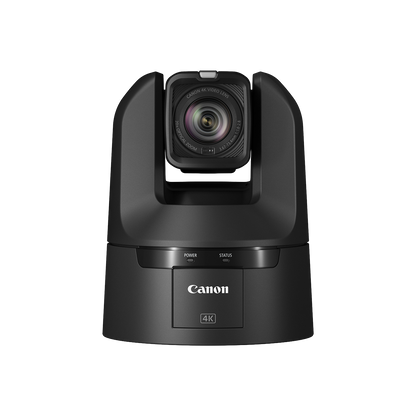

Canon CR-N350 4K PTZ Camera with 20x Optical Zoom (Black)

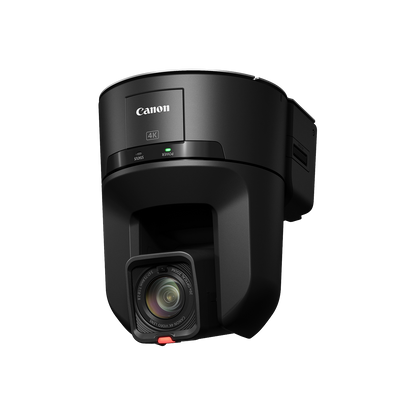

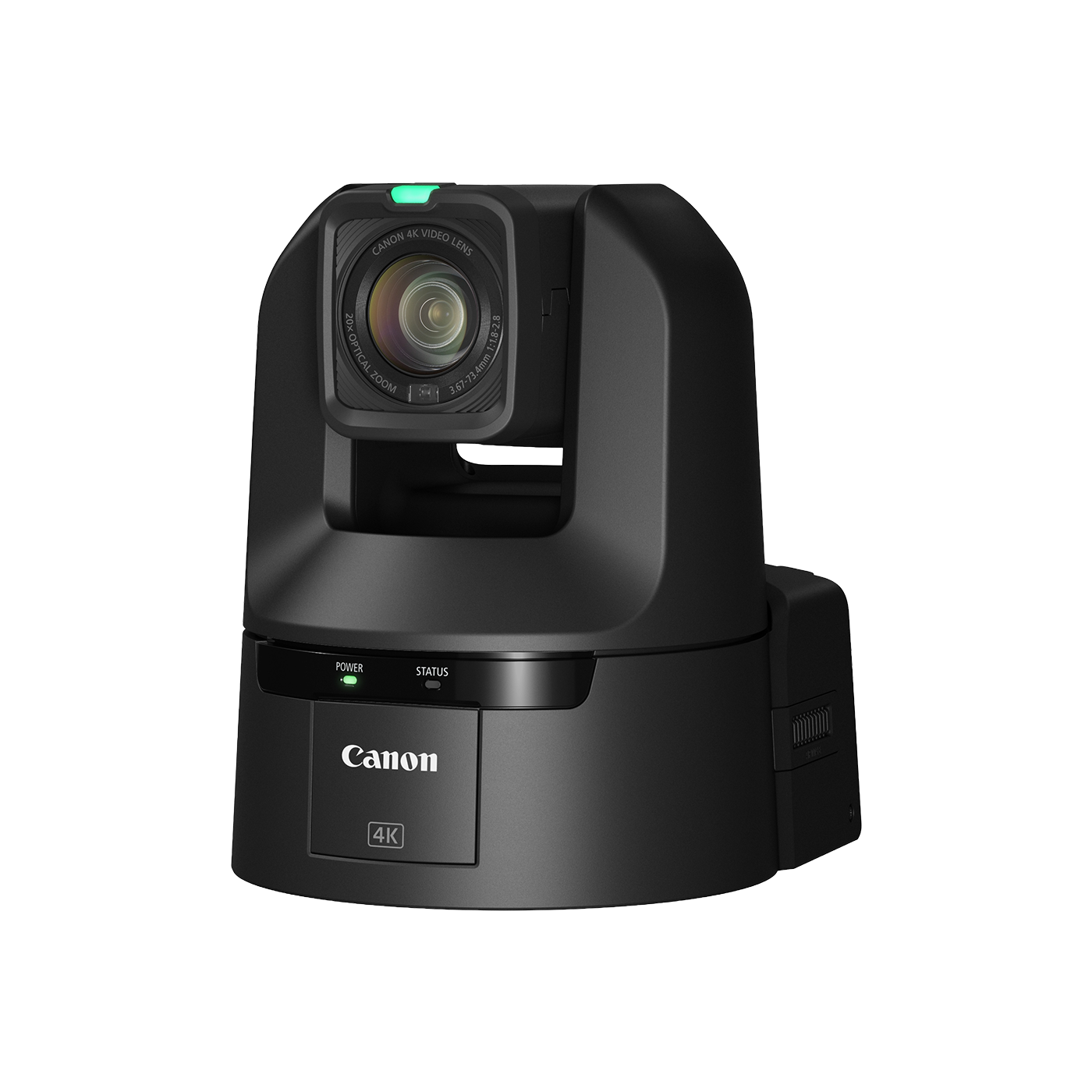

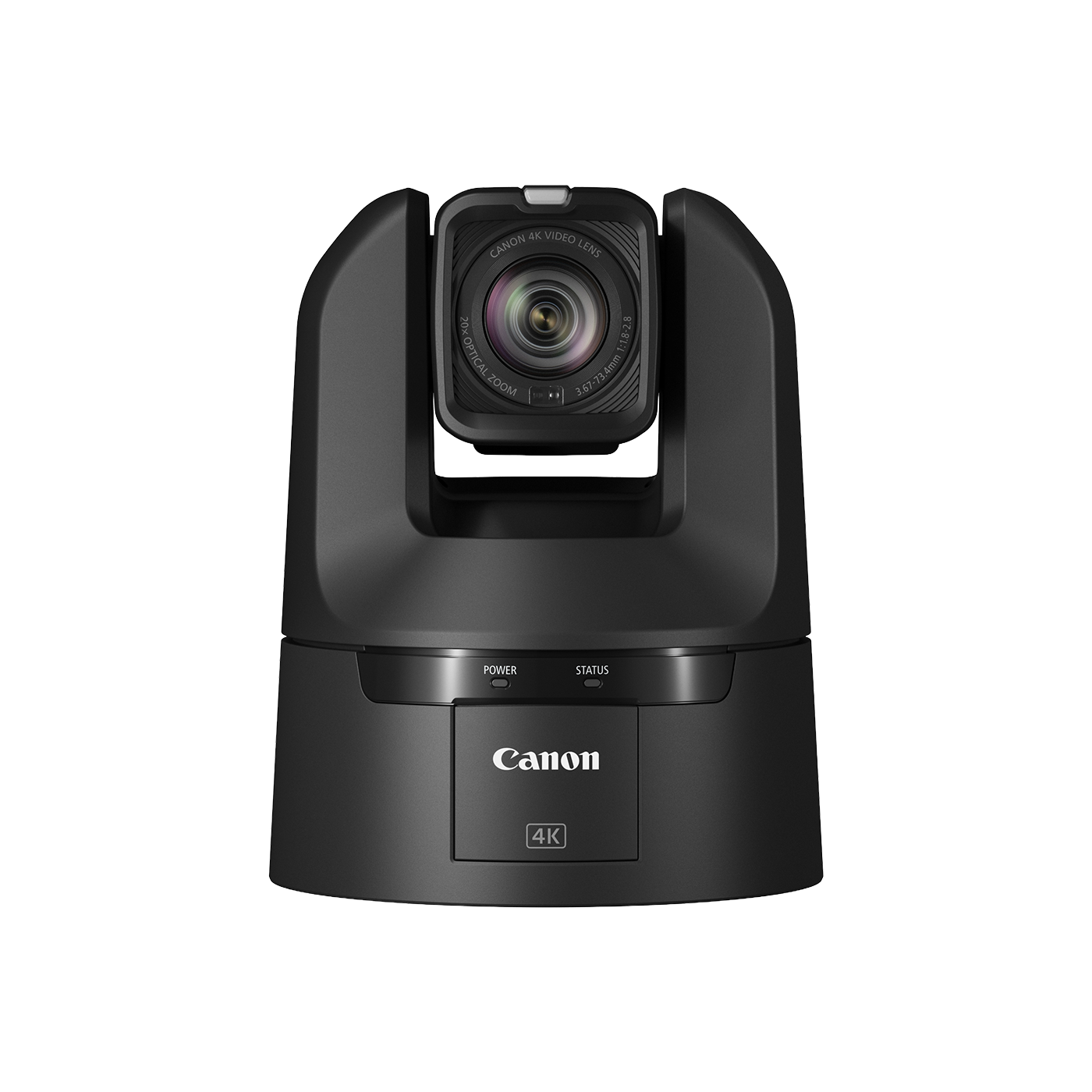

Canon CR-N350 4K PTZ Camera with 20x Optical Zoom

Canon CR-N350 4K PTZ Camera: Key Features

The Canon CR-N350 is a professional 4K PTZ camera designed for broadcast, live streaming, education, houses of worship, corporate video, events, and virtual production. With 4K 60p video, a 20x optical zoom lens, Hybrid AF, NDI|HX2, SRT, SDI, HDMI, USB, and IP connectivity, it provides a flexible solution for modern video production. In addition, built-in Auto Tracking Lite helps operators keep speakers and presenters in frame.

• 4K 60p video: Capture detailed UHD video for professional productions.
• 20x optical zoom: Get close-up shots while maintaining image quality. In Full HD, 40x Advanced Zoom is also available.
• 1/2.3-inch CMOS sensor: Capture high-quality 4K UHD video with Canon image processing.
• Hybrid AF: Use fast, accurate autofocus with Face, Eye, and Head Detection.
• Optical Image Stabilization: Help keep shots steady when shooting at longer zoom ranges.
• Canon color science: Support Wide DR, Canon Log 3, HDR, HLG, PQ, and EOS Standard/Neutral image modes.
• Built-in Auto Tracking Lite: Automatically track presenters and other subjects with the included tracking functionality.
• NDI|HX2 and SRT: Stream video and control the camera over IP for flexible production workflows.
• 3G-SDI and HDMI: Connect the camera to professional video systems, switchers, and displays.
• USB-C webcam support: Use the camera for web conferencing and other USB video applications.
• PoE++ support: Send power and data over a single network connection for easier installation.
• FreeD support: Integrate the camera into AR and VR production environments with support for multiple destinations.
• Remote camera control: Control pan, tilt, zoom, focus, exposure, and other settings over IP, serial, or IR.
• Vertical crop: Create a separate 9:16 video stream for social media and vertical content.
• Canon software support: Use Canon applications for remote control, multi-camera management, color matching, and production workflows.

Professional 4K PTZ Video with 20x Optical Zoom

The Canon CR-N350 combines a 1/2.3-inch 4K UHD CMOS sensor with Canon's DIGIC DV 7 image processor. As a result, the camera delivers detailed 4K video at up to 60p while providing smooth and responsive PTZ operation.

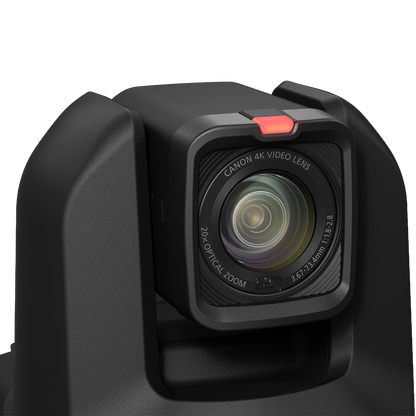

Furthermore, the 20x optical zoom lens provides a 29.3mm to 601mm focal range in 35mm-equivalent terms. Therefore, you can capture both wide shots and detailed close-ups without moving the camera. When shooting in Full HD, the camera also provides up to 40x Advanced Zoom.

Optical Image Stabilization adds another layer of image control. Consequently, the CR-N350 can help produce steady footage, particularly when working at longer focal lengths.

Fast and Accurate Hybrid Autofocus

The CR-N350 uses Canon Hybrid AF, which combines contrast-detection and phase-difference autofocus technology. This helps the camera acquire focus quickly and maintain accurate focus during live productions.

In addition, Face, Eye, and Head Detection helps the camera identify and follow presenters and other subjects. As a result, the CR-N350 is well suited for lectures, presentations, worship services, conferences, interviews, and live events.

Canon Color Science and HDR Support

The CR-N350 delivers Canon's renowned color science for consistent, professional-looking video. Moreover, users can choose from multiple image and HDR options to match different production environments.

The camera supports Wide Dynamic Range, Canon Log 3, HDR HLG, HDR PQ, and EOS Standard/Neutral image modes. Therefore, it can fit into workflows that require either ready-to-use images or additional color grading flexibility.

The CR-N350 also uses oversampling HD processing. Because the camera starts with the information captured by its 4K sensor, it can produce detailed Full HD video for productions that do not require a 4K output.

Smooth PTZ Movement

The CR-N350 features a responsive pan and tilt mechanism with variable movement speeds. Pan and tilt speeds can be adjusted from 0.1° to 100° per second, while presets can reach up to 200° per second for pan and 180° per second for tilt.

Therefore, operators can create smooth camera movements for live production. In addition, thumbnail images can be assigned to presets and recorded trace movements, making it easier to identify and recall specific shots.

NDI|HX2, SRT, SDI, HDMI, and IP Connectivity

The Canon CR-N350 provides a wide range of professional video and networking connections. For example, it supports 3G-SDI, HDMI, NDI|HX2, SRT, RTMP/RTMPS, RTP/RTSP, and USB video.

Because the camera supports NDI|HX2 and PoE++, users can simplify network-based production setups. A single network connection can provide power, video, audio, tally, and IP camera control.

Additionally, SRT support includes adaptive bitrate functionality. This makes the CR-N350 a flexible choice for IP video production and live streaming workflows.

Built-In Auto Tracking Lite

The CR-N350 includes Auto Tracking Lite, a free version of Canon's Auto Tracking Application. It provides basic automatic subject tracking directly from the camera.

As a result, presenters can move around a stage or presentation area while the camera works to maintain their position in the frame. For productions that require more advanced tracking controls, Canon also offers a paid Auto Tracking Application.

FreeD for AR and VR Production

The CR-N350 supports FreeD for integration with augmented reality and virtual production systems. Furthermore, FreeD supports multiple destinations, making the camera suitable for more advanced studio and event workflows.

This connectivity allows the camera to become part of larger AR, VR, and virtual production environments rather than operating as a standalone PTZ camera.

USB Webcam and Video Conferencing Support

In addition to professional video outputs, the CR-N350 supports USB Video Class (UVC). Therefore, you can connect the camera to a computer and use it for video conferencing and other webcam applications.

The camera can deliver up to Full HD 1920 x 1080 video at 60fps over USB. Consequently, the same PTZ camera can support both professional video production and everyday communication workflows.

Remote Camera Control

The CR-N350 can be controlled remotely using IP, serial, or IR connections. It also supports Canon's XC protocol and standard control protocols for easier integration with third-party production hardware.

Moreover, Canon's free Remote Camera Control Application can operate up to 20 PTZ and professional video cameras over IP. Operators can preview multiple cameras and adjust settings such as pan, tilt, zoom, focus, and exposure directly from a computer.

For larger installations, Canon's Multi-Camera Management Application can monitor and manage up to 200 cameras. It can also support device backups, registration, firmware updates, and multi-camera management.

Canon Multi-Camera Control App

The free Canon Multi-Camera Control App provides another convenient way to operate compatible Canon cameras. Using an iPhone or iPad, operators can control functions such as pan, tilt, zoom, focus, iris, ISO, shutter, white balance, and custom picture profiles over a network.

Therefore, the CR-N350 can be controlled from a dedicated hardware controller, computer, mobile device, or other compatible production system.

Vertical Video for Social Media

The CR-N350 includes a vertical crop mode for social media and other portrait-oriented content. Instead of creating a separate camera setup, users can generate a 9:16 stream from the main video output and adjust the crop in real time.

As a result, the camera can support both traditional 16:9 productions and modern vertical video workflows.

Add-On Applications

Canon's Add-On Application System allows compatible paid applications to be installed directly on the camera. Consequently, certain advanced production functions can run without requiring an external computer.

Available applications include Auto Tracking and Auto Loop. The Auto Loop Application can automate programmed pan, tilt, and zoom movements, while its fade mode can create smoother starts and stops.

Flexible PTZ Camera for Professional Production

Overall, the Canon CR-N350 4K PTZ camera is built for productions that need high-quality video, powerful zoom, flexible connectivity, and remote camera control. Whether you are producing live events, education content, corporate presentations, worship services, broadcasts, or streamed productions, the CR-N350 provides a versatile PTZ workflow.

With 4K 60p video, 20x optical zoom, Hybrid AF, Optical Image Stabilization, NDI|HX2, SRT, 3G-SDI, HDMI, USB, PoE++, FreeD, Auto Tracking Lite, and extensive remote-control options, the Canon CR-N350 is designed to integrate into a wide range of professional video production environments.

Camera

• Color Options: Satin Black / Titanium White
• Image Sensor
  • 1/2.3-inch, CMOS (single board)
  • Total pixels: approx. 21.14 megapixels
  • 29.97/25.00/23.98 Hz effective pixels: approx. 8.29 megapixels (3840 x 2160)
  • 59.94/50.00 Hz effective pixels: approx. 7.88 megapixels (3744 x 2104)

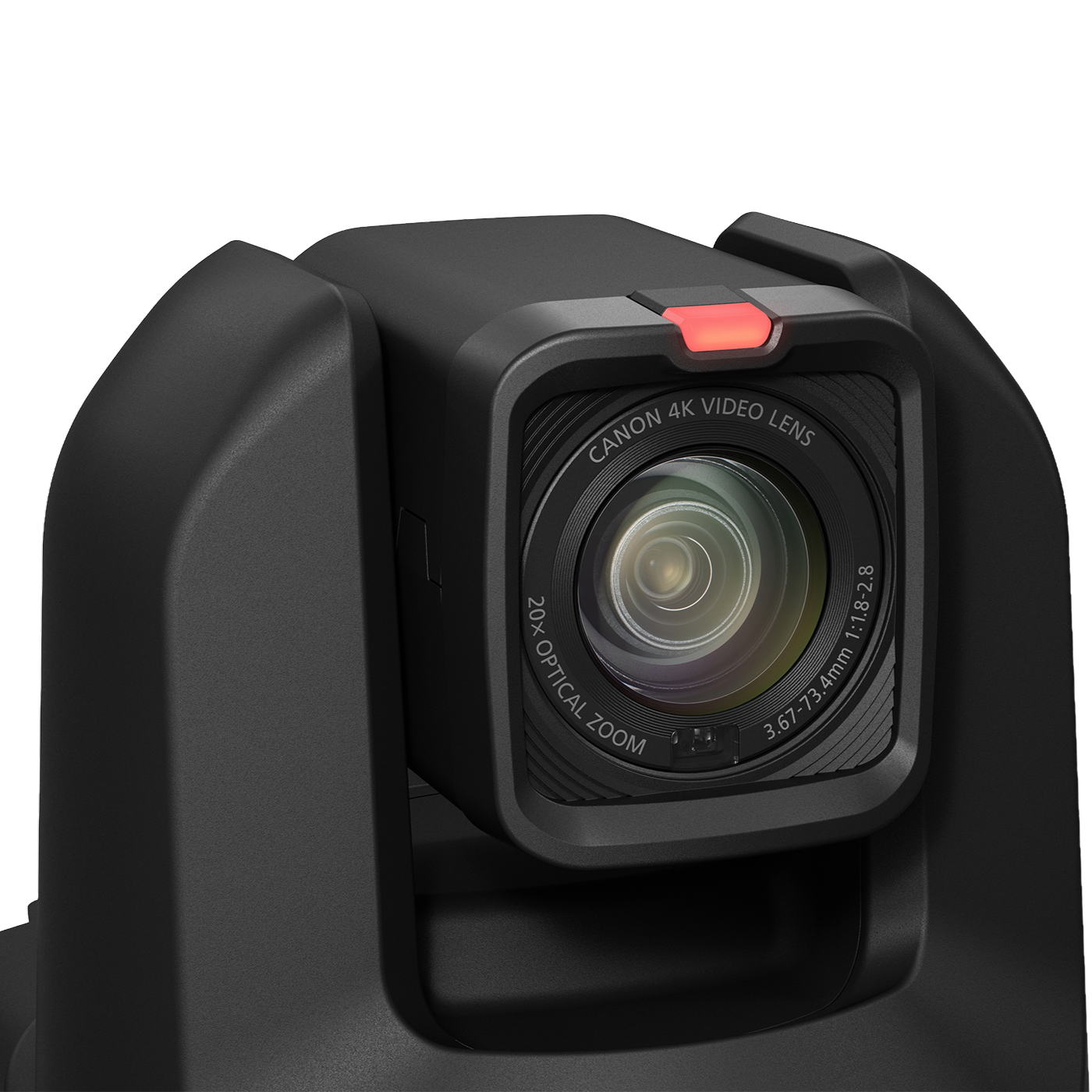

• Lens
  • f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed iris diaphragm
  • 59.94/50 Hz 35mm equivalent focal length: approx. 30mm (W) – 616 mm (T)
  • 29.97/25.00/23.98 Hz 35mm equivalent focal length: approx. 29.3mm (W) – 601 mm (T)
• Zoom
  • Optical: 20x
  • Digital: 20x
  • Advanced Zoom (Full HD): 40x
• Lens Configuration: 10 groups of 12 lenses (two aspherical lenses used)
• Minimum Focusing Distance: 1 cm at wide end, 60 cm across entire zooming range
• Angle of View: 59.94/50.00 Hz Horizontal: 63.3 (W) – 3.5° (T) - Vertical: 38.9° (W) – 2.0° (T)
• 29.97/25.00/23.98 Hz Horizontal: 65.6 (W) – 3.6° (T) - Vertical: 39.8° (W) – 2.0° (T)
• Shutter Speed: 1/3 – 1/2000 sec. (specific values depend on the frame frequency)
• Iris: Manual/Automatic aperture
• Gain: 0.0 db - 36.0 db
• ND Filter: Built-in (1/8 at maximum, gradation ND), motor operated
• White Balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), color temperature setting (2,000 K – 15,000 K), Manual
• Focus mode:
  • Manual
  • Continuous AF
  • Face Detection & Tracking
  • Face only AF
  • Eye Detection
• AF type: Hybrid AF, Contrast AF
• Gamma: BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, HDR (PQ), HDR(HLG)
• Image Stabilizer: Optical
• Min. Subject Illumination
  • Frame frequency 59.94/29.97 Hz:
  • Approx. 3 lux (at shutter speed 1/60 sec, frame rate 59.94P, gain 30.0 dB)
  • Approx. 1.5 (at shutter speed 1/30 sec, frame rate 59.94P, gain 30.0 dB)
  • Frame frequency 50.00/25.00 Hz:
  • Approx. 2.5 lux (at shutter speed 1/50 sec, frame rate 50.00P, gain 30 dB)
  • Approx. 1.3 lux (at shutter speed 1/25 sec, frame rate 50.00P, gain 21 dB)
  • *All of the above are when high sensitivity mode is set to On
• Pan and Tilt
  • Pan operation range: Horizontal ±170°
  • Pan operation speed: 0.1° – 100°/sec. (Up to 200°/sec. with presets)
  • Tilt operation range: Vertical -30° – +100°
  • Tilt operation speed: 0.1° – 100°/sec. (Up to 180°/sec. with presets

Video Output Format

• 3G-SDI:
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
• HDMI
  • 3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
  • 720x576: 50.00P (4:2:2 10bit)
  • 720x480: 59.94P (4:2:2 10bit)
• IP
  • 3840 x 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 1920 x 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
• Supported Video and Control Protocols
  • Protocol: XC Protocol, RTSP/RTP, NDI HX2, RTMP/RTMPS, Standard Communication (Serial),
  • Standard Communication (IP), FreeD, SRT
• Number of Presets: Max. 100 (including home position)

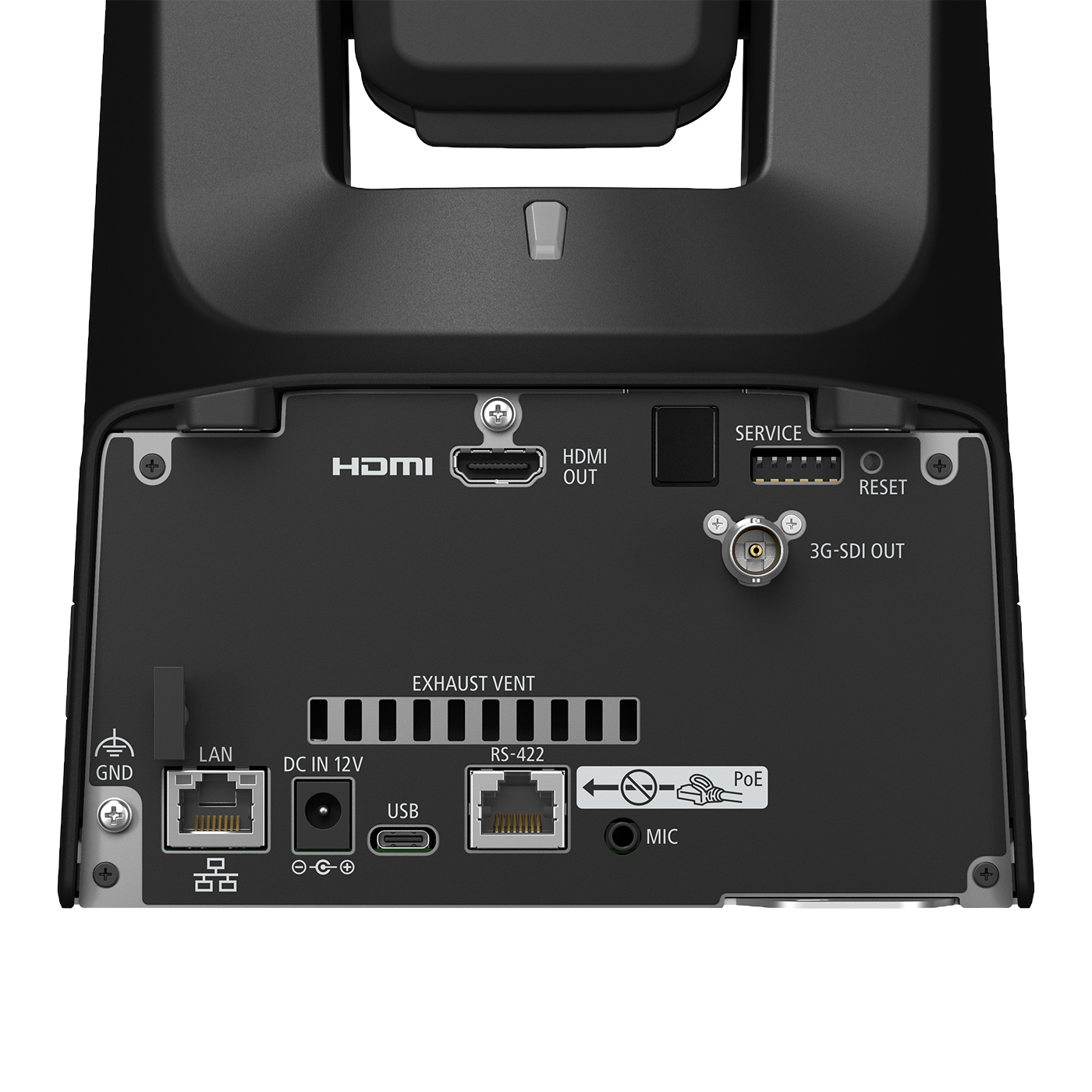

Interface

• Communication Control:LAN, Wi-Fi, Serial, IR, USB
• Network Terminal LAN x 1, RJ45, 1000Base-T
• 3G-SDI OUT Terminal
  • BNC jack x1 3G-SDI, 0.8 Vp-p/75 Ω
  • SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST
  • 272, SMPTE ST 299 compliant
  • Embedded audio, Time code (VITC/LTC)
• HDMI OUT Terminal: HDMI connector x 1, output only
• RS-422 Terminal: RJ45 connector x 1
• Mic Terminal
  • ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported)
  • Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB
  • Sensitivity (LINE): -12 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more
  • Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ

Other

• Operating Environment:
  • Temperature: 0°C – +40°C (+32°F – +104°F)
  • Humidity: 10% – 90% (without condensation)
• Storage Environment:
  • Temperature: 0°C – +40°C (+32°F – +104°F)
  • Humidity: 10% – 90% (without condensation)
• Power Supply:
  • PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
  • External power source: 12 V DC Terminal
• Power Consumption:
  • PoE++ Input: Approx. 26.1 W max. (body only)
  • DC Input: Approx. 23.6 W max. (body only)
• Quietness: NC35 or lower
• Dimensions (W x H x D): Approx. 176 x 220 x 194 mm (6.93 x 8.66 x 7.64 in.) (excluding protrusions)
• Weight:  Approx. 3.0 kg (6.6 lb.) (body only)
• Supported Controllers
  • Hardware: RC-IP100, RC-IP1000
  • Software: Remote Camera Control Application, Mulit-Camera Control Application, Multi-Camera
  • Management Application, Camera Search tool

• Canon CR-N350 PTZ Camera
• IR Remote Control
• Mounting Bracket with Screw
• Safety Wire with Screw
• Camera-to-Mount Safety Wire with Screw
• IR Remote Controller
• 2 x AAA Battery
• AC Adapter
• Power Cable
• Warranty: Limited 1-Year Manufacturer Warranty
