Canon 3x CR-N350 PTZ Cameras with RC-IP100 Controller Bundle (Black)

Canon 3x CR-N350 4K PTZ Cameras with RC-IP100 Controller Bundle

Why Choose the Canon CR-N350 3-Camera Bundle?

This Canon 3x CR-N350 PTZ Camera and RC-IP100 Controller Bundle works well for professional multi-camera productions because it combines three matching 4K PTZ cameras with centralized camera control. As a result, operators can create wide, medium, and close-up shots while managing all three cameras from one location. In addition, the CR-N350 cameras provide 4K 60p video, 20x optical zoom, Hybrid AF, NDI|HX2, SRT, SDI, HDMI, and IP connectivity. Meanwhile, the RC-IP100 provides precise pan, tilt, and zoom control. Therefore, this bundle is a practical solution for broadcast, live streaming, education, houses of worship, corporate video, and events.

• 3x Canon CR-N350 4K PTZ cameras
• 1x Canon RC-IP100 PTZ controller
• Centralized control for multi-camera production
• 4K 60p video and 20x optical zoom
• NDI|HX2, SRT, 3G-SDI, HDMI, USB, and IP connectivity
• PoE++ support for simplified installation
• Built-in Auto Tracking Lite
• Professional Canon color science
• Ideal for live streaming, broadcast, education, worship, corporate, and event production

Canon CR-N350 4K PTZ Camera

The Canon CR-N350 is a professional 4K PTZ camera designed for high-quality live production and streaming. It combines a 1/2.3-inch CMOS sensor with Canon's DIGIC DV 7 processor to deliver detailed 4K video at up to 60p. Furthermore, its 20x optical zoom, Hybrid AF, Optical Image Stabilization, and Auto Tracking Lite provide flexible camera operation. Meanwhile, NDI|HX2, SRT, 3G-SDI, HDMI, USB, and IP connectivity make the CR-N350 easy to integrate into both traditional and IP-based production systems.

• 4K UHD video up to 60p
• 1/2.3-inch CMOS sensor
• DIGIC DV 7 image processor
• 20x optical zoom
• Up to 40x Advanced Zoom in Full HD
• Hybrid AF with Face, Eye, and Head Detection
• Optical Image Stabilization
• Canon Log 3, Wide DR, HLG, and PQ support
• Built-in Auto Tracking Lite
• NDI|HX2 and SRT support
• 3G-SDI, HDMI, USB, and IP video output
• PoE++ support
• FreeD support for AR, VR, and virtual production
• 9:16 vertical crop for social media
• Remote control over IP, serial, or IR

Canon RC-IP100 PTZ Controller

The Canon RC-IP100 is a professional PTZ camera controller designed to provide centralized control of compatible Canon cameras. Its joystick and touchscreen interface allow operators to smoothly manage pan, tilt, zoom, focus, and other camera functions from a single location. Therefore, the RC-IP100 is an excellent choice for multi-camera studios, live streaming, broadcast, education, houses of worship, corporate production, and events.

• 7-inch touchscreen display
• Professional joystick for precise pan and tilt control
• Dedicated zoom controls
• Centralized control of compatible Canon PTZ cameras
• IP-based camera control
• Smooth and precise pan, tilt, and zoom operation
• Designed for multi-camera production workflows
• Ideal for broadcast, live streaming, education, worship, corporate, and event production

Camera

• Color Options: Satin Black / Titanium White
• Image Sensor
  • 1/2.3-inch, CMOS (single board)
  • Total pixels: approx. 21.14 megapixels
  • 29.97/25.00/23.98 Hz effective pixels: approx. 8.29 megapixels (3840 x 2160)
  • 59.94/50.00 Hz effective pixels: approx. 7.88 megapixels (3744 x 2104)
• Lens
  • f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed iris diaphragm
  • 59.94/50 Hz 35mm equivalent focal length: approx. 30mm (W) – 616 mm (T)
  • 29.97/25.00/23.98 Hz 35mm equivalent focal length: approx. 29.3mm (W) – 601 mm (T)
• Zoom
  • Optical: 20x
  • Digital: 20x
  • Advanced Zoom (Full HD): 40x
• Lens Configuration: 10 groups of 12 lenses (two aspherical lenses used)
• Minimum Focusing Distance: 1 cm at wide end, 60 cm across entire zooming range
• Angle of View: 59.94/50.00 Hz Horizontal: 63.3 (W) – 3.5° (T) - Vertical: 38.9° (W) – 2.0° (T)
• 29.97/25.00/23.98 Hz Horizontal: 65.6 (W) – 3.6° (T) - Vertical: 39.8° (W) – 2.0° (T)
• Shutter Speed: 1/3 – 1/2000 sec. (specific values depend on the frame frequency)
• Iris: Manual/Automatic aperture
• Gain: 0.0 db - 36.0 db
• ND Filter: Built-in (1/8 at maximum, gradation ND), motor operated
• White Balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K),
• color temperature setting (2,000 K – 15,000 K), Manual
• Focus mode:
  • Manual
  • Continuous AF
  • Face Detection & Tracking
  • Face only AF
  • Eye Detection
• AF type: Hybrid AF, Contrast AF
• Gamma: BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, HDR (PQ), HDR(HLG)
• Image Stabilizer: Optical
• Min. Subject Illumination
  • Frame frequency 59.94/29.97 Hz:
  • Approx. 3 lux (at shutter speed 1/60 sec, frame rate 59.94P, gain 30.0 dB)
  • Approx. 1.5 (at shutter speed 1/30 sec, frame rate 59.94P, gain 30.0 dB)
  • Frame frequency 50.00/25.00 Hz:
  • Approx. 2.5 lux (at shutter speed 1/50 sec, frame rate 50.00P, gain 30 dB)
  • Approx. 1.3 lux (at shutter speed 1/25 sec, frame rate 50.00P, gain 21 dB)
  • *All of the above are when high sensitivity mode is set to On
• Pan and Tilt
  • Pan operation range: Horizontal ±170°
  • Pan operation speed: 0.1° – 100°/sec. (Up to 200°/sec. with presets)
  • Tilt operation range: Vertical -30° – +100°

  • Tilt operation speed: 0.1° – 100°/sec. (Up to 180°/sec. with presets





Video Output Format

• 3G-SDI:
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
• HDMI
  • 3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
  • 720x576: 50.00P (4:2:2 10bit)
  • 720x480: 59.94P (4:2:2 10bit)
• IP
  • 3840 x 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 1920 x 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)

• Supported Video

  and Control Protocols

  • Protocol: XC Protocol, RTSP/RTP, NDI HX2, RTMP/RTMPS, Standard Communication (Serial),
  • Standard Communication (IP), FreeD, SRT
• Number of Presets: Max. 100 (including home position)

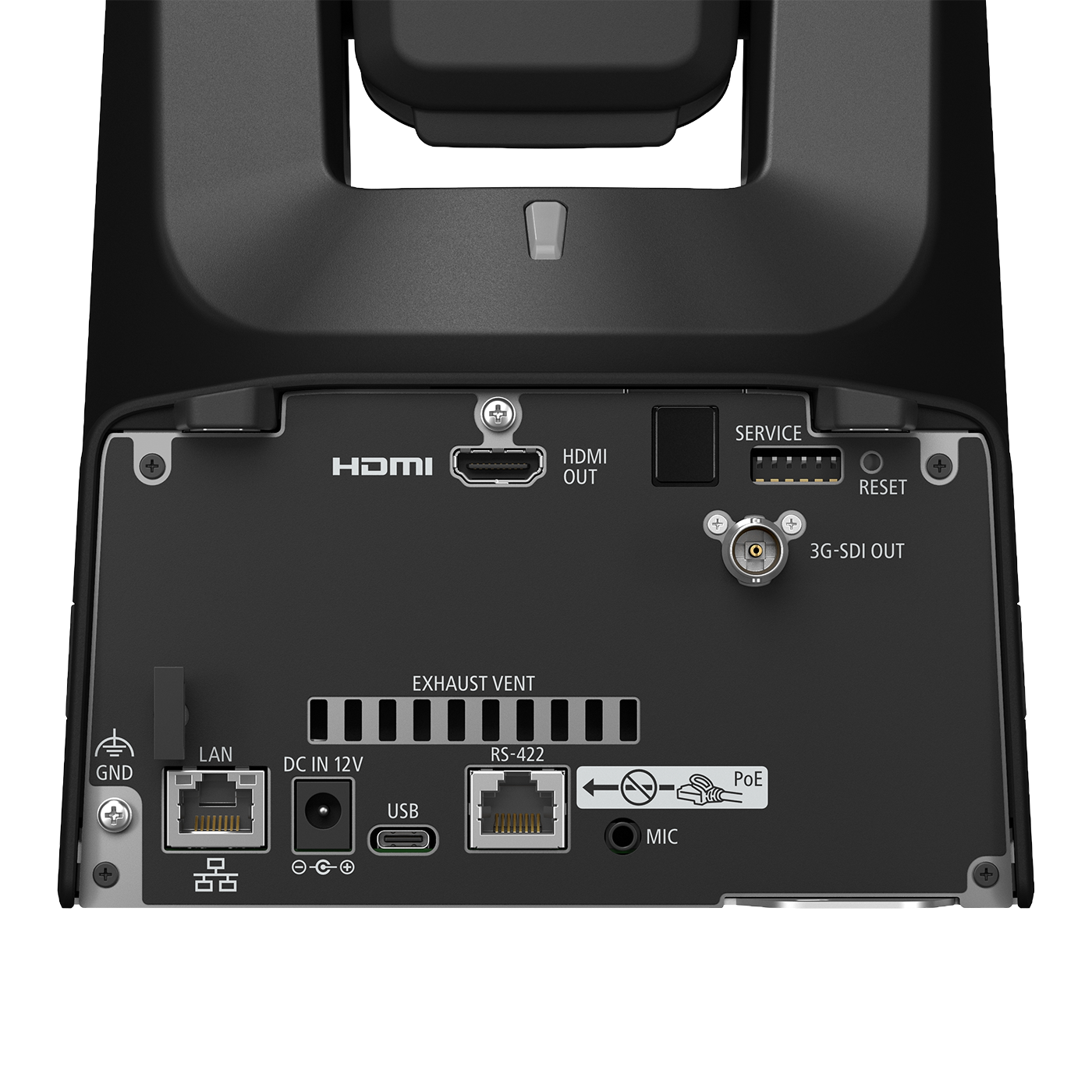

Interface

• Communication Control:LAN, Wi-Fi, Serial, IR, USB
• Network Terminal LAN x 1, RJ45, 1000Base-T
• 3G-SDI OUT Terminal
  • BNC jack x1 3G-SDI, 0.8 Vp-p/75 Ω
  • SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST
  • 272, SMPTE ST 299 compliant
  • Embedded audio, Time code (VITC/LTC)
• HDMI OUT Terminal: HDMI connector x 1, output only
• RS-422 Terminal: RJ45 connector x 1
• Mic Terminal
  • ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported)
  • Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB
  • Sensitivity (LINE): -12 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more
  • Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ

Other

• Operating Environment:
  • Temperature: 0°C – +40°C (+32°F – +104°F)
  • Humidity: 10% – 90% (without condensation)
• Storage Environment:
  • Temperature: 0°C – +40°C (+32°F – +104°F)
  • Humidity: 10% – 90% (without condensation)
• Power Supply:
  • PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
  • External power source: 12 V DC Terminal
• Power Consumption:
  • PoE++ Input: Approx. 26.1 W max. (body only)
  • DC Input: Approx. 23.6 W max. (body only)
• Quietness: NC35 or lower
• Dimensions (W x H x D): Approx. 176 x 220 x 194 mm (6.93 x 8.66 x 7.64 in.) (excluding protrusions)
• Weight:  Approx. 3.0 kg (6.6 lb.) (body only)
• Supported Controllers
  • Hardware: RC-IP100, RC-IP1000
  • Software: Remote Camera Control Application, Mulit-Camera Control Application, Multi-Camera
  • Management Application, Camera Search tool

• 3x Canon CR-N350 PTZ Camera
  • IR Remote Control
  • Mounting Bracket with Screw
  • Safety Wire with Screw
  • Camera-to-Mount Safety Wire with Screw
  • IR Remote Controller
  • 2 x AAA Battery
  • AC Adapter
  • Power Cable
  • Warranty: Limited 1-Year Manufacturer Warranty
• 1x Canon RC-IP100 Touchscreen PTZ Joystick Controller
  • AC Adapter
  • Warranty: Limited 1-Year Manufacturer Warranty
