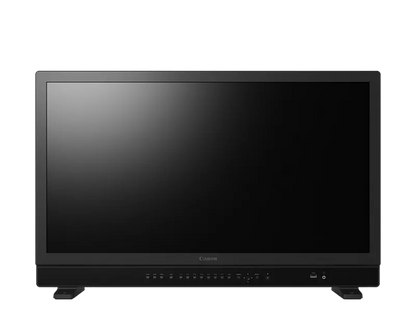

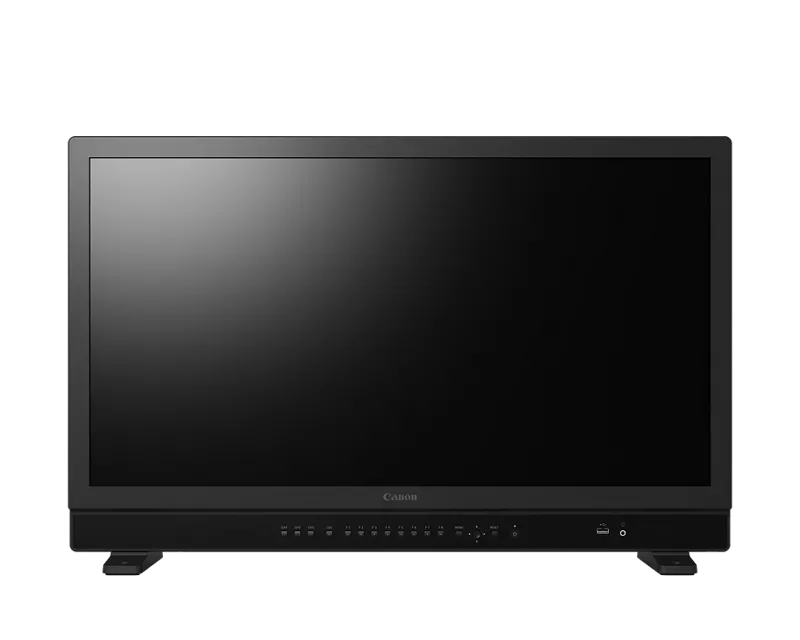

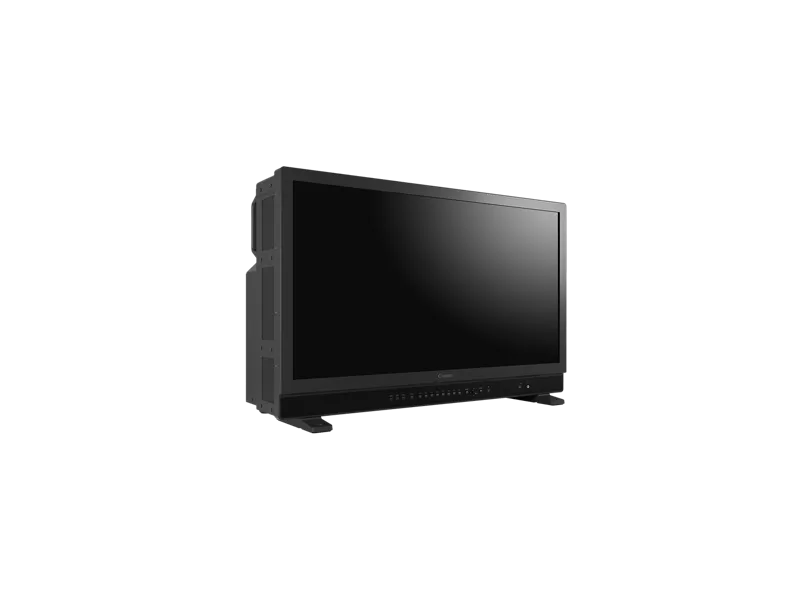

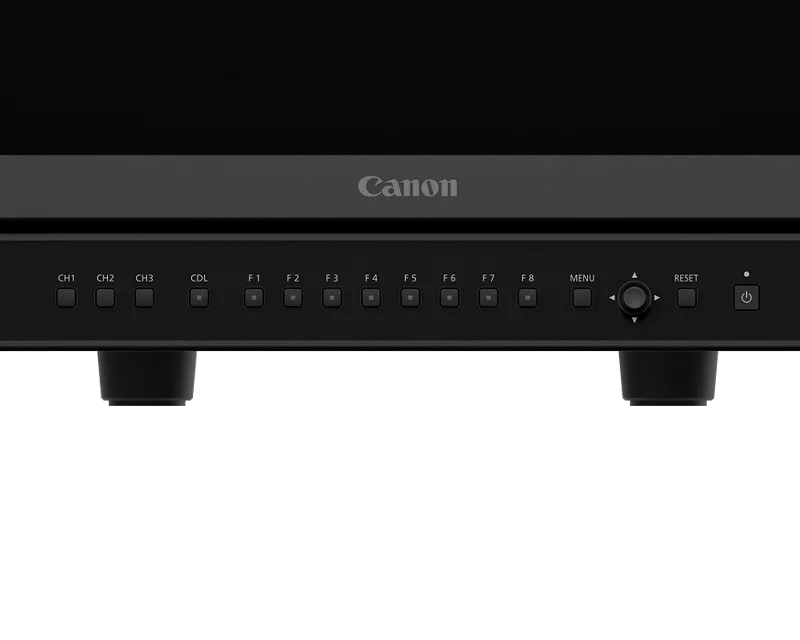

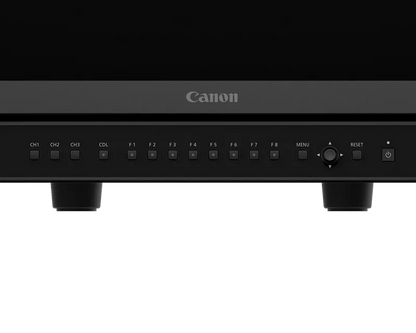

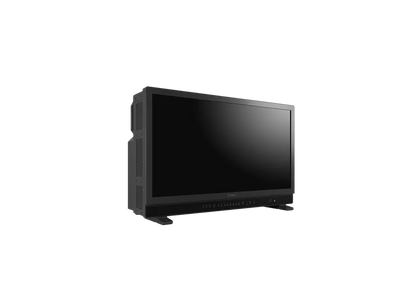

Canon DP-V3120 31" 4K Reference Display
Canon DP-V3120 31" 4K Reference Display
Canon DP-V3120 31" 4K Reference Display
Canon DP-V3120 31" 4K Reference Display

Canon DP-V3120 31" 4K Reference Display

Regular price $38,000.00 Sale price$31,999.00
Free Shipping & Tech Support.

Videoguys Part # (SKU): DPV3120
MFR Part # (MPN): 4274C002
Short Description:

Canon DP-V3120 31" 4K Reference Display

The DP-V3120 is a 31-inch LCD panel that provides excellent accuracy and color fidelity with edge-to-edge consistency and minimal color shifting. Capable of 4096 x 2160 pixels to meet high standards, the DP-V3120 exceeds Dolby Vision requirements.


  • 31-inch 4K HDR Reference Display
  • 2,000-nit HDR Peak Edge-to-edge Luminance, 0.001-nit Full-screen Black Level (2,000,000:1 Contrast Ratio)
  • Exceeds the requirements for Dolby Vision Certified facilities
  • Quiet Operation
  • 12G-SDI with support for HD/4K/8K Workflows
  • Award-winning HDR Toolkit
  • ACES Support
  • 89° Wide Viewing Angle
  • Dual Screen and Quad View
  • Remote Control by Wi-Fi/LAN Connection
  • Optimized for use with Cinema EOS System
  • Support for third party camera systems
  • ACES 1.0.1 Support


Quiet Operation. No Distractions.
The aluminum frame and fan system maintain exceptionally quiet operation, even during prolonged use, so you can fully concentrate on the work. Compatible cameras can operate efficiently when connected and automatically engage the display's shutdown mode for a period of time during recording — the display is also fully compatible with the Cinema EOS System.


Superb Image Quality with Canon's DP-V3120 4K Reference Monitor
First in its class to deliver a 10-bit color, peak 2,000-nit edge-to-edge brightness and 0.0001-nit full-screen black level, the DP-V3120 delivers ultra-low black level with an impressive 2,000,000:1 contrast ratio. It was made as an ideal choice for imaging professionals, and its bright areas are clearer and truer-to-life with superb image quality, accuracy and reliability.


Industry Standard HD, 4K or 8K
The display has a 12G-SDI interface that includes four inputs and four pass-through outputs, supporting HD, 4K and 8K workflows. Each 12G terminal supports signals up to 4K 60P, and all terminals can be combined to accept signals up to 8K 60P*. The DP-V3120 Reference Display supports the next generation plug-and-play ACES standard (ACES2065-1) from the Academy of Motion Picture Arts and Sciences (AMPAS).


Varied Views for Precise Results
Canon's 4K reference monitor has a complete viewing angle of 89°. The display also minimizes color, brightness and contrast to improve accuracy with an IPS panel, anti-glare coating and filtering layers. The DP-V3120 can use up to four input signals to display the signals side-by-side for multi-view monitoring, camera and image information for settings checks from multiple cameras, different LUTs and SDR vs. HDR.


Sophisticated Toolkit for Discerning Image Makers
Canon’s HDR Toolkit is standard on the DP-V3120 — it provides support for HDR compatible tools like a waveform monitor, vectorscope, histogram, false-color, frame luminance monitor, pixel vale checker, out of gamut display, over-range detection and side-by-side display.


Optimized for a Dazzling System
The DP-V3120 is optimized for the Cinema EOS System with support for Cinema RAW and Canon Log formats. Creators can check focus, angle-of-view and other attributes with a display connection. Metadata is next to the image for convenience on set or in post, as are color temperature, f-value, I/P/PsF and camera status. Third-party support for ARRI, Panasonic LUTs, Log C, V-Log and HDR support can be preinstalled.


Color Calibration Services
Canon USA is now offering a comprehensive display color calibration service. Whether you operate in the film, post-production, broadcast, corporate or educational world, our goal is the same: to help ensure image fidelity.. This service supports both standard and high dynamic range (HDR) workflows, and ensures your device meets industry standard specifications (SMPTE, DCI, and ITU). To learn more, please click here.


Introducing the Canon DP-V3120 4K Reference Display
Canon’s 31-inch DP-V3120 4K Reference Display was designed to meet the unique set of challenges that come with HDR production. Featuring an incredible peak 2000-nit edge-to-edge luminance and 0.001-nit full-screen black level, the DP-V3120 exceeds the requirements for Dolby Vision™ certified facilities. It is an exceptional choice when seeking superb image quality, accuracy, and reliability.



Panel Type

  • IPS LCD panel

Screen Size

  • 31.1 inch (79.0 cm)

Aspect Ratio

  • 17:9


  • 4096 x 2160 (8.8 Megapixels)

Active Display Area

  • Approx. 27.5 x 14.5 in. (698.0 x 368.1 mm)

Pixel Pitch

  • 132 μm/193 ppi


Image Quality


  • Standard: 100 cd/m 2
  • Peak, full screen white: 2,000 cd/m 2


Viewing Angle (Up, Down, Left, Right)

  • 89° (contrast ratio 10:1 or higher)

Surface Treatment

  • Anti-glare coating



Backlight Type

  • LED, Matrix Array


  • Rated voltage: 100 - 240 V AC
  • Rated Frequency: 50/60 Hz

Power Consumption

  • At maximum load (including change in brightness through aging): Approx. 510 W
  • At factory shipment: Approx. 180 W

Environmental Conditions

  • Operating
    Temperature and humidity: 41—95°F (5—35°C) (20–85% RH no condensation)
    Recommended: 59—86°F (15—30°C) (20–80% RH no condensation)
    Pressure: 700—1060 hPa
  • Storage/Transporting
    Temperature and humidity: -4—104°F (-20—40°C) (10–85% RH no condensation) 106—140°F (41—60°C) (10–30% RH no condensation)
    Pressure: 700—1060 hPa

Dimensions (Width x Height x Depth)

  • Including handle: Approx. 29 x 19 x 13 in. (749 x 492 x 335 mm)
  • Display unit only, without protruding parts: Approx. 29 x 19 x 12 in. (749 x 470 x 295 mm)


  • Approx. 68 lb. (31 kg)

Mounting Hole Pitch

  • VESA standard 7.9 x 3.9 in. (200 x 100 mm)

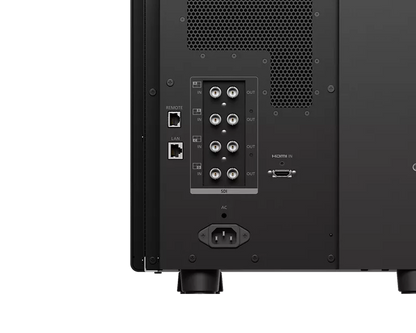

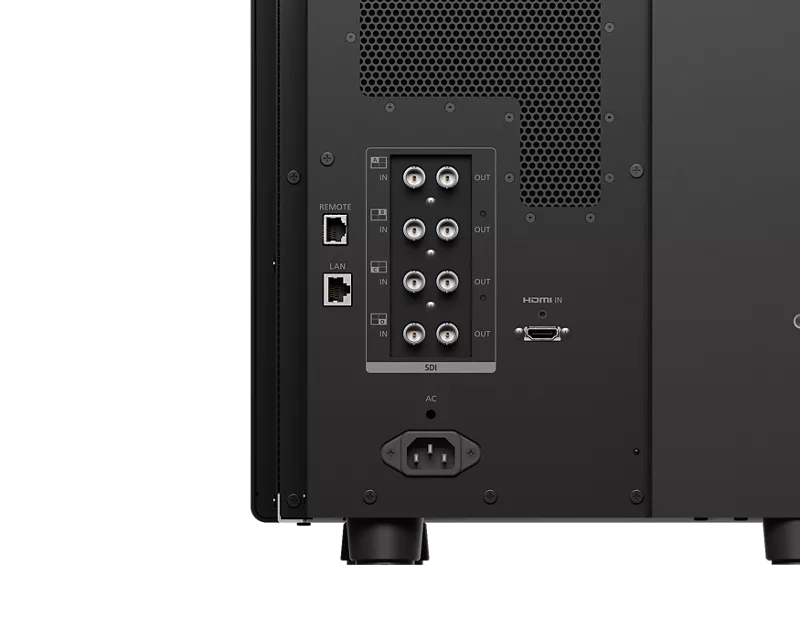

Interface: Input

12G/6G/3G/HD/SD- SDI

  • 4 (1 channel) BNC (75 Ω) receptacle terminal


  • 1 (1 channel) Type A terminal
  • Copy protection: HDCP 2.2


Interface: Output


  • 4 (1 pass-thru 1 channel)


  • 1 stereo mini-jack (supported impedance: 32—64 Ω)


Interface: Control


  • 1 USB A terminal
  • Universal Serial Bus Specification Revision 2.0 compliant
  • LS (Low Speed)/FS (Full Speed)/HS (High Speed) mode compatible
  • Enhanced Host Controller Interface Specification for Universal Serial Bus Revision
  • 1.0 compliant


  • 1 RJ-45 terminal
  • IEEE802.3 10BASE-TX compliant IEEE802.3u 100BASE-TX compliant


  • 1 RJ-45 terminal, GPI 8 pin
