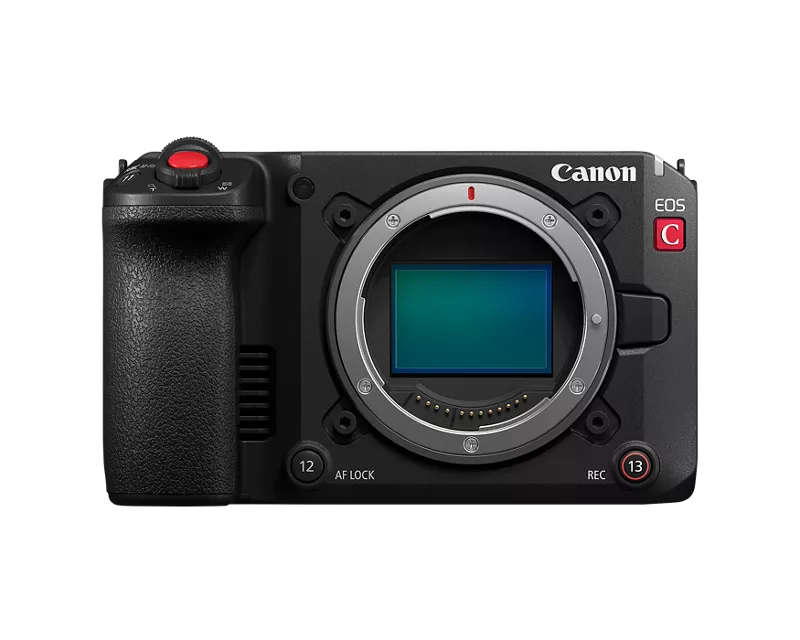

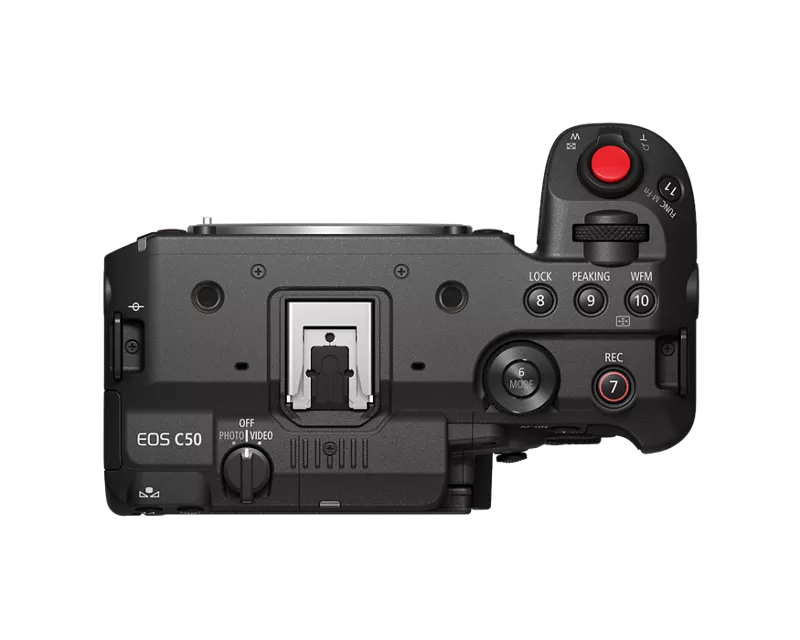

Canon EOS C50 Camera Body

The Canon EOS C50 Camera is designed to maximize creative freedom. The compact, full-featured camera body includes Canon's newly developed 7K full frame CMOS sensor with 3:2 open gate internal recording capabilities, 4K/120P and Cinema RAW Light up to 7K/60P. The EOS C50 features Canon’s next-generation Dual Pixel CMOS AF II, simultaneous 2K crop recording, built-in Frame.io Camera-to-Cloud integration, and supports XC protocol which allows for remote control over IP via Wi-Fi or a compatible third-party USB-C ethernet adapter. The included detachable top handle adds two full-size XLR audio inputs, a start-stop button, and a zoom rocker. In addition, this camera can capture 32MP still images in Photo mode. The Canon EOS C50 seamlessly integrates into almost any production environment, delivering flexibility and outstanding image quality in a package that practically fits in the palm of your hand.

Newly Developed 7K Full Frame CMOS Sensor
The EOS C50 features a newly developed 7K full-frame CMOS sensor. The sensor offers exceptionally low noise, enabling it to excel in a wide variety of lighting situations and maximizing the camera’s full dynamic range. The high resolution and realism of 7K enable richer creative expression as well as greater flexibility in workflows, including oversampled 4K 60P.

Full Frame 3:2 “Open Gate” Sensor Mode
The EOS C50 is the first Cinema EOS camera to feature open gate recording options, utilizing the full dimensions of the sensor. By selecting Full Frame 3:2 from the Sensor Mode section of the main menu, you can shoot using the full area of the sensor and then use that information in post to crop and re-frame your footage to the aspect ratio of your choice. This is especially valuable when shooting with full-frame anamorphic lenses.

Support for Anamorphic Lens Desqueeze
Anamorphic lenses have an elongated rear element that makes it possible to utilize flare and bokeh effects that cannot be achieved with ordinary lenses. The EOS C50 provides desqueeze magnification options, including OFF/2x/1.8x/1.5x/1.3x.

Canon EOS C50 Camera Body Dual Base ISO
The full-frame 7K sensor of the EOS C50 offers dual base ISO, which allows the camera to deliver stunning imagery in a wide range of lighting conditions. With base ISOs of 800 and 6400 in Canon Log 2, you will be able to maximize the full dynamic range of the sensor in almost any shooting scenario. The camera also features Auto Selection, which automatically switches from one of the two base ISO levels to another level while maintaining the dynamic range.

7K 60P Internal RAW Recording and 4K 120P High Frame Rate Recording
The EOS C50 can record up to 7K 60P Cinema RAW Light with an additional three 12-bit Cinema RAW Light recording modes: HQ, ST and LT.

Other recording options include our standard XF-AVC codec which can record in 10-bit 4:2:2, creating rich detail and smooth imagery at frame rates up to 120P, without cropping the image from the sensor. For slow or fast motion recording, the EOS C50 can support up to 4K 120P and 2K 180P.

Additionally, the C50 features the XF-AVC S and XF-HEVC S recording codecs. These formats feature an easy-to-manage naming system and folder structure, while recording in the familiar MP4 format and preserving metadata.

High Frame Rate Recording with Auto Focus and Subject Detection
The camera’s Dual Pixel CMOS AF II enables you to keep your subject in focus during slow or fast shooting at speeds up to 4K/120P or 2K/150P. This will help to ensure that even at high frame rates, your subject will remain in clear focus.

Simultaneous Crop Recording
When shooting for social media, an added benefit of the camera is that it allows for simultaneous crop recording when shooting in 4K DCI or UHD, allowing you to record at your chosen aspect ratio while also recording a cropped portion of the frame in 2K. When shooting in simultaneous crop mode, you have up to three format options, depending on your shooting mode: 9:17, 9:16, or 1:1. This will help to reduce turnaround time when formatting videos for different deliverables.

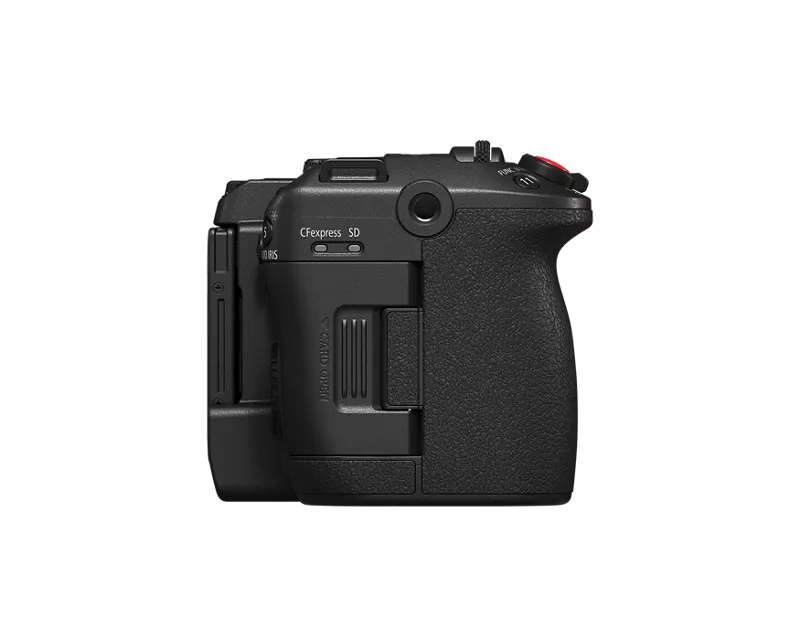

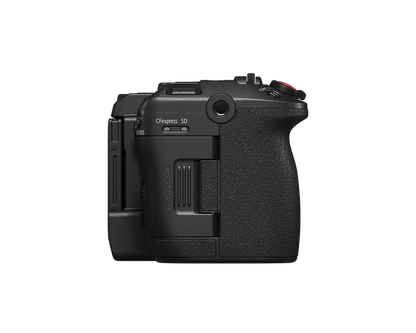

Dual Card Slots
CFexpress (type B) and SD card slots on the EOS C50 allow for simultaneous recording even when shooting RAW. All recording options are recorded to the camera’s CFexpress slot with sub-recording and proxy options available on the SD card slot.

Dual Pixel CMOS AF II
The EOS C50 supports the next generation of Canon’s acclaimed Dual Pixel CMOS Autofocus, Dual Pixel CMOS AF II. The camera’s sensor provides superb light-capturing efficiency, widening the area of the sensor that can be used for AF to approximately 100% by 100%.

The subject detection algorithm utilizes deep learning technology. The face/eye detection can now be set with either left or right eye priority in both humans and animals. Additionally, the animal detection AF now also includes birds.

Vertical Shooting UI
When shooting vertically, the display on the Canon EOS C50 Camera can be switched to a UI that supports vertical shooting. It also supports touch controls for recording start/stop from the vertical screen mode.

Along with the shooting UI, menu settings and LCD brightness adjustments are also reoriented for vertical shooting to provide an easy-to-read layout.

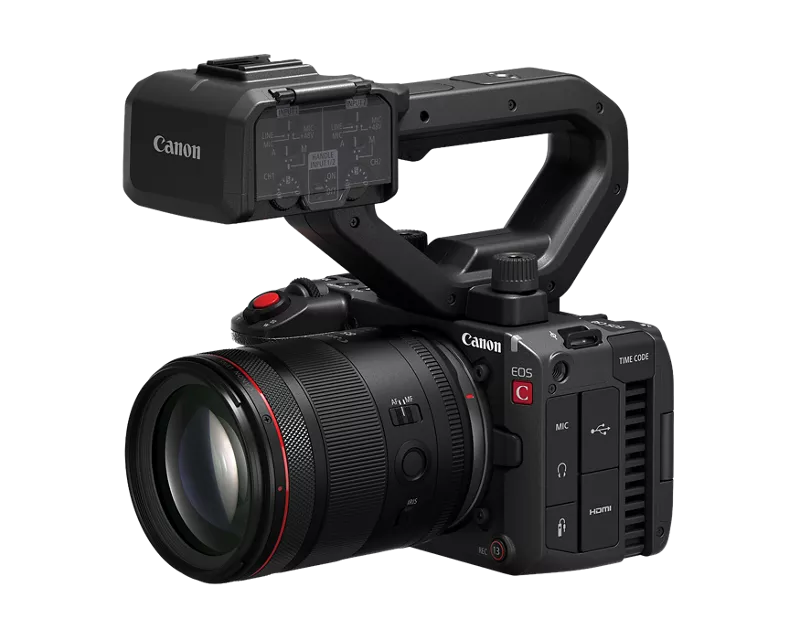

Light and Compact Body Design Including Detachable Handle with Built-in XLR Inputs, REC and Zoom Control
The EOS C50 is the smallest and lightest Cinema EOS camera to date. The light and compact body makes shooting in tight spaces easier with greater freedom in angles and movement, and it reduces fatigue even during long hand-held shots.

Thanks to its flat and linear design with few protruding parts, you can easily attach a mic, rig, gimbal, or other accessories to customize the camera in multiple ways to fit your shooting style.

The included handle unit can also be attached to shoot subjects from a low or crooked angle, enabling more diverse and flexible visual capabilities. The handle also contains two built-in, full-sized 3-pin XLR inputs with 48V phantom power to record high-quality audio with an external mic. Additionally, the handle comes with a start/stop button and a zoom rocker.

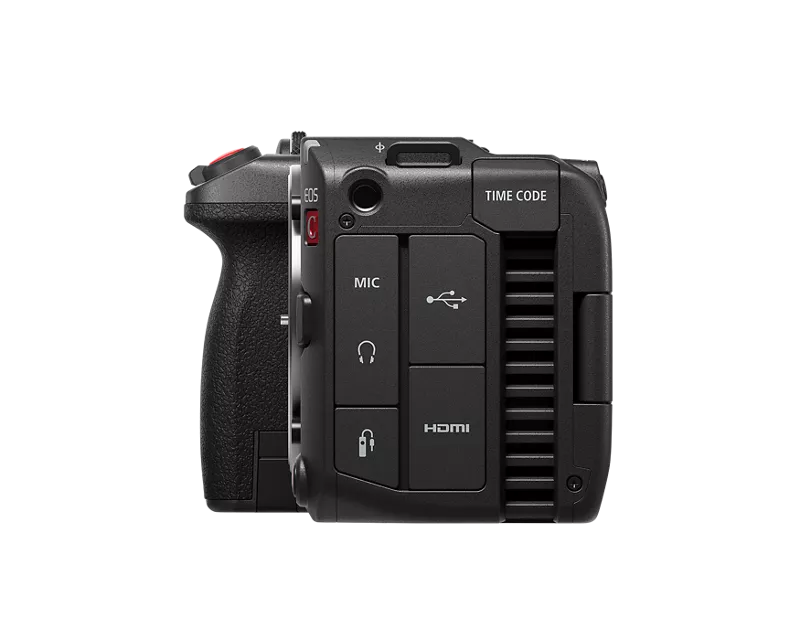

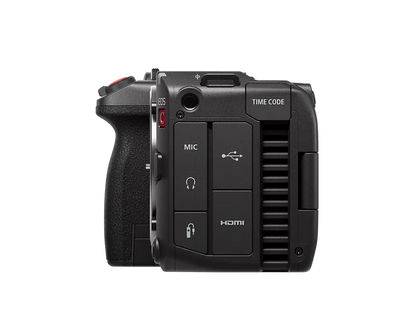

Canon EOS C50 Camera Variety of Interfaces

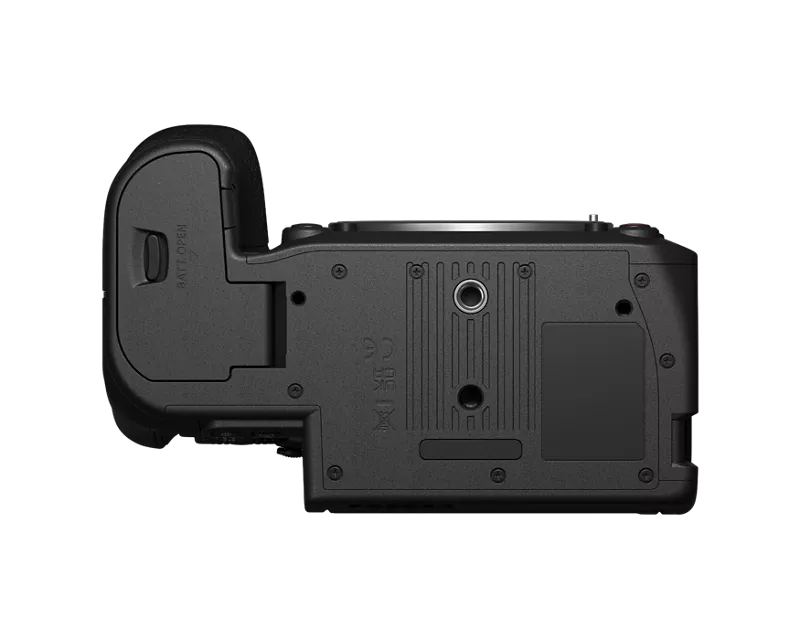

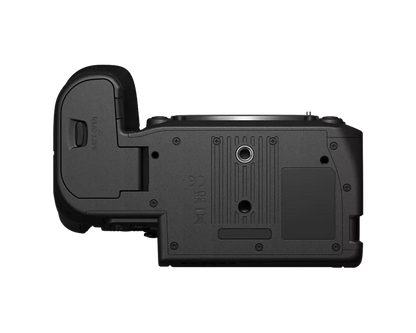

• Quarter-inch Mounting Screw Hole
• Time Code Terminal (DIN)
• Microphone Terminal
• Headphone Terminal
• Remote Terminal
• USB Type-C Terminal
• HDMI Output Terminal (Type-A)
• Ethernet, and Wi-Fi® Control
• The built-in Wi-Fi® enables Canon's IP-based remote control XC Protocol. Compatible third-party USB-to-Ethernet adapters will also provide additional options for connectivity.

XC Protocol maximizes operability and remote control of camera settings. Using the XC Protocol, the camera can be operated by Canon’s RC-IP1000 and RC-IP100 controllers (sold separately), and XC Protocol-enabled third-party remote control panels (RCP) can remotely shade the camera.

Additionally, Canon’s Remote Control Camera Application and Multi-Camera Control App can control camera settings as well as multiple cameras. The camera also features SRT protocol, enabling IP streaming of video and audio.

XC Protocol Logo
Adobe Frame.io Camera-to-Cloud Integration
The camera has native compatibility with Frame.io’s Camera-to-Cloud (C2C) technology. This feature enables you to send proxy files immediately after recording internally, directly from the camera, for a faster and more secure path from production to post. The efficient proxy files don’t require additional processing or conversion, and are available to view, share, and edit remotely between teams in different locations.

Virtual Production Support
The EOS C50 is able to output CV Protocol to multiple devices for virtual productions. Lens metadata can be utilized by running our CV Metadata Extraction plugin on compatible computers, greatly enhancing usability in virtual set environments.

Mount Adapter PL-RF with Cooke/i® Technology Compatibility
The Mount Adapter PL-RF unlocks a broad assortment of PL mount lenses for the EOS C50 camera. The adapter is compatible with Cooke/i® Technology’s metadata protocol which enables real-time output of lens metadata (focus/zoom/iris position, and other data in addition to lens model information). Additionally, the robust adapter features locking plates that attach to the camera with four screws for a secure and stable lens mount.

Full-featured Mirrorless Photo Mode with Dedicated Menu and UI
With a flip of the switch, the EOS C50 transforms from a powerful cinema camera to a professional-class stills camera, utilizing the familiar menu system of the EOS R series. Meeting both needs with a single camera saves you the hassle of having to carry two cameras and makes editing processes smoother, helping to streamline your workflow.

The full-frame sensor offers a shallow depth of field that enables impressive shots that fully utilize bokeh, and shots can be taken with standard ISO of up to 64,000, enabling high-quality images for a wide range of shooting situations and subjects.

35mm full-frame up to approx. 32MP

• Max. 40 shots/sec. high-speed continuous shooting
• Still image sensitivity: standard ISO 64000
• Supports Dual Pixel CMOS AF II


Image Processor: DIGIC DV 7
Lens Mount: Canon RF mount
Lens

• RF lens（including RF-S lens, RF cinema lens)
• EF lens（including EF-S lens, EF cinema lens (when equipped the EF-RF Mount Adapter))
• PL lens（when equipped with the Mount Adapter PL-RF)

Sensor: Full-frame CMOS sensor
Number of Total Pixels: Approx. 34.20 megapixels (7144x4790)
Number of Effective Pixels:

• Sensor mode: Full frame 3:2
  • Approx. 32.373 megapixels (6968x4646): 6960x4640 / 6912x4608 resolution
• Sensor mode: Full frame
  • Approx. 25.628 megapixels (6968x3678): 6960x3672 /4096x2160 / 2048x1080 resolution
  • Approx. 24.032 megapixels (6534*1x3678): 3840x2160 / 1920x1080 resolution
• Sensor mode: Super 35mm (Crop)
  • Approx. 13.427 megapixels (5044x2662): 5036x2656 /4096x2160 /2048x1080 resolution
  • Approx. 12.591 megapixels (4730*2x2662): 3840x2160 / 1920x1080 resolution
• Sensor mode: Super 16mm (Crop)
  • Approx. 3.388 megapixels (2532x1338): 2524x1332 /2048x1080 resolution
  • Approx. 3.176 megapixels (2374*3x1338): 1920x1080 resolution

*1 Converted from 6968 pixels
*2 Converted from 5044 pixels
*3 Converted from 2532 pixels

Unit pixel: 5.16 ｘ 5.16 (μm)

Effective Sensor Size:

• Sensor mode: Full frame 3:2
  • 35.9 x 23.9 mm （43.2 mm on the diagonal)：6960x4640 resolution
  • 35.7 x 23.8 mm （42.9 mm on the diagonal)：6912x4608 resolution
• Sensor mode: Full frame
  • 35.9 x 18.9 mm （40.6 mm on the diagonal)：6960x3672 /4096x2160 / 2048x1080 resolution
  • 33.6 x 18.9 mm (38.6 mm on the diagonal)：3840x2160 / 1920x1080 resolution
• Sensor mode: Super 35mm (Crop)
  • 26.0 x 13.7 mm (29.4 mm on the diagonal)：5036x2656 /4096x2160 /2048x1080 resolution
  • 24.4 x 13.7 mm (28.0 mm on the diagonal)：3840x2160 / 1920x1080 resolution
• Sensor mode: Super 16mm (Crop)
  • 13.0 x 6.9 mm (14.7 mm on the diagonal)：2524x1332 /2048x1080 resolution
  • 12.2 x 6.9 mm (14.0 mm on the diagonal)：1920x1080 resolution

Color Filter System: RGB primary color filter (Bayer array)

Dynamic RangeSensor mode:

• Sensor Mode Full frame
  • Canon Log 2：1600% / 15+ stops（Base Sensitivity ISO 800）
• Sensor mode: Super35mm
  • Canon Log 2：1600% / 16 stops（Base Sensitivity ISO 800）

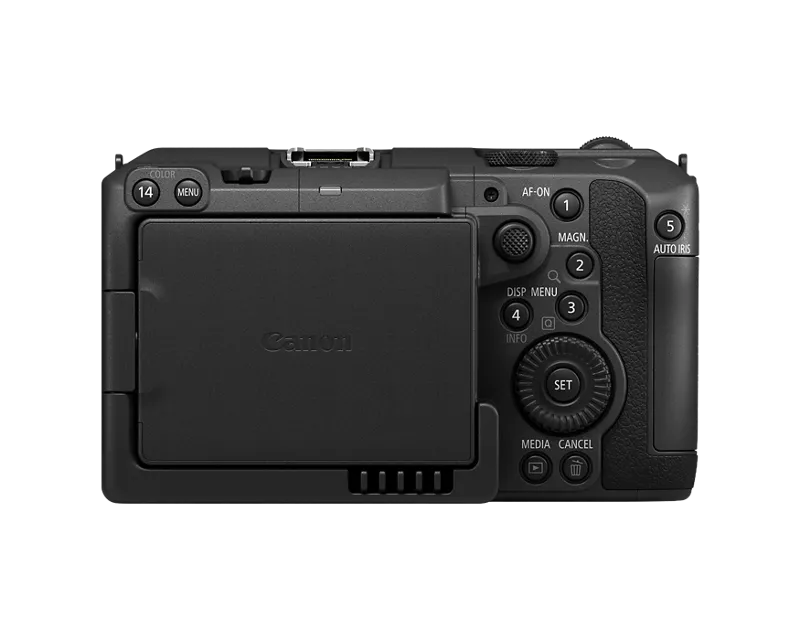

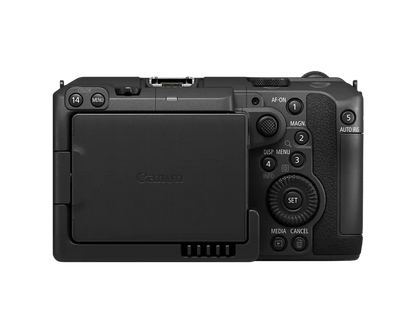

Type: Color wide LCD monitor
Screen size: 3.0 inch (diagonal 7.5 cm)
Number of dots: Approx. 1.62 million dots (900xRGBx600)
Field of view coverage: 100%
Adjustment function: Brightness, Contrast, Color, Sharpness, Luminance*
* A luminance boost function is also available that makes LCD monitor display easier tosee outdoors and in other bright conditions.
Touch panel: Electrostatic capacitance system. Touch/drag operation supported.


Ethernet: Standards compliance: Follows the specifications of the Ethernet adapter

• Wi-Fi
  • Supported standards: IEEE802.11b /g /n（2.4 GHz）
• IEEE802.11a / n / ac（5 GHz）

  • Setup: Infrastructure（WPS: push button method, WPS: PIN code method, access point, manual

    configuration）、Camera access point



• Security: Open, Shared key, WPA/WPA2/WPA3-Personal, WPA/WPA2/WPA3-Enterprise
• Encryption
  • TKIP、AES
• IP streaming

Compression method: MPEG-4 H.264/AVC
Bit rate/Resolution: 9 Mbps：1920x1080（59.94P、59.94i、50.00P、50.00i）4 Mbps：same as above
Audio: MPEG-2 ACC-LC 2ch
Audio rate: 256 kbps

Protocols:

UDP

• Prioritizes transfer speed, with no guarantees of reliability or correct order. Lost or lagging packets ignored.

RTP

• Standard system for sending videos and audio online. Lost or lagging packets ignored.

SRT

• Achieves high-quality streaming with minimal video distortion due to low latency and a packet loss

  playback function.

RTP+FEC

• Error correction (FEC)* control during RTP transfer enables recovery of lost or corrupt packets on the receiving side.

RTSP+RTP

• Real-time data streaming control via RTSP (Real Time Streaming Protocol) andtransfer via RTP. The

  receiving side can start or stop streaming.

IP Streaming
Streams video to decoder transmission device or computer over the network.

XC Protocol
The EOS C50 can be remotely operated by a controller or application that supports the XC protocol via IP connection.
Supported Canon products are as follows:
- Controller
RC-IP100 (Ver 1.20 or later）, RC-IP1000
- Application
Remote Camera Control Application (Ver
1.3.0 or later）, Canon Multi-Camera Control, Multi-Camera Management
Application

Canon App
This function allows you to connect a camera to a mobile device running iOS or Android via Wi-Fi, and use Content Transfer Professional on the device to transfer files from the camera (video files, audio files, News Metadata, still image files), as well as create and edit News Metadata.

CV Protocol
Output metadata information needed for real- time virtual production in a computer application from a commercially available Ethernet
adapter.*

Frame.io
Upload clips from the camera using Adobe's Frame.io Camera to Cloud function.

*IPv4 only

Verified Ethernet Adapters
Model Number    Manufacturer
US1GC30W    StarTech.com
US2GC30    StarTech.com
UG-USBC-25052    UGREEN
The listed model numbers have been tested and verified for compatibility by Canon.
The operation of the listed models is not guaranteed.


Network Functions

• IP Streaming — Streams video to a decoder, transmission device, or computer over the network.

• XC Protocol — The EOS C50 can be remotely operated by a controller or application that supports the XC protocol via IP connection. Supported Canon products: RC-IP100 (Ver. 1.20 or later), RC-IP1000, Remote Camera Control Application (Ver. 1.3.0 or later), Canon Multi-Camera Control, Multi-Camera Management Application.



• Canon App — Connects the camera to a mobile device running iOS or Android via Wi-Fi. Use Content Transfer Professional to transfer files (video, audio, News Metadata, still images) and create or edit News Metadata.
• CV Protocol — Outputs metadata for real-time virtual production to a computer application via a commercially available Ethernet adapter.

• Frame.io — Upload clips from the camera using Adobe's Frame.io Camera to Cloud function.



Input Terminals
MIC Terminal — Φ3.5 mm stereo mini jack (Unbalanced, plugin power supported)
MIC: Input impedance 1.5 kΩ / Sensitivity -72 dBV (Volume auto, Full scale -18 dB) / ATT 20 dB / Supply voltage DC 2.0 V (Bias resistor 2.2 kΩ)
LINE: Input impedance 10 kΩ / Sensitivity -12 dBV (Volume center, Full scale -18 dB)
REMOTE Terminal — Type E3, Φ2.5 mm stereo mini jack

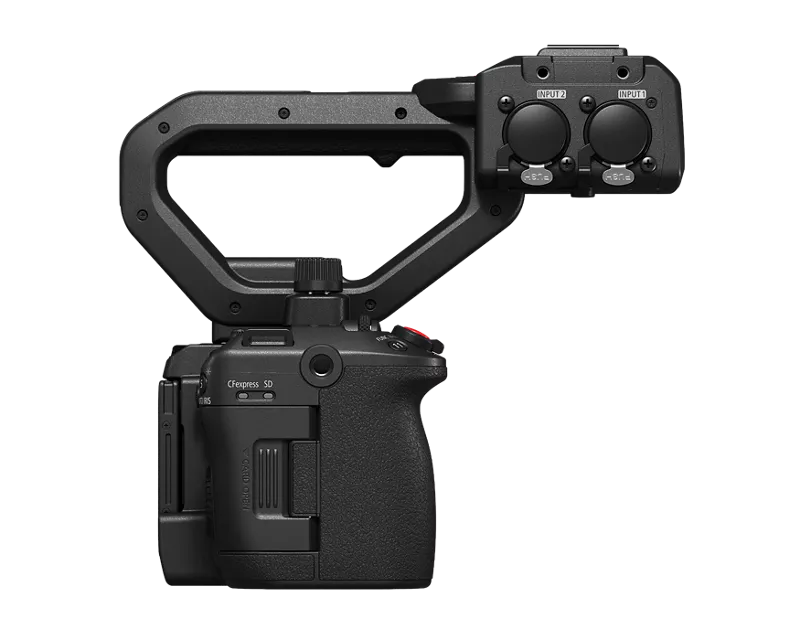

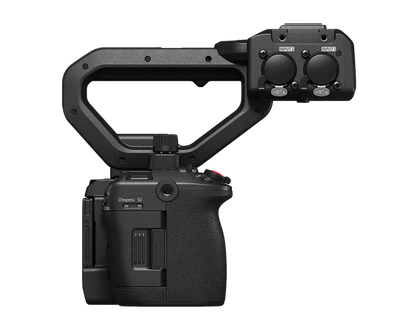

Handle Unit INPUT 1 & INPUT 2 Terminals — XLR 3-pin jack (Balanced) — (1) Shield, (2) Hot, (3) Cold
MIC: Input impedance 1.2 kΩ / Sensitivity -60 dBu (Volume center, Full scale -18 dB) / ATT 20 dB
LINE: Input impedance 10 kΩ / Sensitivity +4 dBu (Volume center, Full scale -18 dB)

Output Terminals
HDMI OUT Terminal — HDMI connector (Type A). Time codes can be superimposed (original standards). Video/audio output according to HDMI specifications.
Headphone Terminal — Φ3.5 mm stereo mini jack / Output impedance 50 Ω or lower / Output signal level -17 dBV (32 Ω load, maximum volume)

Input / Output Terminals
USB Terminal — USB Type-C jack. Supports smartphone or Ethernet adapter connection. USB Video Class and USB Audio Class (UVC and UAC) supported. In-camera charging and power supply supported with USB Power Adapter PD-E2. With Ethernet adapter: SuperSpeed USB (USB 3.2 Gen 1) / All other cases: SuperSpeedPlus USB (USB 3.2 Gen 2)
TIME CODE Terminal — DIN 1.0/2.3 jack
Input: Impedance 100 kΩ / Signal level 0.5–4.5 Vp-p
Output: Impedance 50 Ω / Signal level 1.3 Vp-p

Camera (Width x height x depth)

• Approx. 142 x 88 x 95 mm (5.6 x 3.5 x 3.7 in.) (camera body only)
• Approx. 222 x 239 x 186 mm (8.7 x 9.4 x 7.3 in.) (attached handle unit and Microphone holder)
• * For dimension details, refer to the six-sided view.

Weight: Approx. 670 g (1.47 lb.)

• (2) Camera+Battery Pack LP-E6P+CFexpresscard+SD card
  • Approx. 765g (1.7 lb.)
• (3) Camera+Handle unit+Microphone holder+Battery Pack LP-E6P+CFexpresscard+SD card
  • Approx. 1120 g (2.5 lb.)
• (4) Supplied accessories
• Handle unit: Approx. 300 g (10.6 oz.)
• Microphone holder and two bolts: Approx. 60 g (2.1 oz.)
• LP-E6P Battery Pack: Approx. 82 g (2.89 oz.)
• LC-E6 Battery Charger: Approx. 110 g (3.9 oz.)
• LC-E6E Battery Charger: Approx. 100 g (3.5 oz.) (excluding power cord)

Temperature and humidity requirements for performance:
Approx. 0 to 40°C (32 to 104 ℉), 85% (relative humidity)
Temperature and humidity requirements for operation:
Approx. -5 to 45°C (23 to 113 ℉), 60% (relative humidity)

Sensor Modes & Recording Resolutions:

• Full Frame 3:2: RAW (6960 × 4640); XF-HEVC S (6912 × 4608).

• Full Frame: RAW (6960 × 3672); XF-AVC / XF-HEVC S / XF-AVC S (4096 × 2160, 3840 × 2160, 2048 × 1080, 1920 × 1080).

• Super 35mm (Crop): RAW (5036 × 2656); XF-AVC / XF-HEVC S / XF-AVC S (4096 × 2160, 3840 × 2160, 2048 × 1080, 1920 × 1080).

• Super 16mm (Crop): RAW (2524 × 1332); XF-AVC / XF-HEVC S / XF-AVC S (2048 × 1080, 1920 × 1080).

• Full Frame 3:2: RAW (6960 × 4640); XF-HEVC S (6912 × 4608).

• Full Frame: RAW (6960 × 3672); XF-AVC / XF-HEVC S / XF-AVC S (4096 × 2160, 3840 × 2160, 2048 × 1080, 1920 × 1080).

• Super 35mm (Crop): RAW (5036 × 2656); XF-AVC / XF-HEVC S / XF-AVC S (4096 × 2160, 3840 × 2160, 2048 × 1080, 1920 × 1080).

• Super 16mm (Crop): RAW (2524 × 1332); XF-AVC / XF-HEVC S / XF-AVC S (2048 × 1080, 1920 × 1080).

Base ISO (MENU > Camera Setup > ISO/Gain)

Canon Log 2 / Canon Log 3:
ISO — Auto Selection, Base ISO 800, Base ISO 6400
Gain — Auto Selection, Base ISO 800 (12 dB), Base ISO 6400 (12 dB)

PQ / HLG / Canon 709 / BT.709 Wide DR:
ISO — Auto Selection, Base ISO 400, Base ISO 3200
Gain — Auto Selection, Base ISO 400 (6 dB), Base ISO 3200 (6 dB)

BT.709 Standard:
ISO — Auto Selection, Base ISO 160, Base ISO 1250
Gain — Auto Selection, Base ISO 160 (-2 dB), Base ISO 1250 (-2 dB)

SD Card:
Type — SD, SDHC, SDXC
Number of Slots — 1
Speed Class — C6, C10
UHS Speed Class — U1, U3
Video Speed Class — V30, V60, V90
File System — SD (up to 2 GB): FAT12/16; SDHC (up to 32 GB): FAT32; SDXC (32 GB to 2 TB): exFAT
File Division — FAT32: 4 GB units (maximum 9 file divisions per clip); exFAT: none
Maximum Clips per Media — RAW / XF-AVC / XF-HEVC S / XF-AVC S: 999
Recorded Data — Movie: XF-AVC, XF-AVC S, XF-HEVC S; Audio: WAV; Other: custom pictures and metadata

CFexpress Card:
Type — CFexpress 2.0 Type B
Number of Slots — 1
VPG — VPG 400
File System — CFexpress (up to 8 TB): exFAT
Maximum Clips per Media — RAW / XF-AVC / XF-HEVC S / XF-AVC S: 999
Recorded Data — Movie: RAW, XF-AVC, XF-HEVC S, XF-AVC S; Photo: JPEG; Audio: WAV; Other: custom pictures, metadata, and menu
Note — CFexpress card availability depends on recording format, etc.

Available Combinations for Second Card Recording:

Recording Mode – Normal Recording:
2nd Card Rec Off; Proxy Rec; Sub Rec; Audio Rec; Relay Recording; Double Slot Recording; Crop Rec*2; Chunk Rec

Recording Mode – Slow & Fast Motion:
2nd Card Rec Off; Proxy Rec; Sub Rec1; Audio Rec1

Recording Mode – S&F / Audio (WAV):
2nd Card Rec Off only

Pre-Recording*2:
2nd Card Rec Off; Proxy Rec; Sub Rec; Relay Recording; Double Slot Recording; Crop Rec; Chunk Rec

Continuous Recording23:
2nd Card Rec Off only

Frame Recording:
2nd Card Rec Off; Relay Recording; Double Slot Recording

Interval Recording:
2nd Card Rec Off; Relay Recording; Double Slot Recording

Simultaneous recording is available only during Normal Recording when connected to a network with IP streaming activated.
*1 Available only when the main recording format is RAW.
*2 Not available when recording in RAW format.
*3 Not available when recording in XF-AVC format.

Slow & Fast Motion Recording

Base Frame Rate 59.94P: 1, 2, 3, 6, 15, 30, 44, 48, 52, 56, 60, 90, 120, 150, 180 fps
29.97P: 1, 2, 3, 6, 15, 22, 24, 26, 28, 30, 32, 36, 40, 44, 48, 52, 56, 60, 90, 120, 150, 180 fps
50.00P: 1, 5, 15, 25, 34, 38, 42, 46, 50, 54, 58, 60, 75, 100, 120, 125, 150, 175, 180 fps
25.00P: 1, 5, 15, 17, 19, 21, 23, 25, 26, 28, 30, 34, 38, 42, 46, 50, 54, 58, 60, 75, 100, 120, 125, 150, 175, 180 fps
23.98P / 24.00P: 1, 2, 3, 6, 12, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 44, 48, 52, 56, 60, 72, 96, 120, 144, 150*2, 168, 180 fps

Maximum frame rate varies by sensor mode:
Full Frame 3:2 – up to 30P
Full Frame – up to 180P
Super 35mm (Cropped) – up to 60P
Super 16mm (Cropped) – up to 150P
*2 150 fps available only in Super 16mm (Cropped).

Configurable Frame Rate – RAW

RAW ST / RAW LT (6960 × 4640):
29.97P – 1 to 150 fps; 23.98P / 25.00P / 24.00P – 1 to 30 fps

RAW HQ (6960 × 3672 / 5036 × 2656):
29.97P / 23.98P / 25.00P / 24.00P – 1 to 30 fps

RAW ST / RAW LT (5036 × 2656):
All system frequencies – 1 to 60 fps

RAW HQ / RAW ST / RAW LT (2524 × 1332):
All system frequencies – 1 to 150 fps

Configurable Frame Rate – XF-AVC

YCC422 10-bit, 4096 × 2160 / 3840 × 2160 Intra:
Up to 1200 Mbps (59.94P) / 1000 Mbps (50.00P); Slow & Fast Motion up to 120 fps (resolution dependent)

Long GOP 4K:
250 Mbps (59.94P / 50.00P); 150 Mbps (29.97P / 25.00P / 24P); S&F up to 120 fps

2K / FHD Intra:
Up to 300 Mbps (59.94P); S&F up to 180 fps

2K / FHD Long GOP:
50 Mbps; S&F up to 180 fps

Slow & Fast Motion limits:
Up to 60P in Super 35mm (Cropped)
Up to 150P in Super 16mm (Cropped)

Configurable Frame Rate – XF-HEVC S (CFexpress)

YCC422 10-bit 6912 × 4608 Intra:
Up to 1730 Mbps; S&F up to 30 fps

4K Long GOP:
225 Mbps (59.94P / 50.00P); 135 Mbps (29.97P / 25P / 24P); S&F up to 120 fps

2K / FHD Long GOP:
50 Mbps; S&F up to 180 fps

YCC420 10-bit variants available at reduced bit rates (up to 360 Mbps in 6K; 150 Mbps in 4K; 35 Mbps in 2K/FHD).

Slow & Fast Motion limits:
Up to 60P in Super 35mm (Cropped)
Up to 150P in Super 16mm (Cropped)

Configurable Frame Rate – XF-AVC S (CFexpress)

YCC422 10-bit 4K Intra:
Up to 1200 Mbps (59.94P); S&F up to 120 fps

4K Long GOP:
250 Mbps (59.94P / 50.00P); 150 Mbps (29.97P / 25P / 24P); S&F up to 120 fps

2K / FHD Intra:
Up to 300 Mbps; S&F up to 180 fps

2K / FHD Long GOP:
50 Mbps; S&F up to 180 fps

YCC420 8-bit options available at 150 Mbps (4K) and 35 Mbps (2K/FHD).

Slow & Fast Motion Limits:
Up to 60P in Super 35mm (Cropped)
Up to 150P in Super 16mm (Cropped)

Crop Recording:

• Available with select XF-HEVC S and XF-AVC S 4K Progressive configurations (YCC422 10-bit and YCC420 variants).
• Available cropped resolutions: 1080 × 2048, 1080 × 1920, 1080 × 1080.
  Bit rates range from 19 Mbps Long GOP to 500 Mbps Intra depending on format and system frequency.

Crop Recording Restrictions:
Not available in Full Frame 3:2 or Super 16mm (Cropped) sensor modes.
Not available during Slow & Fast Motion, Frame Recording, or Interval Recording modes.
Anamorphic desqueeze not supported for cropped clips.
Cropped video output to external monitors during recording is not supported.

Auto Focus: Subject detection (Subject to Detect, Subject Detection AF*, Eye Detection, Face Detection AE, and Tracking) is available in Slow & Fast Motion recording at frame rates of 24P or higher. At frame rates in a range of 1P–150P, other AF-relatedfunctions are also available.
* At frame rates of 150P or lower.


Focusing systems
Dual Pixel CMOS AF(CMOS AF)
CMOS AF detection range
・When detecting the entire area and subject, approx. 100% (Vertical) x approx. 100% (Horizontal).
・Otherwise approx. 100% (Vertical) x approx. 90% (Horizontal)
・May be approx. 100％ (Vertical) x approx. 80% (Horizontal), approx. 75% (Vertical) x approx. 40% (Horizontal) depending on the lens

AF Modes:  Applies when the AF/MF switch of an RF lens is set to AF.
Continuous AF: Used to keep continuously focused on a subject.
One-Shot AF: AF is performed only while the assignable button assigned to One-Shot AF is pressed. No further lens movement is permitted after focusing.
Releasing the assignable button resumes continuous AF if it is enabled. When [Lens action if cannot AF] is set to [Stop] in Continuous AF mode, stop the search when distance measurement is not possible.

AF Area
Small Zone: Video display range approx. 14.7％（Vertical）x12.2％（Horizontal）
Flexible Zone 1：Video display range approx. 38％（Vertical）x 26％（Horizontal）
Flexible Zone 2：Video display range approx. 85％（Vertical）x 26％（Horizontal）
Flexible Zone 3：Video display range approx. 38％（Vertical）x 77％ (Horizontal）
Full: approx. 100% (Vertical) x approx. 100% (Horizontal)
・The area frame can be moved,* and thickness is adjustable.
* Only with options other than [Whole Area] and when digital zoom is off.
・Area frame resizing is available for Flexible Zone options 1–3.
・Values above are based on these conditions: [Sensor Mode]: [Full Frame];
[Main Resolution]: 4096x2160 or 2048x1080; [Electronic IS]: [Off].

AF Lock: Available
AF Speed: With compatible lenses, the lens drive speed is configurable.

Subject to Detect: Detects the eyes, face, head, or body of people or the eyes, face, or body of animals, as set in the menu.
Setting to [People] targets human subjects for detection. Momentary inability to detect eyes / face / head will cause the camera to prioritize bodies (and when these parts can be detected again, they take precedence). Setting to [Animals] targets both animals and people for detection, and if both are detected, animals are given precedence. In scenes that include multiple subjects for detection, the most fitting main subject for detection results and how the shot is composed is automatically selected.
Setting to [People] with autofocus active displays a white frame on the main subject and gray frames on all other subjects detected. Setting to [Animals] only displays a white frame on the main subject out of all animals and people detected.

Subject Detection AF: Controls how AF operation changes, based on the menu setting, if targeted subjects are not detected.
Setting to [Detect. Priority] performs AF for any detected main subjects set in [Subject to Detect], or if none are detected, in the specified AF area.
Setting to [Detect. Only] performs continuous AF restricted to main subjects set in [Subject to Detect]. The camera keeps focusing on the last detected position of any subjects that become undetectable. Continuous AF resumes when subjects are once again detected.
Subject-Switching Sensitivity
Enables adjustment of how readily the camera switches focus from one main subject to another. Set in a range of 1–5. [1] makes the camera less likely to switch subjects, and [5] makes switching easier.
Eye Detection: Determines which eye is given precedence when two eyes are detected, as set in the menu.Setting to [Auto] targets the eye closest to the camera. If both eyes are the same distance away, the camera targets the eye closer to the center of the configured AF area. Setting to [Right Eye Priority] gives the subject’s right eye precedence. Setting to [Left Eye Priority] gives the subject’s left eye precedence.

Tracking: The main subject can be selected for tracking with the joystick or touch panel.Setting the AF area to [Whole Area] AF enables main subject tracking by pressing the joystick in when the camera detects the target subject set in [Subject to Detect]. The joystick can also be pressed left or right to track specific subjects if multiple subjects are detected. Subjects other than those targeted for detection can also be tracked by tapping them.Additionally, regardless of the configured AF area, any preferred subject can be tracked by tapping it or pressing the joystick after using it to move the marker, once the camera is set to tracking selection mode by pressing the assignable button assigned to tracking.

Tracking by Touch Priority: Enables touch-based tracking of any subject regardless of the configured AF area.
Track after Focusing: Enables main subjects targeted for AF to be switched with the focusing ring, when Continuous AF is enabled and this function is set to [On (Tracking Frame)] in the menu. As the focusing ring is turned, based on the focus position, an orange tracking frame is displayed on a potential subject that users can switch to, and when manual focusing stops, the potential subject by the tracking frame is tracked as the main subject. Whether or not to display tracking frames for potential subjects can be set from the menu.Without a subject in focus, no tracking frame is displayed, and the camera does not switch subjects after manual focusing.Disabling the function in the menu disables this tracking after focusing.

Exposure Control Modes
Manual: Manual setting using shutter, iris, ISO/Gain, and ND filter.
Push Auto Iris*: While the Push Auto Iris button is pressed, the aperture is controlled to achieve proper exposure. If deviation from the proper exposure occurs, it takes control again.
Auto Iris*: Constantly adjusts automatically for proper exposure using iris.
Auto ISO/Gain*: Constantly adjusts automatically for proper exposure using ISO/Gain.
Auto Shutter*: Constantly adjusts automatically for proper exposure using Shutter.
Other
・AE Response can be changed in the menu.
・Auto ISO/Gain can be used in combination with Auto Iris or Push Auto Iris.
* Not available at recording frame rates higher than 150P in Slow & Fast Motion recording.

Metering Modes
Standard (center-weighted metering), Spotlight, Backlight
*If [EOS Standard] or [EOS Neutral] is selected in [CP File Selection], the setting value will be grayed out and cannot be selected as photometry is performed in the same way as the EOS R series. Editing the CP File (Gamma adjustment, registering another LUT as a Look File), makes it selectable.

Exposure Compensation: AE shift is available (±8 levels relative to center). Levels (EV values) are indicated numerically.

Shutter mode: Electronic shutter
Shutter Speeds: 1/16000*1*2 –30 sec., bulb
*1 Up to 1/8000 sec. when set to HDR mode, focus bracketing, or same exposure for new aperture (ISO speed/Shutter speed, Shutter speed).
*2 1/10000 and 1/12800 sec. can also be selected.

X-Sync:  Not Provided

Shutter Manual Mode – System Frequency / Frame Rate Compatibility

Speed (1/3-stop increments):
1/1 to 1/2000 sec (34 selectable steps)

Speed (1/4-stop increments):
1/1 to 1/2000 sec
59.94 Hz / 24.00 Hz: 47 selectable steps
50.00 Hz: 45 selectable steps

Angle:
360°, 240°, 180°, 120°, 90°, 60°, 45°, 30°, 22.5°, 15°, 11.25°
Also supports angle-equivalent shutter speeds: 1/120, 1/100, 1/60, 1/50, 1/40, 3/100, 1/30, 1/25

Clear Scan:
Approx. 24–2000 Hz
Frequency adjustable within range, minimum increment varies depending on sensor mode and frame rate.

Slow Shutter:
59.94P / 59.94i – 1/4, 1/8, 1/15, 1/30
29.97P – 1/4, 1/8, 1/15
23.98P – 1/3, 1/6, 1/12
24.00P – 1/3, 1/6, 1/12, 1/25
50.00P / 50.00i – 1/3, 1/6, 1/12

Shutter Off (Fixed Equivalent):
59.94P / 59.94i – 1/60
29.97P – 1/30
23.98P – 1/24
24.00P – 1/24
50.00P / 50.00i – 1/50
25.00P – 1/25

Note:
Available shutter settings vary when Slow & Fast Motion recording is activated.
Slow shutter is not available during Slow & Fast Motion recording.

Custom Picture (CP Files)

C1: Canon 709
Wide dynamic range gamma with contrast; suitable for use without post-processing. Output to BT.709 compliant monitor.

C2: Canon Log 2
Optimized for post-production grading. Film-like characteristics for advanced log workflow.

C3: Canon Log 3
Optimized for simplified grading with balanced shading and tone adjustment.

C4: BT.709 Wide DR
Video-based gamma with extended dynamic range. TV monitor output.

C5: BT.709 Standard
Gamma compliant with ITU-R BT.709 standard.

C6: PQ
Gamma compliant with ITU-R BT.2100 PQ specification.

C7: HLG
Gamma compliant with ITU-R BT.2100 HLG specification.

C8: EOS Standard

C9: EOS Neutral

C10–C20: User Assignable Custom Profiles


Recording Pixel Count

JPEG / HEIF

L (Large)
3:2 – Approx. 32.3 MP (6960 × 4640)
1.6× Crop – Approx. 12.4 MP (4320 × 2880)
1:1 – Approx. 21.5 MP (4640 × 4640)
4:3 – Approx. 28.6 MP (6160 × 4640)*
16:9 – Approx. 27.2 MP (6960 × 3904)*

M (Medium)
3:2 – Approx. 15.4 MP (4800 × 3200)
1:1 – Approx. 10.2 MP (3200 × 3200)
4:3 – Approx. 13.6 MP (4256 × 3200)*
16:9 – Approx. 12.9 MP (4800 × 2688)*

S1
3:2 – Approx. 8.1 MP (3472 × 2320)*
1:1 – Approx. 5.4 MP (2320 × 2320)
4:3 – Approx. 7.1 MP (3072 × 2320)*
16:9 – Approx. 6.8 MP (3472 × 1952)*

S2
3:2 – Approx. 3.8 MP (2400 × 1600)
1.6× Crop – Approx. 3.8 MP (2400 × 1600)
1:1 – Approx. 2.6 MP (1600 × 1600)
4:3 – Approx. 3.4 MP (2112 × 1600)*
16:9 – Approx. 3.2 MP (2400 × 1344)*

RAW / C-RAW
3:2 – Approx. 32.3 MP (6960 × 4640)
1.6× Crop – Approx. 12.4 MP (4320 × 2880)
RAW images are generated in 3:2; selected aspect ratio is recorded as metadata.

Notes:
Pixel counts rounded to nearest 100,000.
JPEG/HEIF generated in selected aspect ratio.
Aspect ratios apply to resizing.
1.6× crop provides approx. 1.6× focal length field-of-view.

Indicates approximate proportions.

Drive System

Drive Modes and Continuous Shooting Speed (Electronic Shutter)

Single Shooting – Available

High-Speed Continuous Shooting +
AF Modes: One-Shot AF, AI Focus AF, Servo AF
Maximum approx. 40 fps*

High-Speed Continuous Shooting
AF Modes: One-Shot AF, AI Focus AF, Servo AF
Maximum approx. 20 fps*

Low-Speed Continuous Shooting
AF Modes: One-Shot AF, AI Focus AF, Servo AF
Maximum approx. 5.0 fps

Self-Timer: 10 sec – Available
Self-Timer: 2 sec – Available
Self-Timer: Continuous – Available

Notes:
Maximum continuous speed measured under specific testing conditions.
Continuous speed may decrease due to flicker detection.
Zooming during electronic shutter burst shooting may cause exposure variation depending on lens.
High-Speed Continuous + operates in Mode C with compatible lenses.

EOS C50 Camera Body
