DVDO 1-Host USB 2.0 50m Extender over Ethernet

• Supports high-speed USB 2.0 (Up to 480Mbps) over a Cat 5e/6 cable up to 50m/165ft
• Up to 4 USB device connections supported by the Hub
• Transmitter can be powered by USB port, receiver can be powered by lockable DC supply with 500mA to each USB device
• Plug-and-play, with no driver installation required
• Supports all major operating systems: Windows, Mac OS and Linux
• Compatible with USB 1.1 and USB 1.0 peripherals

Technical

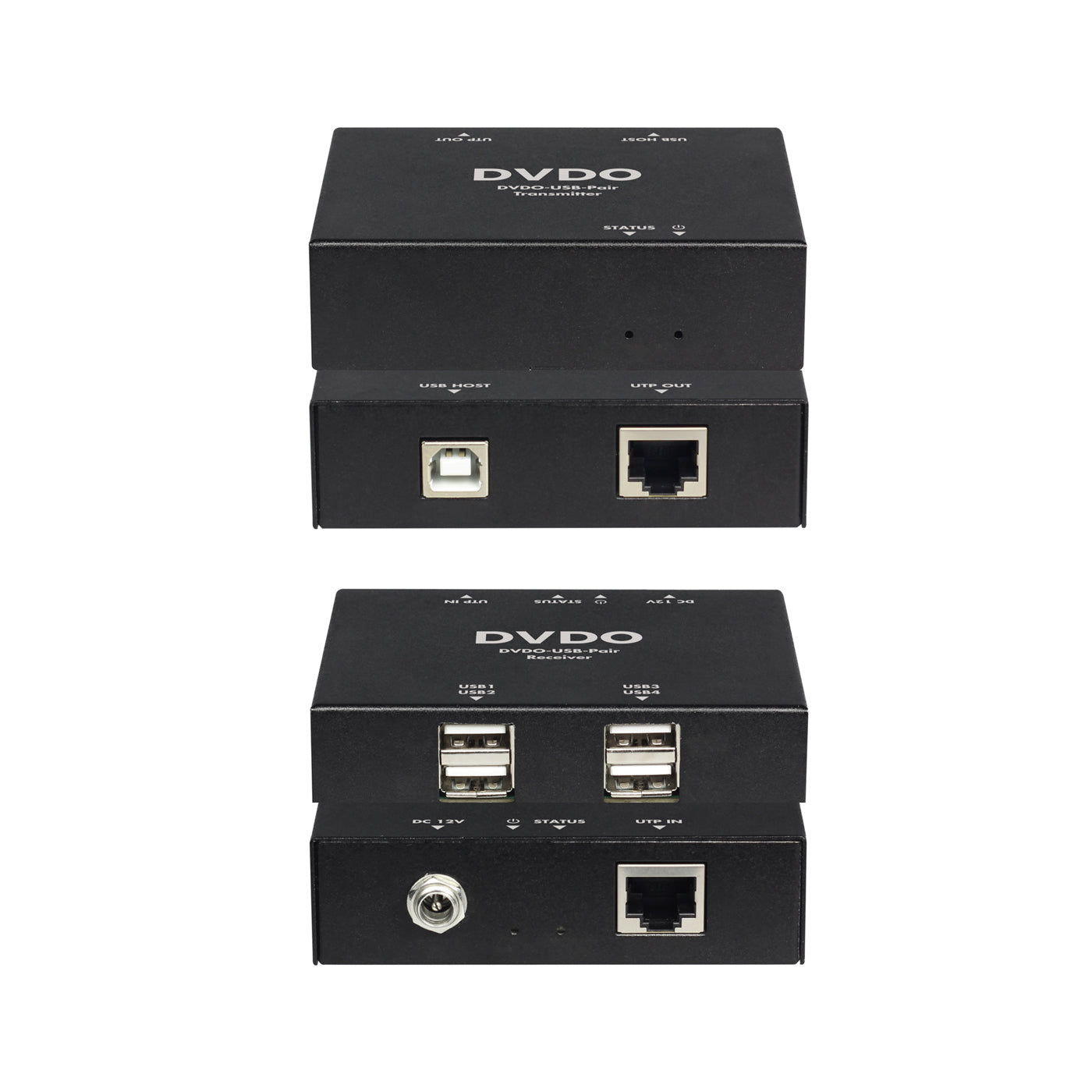

I/O Connections

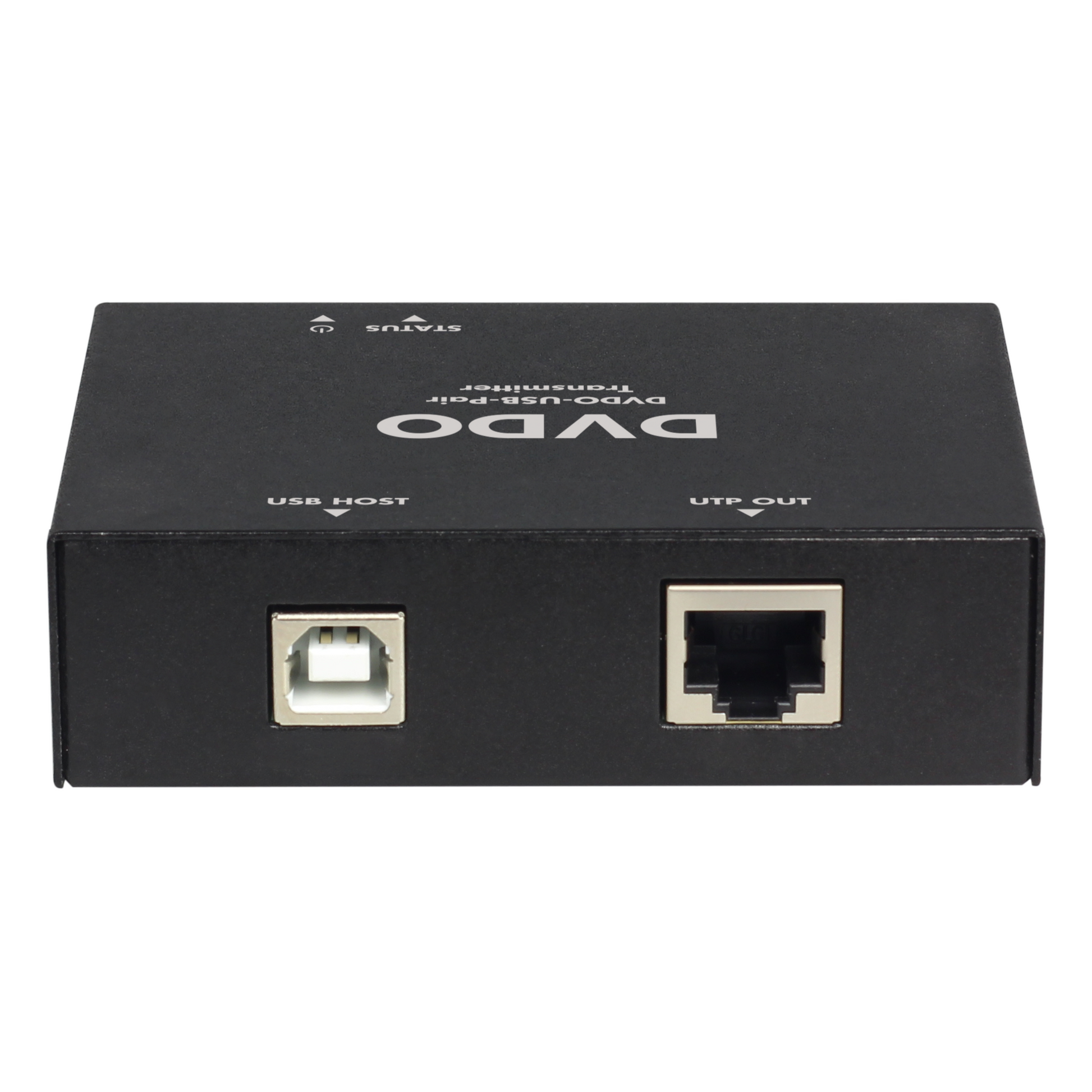

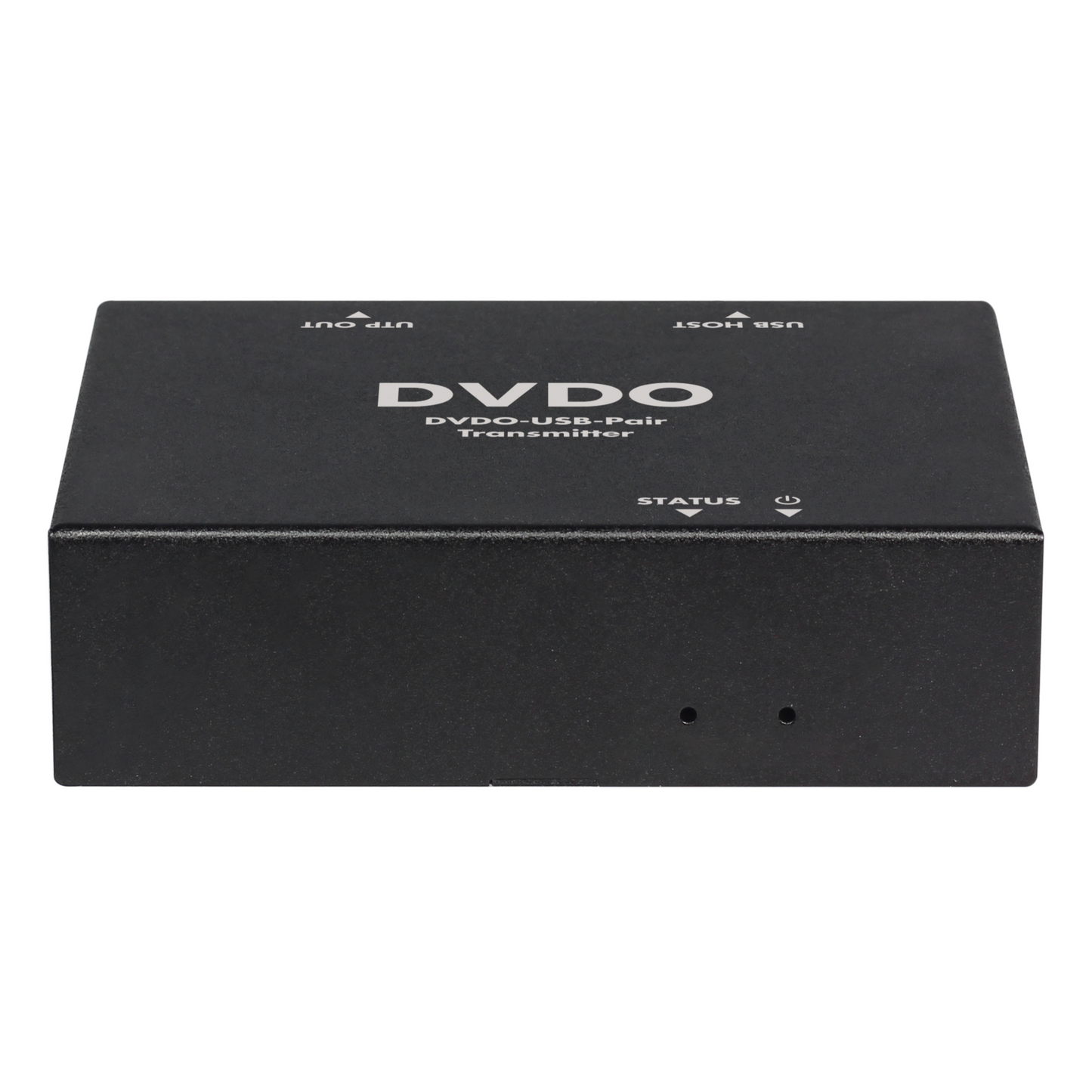

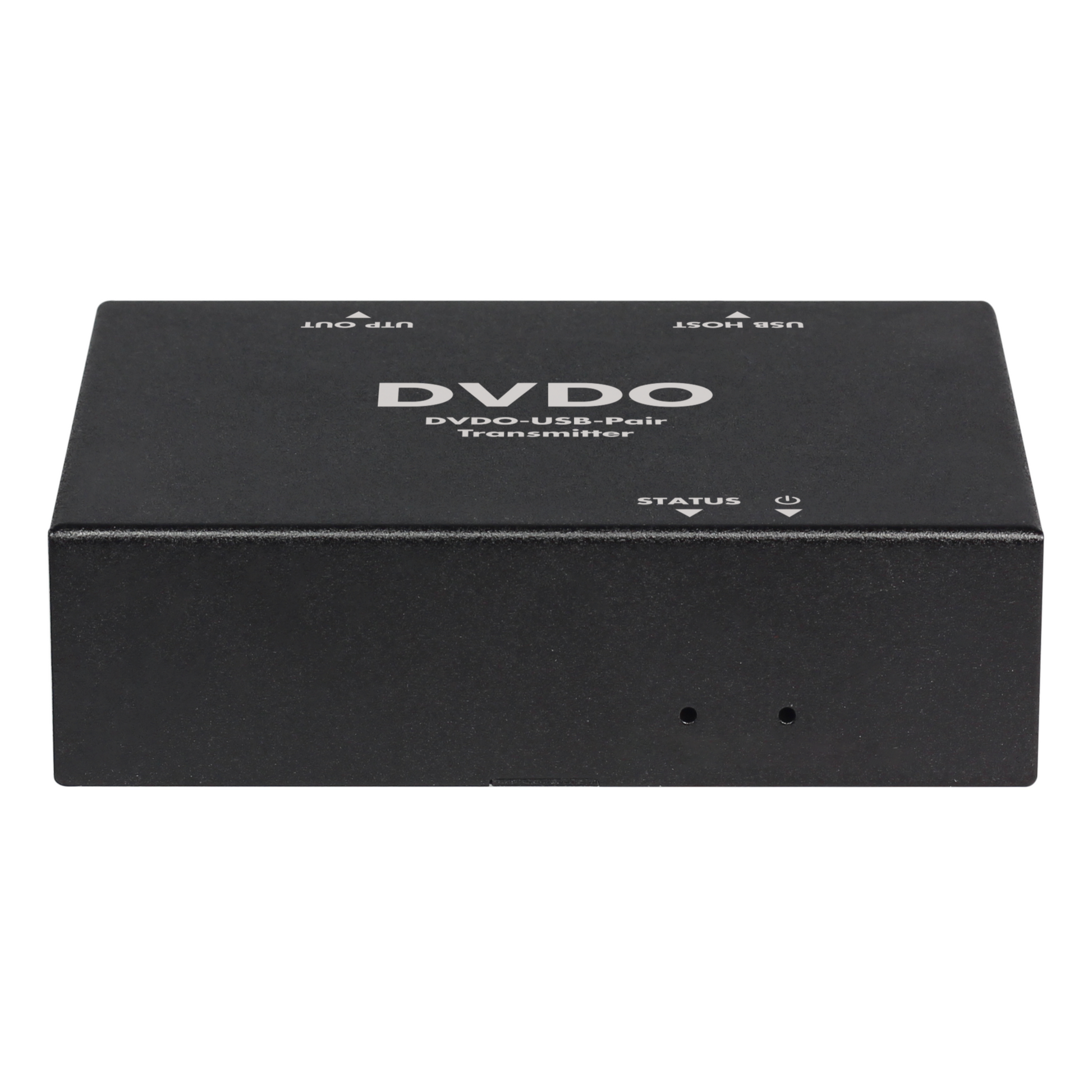

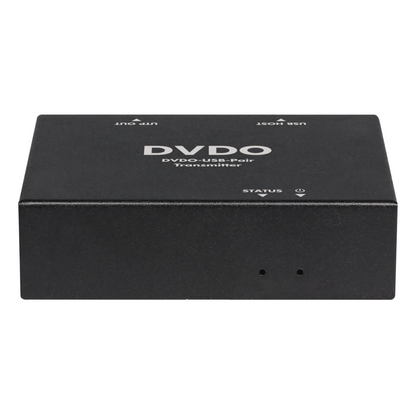

TX: 1 x USB Type-B, 1 x UTP Out

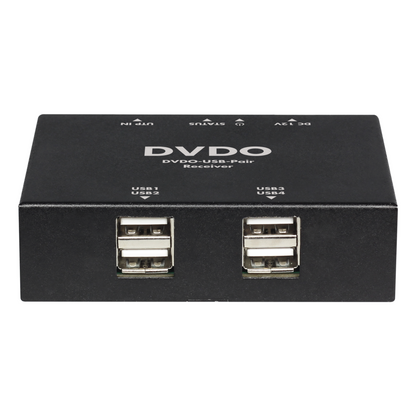

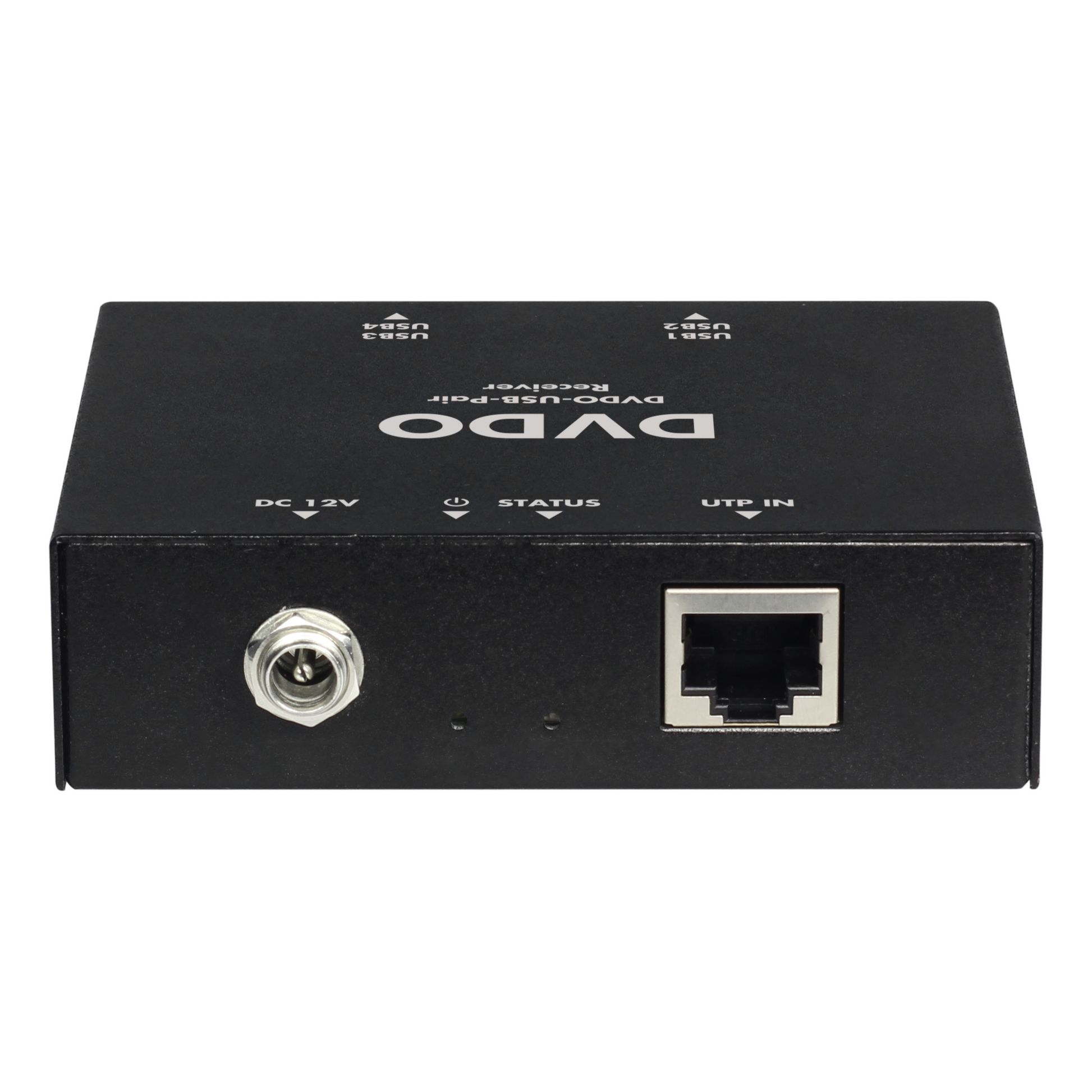

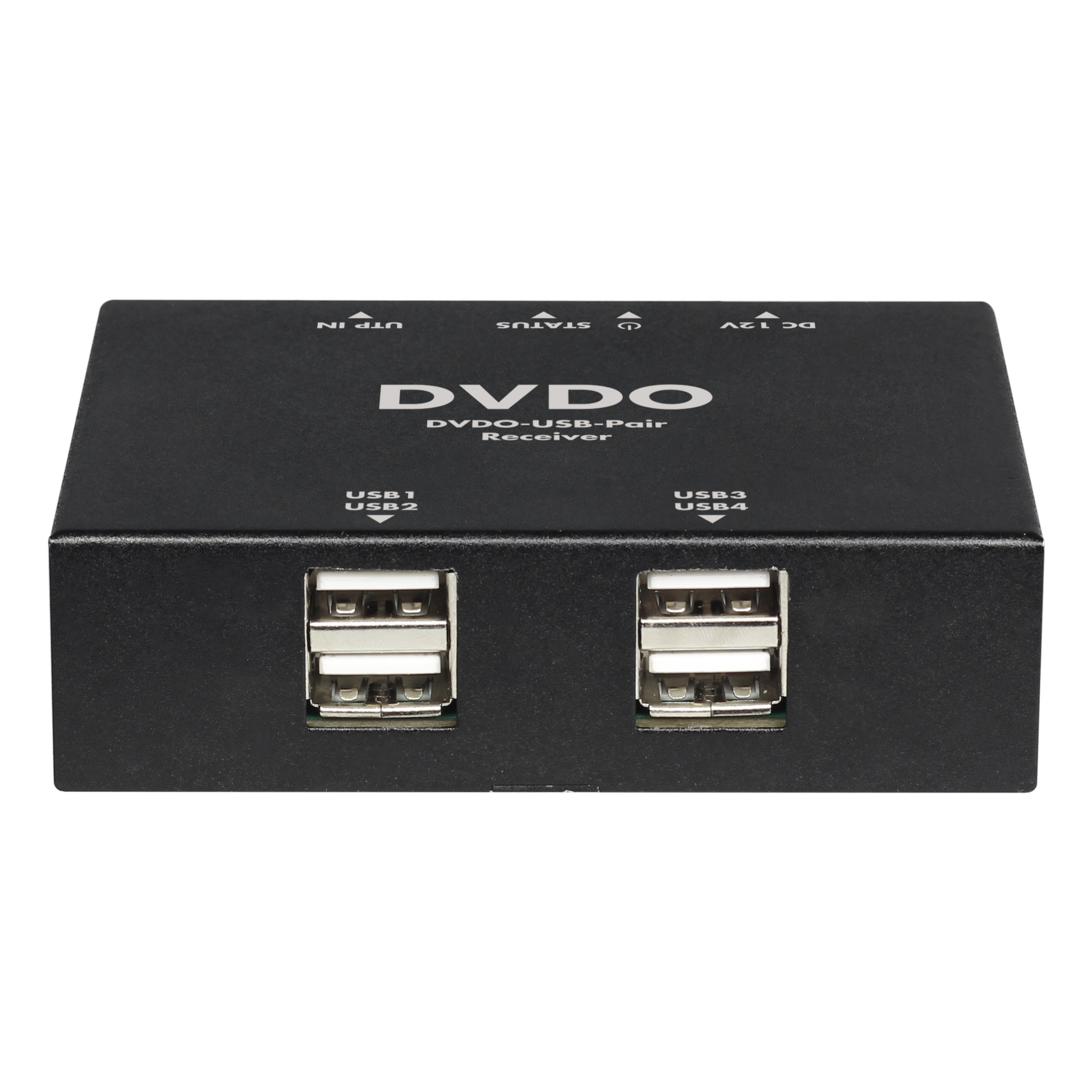

RX:1 x UTP IN, 1 x DC 12V IN, 4 x USB 2.0
Input/Output Signal Type
USB 2.0 and backward compatible with USB 1.1 and USB 1.0
Maximum Data Rate
Up to 480Mbps

General
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
10% to 90%, non-condensing
ESD Protection
Human-body Model:
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
Power Supply
DC 12V 1A
Power Consumption (Maximum)
4.5W
Device Dimension (W x H x D)
90 mm × 25 mm × 71 mm/ 3.54'' x 0.98'' x 2.79'' each for TX/RX
Product Weight
0.35kg/0.77lb each for TX/RX

Transmission Distance
Note: The use of T568B straight-through Category cables is recommended.
Cat 5e/6
Up to 50m/165ft

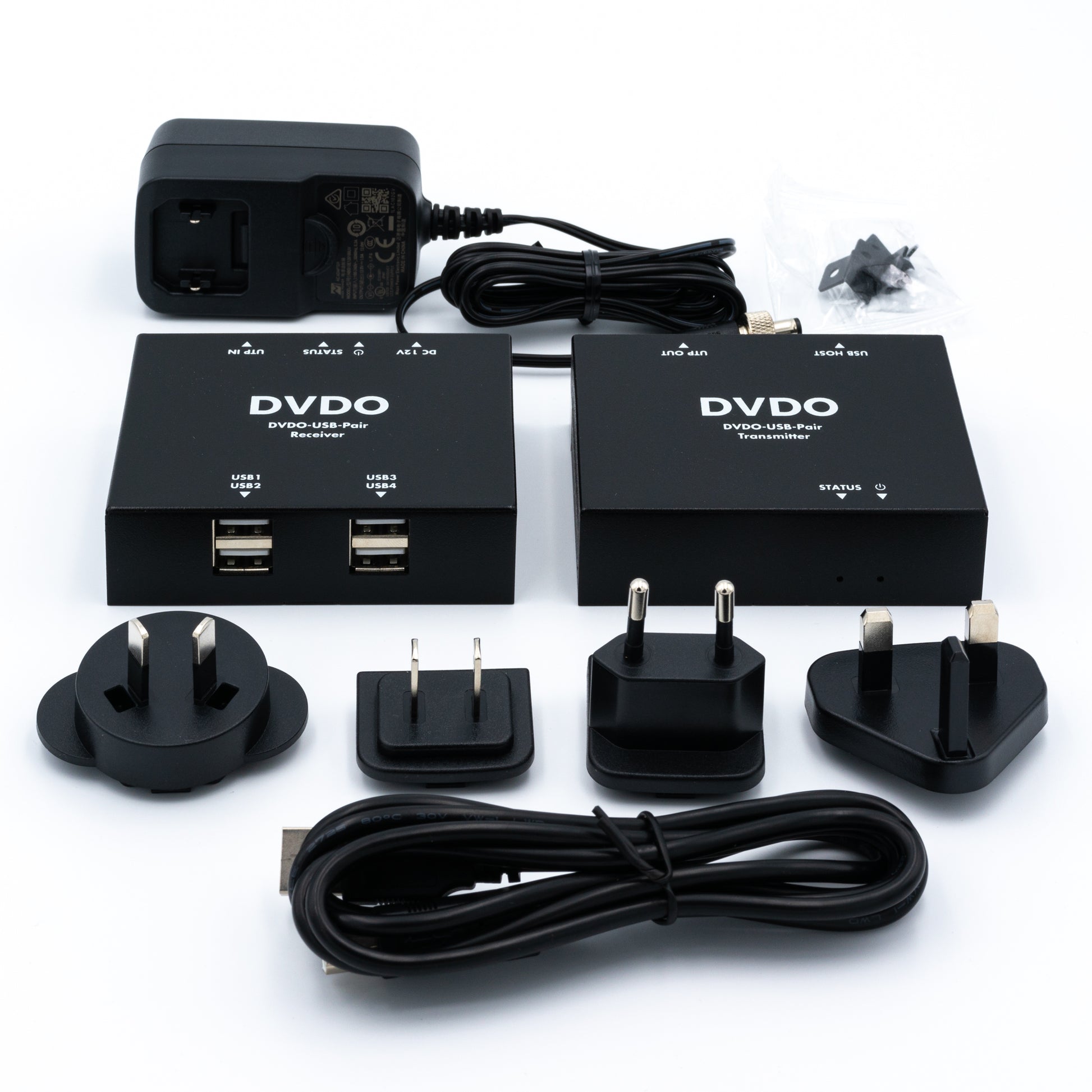

• DVDO-USB-Pair (Transmitter Receiver Set) x 1
• DC 12V 1A Power Supply (with US, UK, EU, AU Pins) x 1
• USB-A to USB-B Cable x 1
• Mounting Brackets (with Screws) x 4
• User Manual x 1
