DVDO 1-Host USB-C & USB 3.2 Gen 1 100m Extender over HDBaseT (EU/UK WP Tx to Box Rx)

DVDO-Xtend-USBC-USB-EUWB-1 is a USB extender that can transmit USB 3.2 Gen 1 signals up to 100m/328ft via a single CAT6a cable.

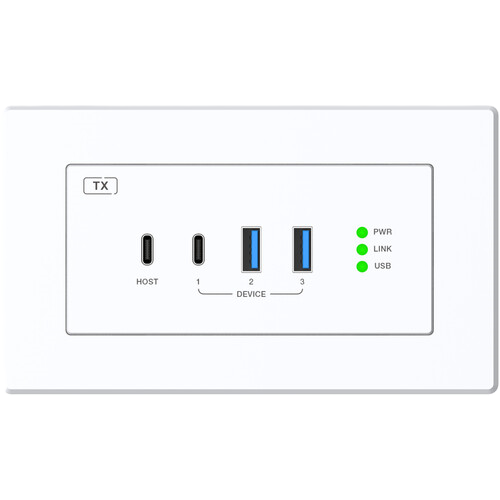

The EU/UK 2-Gang wall plate transmitter includes one USB-C host port as well one USB-C and two USB-A device ports. The receiver includes two USB-C and two USB-A device ports.

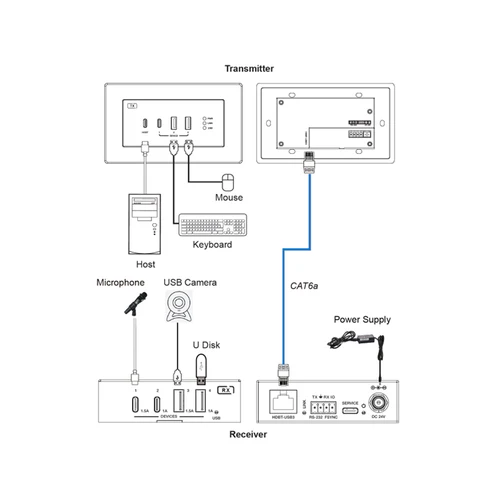

It can be used for long distance signal transmission between USB sources such as laptops and desktop computers and USB devices such as webcams, PTZ cameras, keyboards and mice, microphones, speakerphones, printers, scanners, touch panel displays, etc…

It supports bi-directional 24V PoC (Power over Cable), allowing the power supply to be connected to either the transmitter or the receiver.

Features:

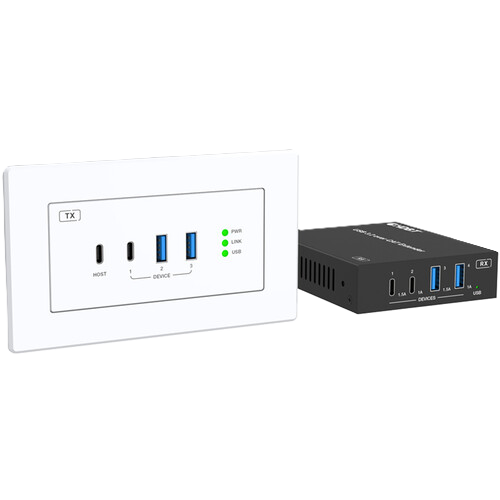

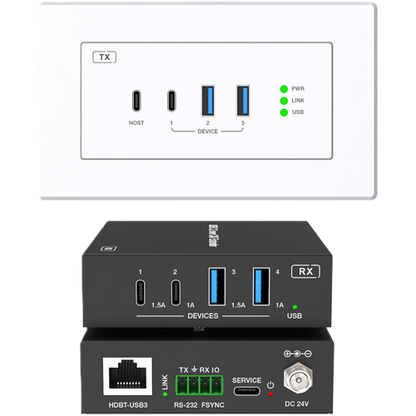

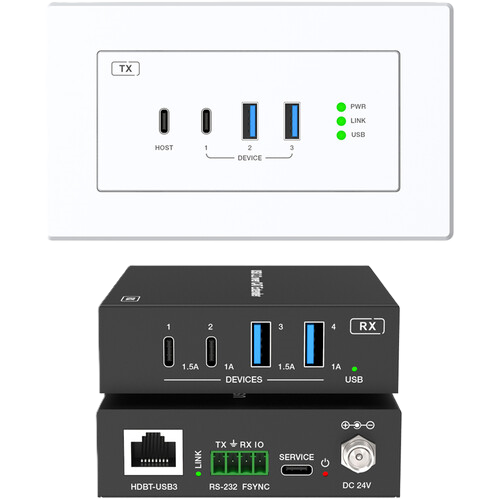

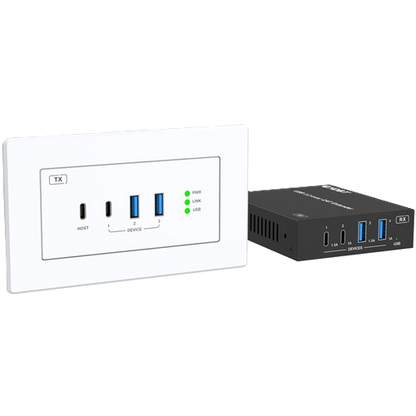

• EU/UK 2-Gang wall plate Tx and box Rx
• Extension of USB 3.2 Gen 1 up to 100m/328ft via CAT6a cable
• USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Hardware acceleration for isochronous and bulk transfer
• Wall plate Tx includes 1 x USB-C host port (5V@1.5A) + 1 x USB-C and 2 x USB-A device ports (5V@1.5A)
• Rx includes 2 x USB-C (1 x 5V@1A & 1 x 5V@1.5A) and 2 x USB-A device ports (1 x 5V@1A & 1 x 5V@1.5A)
• RS-232 pass-through
• Firmware upgrade via USB-C service port
• FSYNC GPIO pass-through for industry camera use
• Bi-directional 24V PoC (Power over Cable)
• Plug-and-play with no drivers, downloads or software required

Technical

• USB Protocol: USB 3.2 Gen 1
• Transmission Rate: Up to 5Gbps
• Transmission Distance: 100m/328ft via CAT6a (F/FTP) cable 1.5m/4.9ft via USB cable
• ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

Connections

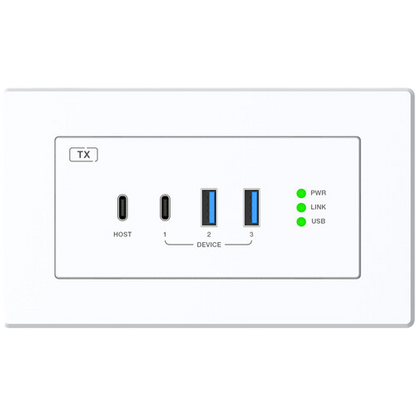

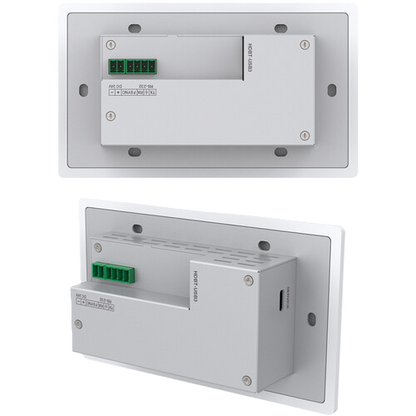

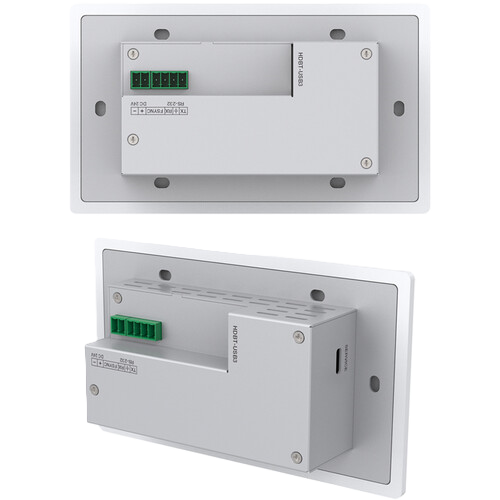

• Transmitter
  • Input: 1× HOST [USB Type C, 24-pin female]
  • Output: 1× USB-C DEVICE [USB Type C, 24-pin female]
  • 2× USB-A DEVICE [USB Type A, 9-pin female]
  • 1× HDBT-USB3 [RJ45 connector, 24V PoC]
  • Control: 1× RS-232 [3pin-3.5mm phoenix connector]
  • 1× FSYNC [1pin-3.5mm phoenix connector]
  • 1× SERVICE [USB Type C, firmware update port]

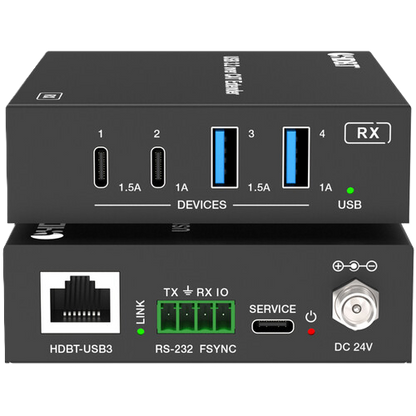

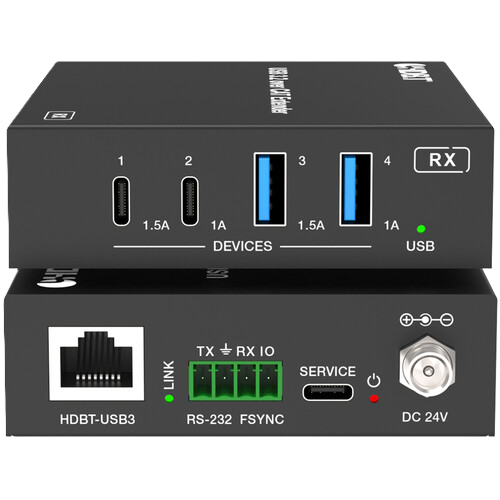

• Receiver
  • Input: 1× HDBT-USB3 [RJ45 connector, 24V PoC]
  • Output: 2× USB-A DEVICE [USB Type A, 9-pin female]
  • 2× USB-C DEVICE [USB Type C, 24-pin female]
  • Control: 1× RS-232 [3pin-3.5mm phoenix connector]
  • 1× FSYNC [1pin-3.5mm phoenix connector]
  • 1× SERVICE [USB Type C, firmware update port]

Mechanical

• Housing: Metal Enclosure
• Color TX: White Panel + Silver Enclosure; RX: Black
• Dimensions
  • TX: 146mm [W] × 85mm [H] × 37mm [D]
  • RX: 100mm [W] × 85mm [D] × 25.5mm [H]
• Weight: TX: 340g; RX: 275g
• Power Supply Input: AC 100~240V 50/60Hz; Output: DC 24V/3.75A
• Power Consumption
  • TX: 27W (Max); RX: 35W (Max);
  • TX+RX: 72W (Max, including line loss)
• Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
• Operating Humidity: 20%~80% relative humidity, non-condensing
• Storage Humidity: 10%~90% relative humidity, non-condensing

• 1× USB 3.2 Gen 1 Extender (Transmitter)
• 1× USB 3.2 Gen 1 Extender (Receiver)
• 1× 24V/3.75A Power Supply
• 4× Machine Screw (KM3*4)
• 2× Mounting Ear
• 1× User Manual
