DVDO 2-Host USB-C & USB 3.2 Gen 1 100m Extender over HDBaseT (Box Tx to Box Rx)

$699.00
/
Free Shipping & Tech Support.
MFR Part # (MPN): DVDO-Xtend-USBC-USB-BB-1
Videoguys Part # (SKU): DVDOXtendUSBCUSBBB1
Short Description:
  • Free Shipping & Tech Support

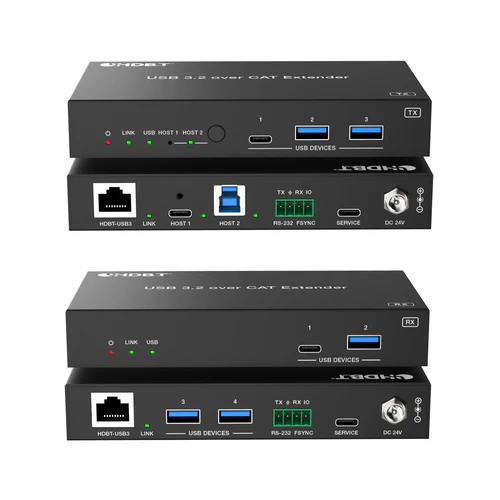

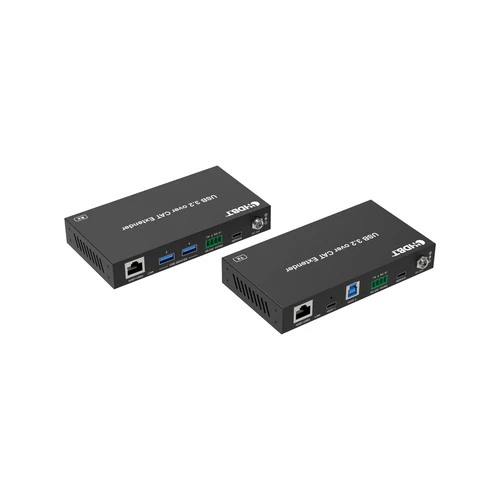

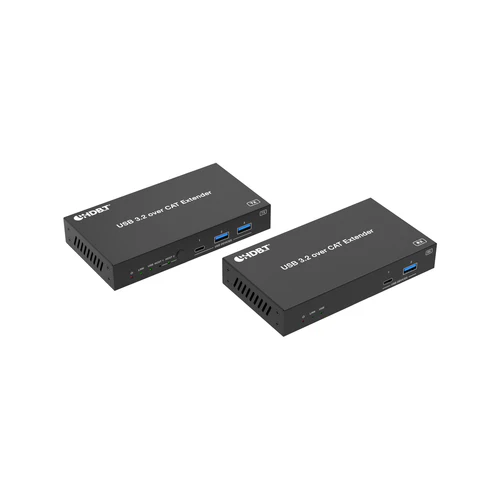

DVDO-Xtend-USBC-USB-BB-1 is a USB extender that can transmit USB 3.2 Gen 1 signals up to 100m/328ft via a single CAT6a cable.

The transmitter includes one USB-C and one USB-B host ports as well one USB-C and two USB-A device ports. The receiver includes one USB-C and three USB-A device ports.

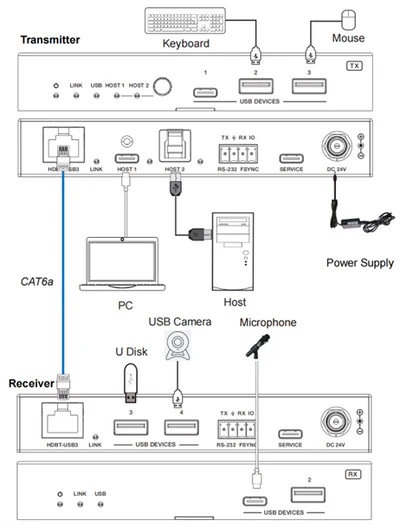

It can be used for long distance signal transmission between USB sources such as laptops and desktop computers and USB devices such as webcams, PTZ cameras, keyboards and mice, microphones, speakerphones, printers, scanners, touch panel displays, etc…

It supports bi-directional 24V PoC (Power over Cable), allowing the power supply to be connected to either the transmitter or the receiver.



Features:

  • Extension of USB 3.2 Gen 1 up to 100m/328ft via CAT6a cable
  • USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps
  • Backwards compatible with USB 2.0 and 1.1
  • Hardware acceleration for isochronous and bulk transfer
  • Tx features 1 x USB-C and 1 x USB-B selectable input ports as well as 1 x USB-C and 2 x USB-A device ports
  • Auto switching and manual switching modes
  • Rx features 1 x USB-C and 3 x USB-A output ports (2 x 5V@1A and 2 x 5V@1.5A)
  • RS-232 pass-through and API control
  • Firmware upgrade via USB-C service port
  • FSYNC GPIO pass-through for industry camera use
  • Bi-directional 24V PoC (Power over Cable)
  • Plug-and-play with no drivers, downloads or software required

Technical

USB Protocol

  • USB 3.2 Gen 1

Transmission Rate

  • Up to 5Gbps

Transmission Distance

  • 100m/328ft via CAT6a (F/FTP) cable
  • 1.5m/4.9ft via USB cable

ESD Protection

  • IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

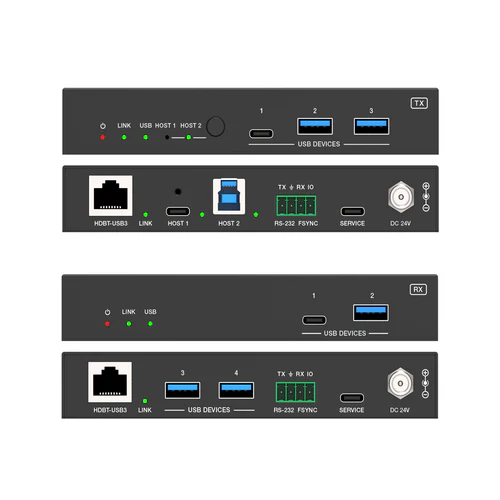

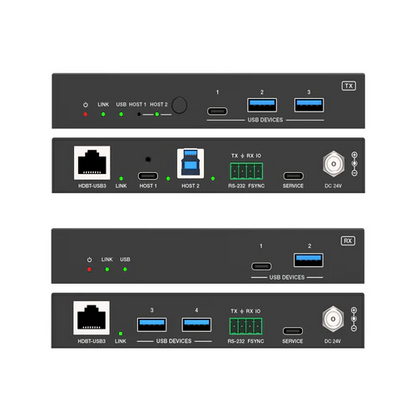

Connections

Transmitter

  • Input: 1 x HOST 1 [USB Type C, 24-pin female] + 1 x HOST 2 [USB Type B, 9-pin female]
  • Output: 1 x USB-C DEVICE [USB Type C, 24-pin female] + 2 x USB-A DEVICE [USB
  • Type A, 9-pin female] + 1 x HDBT-USB3 [RJ45 connector, 24V PoC]
  • Control: 1 x RS-232 [3pin-3.5mm phoenix connector] + 1 x FSYNC [1pin-3.5mm phoenix connector] + 1 x SERVICE
  • [USB Type C, firmware update port]

Receiver

  • Input: 1 x HDBT-USB3 [RJ45 connector, 24V PoC]
  • Output: 3 x USB-A DEVICE [USB Type A, 9-pin female] + 1 x USB-C DEVICE [USB Type C, 24-pin female]
  • Control: 1 x RS-232 [3pin-3.5mm phoenix connector] + 1 x FSYNC [1pin-3.5mm phoenix connector] + 1 x SERVICE
  • [USB Type C, firmware update port]

Mechanical<(more...)
