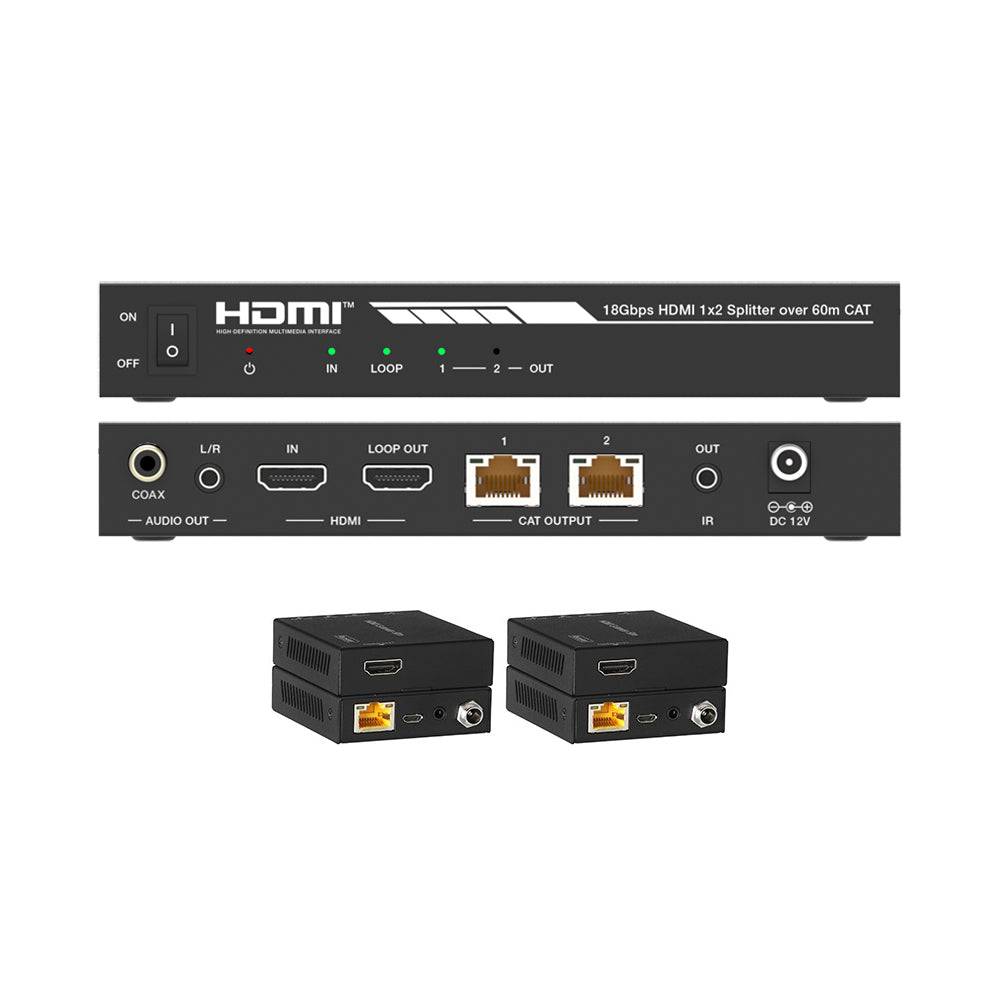

DVDO 4K 1x2 HDMI Splitter with Category Outputs

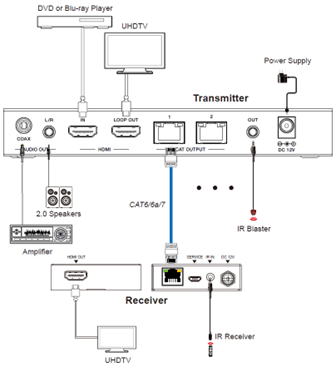

DVDO-Splitter-12-CAT is an 18Gbps 1x2 HDMI splitter that can distribute a single HDMI source signal to any 2 display devices, with supported video resolutions up to 4K2K@50/60Hz 4:4:4. The splitter has 1 HDMI loop output in addition to the 2 Cat outputs and comes with 2 Cat receivers. The HDMI signal transmission distance can be extended up to 115ft/35m at the resolution of 4K2K@60Hz, or 164ft/50m at 4K2K@30Hz, or 197ft/60m at 1080p@60Hz via a single Cat6/6a/7 cable. DVDO-Splitter-12-CAT supports one-way IR control signal pass-through, audio extract function and advanced EDID management.

• Includes 1x2 splitter and 2 Cat receivers
• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• 18Gbps video bandwidth
• Supports video resolutions up to 4K2K@50/60Hz 4:4:4
• HDR, HDR10+, HLG, Dolby Vision
• Up to 7.1CH HD audio pass-through
• Digital and analog audio de-embedded outputs
• Extend the signal transmission distance up to 115ft/35m at the resolution of 4K2K@60Hz, 164ft/50m at 4K2K@30Hz, 197ft/60m at 1080P@60Hz via a single Cat6/6a/7 cable
• 1 HDMI input, 1 HDMI loop output and 2 Cat outputs
• 20-60Hz IR control source equipment from Rx side
• Advanced EDID management
• One-way PoC function (only from transmitter to receiver)

Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 / 1.x
Video Bandwidth
594MHz / 18Gbps
Video Resolution
Input: 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Loop Out: 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Color Depth
8-bit, 10-bit, 12-bit (1080p@60Hz)
8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0)
8-bit (4K2K@60Hz YUV 4:4:4)
Color Space
RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
HDR
HDR10, HDR10+, HLG, Dolby Vision
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
Coaxial Audio Formats
LPCM 2.0, LPCM 5.1, Dolby Digital 2/5.1CH
Analog Audio Formats
PCM 2.0CH
Extended Distance
115ft/35m at 4K2K@60Hz (600M Bandwidth)
164ft/50m at 4K2K@30Hz (300M Bandwidth)
197ft/60m at 1080p@60Hz (148.5M Bandwidth)
ESD Protection
Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge)

Connection
Input
1 × HDMI IN [Type A, 19-pin female]
Output
1 × HDMI LOOP OUT [Type A, 19-pin female]
2 × CAT OUTPUT [RJ45, 8-pin female]
1 × COAX AUDIO OUT [RCA]
1 × L/R AUDIO OUT [3.5mm Stereo Mini-jack]
Control
1 × SERVICE [Micro USB, Update port]
1 × IR OUT [3.5mm Stereo Mini-jack]

Mechanical
Housing
Metal Enclosure
Silkscreen Color
Black
Dimensions
Transmitter: 175mm (W) × 100mm (D) × 25mm (H)
Receiver: 88mm (W) × 61mm (D) × 18mm (H)
Weight
Transmitter: 485g / Receiver:155g
Power Supply
Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
8.28W (Max.)
Operation Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)

• 1× 18Gbps HDMI 1×2 Splitter over 60m CAT
• 2× CAT Receiver
• 1× IR Blaster Cable (1.5 meters)
• 2× 20K~60KHz IR Receiver Cable (1.5 meters)
• 1× 12V/1A DC Locking Power Adapter
• 1× User Manual
