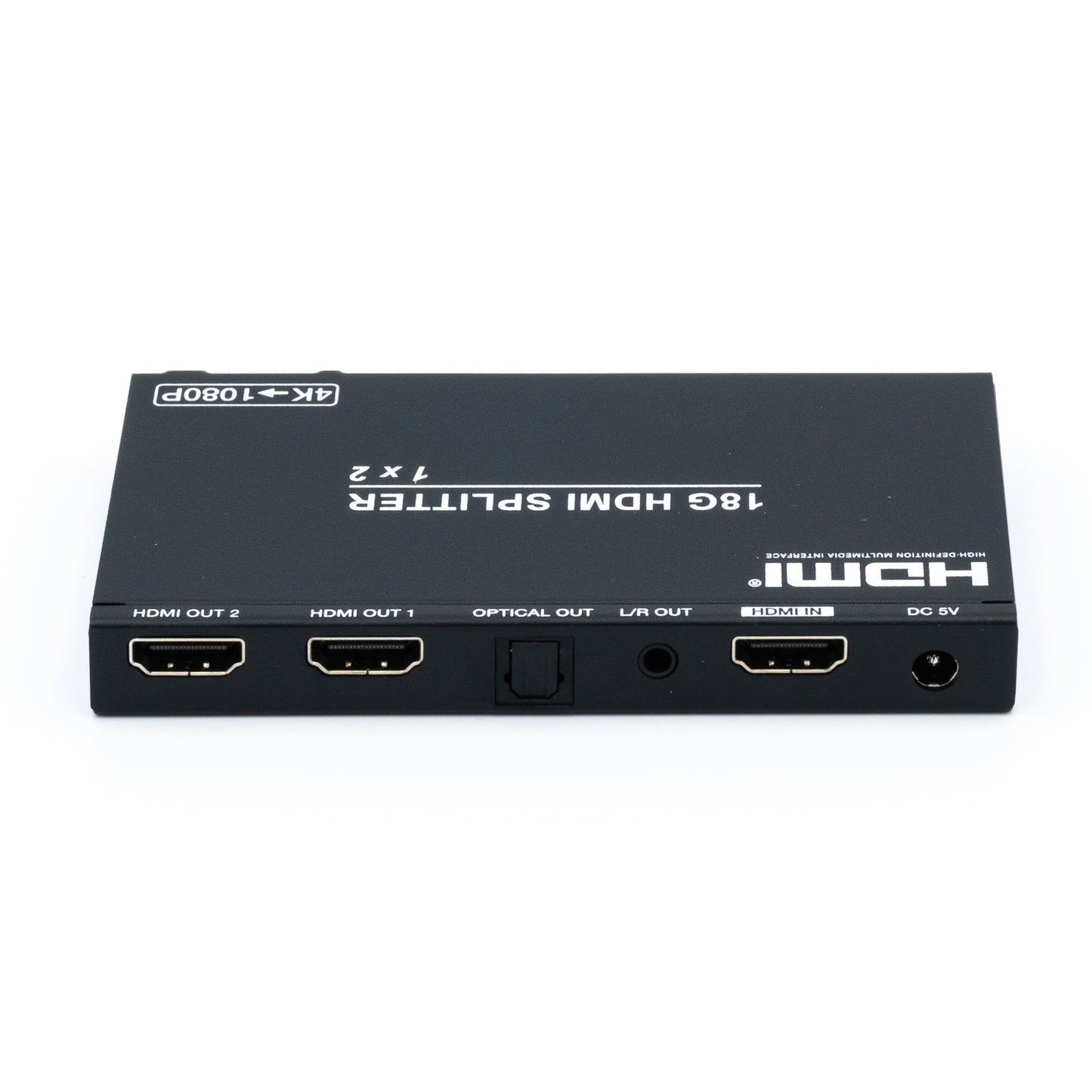

DVDO 4K 1x2 HDMI Splitter with Scaler & Audio Extract

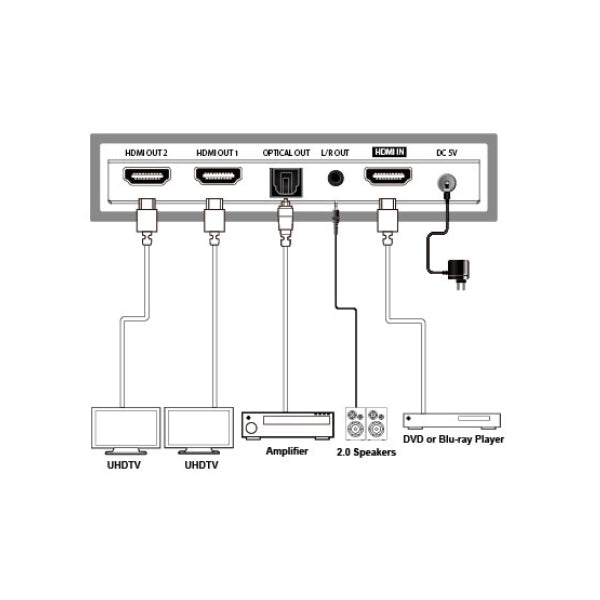

The 1x2 HDMI 2.0 Splitter simultaneously routes one HDMI source to two HDMI displays. It supports resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extraction from HDMI source to optical and analog outputs. It can operate in COPY, AUTO modes for EDID setting. Output supports bypass and downscaling (4K->1080p) functions.

• HDMI 2.0b, HDCP2.2 / HDCP1.4 compliant.
• Supports HDMI resolutions up to 4K2K@50/60Hz (4:4:4)
• Extracts digital and analog audio from HDMI source.

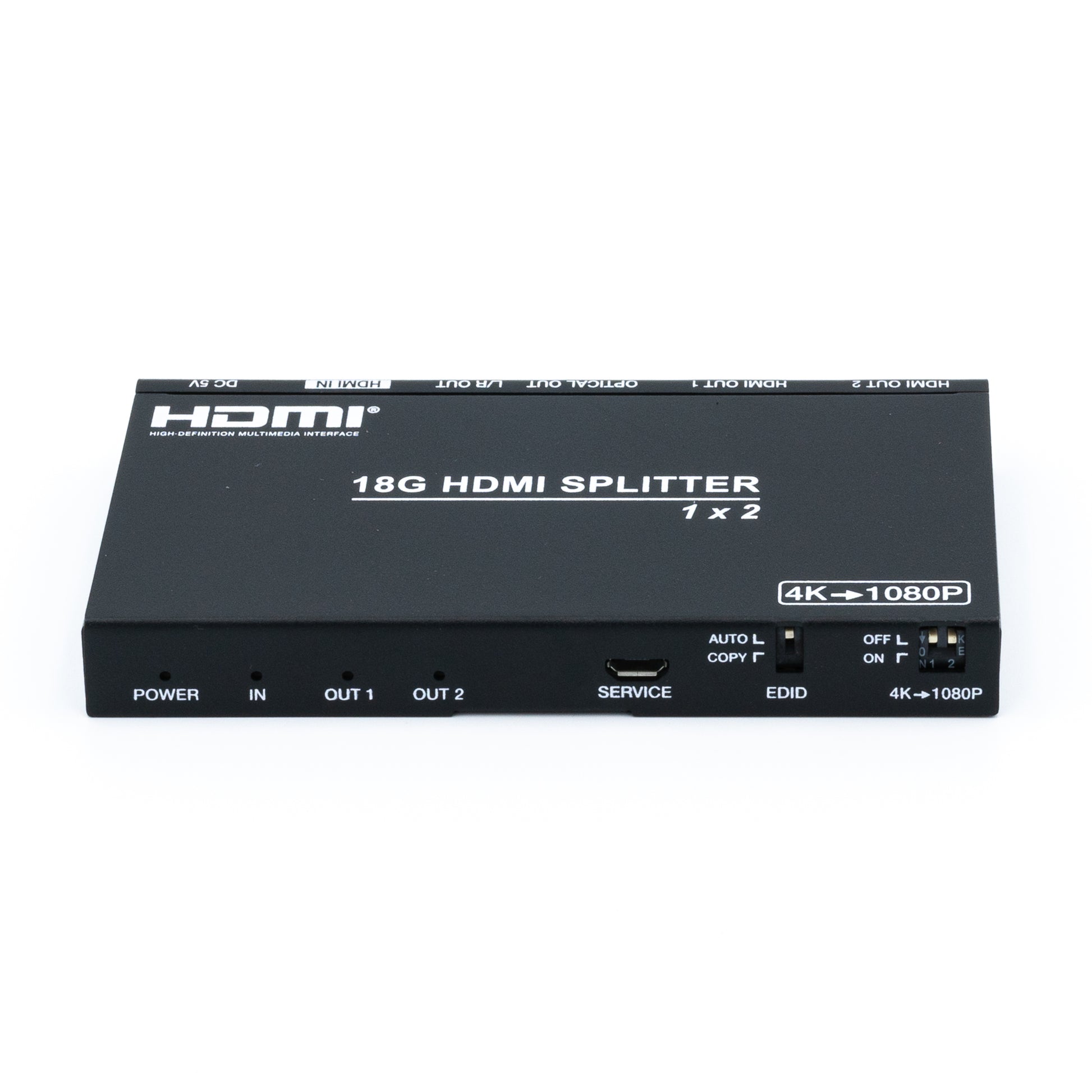

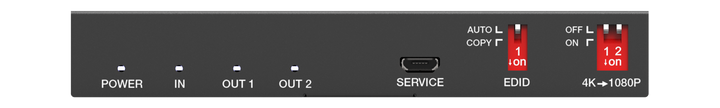

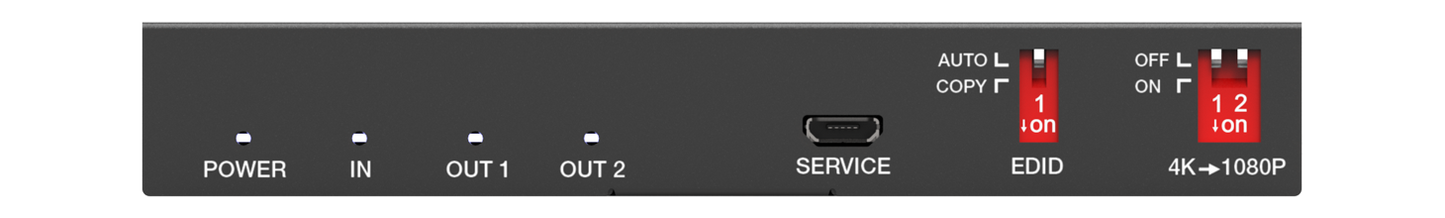

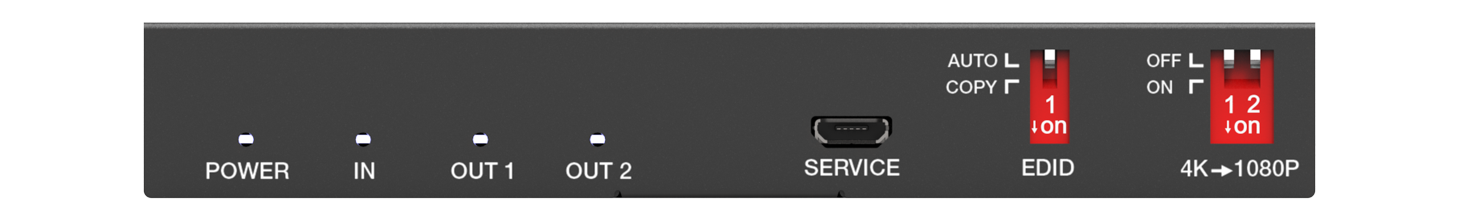

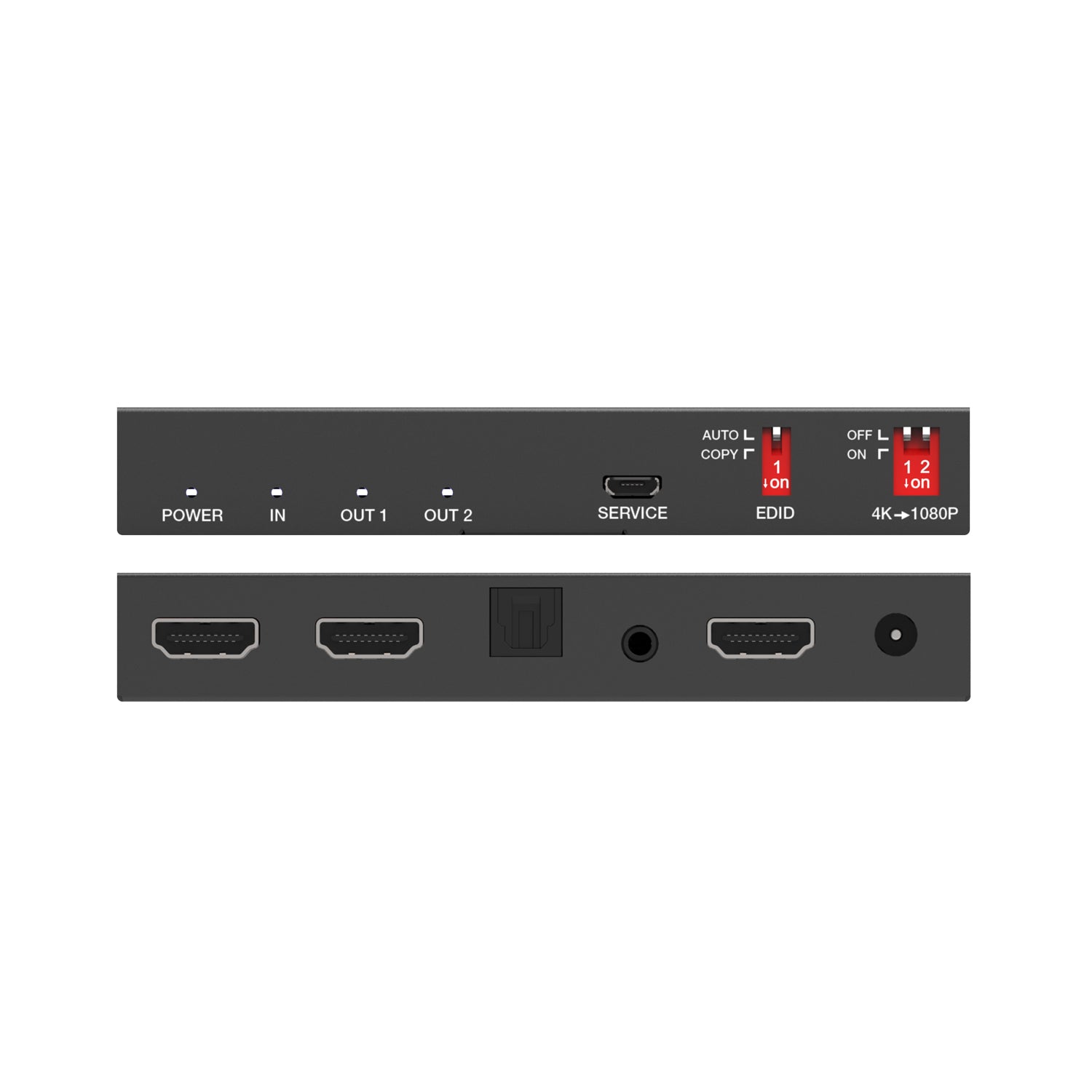

• Supports output bypass and 4K->1080P downscaling function via dial switch on panel.

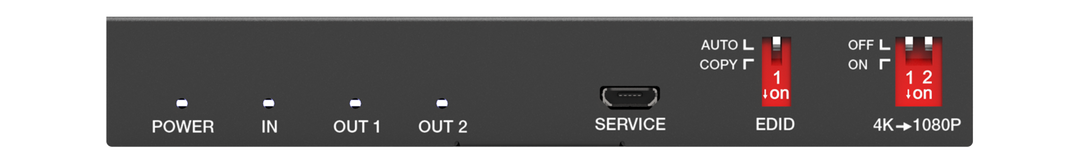

• EDID can be set to COPY and AUTO modes via panel dial.
• COPY: Copies OUT 1 port EDID setting to all output ports;
• AUTO: Compares OUT 1 and OUT 2 EDID setting and outputs the best resolution to all outputs.
• Supports HDMI audio formats LPCM, Dolby
• Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24,
• DTS High Res, DTS-HD Master Audio, DSD

HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18Gbps
Video Resolutions
720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4)
Color Depth
4K60Hz 8-bit, 1080P 12bit
Color Space
RGB, YCbCr 4:4:4, YCbCR 4:2:2
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats
PCM 2.0
Optical Audio Formats
LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
ESD Protection
Human-body model

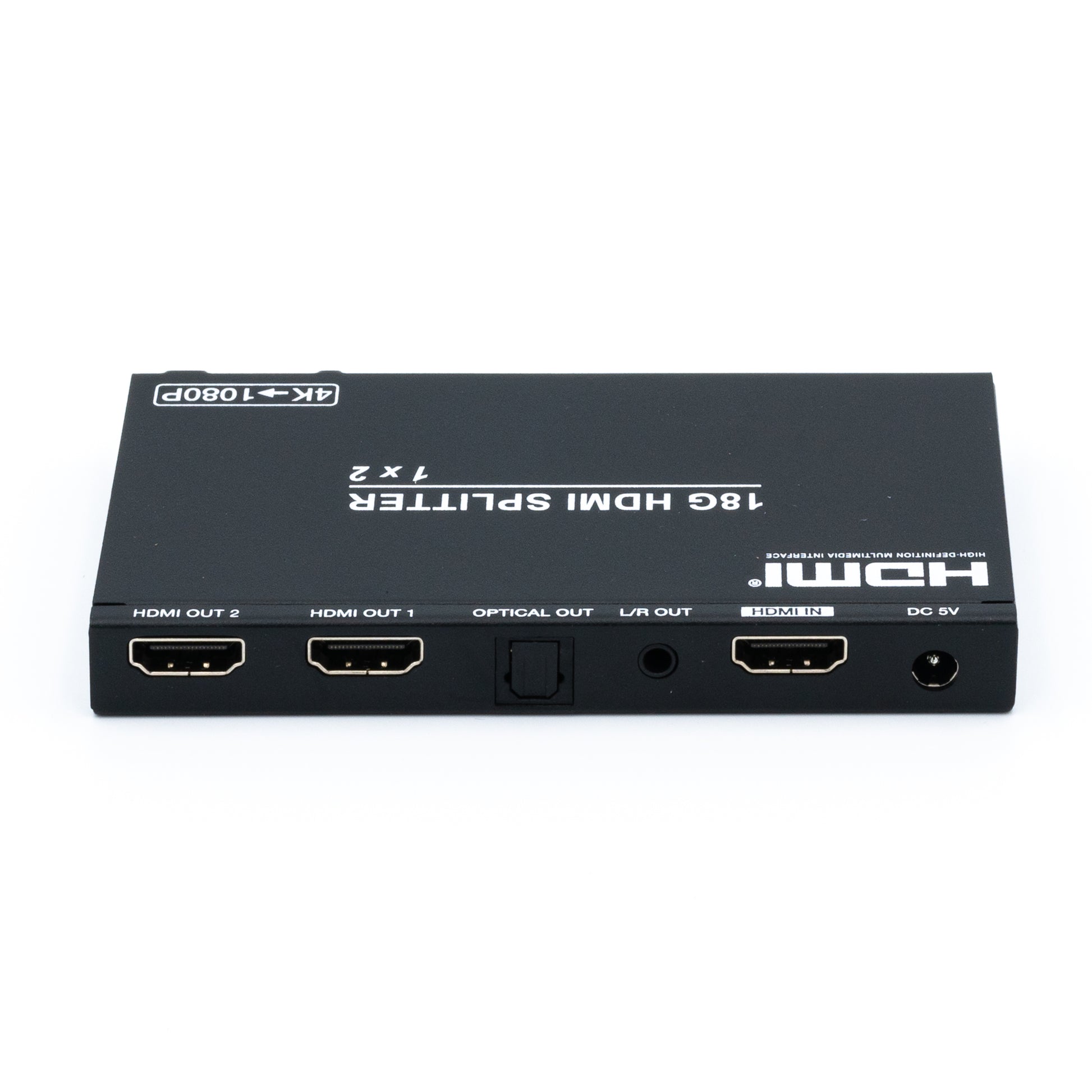

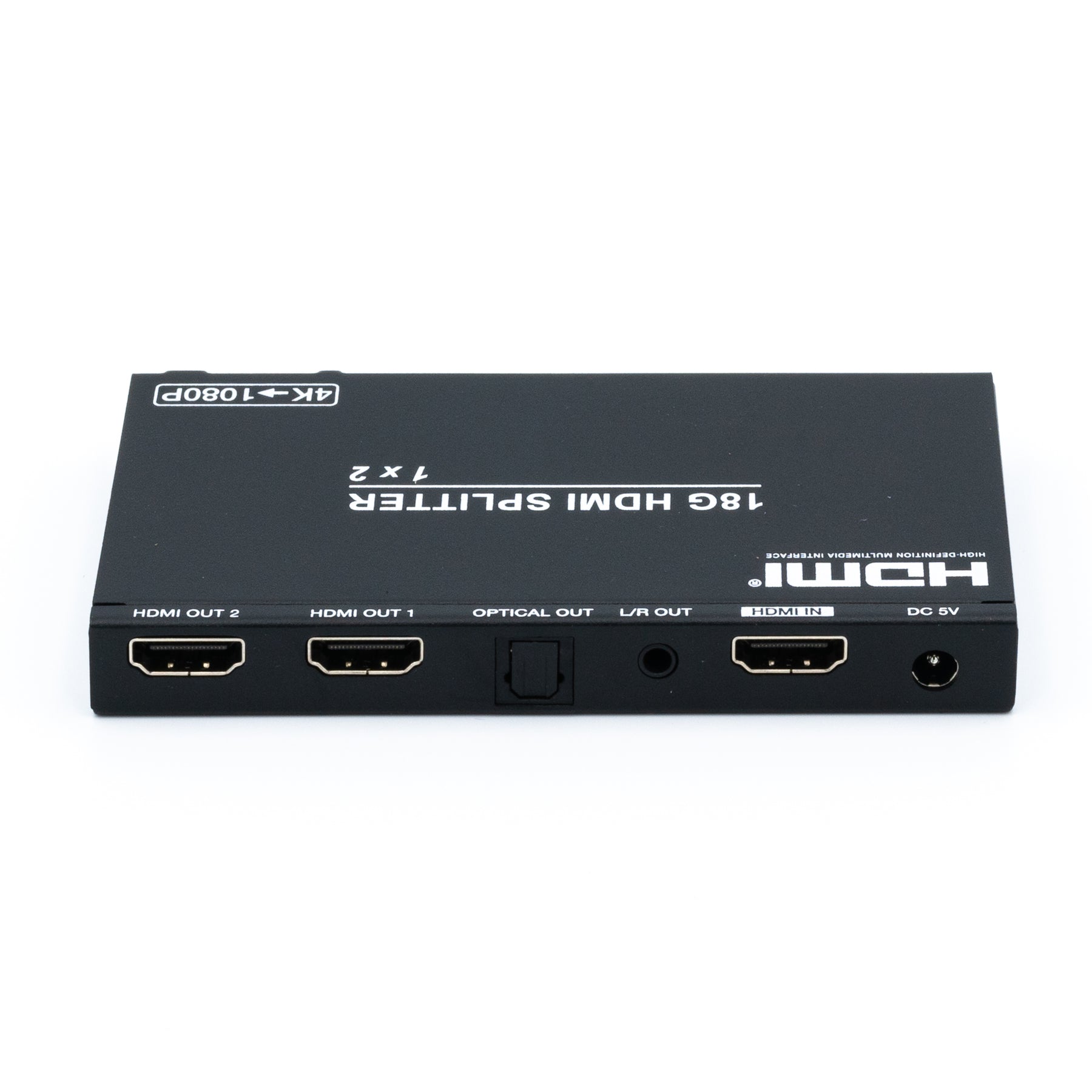

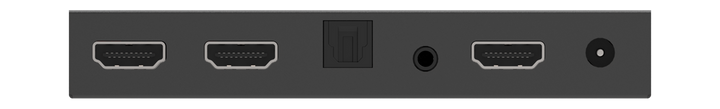

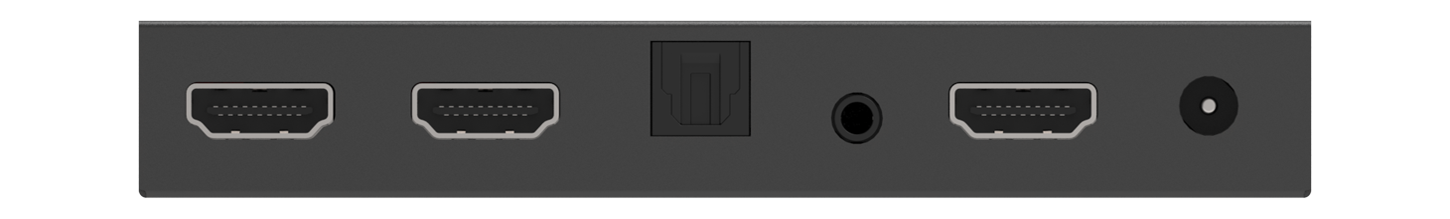

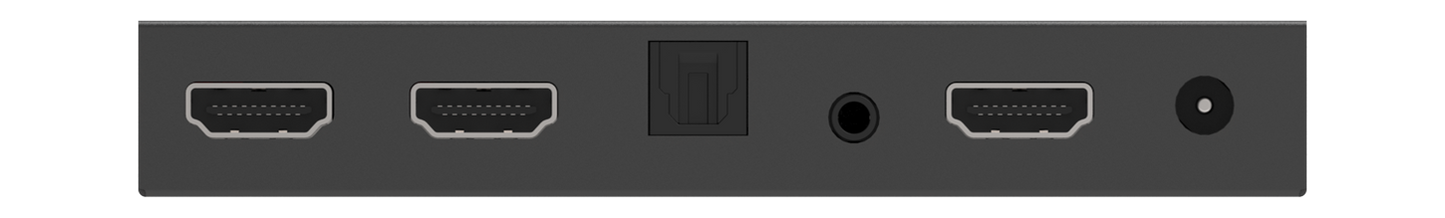

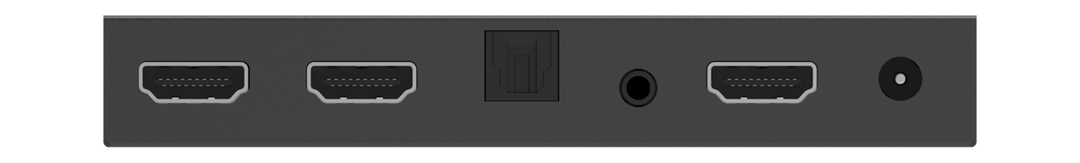

Connections
Input Ports
1x HDMI Typa A (19-pin female)
Output Ports
2x HDMI Type A (19-pin female)
1x L/R Audio out (3.5mm Stereo mini-jack)
1x Optical out (S/PDIF)

Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
120mm(W) x 62.5mm(D) x 14mm(H)
Weight
166g
Power Supply
Input: AC100~240V 50/60Hz
Output: DC5V/1A
Power Consumption
2.8W (max)
Operating Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Storage Humidity
20%~90% relative humidity, non-condensing

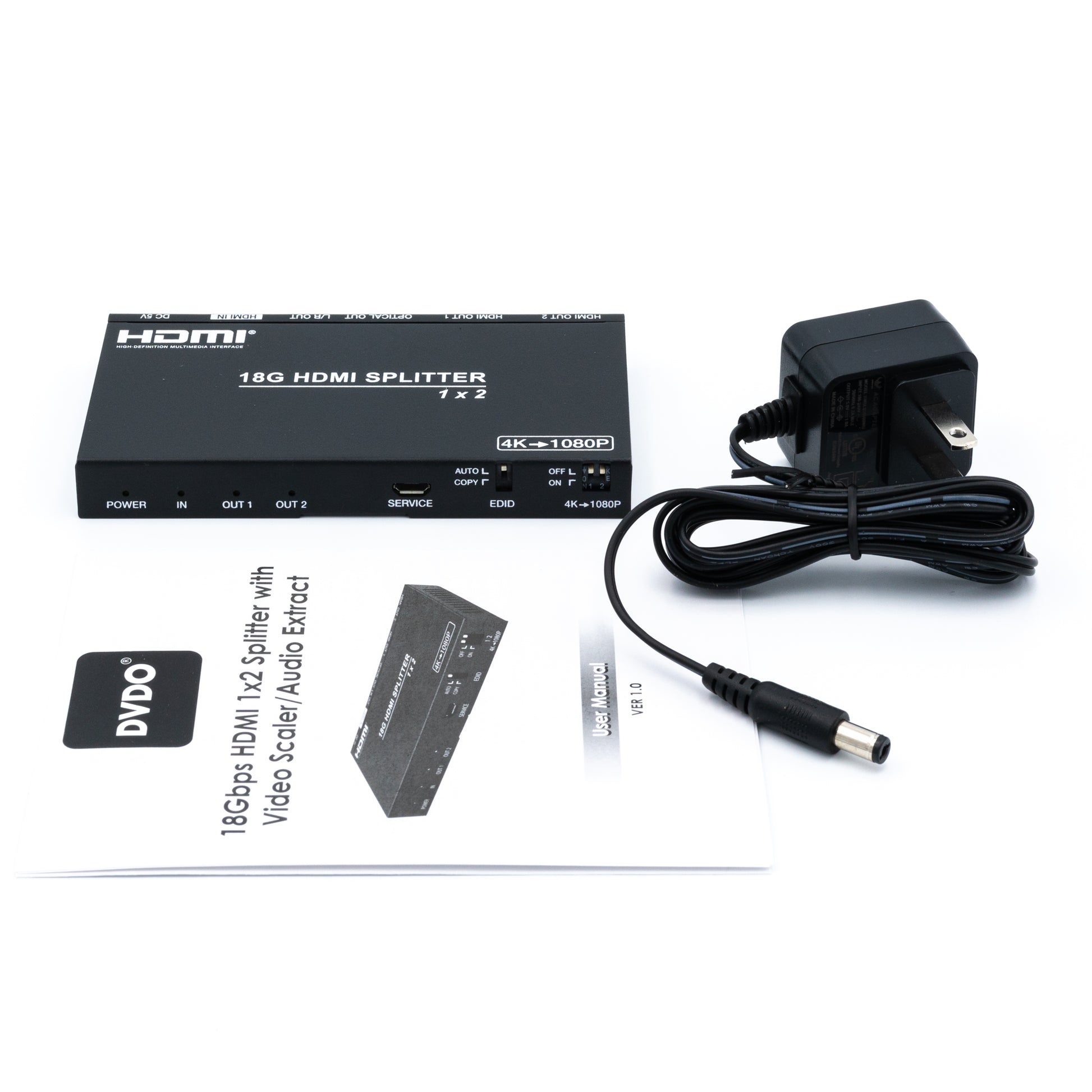

• 1x 1x2 HDMI 2.0 Splitter
• 1x 5V/1A Power Adapter
• 1x User Manual
