DVDO 4K 1x4 HDMI Splitter with Category Outputs

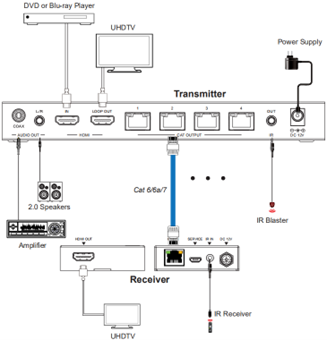

DVDO-Splitter-14-CAT is an 18Gbps 1x4HDMI splitter that can distribute a single HDMI source signal to any 4 display devices, with supported video resolutions up to 4K2K@50/60Hz 4:4:4. The splitter has 1 HDMI loop output in addition to the 4 Cat outputs and comes with 4 Cat receivers. The HDMI signal transmission distance can be extended up to 115ft/35m at the resolution of 4K2K@60Hz, or 164ft/50m at 4K2K@30Hz, or 197ft/60m at 1080p@60Hz via a single Cat6/6a/7 cable. DVDO-Splitter-14-CAT supports one-way IR control signal pass-through, audio extract function and advanced EDID management.

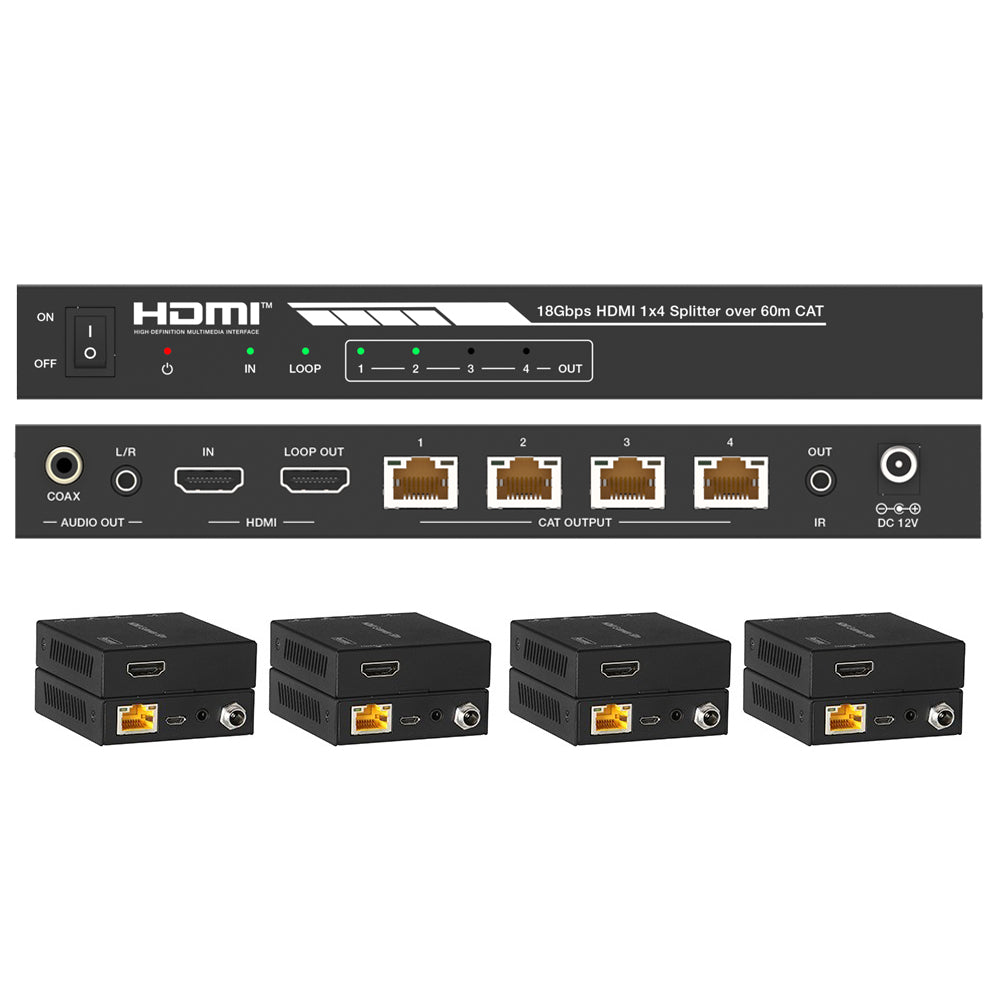

• Includes 1x4 splitter and 4 Cat receivers
• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• 18Gbps video bandwidth
• Supports video resolutions up to 4K2K@50/60Hz 4:4:4
• HDR, HDR10+, HLG, Dolby Vision
• Up to 7.1CH HD audio pass-through
• Digital and analog audio de-embedded outputs
• Extend the signal transmission distance up to 115ft/35m at the resolution of 4K2K@60Hz, 164ft/50m at 4K2K@30Hz, 197ft/60m at 1080P@60Hz via a single Cat6/6a/7 cable
• 1 HDMI input, 1 HDMI loop output and 4 Cat outputs
• 20-60Hz IR control source equipment from Rx side
• Advanced EDID management
• One-way PoC function (only from transmitter to receiver)

Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2/1.x
Video Bandwidth
594MHz/18Gbps
Video Resolution
Up to 4k2k@50/60Hz 4:4:4
Color Depth
8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color Space
RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
HDR Support
HDR10, HDR10+, HLG, Dolby vision
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Coaxial Audio Formats
PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Audio Formats
PCM 2.0CH
ESD Protection
Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection
Input
1×HDMI Type A (19-pin female)
Output
1×HDMI Type A (19-pin female）
4x CAT OUT [RJ45, 8-pin female]
1x Coaxial Audio OUT [RCA]
1x L/R Audio OUT [3.5mm Stereo Mini-jack]
Control
1×SERVICE (Micro USB, Update port）
1x EDID DIAL switch [5-pin]
1x IR OUT [3.5mm Stereo Mini-jack]

Mechanical
Housing
Metal Enclosure
Silkscreen Color
Black
Dimensions
Transmitter: 210mm (W) × 100mm (D) × 25mm (H)
Receiver: 88mm (W) × 61mm (D) × 18mm (H)
Weight
Transmitter: 617g Receiver:155g
Power Supply
Input: AC100 - 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)
Power Consumption
14W
Operation Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)

• 1x 18Gbps 1x4 HDMI Splitter over 60m CAT
• 4x CAT Receivers
• 1x IR Blaster Cable (1.5m)
• 4x 20K~60KHz IR Receiver Cable (1.5m)
• 1x 12V/2.5A DC Locking Power Adapter
• 1x User Manual
