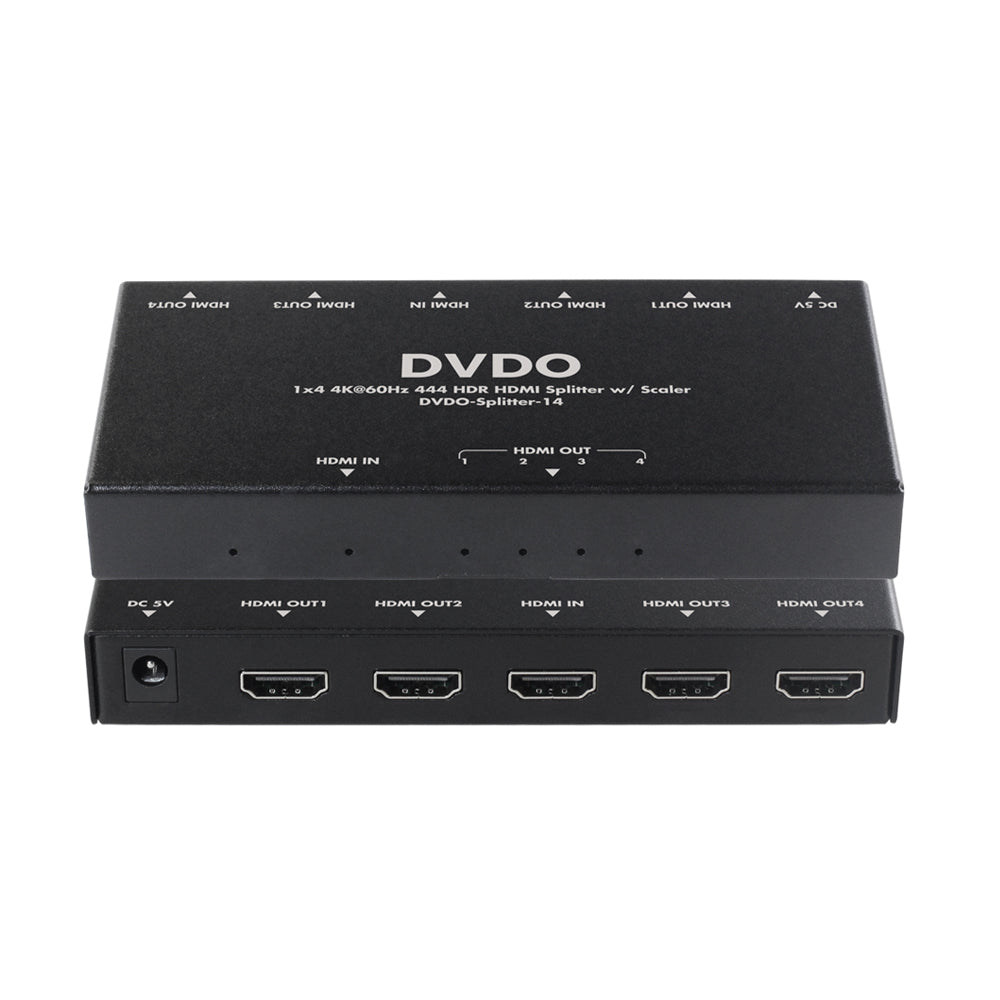

DVDO 4K 1x4 HDMI Splitter with Scaler & Audio Extract

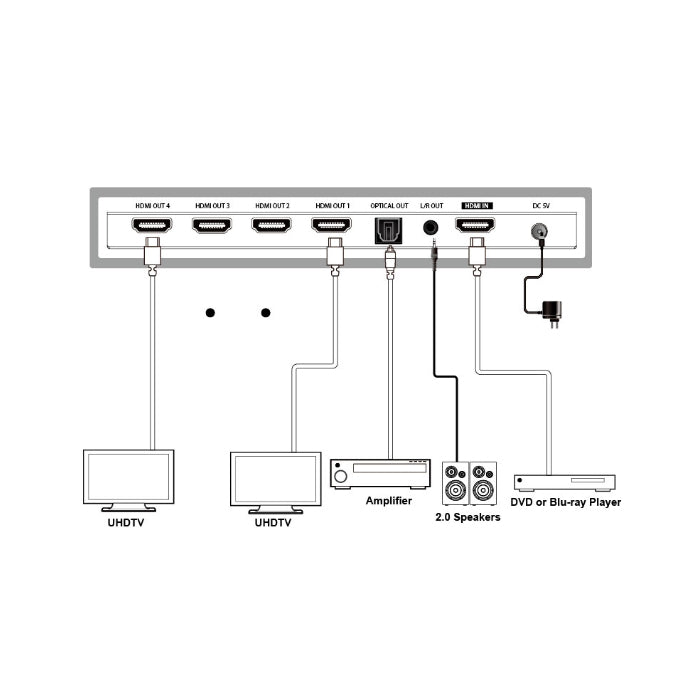

DVDO-Splitter-14-SE is a 1x4 HDMI splitter that can simultaneously route one HDMI source to four HDMI displays. It supports resolutions up to 4K2K@60Hz (4:4:4) and is HDCP 2.2 compliant. It features 4K -> 1080p downscaling, audio de-embdding through separate optical and analog audio outputs as well as selectable Copy and Auto EDID settings.

• HDMI 2.0b, HDCP 2.2 /1.4 compliant
• Supports resolutions up to 4K2K@50/60Hz (4:4:4)
• Audio de-embedding with separate digital and analog audio outputs

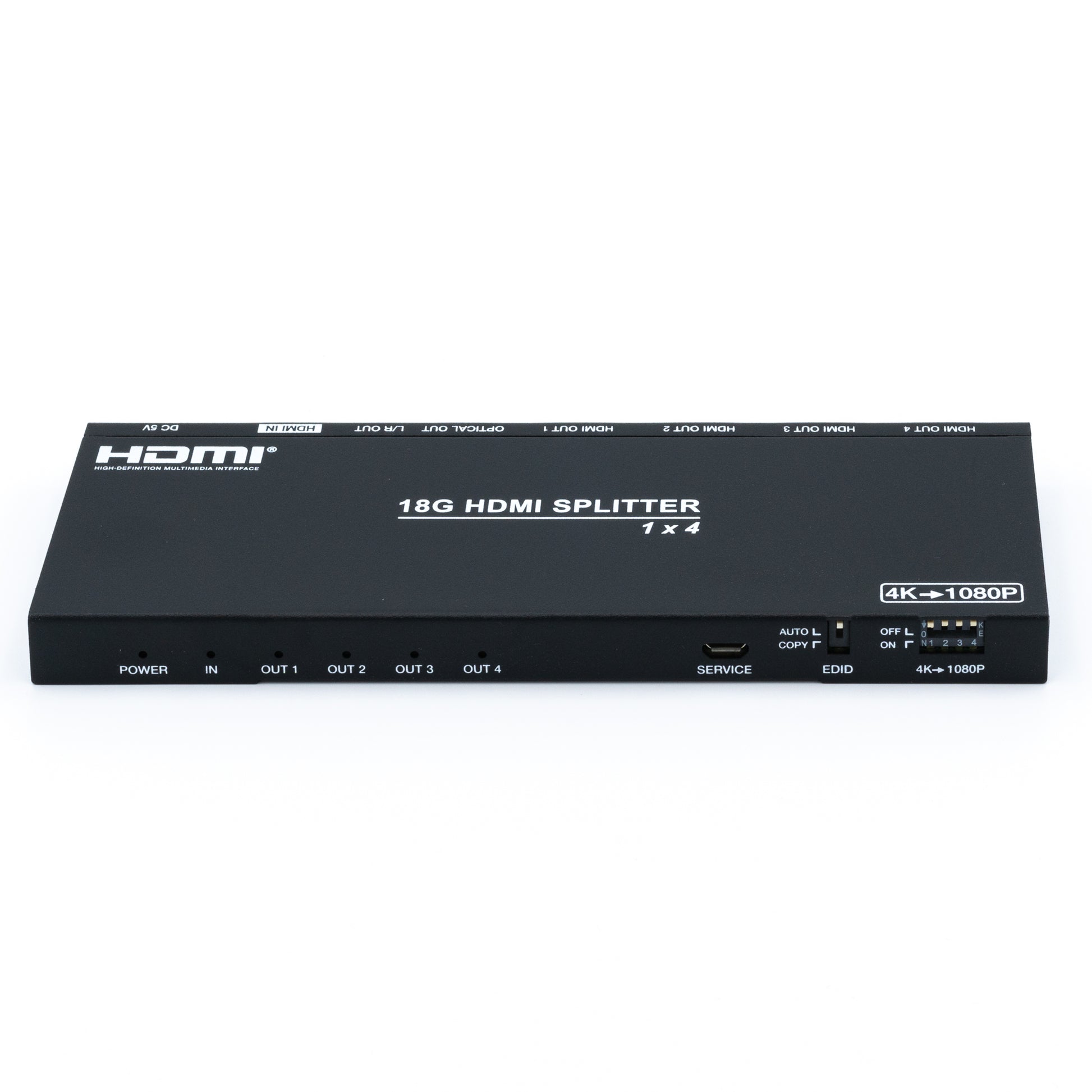

• Independent 4K->1080p downscaling for each input via dip switch on front panel
• Selectable COPY and AUTO EDID modes via dip switch on front panel
• Supports analog audio PCM 2.0
• Supports optical audio pass-through format about LPCM 2.0/2.1/5.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1

Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18Gbps
Video Resolutions
720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4)
Color Depth
4K60Hz 8-bit, 1080P 12bit
Color Space
RGB, YCbCr 4:4:4, YCbCR 4:2:2
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats
PCM 2.0
Optical Audio Formats
LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
ESD Protection
Human-body model

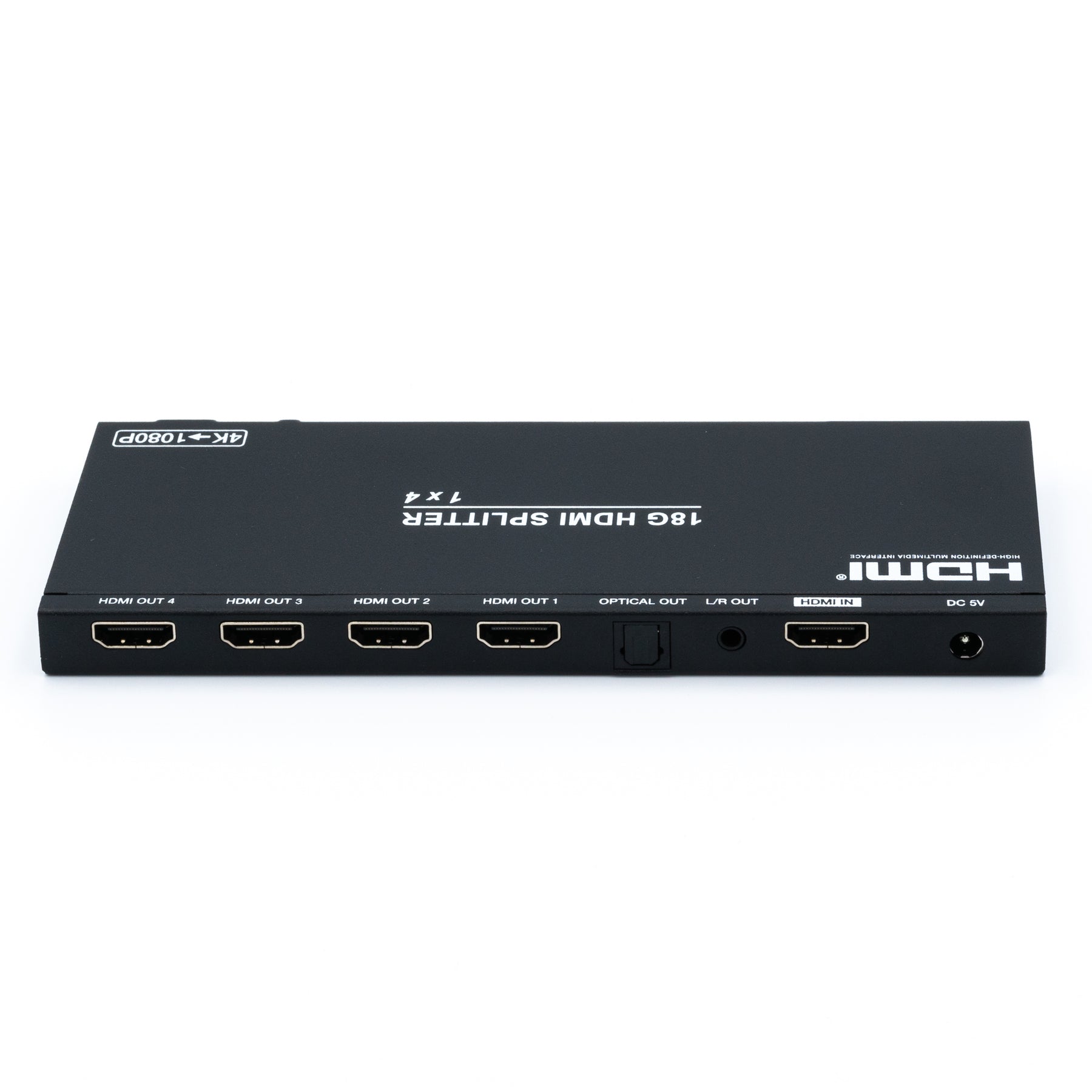

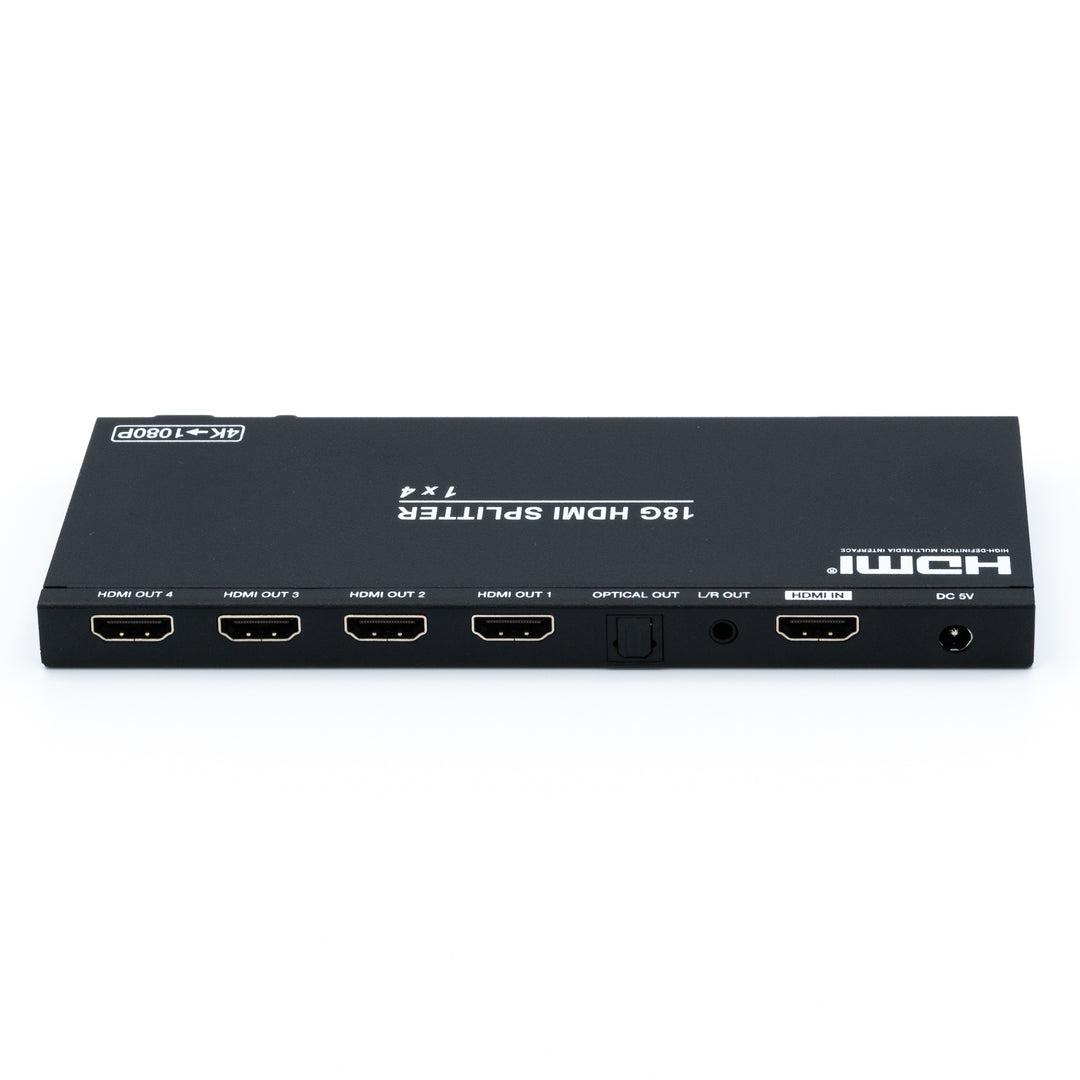

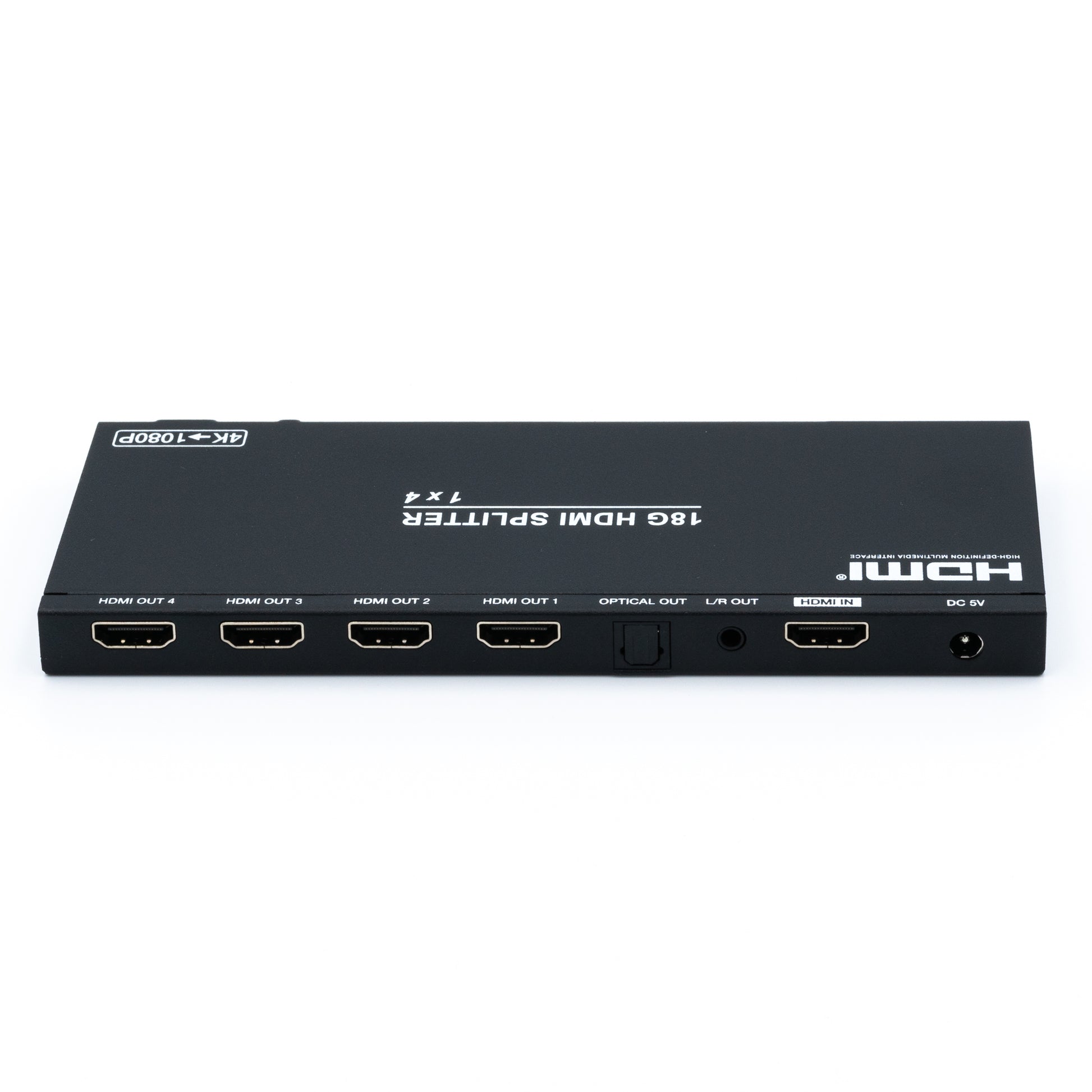

Connections
Input Ports
1x HDMI Typa A (19-pin female)
Output Ports
4x HDMI Type A (19-pin female)
1x L/R Audio out (3.5mm Stereo mini-jack)
1x Optical out (S/PDIF)

Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
120mm(W) x 62.5mm(D) x 14mm(H)
Weight
166g
Power Supply
Input: AC100~240V 50/60Hz
Output: DC5V/1A
Power Consumption
2.8W (max)
Operating Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Storage Humidity
20%~90% relative humidity, non-condensing

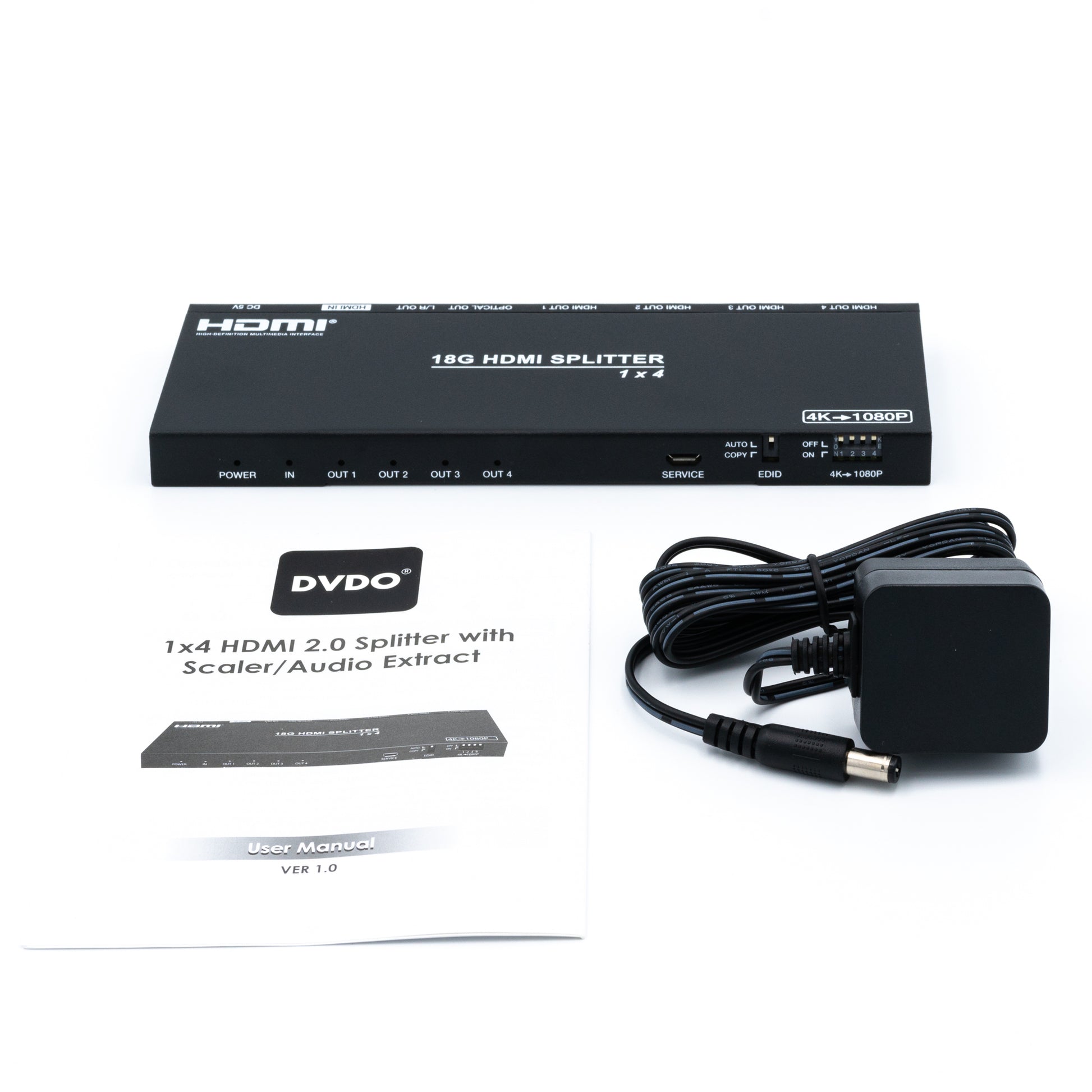

• 1× 1×4 HDMI 2.0 Splitter
• 1× 5V/1A Power Adapter
• 1× User Manual
