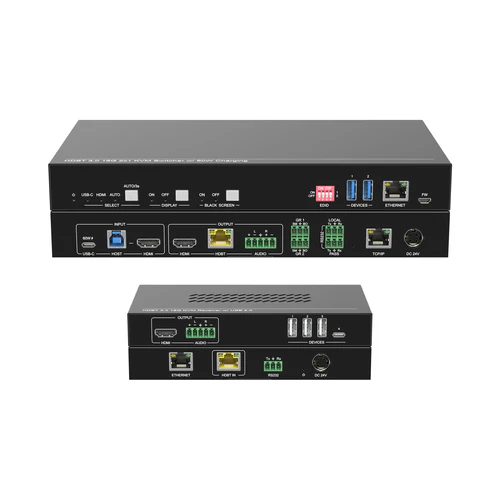

DVDO 4K 2x1 Presentation Switcher / Extender with USB-C & HDMI Inputs

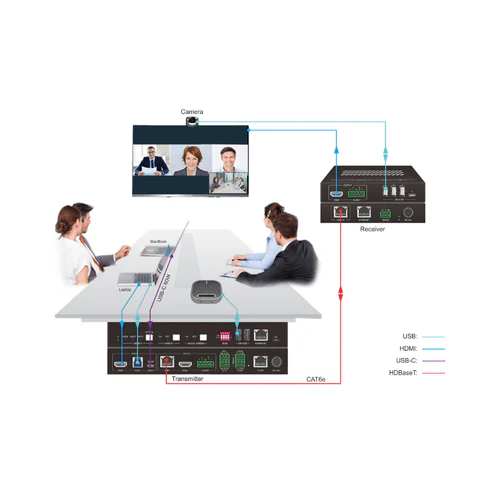

DVDO-USBC-HDMI-PS-21-Xtend is a 2x1 presentation switcher / extender. The transmitter includes 1 HDMI + 1 USB-C inputs and 1 HDMI with 1 mirrored HDBaseT outputs.

It supports video resolutions up to 4K60 4:4:4 and can extend uncompressed 4K signals up to 328ft/100m over HDBaseT 3.0 with a single Cat6a or Cat7 cable.

The USB-C input supports DP-Alt mode for video, 5Gbps for data transfer and 60W power delivery.

The unit provides USB switching and extension through multiple USB device ports on both Tx and Rx.

It also provides audio de-embedding with separate audio inputs on both Tx & Rx.

It can be controlled via the front panel buttons, CEC, RS232 or IP with an intuitive web GUI and supports bidirectional PoC.

Features:

• HDMI 2.0b, HDCP 2.2, HDBaseT 3.0, DP1.4
• Video resolutions up to 4K@60Hz 4:4:4 @ 18Gbps
• Transmission of uncompressed 4K & 1080p signals up to 328ft/100m over a single Cat6a or Cat7 cable
• Manual & auto switching modes
• Inputs: 1 x USB-C + 1 x HDMI
• Outputs: 1 x HDMI + 1 x HDBT (Tx) / 1 x HDMI (Rx)
• USB-C input supports 4K60 DisplayPort Alt Mode, USB 3.2 Gen 1 up to 5Gbps and 60W charging
• Audio de-embedding with separate balanced audio outputs on both Tx & Rx
• Multiple USB device ports: 2 x USB-A 3.0 on Tx / 3 x USB-A 2.0 + 1 x USB-C on Rx
• Advanced EDID management
• Control via front panel buttons, CEC, RS-232, TCP/IP or intuitive web GUI
• Bidirectional 48V PoC

Video
Video Input
Transmitter: (1) HDMI IN, (1) USB-C IN
Receiver: (1) HDBT IN
Video Output Connector
Transmitter: (1) Type-A female HDMI, (1) Type-C
Receiver: (1) RJ45
Input Resolution
Transmitter: HDMI: Up to 4K@60Hz 4:4:4, HDR10, Dolby Vision, USB-C: Up to 4K@60Hz 4:4:4
Receiver: Up to 4K@60Hz 4:2:0
Video Output
Transmitter: (1) HDMI OUT (1) HDBT OUT
Receiver: (1) HDMI
Video Output Connector
Transmitter: (1) Type-A female (1) RJ45
Receiver:(1) Type-A female HDMI
Output Resolution
Transmitter: HDMI: Up to 4K@60Hz 4:4:4, HDR10, Dolby Vision, HDBT: Up to 4K@60Hz 4:2:0
Receiver: Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision
HDMI Standard
Transmitter: Up to HDMI 2.0b
Receiver: Up to HDMI 2.0b
HDCP Version
Transmitter: Up to HDCP 2.2
Receiver: Up to HDCP 2.2

Audio
HDMI Embedded Audio Format
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital®
Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.
Audio Output Connector
Transmitter: (1) 5-pin terminal block
Receiver: (1) 5-pin terminal block
Frequency Response
20Hz–20KHz, ±3dB
Max Output Level
0.88 Vrms ± 0.5 dB. 2 V = 16 dB headroom above -10 dBV (316 mV) nominal consumer line level signal
THD+N
< 0.05% (-80 dB), 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0 dBFS level (or max level)
SNR
> 80dB, 20Hz-20 kHz bandwidth
Crosstalk Isolation
< -80 dB, 10 kHz sine at 0 dBFS level (or max level before clipping)
L-R Level Deviation
< 0.3 dB, 1 kHz sine at 0 dBFS level (or max level before clipping)
Output Load Capability
1k ohm and higher (supports 10x paralleled 10k ohm loads)
Noise Level
>70dB @ 1 kHz

Control
Control port

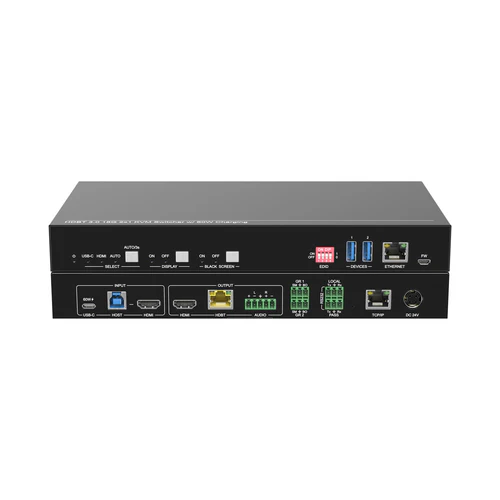

Transmitter: (1) EDID switch, (2) DEVICES, (1) ETHERNET, (1) FW, (1) HOST, (2) GR, (2) RS232, (1) TCP/IP

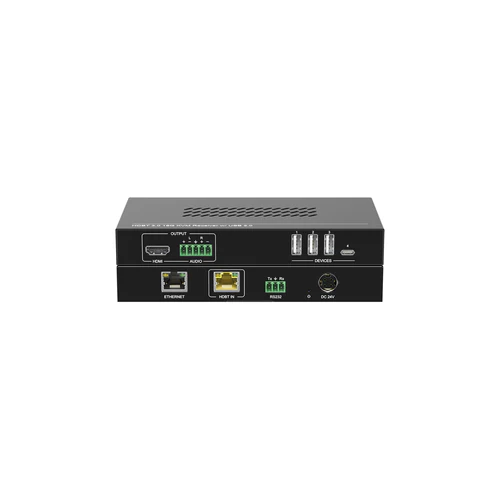

Receiver: (4) DEVICE, (1) ETHERNET, (1) RS232
Control Connector
Transmitter: (1) 4-pin DIP switch, (2) USB Type-A, (1) RJ45, (1) Micro-USB, (1) USB Type-B, (2) 3-pin terminal block, (2) 3-pin terminal block, (1) RJ45
Receiver: (3) USB Type-A, (1) USB Type-C, (1) RJ45, (1) 3-pin terminal block

General
Operation Temperature
-5 ~ +55℃
Storage Temperature
-25 ~ +70℃
Relative Humidity
10% ~ 90%
External Power Supply
Input: AC 100~240V, 50/60Hz; Output: 24V DC 5A.
Power Consumption
76.5W (Max)
USB-C Power Charging
60W (Max)
Dimension (W*H*D)
265W x 150D x 32H mm 173W x 95D x 24.5H mm
Net Weight
1020g 410g

• 1x DVDO-USBC-HDMI-PS-21-Xtend Transmitter
  • 4x 3-pin terminal block
  • 1x 5-pin terminal block
  • 1x 3-pin to DB9 RS232 cable
  • 2x hangers
  • 4x screws
  • 4x foot pads
• 1x DVDO-USBC-HDMI-PS-21-Xtend Receiver
  • 1x 3-pin terminal block
  • 1x 5-pin terminal block
  • 2x hangers
  • 2x screws
  • 4x foot pads
  • 1x DC24V/5A power adapter
  • 1x user manual
