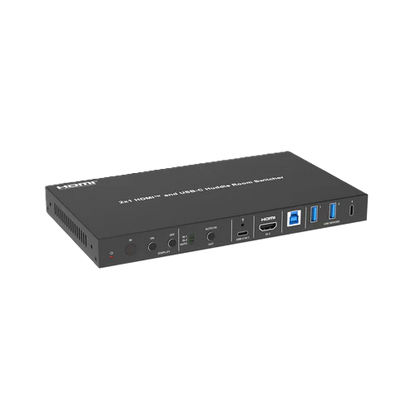

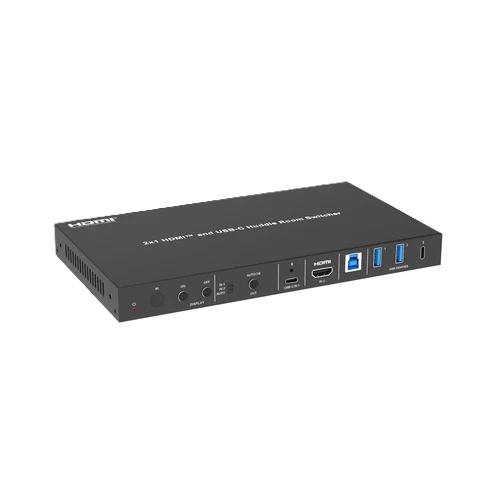

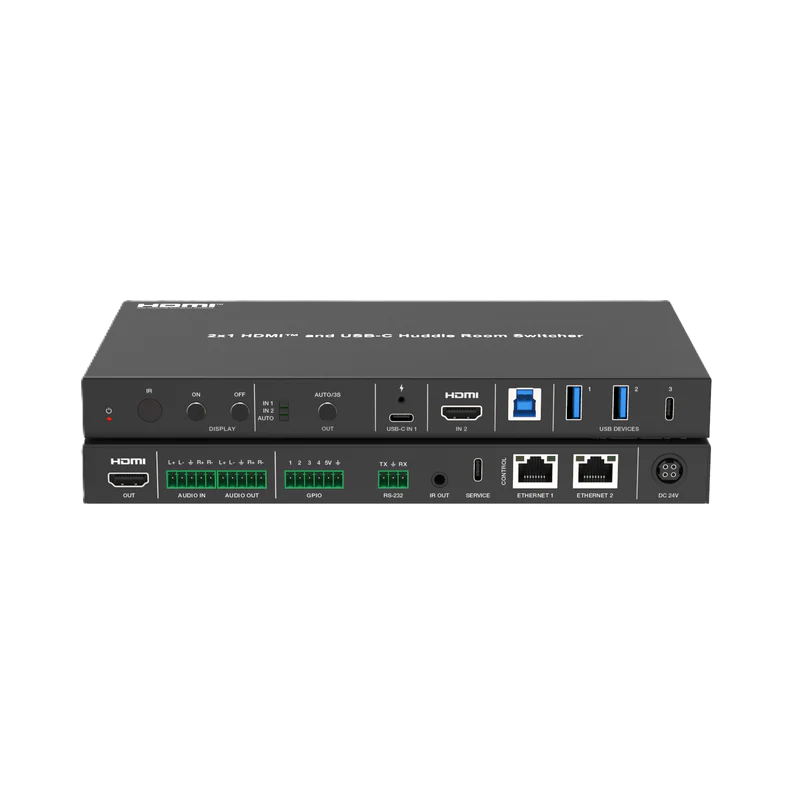

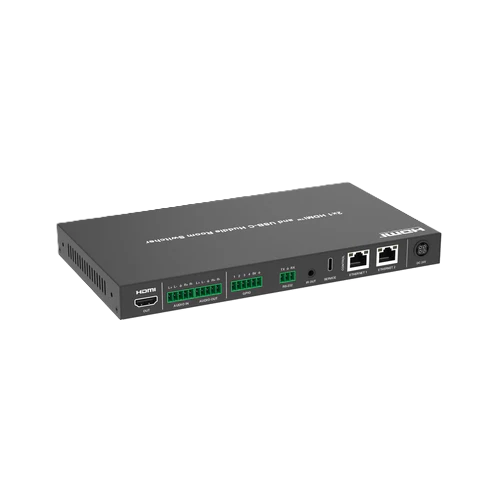

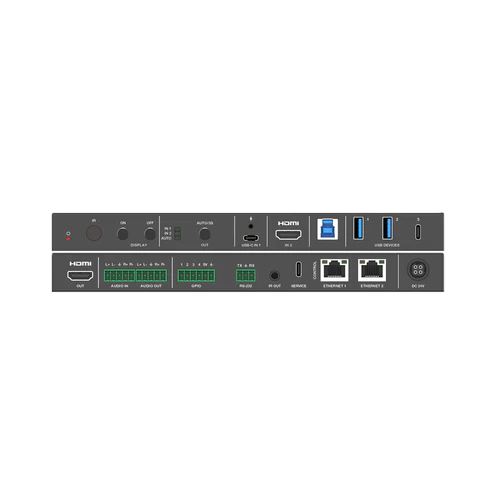

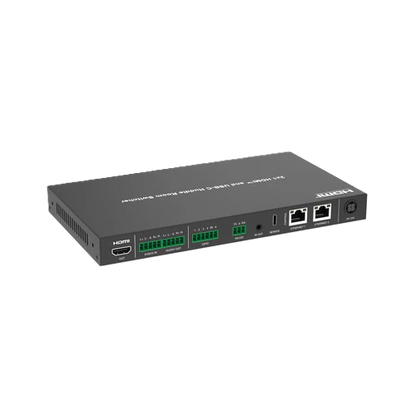

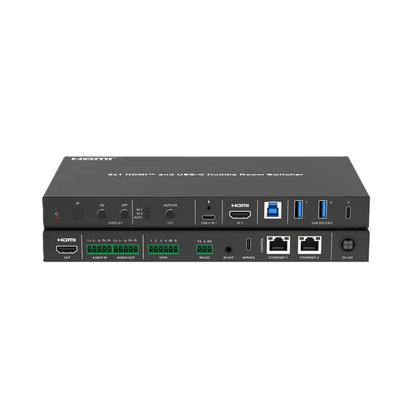

DVDO 4K 2x1 Presentation Switcher with USB-C & HDMI Inputs, Audio Input & Output, 2 LAN Ports

DVDO-USBC-HDMI-PS-21-XL is a 2x1 presentation switcher with 1 HDMI & 1 USB-C inputs, 1 HDMI output, 1 USB Host port, dual Ethernet ports and separate balanced/un-balanced analog audio input and output.

It supports video resolutions up to 4K60 at 18Gbps as well as HDR.

The USB-C input supports DisplayPort 1.4 Alt Mode up to 4K60 video, USB 3.2 Gen 1 up to 5Gbps data transfer, 1G Ethernet and up to 100W charging.

The unit also includes 3 USB 3.2 Gen 1 Device ports (1 USB-C + 2 USB-A) for peripherals such as camera, hard disk, keyboard and mouse that can connect to both inputs / host devices.

It features auto and manual switching as well as auto signal detection.

It can be controlled over TCP/IP, Web GUI, RS232, IR or via the front panel buttons.

Features:

• HDMI 2.0b, HDCP 2.3 and DP 1.4a compliant
• 1 x HDMI + 1 x USB-C inputs & 1 HDMI output
• USB-C input supports DP Alt Mode up to 4K60 4:4:4, USB 3.2 Gen 1 (5Gbps), 1G Ethernet & 100W charging
• HDMI input supports video resolutions up to 4K60 4:4:4
• Fast switching including auto & manual switching
• Auto switching with signal detection and 5V detection
• USB 3.2 Gen 1 (5Gbps) host and local hub
• USB 3.2 Gen 1 (5Gbps) device with 5V/1.5A power output
• Balanced/un-balanced analog audio embedding to USB or HDMI audio
• Balanced/un-balanced analog audio de-embedding from USB or HDMI audio
• Advanced EDID management
• User defined welcome screen and no signal display image
• Dual 1G Ethernet ports with 802.1x and VLAN
• IR eye for IR learning and control
• Auto display on/off control
• External device control via CEC/IR/RS232/LAN/GPIO
• Control via front panel buttons, RS232, TCP/IP and Web GUI

Technical

• HDMI™ Compliance: HDMI™ 2.0b
• HDCP Compliance: HDCP 2.3
• DP Compliance: DP 1.4a (USB-C input)
• USB Compliance: USB 3.2 Gen1 (5Gbps)
• Video Bandwidth: 18Gbps
• Video Network Bandwidth: 1G
• Video Resolution (Input&Output): 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59), 720x480p59.94H (480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60H (1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz
• Color Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
• Color Depth: 8/10/12-bit, 8-bit (4K@60Hz, 4:4:4)
• HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
• Audio Formats
  • HDMI™/USB-C IN, HDMI™ OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTSHD Master Audio, DSD
  • Analog Audio IN/OUT: LPCM 2CH (sample rate 32~192kHz)
• Audio In
  • Input Impedance: 20K Ohm balanced | 10K Ohm unbalanced
  • Input Level: Max 8.2dBu (2Vrms) balanced audio
  • Frequency Response: 20Hz to 20kHz (-/+0.5dB)
  • Dynamic Range: >90dB@0dBu, 1kHzA-weighted
  • Audio S/N Ratio: >90dB@0dBu, 1kHzA-weighted
  • Audio THD+N: < 0.01% at +4dBu, 1KHz
  • Audio Output Delay: <1ms
• Audio Out
  • Output Impedance: 600 Ohm balanced | 300 Ohm unbalanced
  • Output Level (Maximum): Max 8.2dBu (2Vrms) balanced audio | Max 2.2dBu (1Vrms) unbalanced audio
  • Frequency Response: 20Hz to 20kHz (-/+1dB)
  • Dynamic Range: >90dB@0dBu, 1kHzA-weighted
  • Audio S/N Ratio: >90dB@0dBu, 1kHzA-weighted
  • Audio THD+N: < 0.067% at +4dBu, 1KHz
  • Audio Output Delay: <1ms
• IR Level: 5Vp-p
• IR Frequency: 20K-60KHz
• Transmission Distance
• USB 3.2 Passive Cable: 1.5m/4.9ft
• HDMI™ Passive Cable: 3m/9.8ft
• ESD Protection
  • IEC 61000-4-2:
  • ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

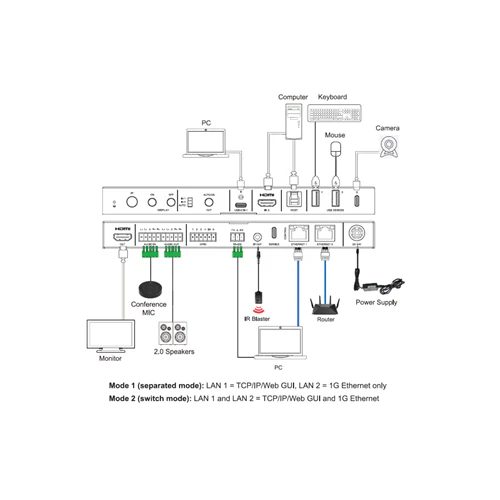

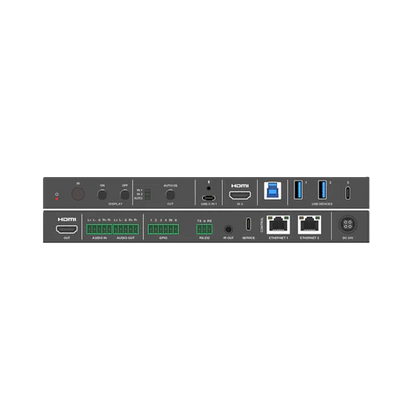

Connection

• Input ports
  • 1× IN2 [HDMI™ Type A, 19-pin female]
  • 1× USB-C IN1 [USB-C, 24-pin female]
  • 1× HOST [USB Type B, 9-pin female]
  • 1× L/R AUDIO IN [5-pin 3.5mm phoenix connector]
• Output ports
  • 1× OUT [HDMI™ Type A, 19-pin female]
  • 1× USB DEVICE [USB Type C, 24-pin female]
  • 2× USB DEVICE [USB Type A, 9-pin female]
  • 1× L/R AUDIO OUT [5-pin 3.5mm phoenix connector]
• Control ports
  • 1× RS-232 [3-pin 3.5mm phoenix connector]
  • 1× IR OUT [3.5mm stereo mini-jack]
  • 2× LAN [RJ45 connector]
  • 1× GPIO [6-pin 3.5mm phoenix connector]
  • 1× SERVICE [USB-C, FW update port]

Mechanical

• Housing: Metal Enclosure
• Color: Black
• Dimensions: 230mm [W] × 130mm [D] × 23mm [H]
• Weight: 796g
• Power Supply Input: AC 100-240V 50/60Hz, Output: DC 24V/7.5A (US/EU standard, CE/FCC/UL certified)
• Power Consumption: 37W (without USB-C charging); 145W (with 100W USB-C charging)
• Operating Temperature: 32°F - 104°F / 0°C - 40°C
• Storage Temperature: -4°F - 140°F / -20°C - 60°C
• Operating Humidity: 20%~80% relative humidity, non-condensing
• Storage Humidity: 10%~90% relative humidity, non-condensing

• 1× DVDO-USBC-HDMI-PS-21-XL Huddle Room Switcher
• 1× 24V/7.5A Power Supply
• 1× IR Blaster Cable (1.5m)
• 1× 3pin-3.5mm Phoenix Connector (male)
• 2× 5pin-3.5mm Phoenix Connector (male)
• 1× 6pin-3.5mm Phoenix Connector (male)
• 4× Rubber Foot
• 2× Mounting Ear
• 4× Machine Screw (M3*5, for rubber foots)
• 4× Machine Screw (KM3*6, for mounting ears)
• 1× User Manual
