DVDO 4K 2x1 Seamless HDMI Switcher with Multiview & Audio Output

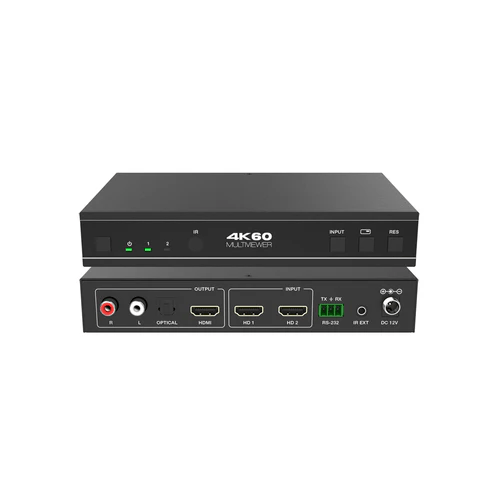

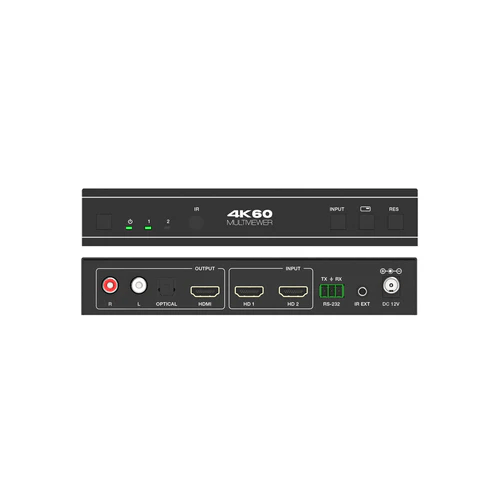

DVDO-Switcher-21SS-MV is a 2x1 seamless HDMI switcher that can route up to two sources to a single display.

It supports HDMI signals with resolutions up to 4K60 4:4:4 with an 18Gbps bandwidth.

The HDMI output has separate analog and optical audio connections.

DVDO-Switcher-21SS-MV offers 4 different display modes including a single view mode and 3 multiview modes allowing both sources to be displayed on the same screen.

The unit can be controlled via the front panel buttons, IR remote, OSD menu navigation, control software or RS-232.

Features:

• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• Supports resolutions up to 4K@60Hz 4:4:4 18Gbps
• Supports LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
• 4 display modes: Single, PIP, PBP (1), PBP (2)
• Seamless switching
• Audio de-embedding via analog and optical fiber audio ports
• Volume control and independent audio selection
• EDID management
• Control via front panel buttons, IR remote, OSD menu navigation, control software, RS-232

Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 / 1.x
Video Bandwidth
18Gbps
Video Resolution
Up to 4K2K@60 4:4:4
IR Level
5Vp-p
IR Frequency
38KHz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8bit
Audio Formats
HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res
Analog audio [3.5mm L/R]: PCM2.0
SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0
Note: It does not support HBR audio.
ESD Protection
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

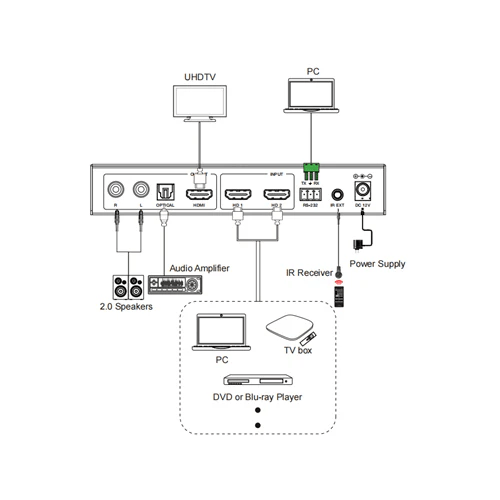

Connection
Input ports
2 x HDMI IN [Type A, 19-pin female]
Output ports
1 x HDMI OUT [Type A, 19-pin female]
1 x L/R OUTPUT [RCA]
1 x OPTICAL OUTPUT [S/PDIF]
Control ports
1 x RS-232 [3pin-3.81mm phoenix connector]
1 x IR EXT [3.5mm Stereo Mini-jack]

Mechanical
Housing Metal
Enclosure
Color
Black
Dimensions
175mm [W] x 100mm [D] x 30mm [H]
Weight
497g
Power Supply
Input: AC 100 - 240V 50/60Hz
Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption
4.56W (Max)
Operating Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no-condensing)

• 1x 4K60 2x1 Multiviewer Seamless UHD Video Switcher
• 1x IR Remote
• 1x 3pin-3.81mm Phoenix Connector (male)
• 1x 38KHz IR Wideband Receiver Cable (1.5 meters)
• 2x Mounting Ears
• 4x Machine Screws (KM3*4)
• 1x 12V/1A Locking Power Adapter
• 1x User Manual
