DVDO 4K 4x2 HDMI Matrix Switcher with Audio Outputs, HDR & ARC (NEW)

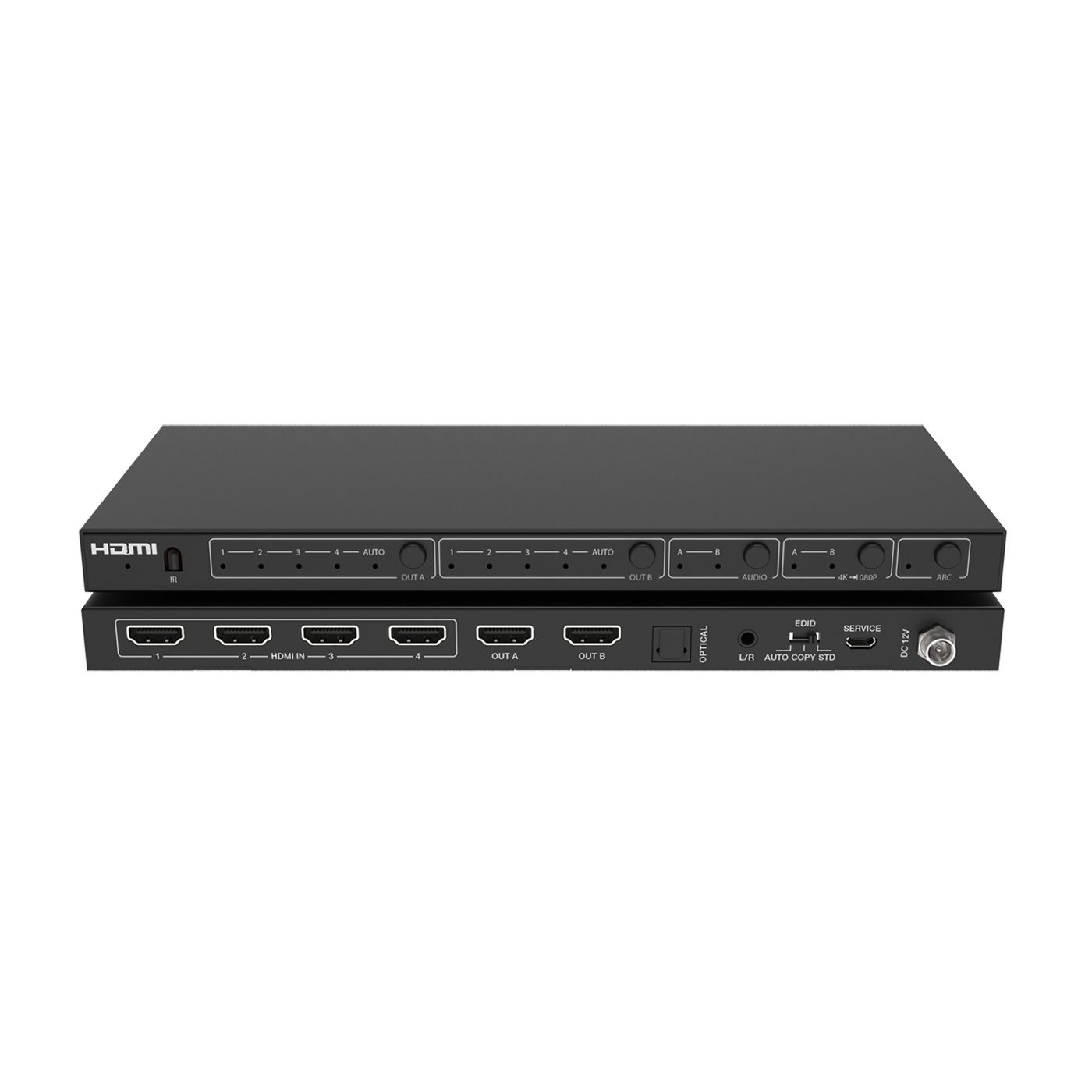

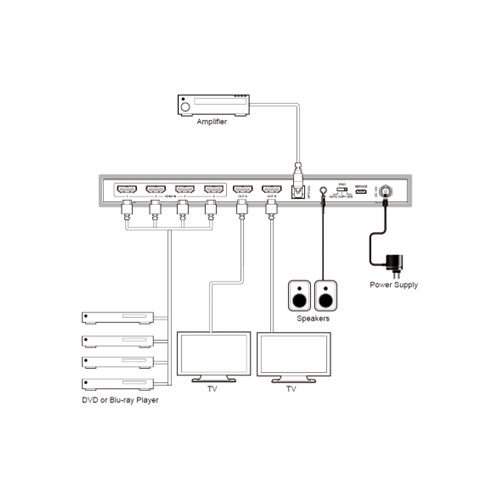

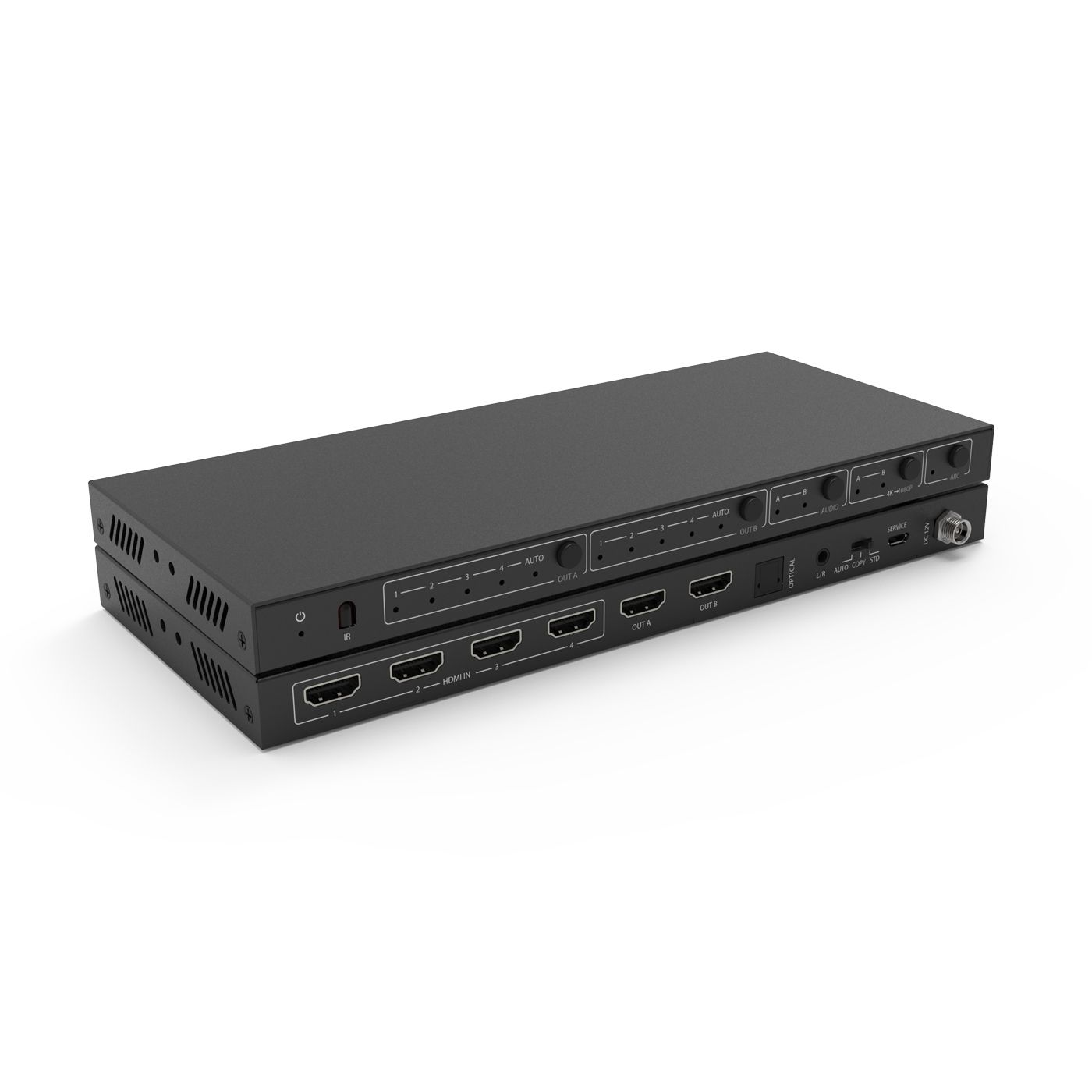

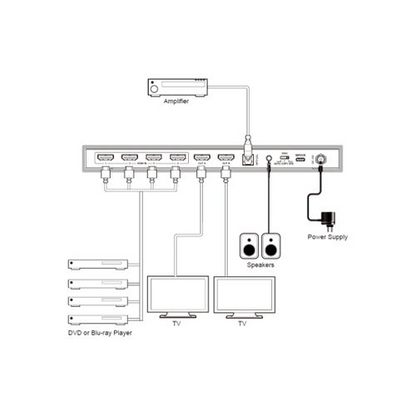

DVDO-Matrix-42b is a compact matrix switcher with four HDMI inputs and two HDMI outputs, allowing to route independently up to four HDMI sources to two separate displays.

It supports HDMI signals with resolutions up to 4 K60 4:4:4 with an 18 Gbps bandwidth.

It can de-embed the audio from an HDMI input into separate optical and analog L/R audio outputs.

It also supports ARC, HDR, 4K to 1080p downscaling, as well as advanced EDID management.

The unit can be controlled with its front panel buttons and remote control.

Features:

• HDMI 2.0, HDCP 2.2 / 1.4
• Video resolutions up to 4K2K@60Hz (YUV 4:4:4)
• Supports 18 Gbps video bandwidth
• 4K -> 1080p downscaling
• Audio de-embedding with optical & analog L/R outputs (both outputting audio from the same HDMI input)
• ARC (Audio Return Channel)
• HDMI audio formats include PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS
• EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Support Dolby Vision, HDR 10+, HLG
• Advanced EDID management (AUTO/COPY/STD)
• Control via front panel buttons and IR remote control
• Compact design for easy and flexible installation

Technical

HDMI Compliance

• HDMI 2.0

HDCP Compliance

• HDCP 2.2/1.4

Video Bandwidth

• 18Gbps

Video Resolutions

• Up to 4K2K@50/60Hz (YCbCr 4:4:4), 4K2K@30Hz, all HDMI 3D TV formats

Color Space

• RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0

Color Depth

• 8-bit, 10-bit, 12-bit [1080p, 4K30Hz, 4K60Hz (YCbCr 4:2:0)], 8-bit [4K60Hz (YCbCr4:4:4)]

HDMI Audio Formats

• PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High
• Res, DTS-HD Master Audio, DSD

Optical Audio Formats

• PCM2.0, Dolby Digital / Plus, DTS

L/R Audio Formats

• PCM2.0CH (Note: If the ARC function is turned on, the audio port will mute.)

ESD Protection

• Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

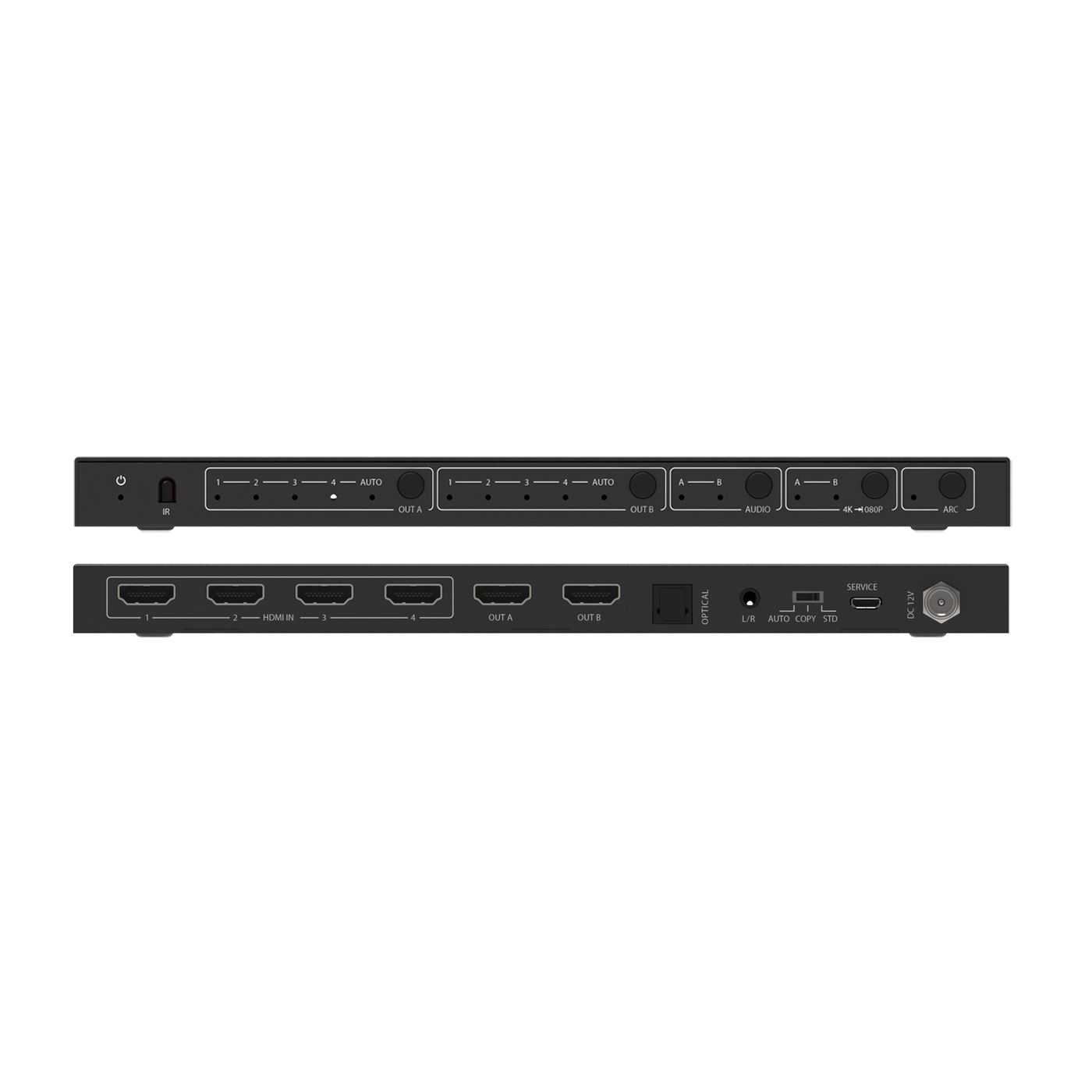

Connections

Inputs

• 4 x HDMI [Type A, 19-pin female]

Outputs

• 2 x HDMI [Type A, 19-pin female]
• 1 x L/R audio out [3.5mm Stereo Mini-jack]
• 1 x Optical audio out [S/PDIF]

Mechanical

Housing

• Black Metal Enclosure

Dimensions

• 251mm (W) × 105mm (D) × 20mm (H)

Weight

• 620g

Power Supply

• Input: AC 100 - 240V 50/60Hz
• Output: DC 12V/1A

Power Consumption

• 3.8W (Max)

Operating Temperature

• 0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

• -20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

• 20~90% RH (non-condensing)
