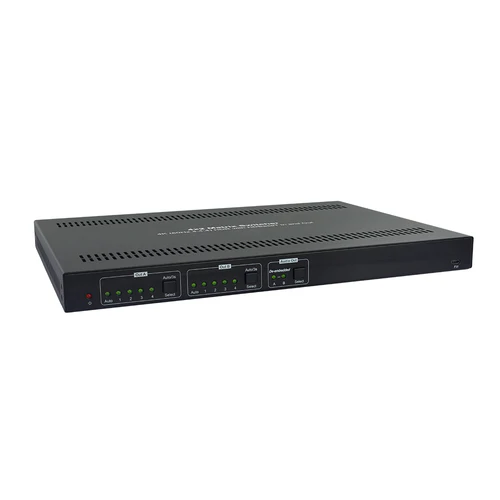

DVDO 4K 4x2 Matrix Switcher with HDMI & HDBaseT Inputs & Outputs

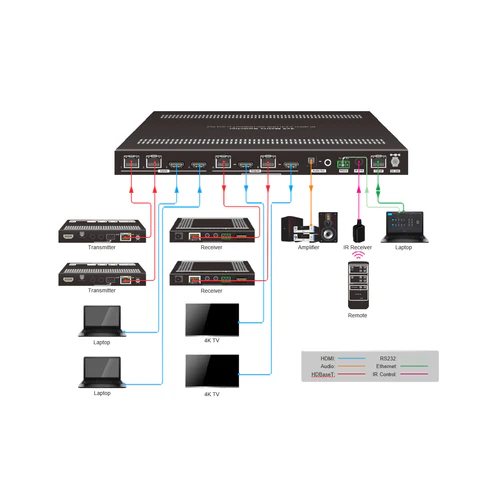

DVDO-Matrix-42-HDBT is a matrix switcher with two HDMI + two HDBaseT inputs and two HDMI with two mirrored HDBaseT outputs, allowing to route independently four HDMI sources up to four separate displays.

It supports HDMI signals with resolutions up to 4K60 4:4:4 with an 18Gbps bandwidth.

The HDBaseT inputs and outputs can transmit 1080p signals up to 70m and 4K signals up to 40m and support 48V PoC.

It features audio de-embedding with separate S/PDIF optical and analog L/R audio outputs.

It also supports HDR, 4K to 1080p downscaling as well as advanced EDID management.

The unit can be controlled via the front panel buttons, IR, RS232 or TCP/IP with an intuitive web GUI.

Features:

• HDMI 2.0, HDCP 2.2
• Video resolutions up to 4K@60Hz 4:4:4 18Gbps

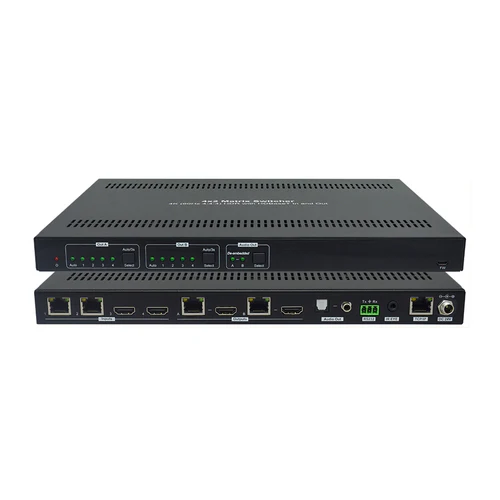

• 2 HDMI + 2 HDBaseT inputs & 2 HDMI with 2 mirrored HDBaseT outputs
• Individual 4K -> 1080p downscaling for each output
• Auto-switching
• Audio de-embedding with separate S/PDIF optical & analog L/R audio outputs
• Supports HDR 10 & Dolby Vision
• Advanced EDID management
• Control via front panel buttons, IR, RS232 and IP with intuitive web GUI
• HDBaseT inputs and outputs support 48V PoC
• HDBaseT transmission distance: 70m (1080p) / 40m (4K)
• HDBaseT transmitter (DVDO-Matrix-HDBT-Tx) and receiver (DVDO-Matrix-HDBT-Rx) to be ordered separately

Video Input
Input
(2) HDBaseT, (2) HDMI
Input Connector
(2) RJ45, (2) Type-A female HDMI
HDMI Input Resolution
Up to 4K@60Hz 4:4:4, HDR10, Dolby Vision
HDBaseT Input Resolution
Up to 4K@60Hz 4:2:0

Video Output
Output
(2) HDBaseT, (2) HDMI
Output Connector
(2) RJ45, (2) Type-A female HDMI
HDMI Output Resolution
Up to 4K@60Hz 4:4:4, HDR10, Dolby Vision, Supports 4K to 1080p down-scaling.
HDBaseT Output Resolution
Up to 4K@60Hz 4:2:0. Supports 4K to 1080p down-scaling.
HDMI Audio Signal
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital®, Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through

Audio Output
Output
(1) Stereo analog audio, (1) SPDIF audio
Output Connector
(1) 3.5mm jack, (1) Toslink connector
Analog L+R Audio Format
PCM 2CH
Digital SPDIF Audio Format
PCM, Dolby Digital, DTS, DTS-HD
Max Output Level
Stereo: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV
(316mV) nominal consumer line level signal.
SPDIF: ±0.05dBFS
Frequency Response
20Hz to 20kHz, ±1dB
THD+N
< 0.05%, 20Hz to 20kHz bandwidth, 1kHz sine at 0dBFS level (or max level)
SNR
Stereo: >80dB, 20Hz to 20kHz bandwidth
SPDIF: > 90dB, 20Hz to 20kHz bandwidth
Crosstalk Isolation
Stereo: < -80dB, 10kHz sine at 0dBFS level (or max level before clipping)
SPDIF: < -70dB, 10KHz sine at 0dBFS level (or max level before clipping).
L-R Level Deviation
Stereo: < 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping)
Output Load Capability Stereo: 1KΩ and higher (Supports 10x paralleled 10KΩ loads).
Noise Level
Stereo: -80dB.
SPDIF: -90dB

Control Part
Control port
(1) FW, (1) RS232, (1) IR EYE, (1) TCP/IP
Control Connector
(1) Micro-USB, (1) 3-pin terminal block, (1) 3.5mm jack, (1) RJ45

General
HDMI Version
2.0
HDCP Version
2.2
Transmission Mode
HDBaseT
Transmission Distance
1080p ≤ 230 feet (70 meters), 4K@60Hz ≤ 131 feet (40 meters)
Bandwidth
18Gbps
Operation Temperature
-5 to +55℃ (+23° to +131°F)
Storage Temperature
-25 to +70℃ (-13° to +158°F)
Relative Humidity
10% to 90%, Non-condensing
External Power Supply
Input: 100 to 240V AC, 50/60Hz; Output: 24V DC 5A
Power Consumption
45W (Max)
Dimension (W*H*D)
300mm x 25mm x 220mm
Net Weight
1.6kg

• 1x DVDO-Matrix-42-HDBT
• 2x Mounting Ears with 4 Screws
• 4x Plastic Cushions
• 1x RS232 Cable (3-pin to DB9)
• 1x IR Receiver
• 1x IR Remote
• 1x Power Adaptor (24V DC 5A)
• 1x User Manual
