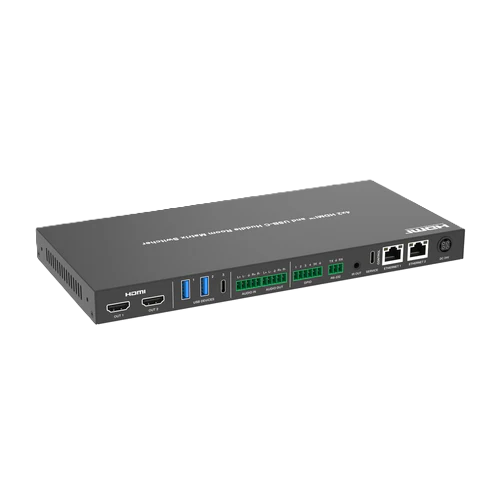

DVDO 4K 4x2 Presentation Switcher with USB-C & HDMI Inputs, Audio Input & Output, 2 LAN Ports

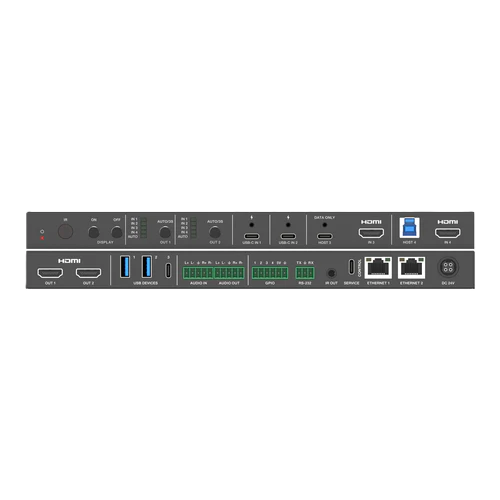

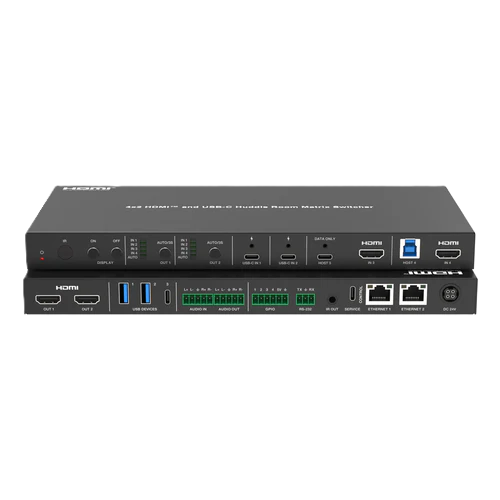

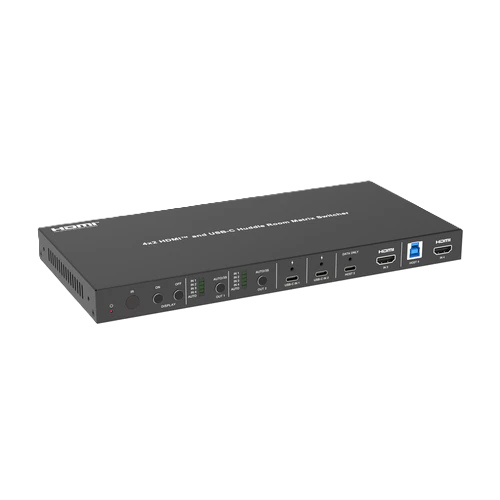

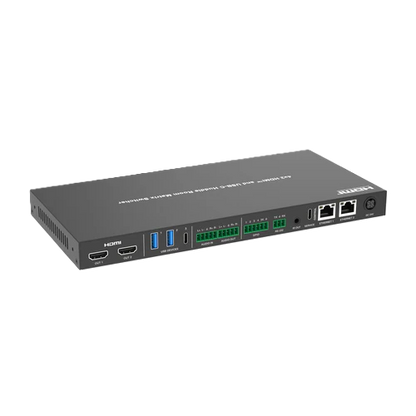

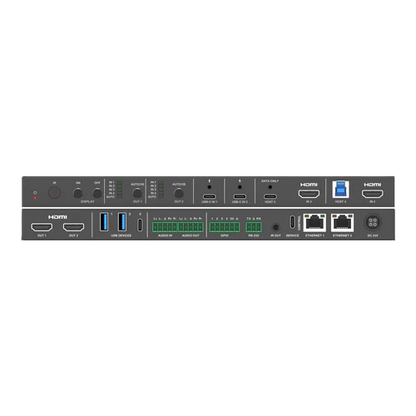

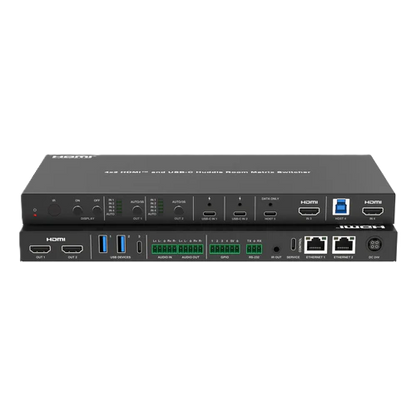

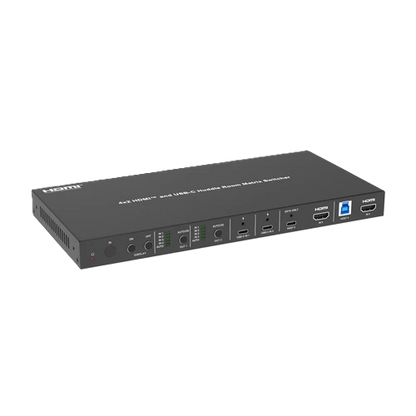

DVDO-USBC-HDMI-PS-42-XL is a 4x2 presentation switcher with 2 HDMI & 2 USB-C inputs, 2 HDMI outputs, 2 USB Host ports, dual Ethernet ports and separate balanced/un-balanced analog audio input and output.

It supports video resolutions up to 4K60 at 18Gbps as well as HDR.

The USB-C inputs support DisplayPort 1.4 Alt Mode up to 4K60 video, USB 3.2 Gen 1 up to 5Gbps data transfer, 1G Ethernet and up to 100W charging (50W each port if both ports are connected).

The unit also includes 3 USB 3.2 Gen 1 Device ports (1 USB-C + 2 USB-A) for peripherals such as camera, hard disk, keyboard and mouse that can connect to both inputs / host devices.

It features auto and manual switching as well as auto signal detection.

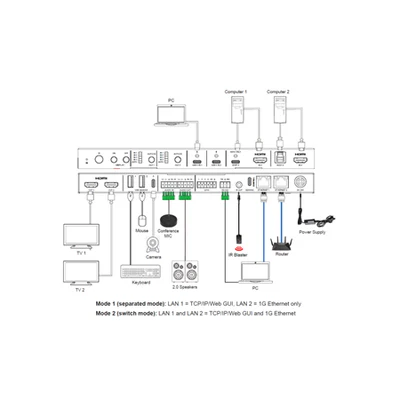

It can be controlled over TCP/IP, Web GUI, RS232, IR or via the front panel buttons.

Features:

• HDMI 2.0b, HDCP 2.3 and DP 1.4a compliant
• 2 x HDMI + 2 x USB-C inputs & 2 HDMI outputs
• USB-C inputs support DP Alt Mode up to 4K60 4:4:4, USB 3.2 Gen 1 (5Gbps), 1G Ethernet & 100W charging (50W each port if both ports are connected)
• HDMI inputs support video resolutions up to 4K60 4:4:4
• Fast switching including auto & manual switching
• Auto switching with signal detection and 5V detection
• USB 3.2 Gen 1 (5Gbps) host and local hub
• USB 3.2 Gen 1 (5Gbps) device with 5V/1.5A power output
• Balanced/un-balanced analog audio embedding to USB or HDMI audio
• Balanced/un-balanced analog audio de-embedding from USB or HDMI audio
• Advanced EDID management
• User defined welcome screen and no signal display image
• Dual 1G Ethernet ports with 802.1x and VLAN
• IR eye for IR learning and control
• Auto display on/off control
• External device control via CEC/IR/RS232/LAN/GPIO
• Control via front panel buttons, RS232, TCP/IP and Web GUI

Technical

• HDMI™ Compliance: HDMI™ 2.0b
• HDCP Compliance: HDCP 2.3
• DP Compliance: DP 1.4a (USB-C input)
• USB Compliance: USB 3.2 Gen1 (5Gbps)
• Video Bandwidth: 18Gbps
• Video Network Bandwidth: 1G
• Video Resolution (Input&Output): 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz
• Color Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
• Color Depth: 8/10/12-bit, 8-bit (4K@60Hz, 4:4:4)
• HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
• Audio Formats
  • HDMI™/USB-C IN, HDMI™ OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High
  • Res, DTSHD Master Audio, DSD
  • Audio Formats Analog Audio IN/OUT: LPCM 2CH (sample rate 32~192kHz)
• Audio In
  • Input Impedance: 20K Ohm balanced | 10K Ohm unbalanced
  • Input Level Max: 8.2dBu (2Vrms) balanced audio
  • Frequency Response: 20Hz to 20kHz (-/+0.5dB)
  • Dynamic Range: >90dB@0dBu, 1kHzA-weighted
  • Audio S/N Ratio: >90dB@0dBu, 1kHzA-weighted
  • Audio THD+N: < 0.01% at +4dBu, 1KHz
  • Audio Output Delay: <1ms
• Audio Out
  • Output Impedance: 600 Ohm balanced | 300 Ohm unbalanced
  • Output Level (Maximum): Max 8.2dBu (2Vrms) balanced audio | Max 2.2dBu (1Vrms) unbalanced audio
  • Frequency Response: 20Hz to 20kHz (-/+1dB)
  • Dynamic Range: >90dB@0dBu, 1kHzA-weighted
  • Audio S/N Ratio: >90dB@0dBu, 1kHzA-weighted
  • Audio THD+N: < 0.067% at +4dBu, 1KHz
• Audio Output Delay: <1ms
• IR Level: 5Vp-p
• IR Frequency: 20K-60KHz
• Transmission Distance
  • USB 3.2 Passive Cable: 1.5m/4.9ft
  • HDMI™ Passive Cable: 3m/9.8ft
• ESD Protection
  • IEC 61000-4-2:
  • ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

• Input ports
  • 2× HDMI™ IN [HDMI™ Type A, 19-pin female]
  • 2× USB-C IN [USB-C, 24-pin female]
  • 1× HOST [USB-C, 24-pin female]
  • 1× HOST [USB-B, 9-pin female]
  • 1× L/R AUDIO IN [5-pin 3.5mm phoenix connector]
• Output ports
  • 2× HDMI™ OUT [HDMI™ Type A, 19-pin female]
  • 1× USB DEVICE [USB-C, 24-pin female]
  • 2× USB DEVICE [USB-A, 9-pin female]
  • 1× L/R AUDIO OUT [5-pin 3.5mm phoenix connector]
• Control ports
  • 1× RS-232 [3-pin 3.5mm phoenix connector]
  • 1× IR OUT [3.5mm stereo mini-jack]
  • 2× LAN [RJ45 connector]
  • 1× GPIO [6-pin 3.5mm phoenix connector]
  • 1× SERVICE [USB-C, FW update port]

Mechanical

• Housing: Metal Enclosure
• Color: Black
• Dimensions: 270mm [W] × 130mm [D] × 23mm [H]
• Weight: 890g
• Power Supply Input: AC 100-240V 50/60Hz, Output: DC 24V/7.5A (US/EU standard, CE/FCC/UL certified)
• Power Consumption: 41W (without USB-C charging); 149W (with 100W USB-C charging)
• Operating Temperature: 32°F - 104°F / 0°C - 40°C
• Storage Temperature: -4°F - 140°F / -20°C - 60°C
• Operating Humidity: 20%~80% relative humidity, non-condensing
• Storage Humidity: 10%~90% relative humidity, non-condensing

• 1× DVDO-USBC-HDMI-PS-42-XL Huddle Room Switcher
• 1× 24V/7.5A Power Supply
• 1× IR Blaster Cable (1.5m)
• 1× 3pin-3.5mm Phoenix Connector (male)
• 2× 5pin-3.5mm Phoenix Connector (male)
• 1× 6pin-3.5mm Phoenix Connector (male)
• 4× Rubber Foot
• 2× Mounting Ear
• 4× Machine Screw (M3*5, for rubber foots)
• 4× Machine Screw (KM3*6, for mounting ears)
• 1× User Manual
