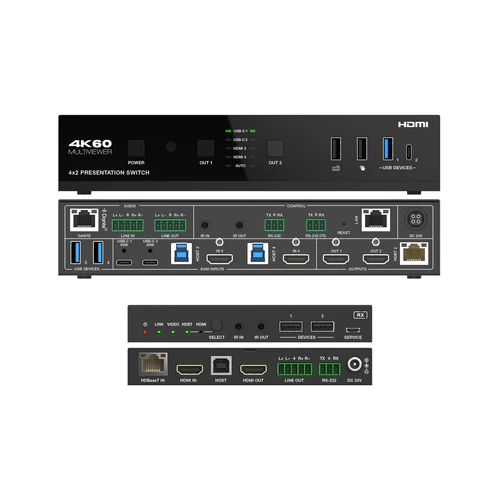

DVDO 4K 4x2 Seamless Presentation Switcher / Extender with USB-C & HDMI Inputs & Dante NEW

DVDO-USBC-HDMI-PS-42-Xtend is a 4x2 seamless presentation switcher with 2 HDMI inputs, 2 USB-C inputs (4K60 DP Alt mode, USB 3.2 Gen 1 and 60W charging), 2 HDMI outputs and 1 HDBaseT output.

It can extend uncompressed 4K@30Hz signals up to 230ft/70m and 4K@60Hz signals up to 131ft/40m over HDBaseT 3.0 with a single Cat6A cable.

The outputs support either single full screen or various multiview display modes (Auto / Dual / PIP / PBP / Triple / Quad / Custom).

The unit provides USB switching and extension through multiple USB Host and device ports on both Tx and Rx.

It also provides audio embedding & de-embedding and includes Dante 2x2 audio input & output as well as a built-in audio DSP with gain, EQ, volume & delay adjustments.

It can be controlled via the front panel buttons, IR, RS-232 or TCP/IP with an intuitive web GUI and supports PoE from Tx to Rx.

Features:

• HDMI 2.0b, HDCP 2.3, HDBaseT 3.0 & DP 1.4 compliant
• Video resolutions up to 4K@60Hz 4:4:4 @ 18Gbps
• Transmission of uncompressed 4K30 & 1080p signals up to 230ft/70m and 4K60 signals up to 132ft/40m over HDBaseT
• 3.0 via single Cat6A cable
• Multiple multiview display modes: Auto / Single / PIP / PBP / Triple / Quad / Custom
• 4x2 seamless switching (single screen) and fast switching (multiview)
• Manual & auto switching modes
• Inputs: 2 USB-C, 2 HDMI, 1 analog audio, 1 Dante 2ch
• Outputs: 1 HDMI, 1 HDMI + 1 HDBT mirrored, 1 analog audio, 1 Dante 2ch
• Dante 2x2 audio input and output
• USB-C supports 4K60 DisplayPort Alt Mode, USB 3.2 Gen 1 up to 5Gbps, 1G LAN and 60W charging
• Local USB 3.2 switching and extending USB 2.0 over HDBT 3.0
• Local USB KVM hotkeys and mouse switching
• Audio embedding & de-embedding
• Built-in DSP with gain, equalizer, volume and delay control
• Advanced EDID management
• CEC/RS-232 control to turn external devices ON/OFF
• Control via front panel buttons, IR remote, RS-232, TCP/IP or intuitive Web GUI
• Standard PoE from Tx to Rx (TX_PSE, RX_PD

Technical

Compliance

• HDMI 2.0b / HDCP 2.3 / DP 1.4

Video Bandwidth

• 18Gbps

USB Bandwidth

• USB 3.2 Gen 1 up to 5Gbps

Network Bandwidth

• 1Gbps (LAN and USB-C connections)

Video Resolutions

• Up to 4K@60Hz 4:4:4

IR

• Frequency: Wideband 20K-60KHz / Level: 12Vp-p

Color Depth

• 8/10/12-bit

Color Space

• RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0

Audio Formats

USB-C/HDMI/HDBT:

• Digital audio, 32-192kHz / 24bit, LPCM 2CH

LINE IN:

• Analog audio, Balanced/unbalanced
• 2CH, Max input level 2Vrms

LINE OUT:

• Analog audio, Balanced 2CH (Max output level 2Vrms)/unbalanced 2CH (Max output level 1Vrms)

DANTE:

• Digital audio 2x2 in/out, LPCM 2CH 44.1K-96KHz 16/24Bit]
• Transmission Distance
• HDBT: 230ft/70m (1080p & 4K30); 131ft/40m
• (4K60)
• HDMI & USB-C: 9.8ft/3m
• ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge) , ±4kV
• (Contact discharge)

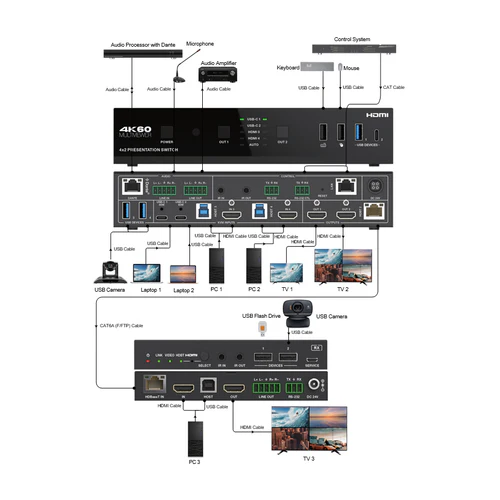

• Connections

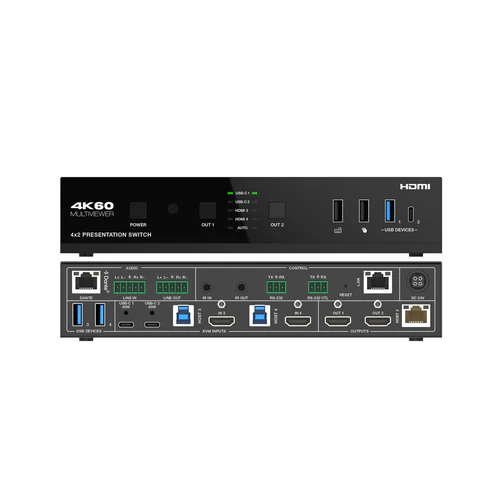

Transmitter Inputs:

• 2 x HDMI [Type A, 19-pin female]
• 2 x USB-C [24-pin female]
• 1 x Line In [5pin-3.5mm phoenix connector]
• 1 x DANTE [RJ45]

Outputs:

• 2 x HDMI [Type A, 19-pin female]
• 1 x HDBT [RJ45, 48V POE/PSE]
• 1 x Line Out [5pin-3.5mm phoenix connector]

Controls:

• 1 x RS-232 [3pin-3.5mm phoenix connector]
• 1 x RS-232 CTL [3pin-3.5mm phoenix connector]
• 1 x LAN [RJ45]
• 2 x USB 3.2 Host [USB Type B, 9-pin female]
• 3 x USB 3.2 Device [USB Type A, 9-pin female]
• 2 x USB 1.1 KVM [Type A, 4-pin female]
• 1 x USB-C Device [24-pin female]
• 1 x IR In [3.5mm stereo mini-jack, 12V level]
• 1 x IR Out [3.5mm stereo mini-jack, 12V level]

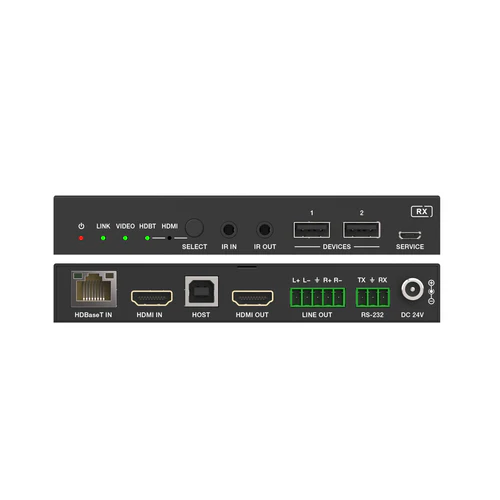

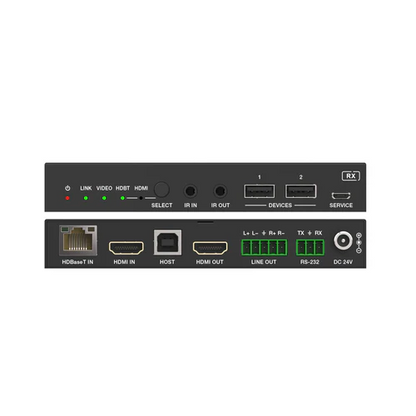

Receiver

Inputs:

• 1 x HDMI [Type A, 19-pin female]
• 1 x HDBaseT [RJ45, 48V POE/PSE]

Outputs:

• 1 x HDMI [Type A, 19-pin female]
• 1 x Line Out [5pin-3.5mm phoenix connector]

Controls:

• 1 x RS-232 [3pin-3.5mm phoenix connector]
• 1 x USB Host [Type B, 4-pin female]
• 2 x USB Device [Type A, 4-pin female]
• 1 x SERVICE [Micro USB, 5-pin female]
• 1 x IR In [3.5mm stereo mini-jack, 12V level]
• 1 x IR Out [3.5mm stereo mini-jack, 12V level]
• Tx Analog Audio

Input Impedance

• 10K Ohms

Output Impedance

• 330 Ohms

Line Input Level

• (Maximum) 8.2dBu (2Vrms) @ balanced or unbalanced audio

Line Output Level (Maximum)

• 8.2dBu (2Vrms) @ balanced audio
• 2.2dBu (1Vrms) @ unbalanced audio

Frequency Response

• (+0.5 dB, -1 dB) 20 Hz to 20 kHz

Audio Output Sync Delay

• < 1ms

Audio S/N Ratio

• 93dB @ 2Vrms, 1kHz A-weighted

Audio THD+N

• <0.1% @ 0dBV, 1kHz

Rx Analog Audio

Output Impedance

• 330 Ohms

Line Output Level (Maximum)

• 8.2dBu (2Vrms) @ balanced audio
• 2.2dBu (1Vrms) @ unbalanced audio

Frequency Response

• (+0.5 dB, -1 dB) 20 Hz to 20 kHz

Audio Output Sync Delay

• 0 to 50ms

Audio S/N Ratio

• 93dB @ 2Vrms, 1kHz A-weighted

Audio THD+N

• <0.1% @ 0dBV, 1kHz
• Dante Audio

Audio Formats

• LPCM2.0

Sample Rate

• 44.1 / 48 / 88.2 / 96KHz at 24 bits

Audio Delay

• 2 / 3 / 4 / 5 / 10ms

Network Bandwidth

• 100Mbps

Mechanical

Housing

• Front panel: Aluminum; Rear case: Metal Enclosure

Color

• Black

Dimensions

• Transmitter: 220mm [W]×220mm
• [D]×44.5mm [H]
• Receiver: 140mm [W]×105mm
• [D]×21.5mm [H]

Weight

• Transmitter: 1.78kg; Receiver: 424g

Power Supply

• Input: AC100 - 240V 50/60Hz
• Output: DC 24V/8A (US/EU standard,
• CE/FCC/UL certified)

Power Consumption

• 170W (Max)

Operating Temperature

• 0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

• -40°C ~ 60°C / -40°F ~ 140°F

Operating Humidity

• 20%~80% RH (non-condensing)

Storage Humidity

• 10%~90% RH (non-condensing)
