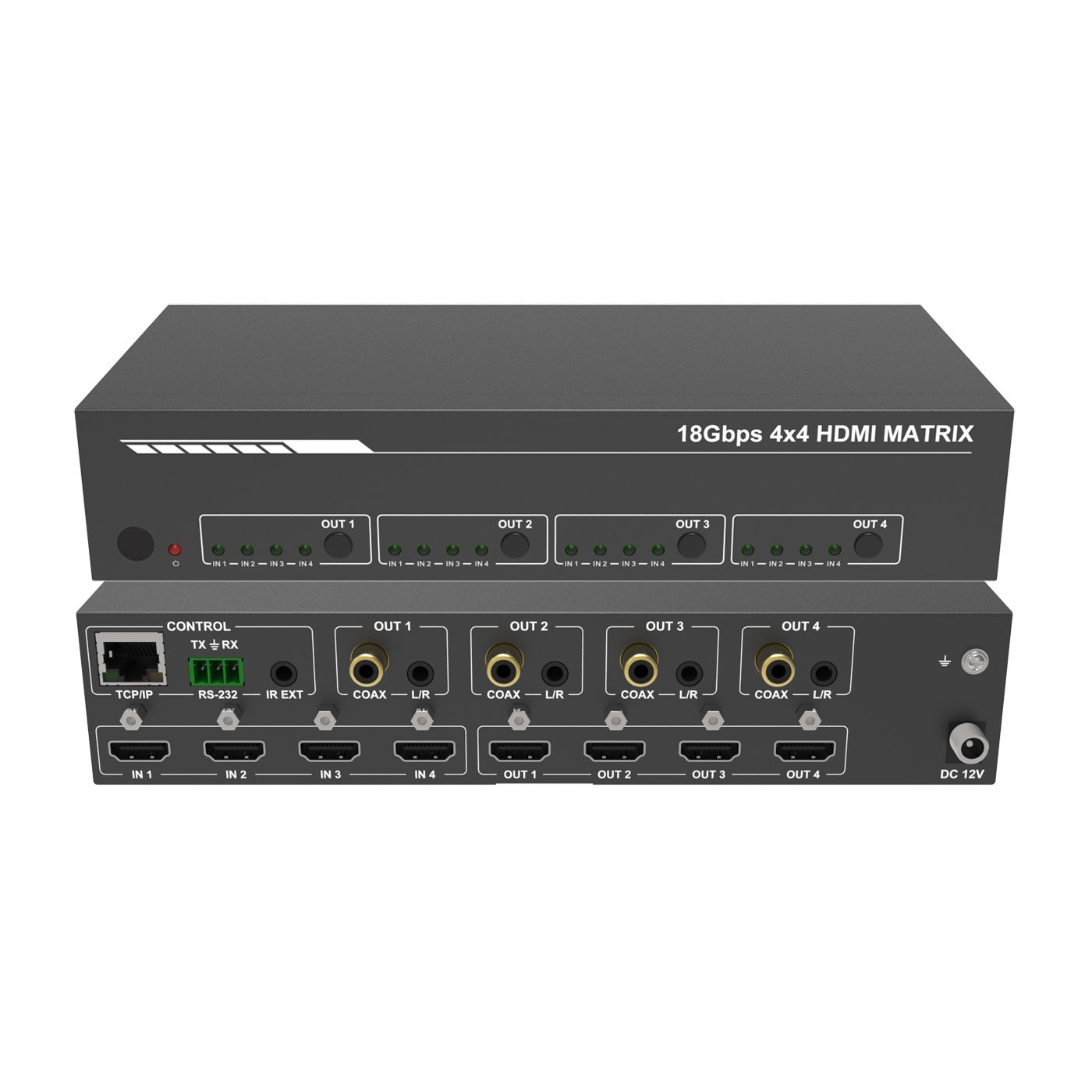

DVDO 4K 4x4 HDMI Matrix Switcher with Audio Outputs & HDR (NEW)

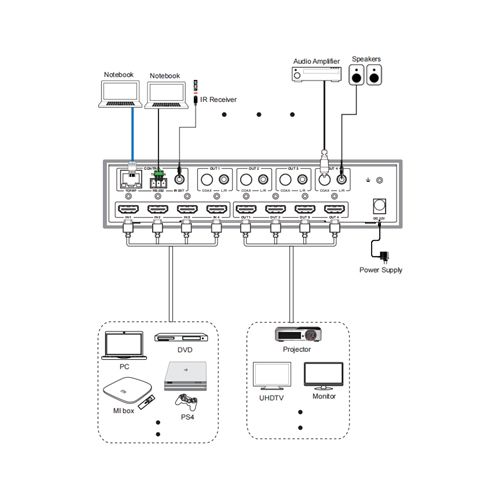

DVDO-Matrix-44 is a compact matrix switcher with four HDMI inputs and four HDMI outputs, allowing to route independently up to four HDMI sources to four separate displays.

It supports HDMI signals with resolutions up to 4K60 4:4:4 with an 18Gbps bandwidth.

Each HDMI output includes two separate de-embedded audio outputs: one coaxial output and one analog L/R output.

It supports ARC, HDR, 4K to 1080p downscaling as well as advanced EDID management.

The unit can be controlled via front panel buttons, IR, RS-232 and IP with an intuitive web GUI.

Features:

• HDMI 2.0, HDCP 2.2 / 1.4 and DVI 1.0 compliant
• Video resolutions up to 4K2K@60Hz (YUV 4:4:4)
• Supports 18Gbps video bandwidth
• Individual 4K -> 1080p scaling for each output
• Audio de-embedding with separate coaxial & analog L/R analog outputs for each HDMI output
• ARC audio return to the coaxial outputs only
• HDMI audio formats include PCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,
• DTS-96/24, DTS High Res, DTS-HD Master Audio & DSD
• Supports HDR 10 / 10+
• Advanced EDID management
• Control via front panel buttons, IR, RS-232 and IP with intuitive web GUI
• Compact design for easy and flexible installation

Technical

HDMI Compliance

• HDMI 2.0

HDCP Compliance

• HDCP 2.2/1.4

Video Bandwidth

• 18Gbps

Video Resolutions

• 4K2K 60/50/30Hz 4:4:4, 4K2K 60/50Hz 4:2:0, 1080p, 1080i, 720p, 480p, 480i, all HDMI
• 3D TV formats, all PD resolutions including 1920x1200

Color Space

• RGB, YCbCr 4:4:4/4:2:2/4:2:0

Color Depth

• 1080p, 4K30Hz, 4K60Hz (YCbCr 4:2:0): 8/10/12-bit, 4K60Hz (YCbCr 4:4:4): 8-bit

HDMI Audio Formats

• PCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High
• Res, DTS-HD Master Audio, DSD

Coaxial Audio Formats

• PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1

L/R Audio Formats

• PCM 2.0CH

HDR Support

• HDR10, HDR10+. Dolby Vision, HLG

ESD Protection

• Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

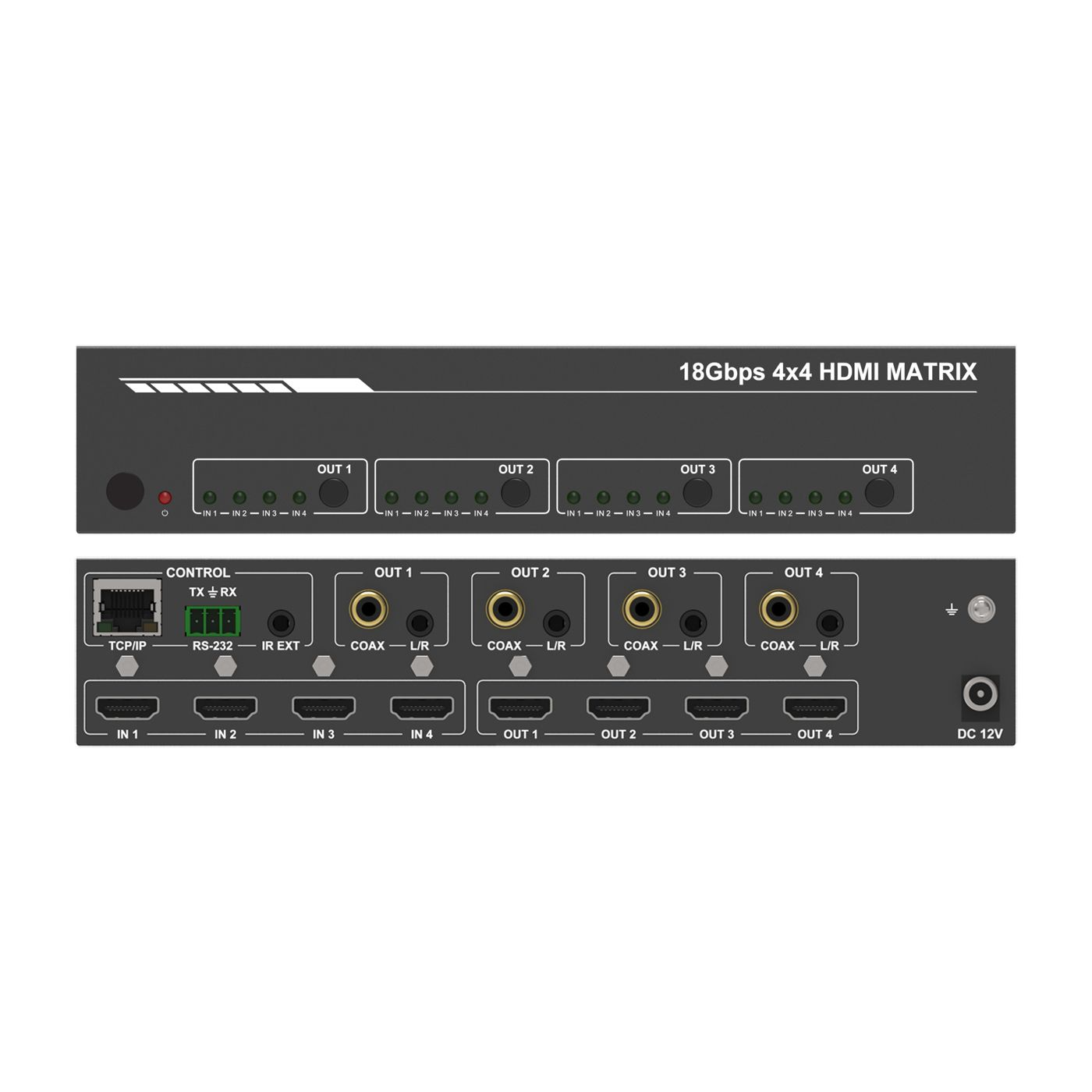

Connections

Inputs

• 4 x HDMI [Type A, 19-pin female]

Outputs

• 4 x HDMI [Type A, 19-pin female]
• 4 x L/R audio out [3.5mm Stereo Mini-jack]
• 4 x Coax audio out [RCA]

Control

• 1 x TCP/IP [RJ45], 1 x RS-232 [3-pin phoenix connector], 1 x IR EXT [3.5mm Stereo Mini-jack]

Mechanical

• Housing Black Metal Enclosure

Dimensions

• 220mm (W) × 105mm (D) × 44mm (H)

Weight

• 792g

Power Supply

• Input: AC 100 - 240V 50/60Hz
• Output: DC 12V/2.5A (Locking connector)

Power Consumption

• 10W (Max); 1.56W (Standby mode)

Operating Temperature

• 0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

•  -20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

• 20~90% RH (non-condensing)
