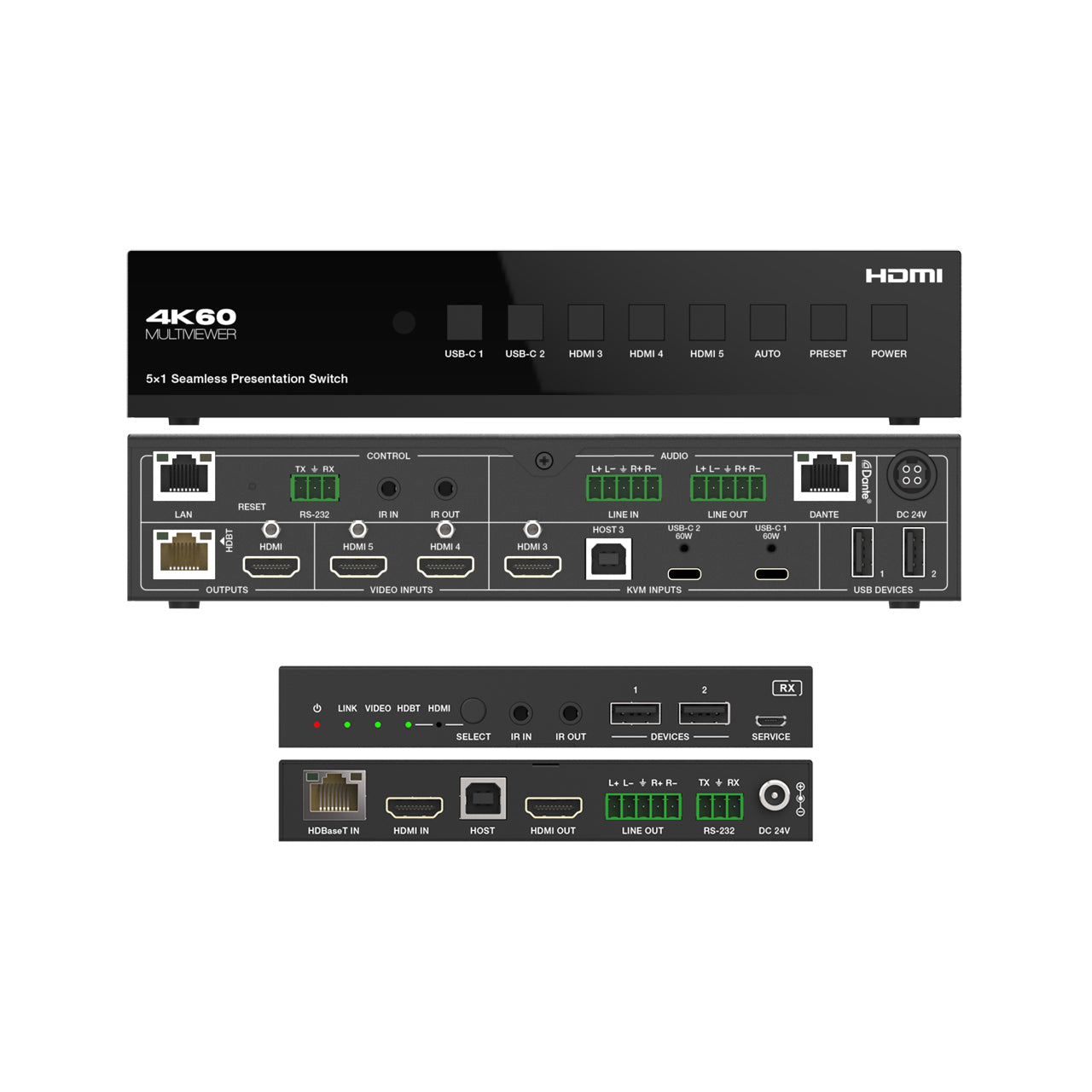

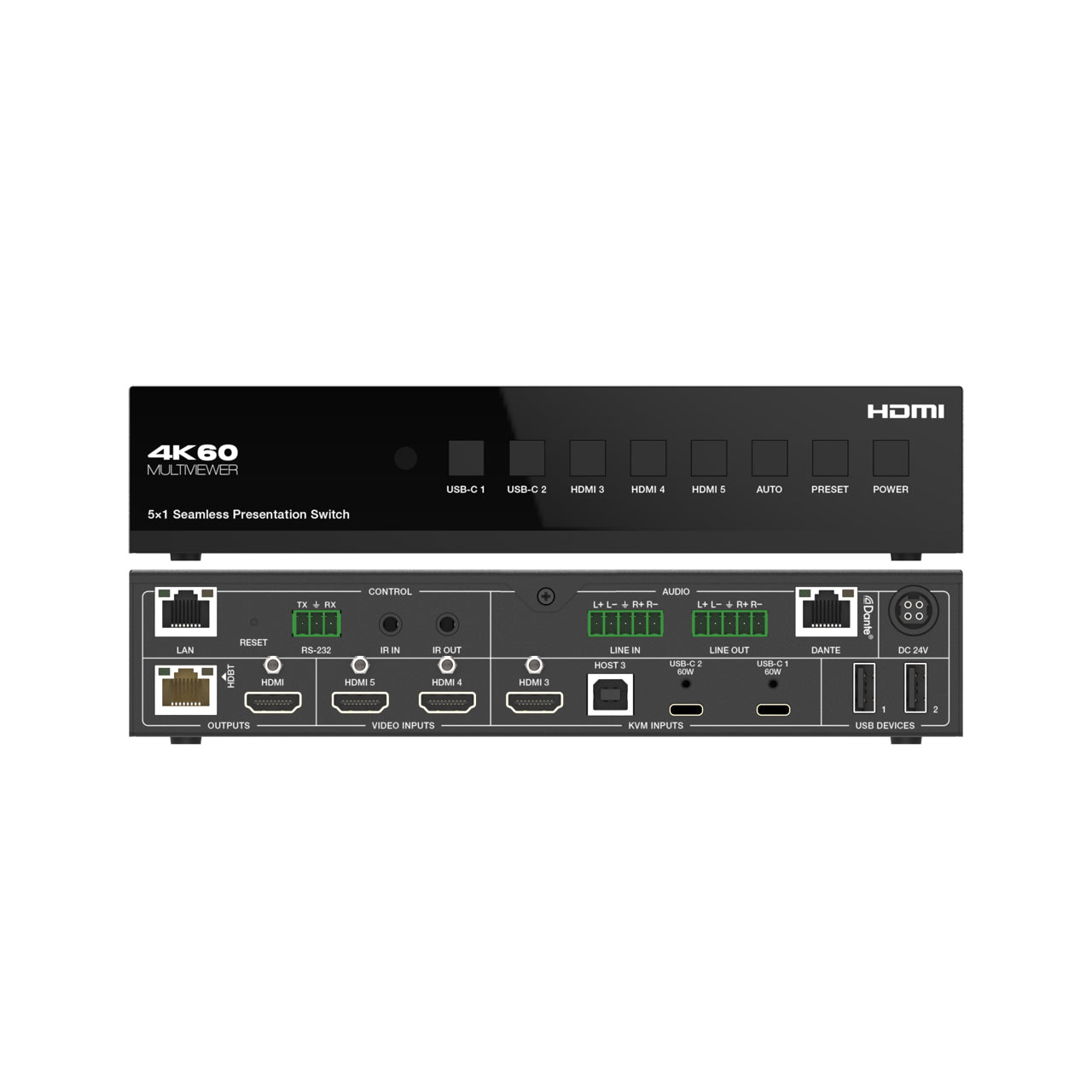

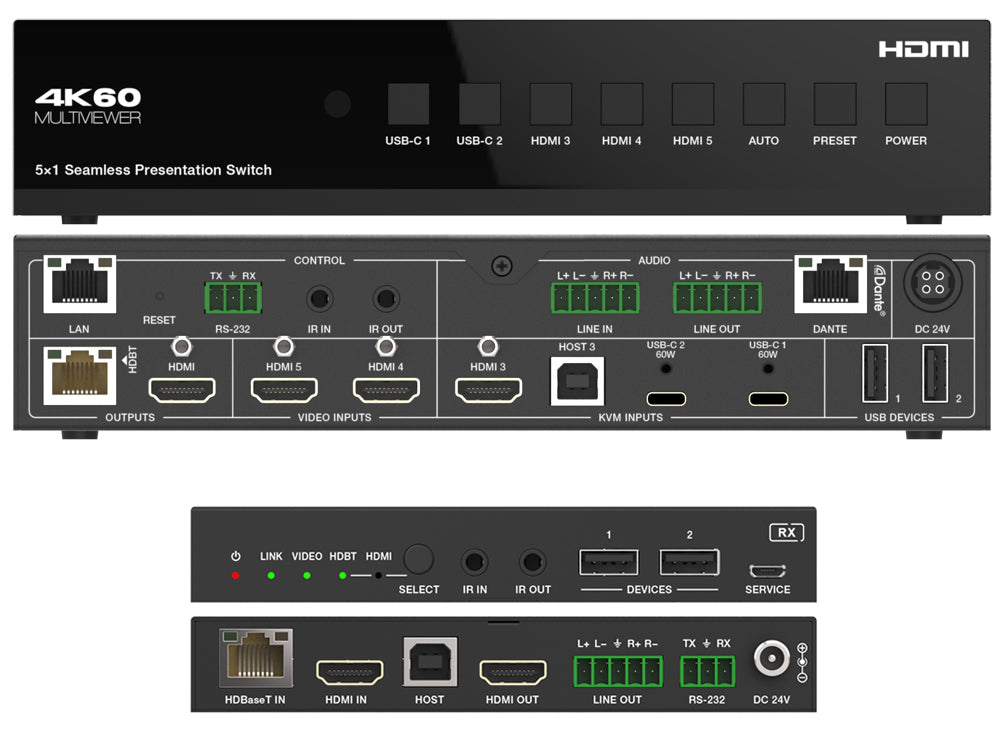

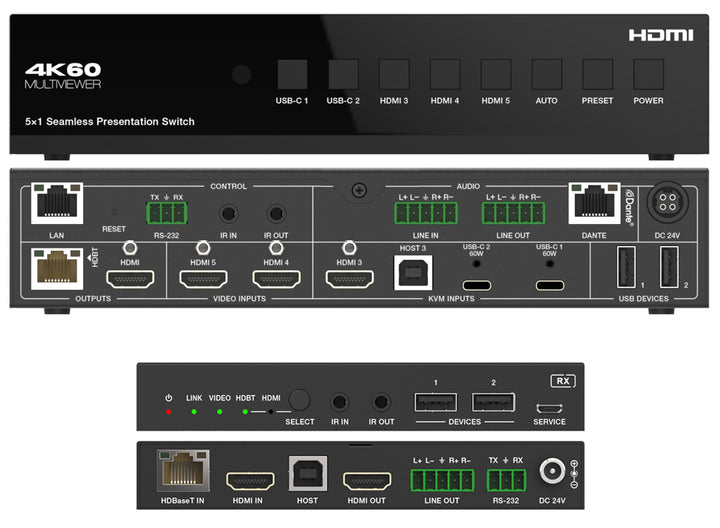

DVDO 4K 5x1 Seamless Presentation Switcher / Extender with USB-C & HDMI Inputs & Dante

DVDO-USBC-HDMI-PS-51 is a 5x1 seamless presentation switch with 3 HDMI inputs, 2 USB-C inputs (DP Alt mode, USB 2.0, 100M Ethernet and 60W charging), 1 HDMI output and 1 HDBT mirrored output.

It can extend uncompressed signals up to a distance of 230ft/70m (4K@30Hz 4:4:4) or 131ft/40m (4K@60Hz 4:4:4) via a single CAT6A (F/FTP) cable.

The output supports single full screen or various multiview display modes (Single / PIP / PBP / Triple / Quad).

It provides USB 2.0 local KVM switching and local Hub/HDBT USB pass-through function (from Tx to Rx). It also supports bi-directional RS-232 and IR control signal pass-through function.

It also includes 1 analog audio input, 1 analog audio output, Dante 2x2 audio input and output as well as a built-in 3x3 audio matrix with independent audio EQ/volume/delay adjustments.

Features:

• Compliant HDMI 2.0b, HDCP 2.2 and DP 1.2 compliant
• Support video resolutions up to 4K@60Hz 4:4:4 & 18Gbps video bandwidth
• Uncompressed 4K60 over HDBT 3.0 up to 132ft/40m via single CAT6A cable
• Uncompressed 1080p & 4K30 over HDBT 3.0 up to 230ft/70m via single CAT6A cable
• Up to 5 categories of multiview display modes: Single/PIP/PBP/Triple/Quad
• 5x1 seamless switching (single screen) and fast switching (multiview) function
• Inputs: 2x USB-C, 3x HDMI, 1x Analog audio, 1x Dante 2ch
• Outputs: 1x HDMI and 1x HDBT (PoE) mirrored, 1x Analog audio, 1x Dante 2ch
• Dante 2x2 audio input and output
• USB-C supports DisplayPort Alt mode for A/V, USB 2.0, 100m Ethernet and 60W charging
• Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0
• Signal input supports manual switching and automatic switching modes
• Analog/Dante audio embedding, analog/Dante audio de-embedding output
• Advanced EDID management
• Control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI. CEC/RS-232 control external devices ON/OFF
• Support standard PoE power supply (TX_PSE, RX_PD)

Technical

Compliance:

• HDMI 2.0b / HDCP 2.2
• DP Version:
• DP 1.2

Video Bandwidth:

• 18Gbps

USB Bandwidth

• Tx USB devices to Tx host/USB-C: 480Mbps
• Rx USB devices to Tx host/USB-C: 350Mbps
• Rx USB devices to Rx host: 480Mbps

Network Bandwidth

• 100Mbps (LAN and USB-C connections)

Input Video Resolutions

• 480i ~1080p50/60Hz, 4Kx2K@24/30Hz,
• 4K2K@50Hz/ 60Hz 4:4:4

Output Video Resolutions

• Auto, 3840x2160p60, 3840x2160p50,
• 4096x2160p60, 4096x2160p50, 3840x2160p30,
• 3840x2160p25, 1920x1200p60RB,
• 1920x1080p60, 1920x1080p50, 1360x768p60,
• 1280x800p60, 1280x720p60, 1280x720p50,
• 1024x768p60
• IR Level
  12Vp-p
  IR Frequency
  Wideband 20K-60KHz
  Color Space
  Input: 8/10/12-bit, 8-bit (4K60Hz 4:4:4)
  Output: 8-bit
  Color Depth
  RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
  Audio Formats
  LPCM 2.0
  Audio Sample Rate
  48KHz
  Transmission Distance
  1080P&4K30 -- 230ft/70m; 4K60 -- 131ft/40m
  HDR
  Input supports HDR, output doesn’t support HDR
  ESD Protection
  Human-body Model: ±8kV (Air-gap discharge) ,
  ±4kV (Contact discharge)
  Connections

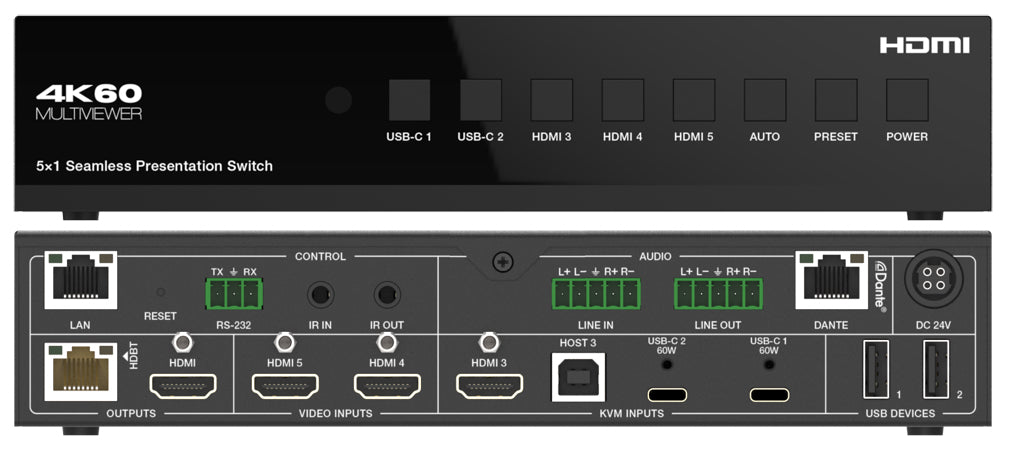

  Transmitter
  Inputs: 3 x HDMI inputs [Type A, 19-pin female],
  1 x USB-C [24-pin female], 1 x Line In [5pin3.5mm phoenix connector], 1 x DANTE [RJ45]
  Outputs: 1 x HDMI OUTPUT [Type A, 19-pin
  female], 1 x HDBT OUTPUT [RJ45], 1 x LINE OUT
  [5pin-3.5mm phoenix connector]
  Controls: 1 x RS-232 [3pin-3.5mm phoenix
  connector], 1 x LAN [RJ45], 1 x USB host [USB
  Type B], 1 x USB devices [USB Type A], 1 x IR IN
  [3.5mm stereo mini-jack], 1 x IR OUT [3.5mm
  stereo mini-jack]

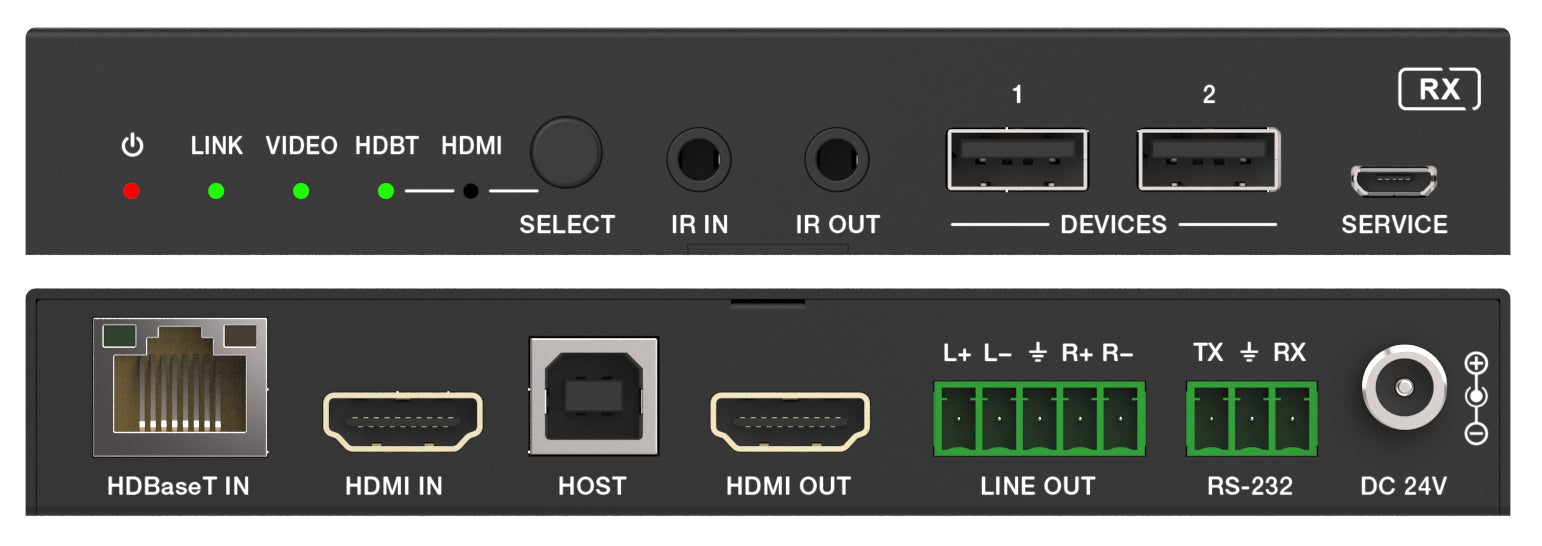

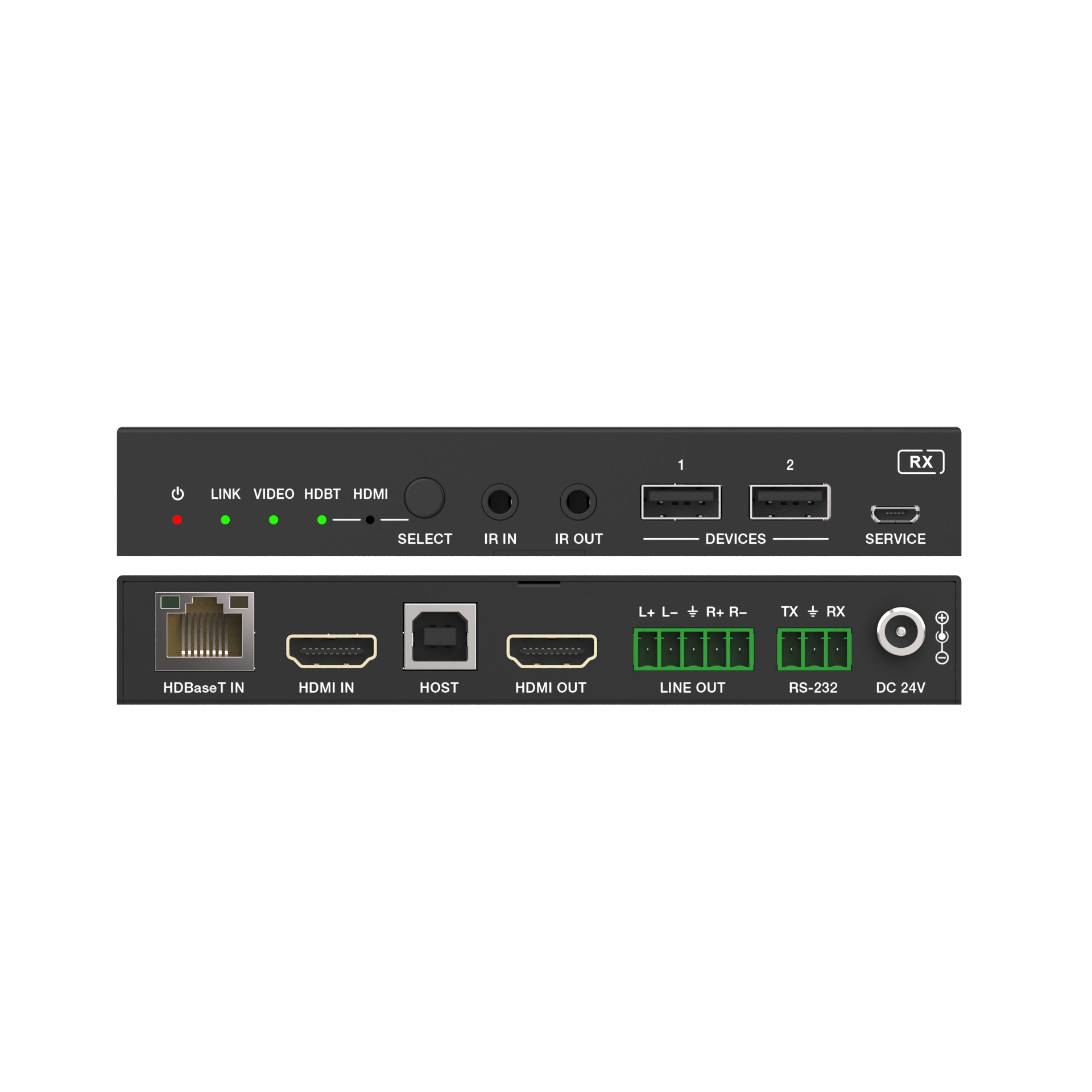

  Receiver
  Inputs: 1 x HDMI IN [Type A, 19-pin female], 1 x
  HDBaseT IN [RJ45]
  Outputs: 1 x HDMI OUT [Type A, 19-pin female],
  1 x LINE OUT [5pin-5mm phoenix connector]
  Control: 1 x RS-232 [3pin-3.5mm phoenix
  connector], 1 x USB host [USB Type B], 2 x USB
  devices [USB Type A], 1 x SERVICE [Micro USB], 1
  x IR IN [3.5mm stereo mini-jack], 1 x IR OUT
  [3.5mm stereo mini-jack]
  Tx Analog Audio
  Input Impedance
  10K Ohms
  Output
  Impedance
  330 Ohms
  Line Input Level (Maximum)
  8.2dBu (2Vrms) @ balanced or unbalanced audio
  Line Output Level (Maximum)
  8.2dBu (2Vrms) @ balanced audio 2.2dBu
  (1Vrms) @ unbalanced audio
  Frequency Response
  (+0.5 dB, -1 dB) 20 Hz to 20 kHz
  Audio Output
  Sync Delay
  0 to 50ms
  Audio S/N Ratio
  93dB @ 2Vrms, 1kHz A-weighted
  Audio THD+N
  <0.1% @ 0dBV, 1kHz
  Rx Analog Audio
  Output Impedance
  330 Ohms
  Line Output Level (Maximum)
  8.2dBu (2Vrms) @ balanced audio 2.2dBu
  (1Vrms) @ unbalanced audio
  Frequency Response
  (+0.5 dB, -1 dB) 20 Hz to 20 kHz
  Audio Output Sync Delay
  0 to 50ms
  Audio S/N Ratio
  93dB @ 2Vrms, 1kHz A-weighted
  Audio THD+N
  <0.1% @ 0dBV, 1kHz
  Dante Audio
  Audio Formats
  LPCM2.0
  Sample Rate
  44.1, 48, 88.2 and 96KHz at 24 bits
  Audio Delay
  2ms, 3ms, 4ms, 5ms, 10ms
  Network Bandwidth
  100Mbps
  Mechanical
  Housing Front panel: Aluminum; Rear case: Metal
  Enclosure
  Color
  Black
  Dimensions
  Transmitter: 220mm [W]×150mm [D]×44mm [H]
  Receiver: 140mm [W]×105mm [D]×21.5mm [H]
  Weight Transmitter: 1.21Kg; Receiver: 424g
  Power Supply
  Input: AC100 - 240V 50/60Hz
  Output: DC 24V/8A (US/EU standard, CE/FCC/UL
  certified)
  Power Consumption
  150W (Max)
  Operating Temperature
  0°C ~ 40°C / 32°F ~ 104°F
  Storage Temperature
  -20°C ~ 60°C / -4°F ~ 140°F
