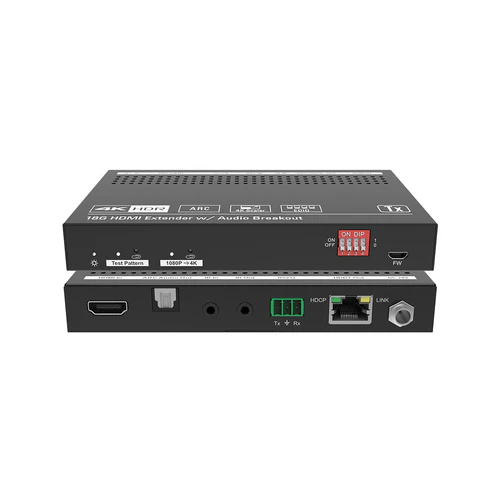

DVDO 4K 70m HDBaseT Transmitter for DVDO-Matrix-42-HDBT 4x2 Matrix Switcher

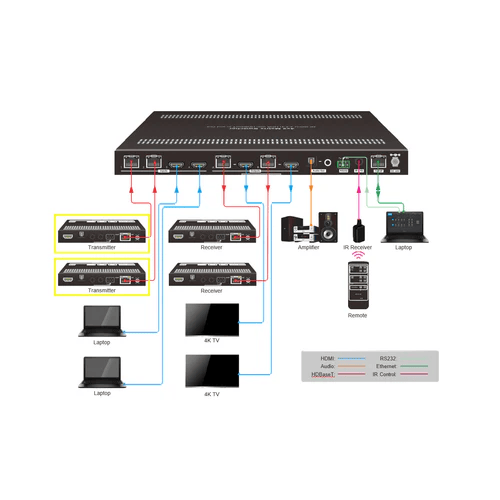

DVDO-Matrix-HDBT-Tx is an HDBaseT transmitter that connects to an HDBaseT input of the DVDO-Matrix-42-HDBT 4x2 matrix switcher.

It can transmit 1080p signals up to 70m/230ft and 4K60 signals up to 40m/131ft via a single CATx cable.

It supports PoC, bi-directional IR & RS232, HDR, CEC & EDID management.

Features:

• HDMI 2.0, HDCP 2.2 and DVI 1.0 compliant
• Supports video resolutions up to 4K@60Hz 4:4:4 with 18Gbps bandwidth
• Maximum transmission distance: 70m/230ft for 1080p signals and 40m/131ft for 4K60 signals with CATx cable
• 1080p to 4K upscaling
• PoC (powered by DVDO-Matrix-42-HDBT)
• Bi-directional IR & RS232
• HDR 10
• CEC pass-through
• EDID management

Technical
Compliance
HDMI 2.0 / HDCP 2.2 & 1.4
Video Bandwidth
18Gbps
Transmission Distance
1080p@60Hz ≤ 230ft/70m / 4K@60Hz ≤ 131ft/40m

Video
Inputs
1 x HDMI Type A [19-pin female]
Input Resolutions
Up to 4K@60Hz 4:4:4 8bit HDR10
Outputs
1 x HDBaseT [RJ45]
Output Resolutions
Up to 4K@60Hz 4:2:0

Audio
Outputs
1 x S/PDIF [Toslink] – ARC function not available on DVDO-Matrix-42-HDBT
Audio Formats
PCM, Dolby Digital, Dolby True-HD, DTS and DTS-HD

Control
Control Ports
1 x Test Pattern [button]
1 x 1080P -> 4K [button]
1 x EDID [4-pin DIP switch]
1 x Firmware [micro USB]
1 x IR In [3.5mm jack] / 1 x IR Out [3.5mm jack]
1 x RS232 [3-pin terminal block]

Mechanical
Enclosure
Metal / Black
Dimensions
140 (W) x 84 (D) x 19.5 (H) mm
Product Weight
275g
Power Supply
Input: AC 100-240V 50/60Hz / Output: DC 24V 1.25A
Power Consumption
12W (Max)
Operating Temperature
-5°C to 55°C (23°F to 131°F)
Storage Temperature
-25°C to 70°C (-13°F to 158°F)
Relative Humidity
10% to 90%
