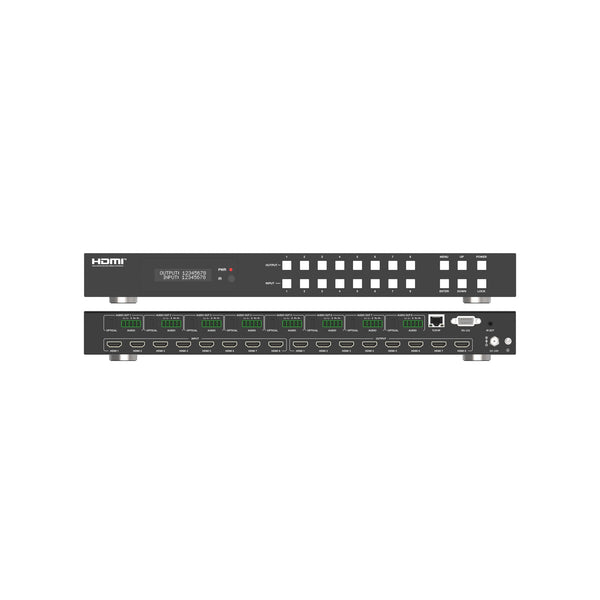

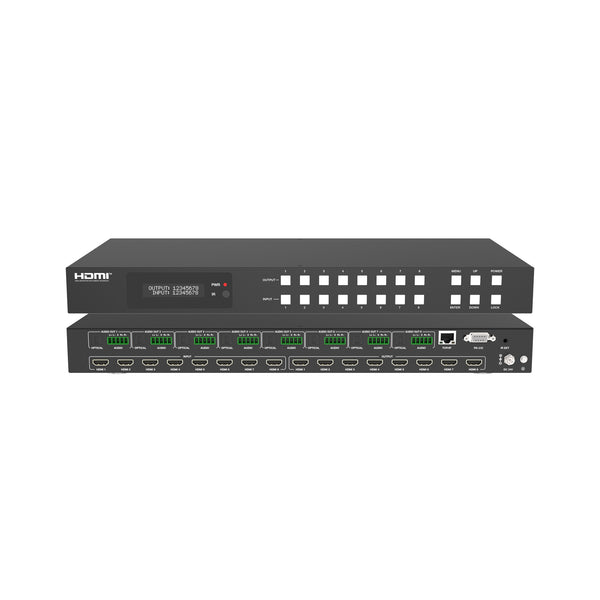

DVDO 4K 8x8 Seamless HDMI Matrix Switcher & Video Wall Controller with Audio Outputs

DVDO-Matrix-88SS-VW is a 4K 8x8 seamless matrix switcher and video wall controller. It supports HDMI signals with resolutions up to 4K60 4:4:4 with an 18Gbps bandwidth.

DVDO-Matrix-88SS-VW offers enhanced video wall control with multiple display layouts up to 8 rows or 8 columns and easy drag and drop configuration through the Web GUI.

Each HDMI output includes 2 separate audio outputs including an optical S/PDIF port as well as an analog L/R port providing either balanced or unbalanced audio.

Features:

• HDMI 2.0b / HDCP 2.2 compliant
• Supports video resolutions up to 4K@60Hz 4:4:4 at an 18Gbps video bandwidth
• Seamless switching between inputs
• Independent setting of each output, including downscaling
• Horizontal & vertical mirror options for each output
• Several background options when no output signal: black screen, blue screen, color bar, grayscale,…
• Advanced video wall function with multiple display layouts up to 8 rows or 8 columns
• 8 L/R balanced / unbalanced audio outputs
• HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS- EX, DTS-96/24,
• DTS High Res, DTS-HD Master Audio
• Advanced EDID management with 12 standard modes, 2 user-defined modes and 8 copy modes
• Control via CEC, front panel buttons, IR remote, RS-232, and IP (web GUI)

HDMI Compliance

• HDMI 2.0b

HDCP Compliance

• HDCP 2.2

Video Bandwidth

• 594MHz/18Gbps

Video Resolution

• Up to 4K@60Hz 4:4:4

Color Space

• RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0

Color Depth

• 8/10/12bit

Audio Formats

HDMI IN/OUT:

• LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res,
• DTS-HD Master Audio, DSD
• AUDIO Extracted:
• Optical Outputs: LPCM 2.0CH/Dolby/DTS 5.1CH
• Balanced Analog Audio Outputs: LPCM 2CH

IR Level

• 5Vp-p

IR Frequency

• Wideband 20K-60KHz

ESD Protection

• IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Input ports

• 8 × HDMI INPUT [Type A, 19-pin female]

Output ports

• 8 × HDMI OUTPUT [Type A, 19-pin female]
• 8 × OPTICAL AUDIO OUT [S/PDIF]
• 8 × L/R AUDIO OUT [3.5mm, 5 pin Phoenix Connector]

Control ports

• 1 × TCP/IP [RJ45]
• 1 × RS-232 [D-Sub 9]
• 1 × IR EXT [3.5mm, Stereo Mini-jack]

Housing

• Metal Enclosure

Color

• Black

Dimensions

• 440mm [W] × 300mm [D] × 44.5mm [H]

Weight

• 3.95kg

Power Supply

• Input: AC 100-240V 50/60Hz,
• Output: DC 24V/3.75A
• (US/EU standard, CE/FCC/UL certified)

Power Consumption

• 70W (Max)

Operating Temperature

• 32 - 104°F / 0 - 40°C

Storage Temperature

• -4 - 140°F / -20 - 60°C

Relative Humidity

• 20 - 90% RH (no-condensing)

Video Resolution

• 4K60/4K30/1080P60

HDMI Cable Length (HDMI IN / OUT)

• 5m/16ft 10m/32ft 15m/50ft
• The use of a “Premium High Speed HDMI” cable is highly recommended.
