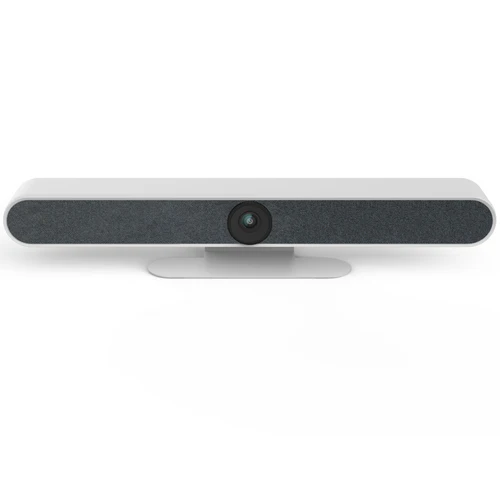

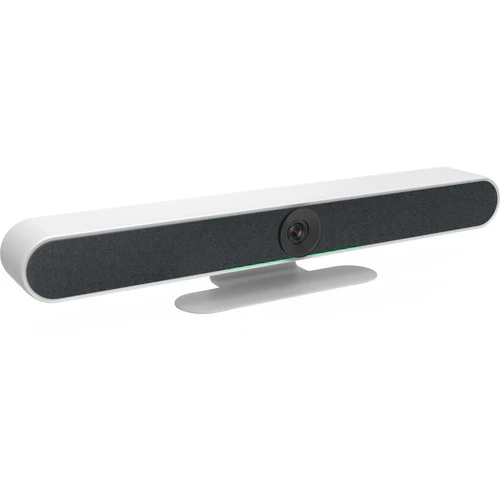

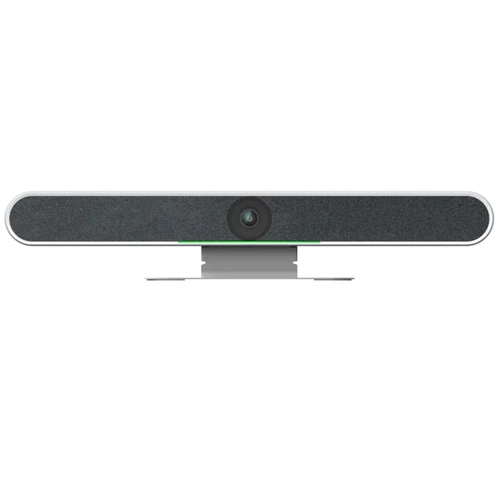

DVDO 4K All in One Camera with HDMI/USB-C (White)

Features:

• Integrated Design: Built in 4K UHD camera, microphone array, high fidelity speaker and electric privacy cover
• AI Voice Tracking
• Ultra HD: 0.8 M high quality CMOS image sensor, able to capture 4K ultra HD image to present true-to-life image, bringing excellent image resolution and clarity.
• Distortion-less Wide Angle Lens: 120° wide angle with no distortion lens allows every participant is on the frame with no need to adjust the camera.
• Automatically Privacy Cover: Privacy cover will automatically close to ensure the privacy security.
• Microphone Array: Built in 6 array microphone enable speaker can be tracked in real time.
• Built in Speaker: Built in dual 10W high quality studio speaker, ensuring every participant can hear and be heard clearly.
• Audio Processing: The audio processing algorithm adopts high-fidelity 48K audio sampling rate, lossless audio transmission technology, supports AEC, AGC, ANS processing, bringing high-quality calls up to 6 meters  in full duplex..
• Auto Framing: Built in face detection algorithm, automatically detect participant and provide optimal framing.
• Bluetooth 5.0: Connect mobile phone and other devices through Bluetooth to be used as Bluetooth speaker and microphone.
• Low Noise and High SNR: Low noise CMOS ensure the ultra SNR of image. The advanced 2D, 3D noise reduction technology further reduce the noise while ensuring the image clarity.
• Powerful Compatibility: Compatible with Windows7, windows10, Mac OS 10.10 or higher system, applicable to major cloud-based video conference platforms.

Camera Parameters

FOV

• 120° (D) / 106° (H) / 72° (V)

Focal Length

• 1.89mm

Iris Value

• F2.0

Digital Zoom

• 10x

Sensor

• High-quality CMOS sensor, effective pixel 8 million, 16:9

Minimum Illumination

• 0.5Lux

DNR

• 2D & 3D

Focus

• Auto/Manual

BLC

• On/Off

Exposure

• Parameter can be adjusted and AE (Auto Exposure) is available

Image Adjustments

• Brightness, sharpness, saturation, contrast, white balance, gain, anti-flicker,
• low brightness compensation

SNR

• ≥50dB

Video Formats

• HDMI & USB: 4K30, 1080p60 compatible downward

Video Compression Formats

• MJPEG, YUV2, H.264, H.265, NV12

Privacy Cover

• Automatic privacy cover closes when no image output

Audio

Microphone

• 6 x MEMS microphones

Pickup Distance

• 6 meters

Frequency Response

• 120 Hz – 16 kHz

Speaker

• Built-in dual 10W speaker

Output Voice Pressure

• 80 +/- 3 dB 1.0M/1.0W

Frequency Response

• 100Hz – 20 kHz

AI Function

Group Framing

• Automatically adjust the screen size according to the number of participants to present the best framing

Speaker Tracking

• Track each speaker in real time, and ensure that the speaker is in the center of the screen.

Working Conditions

Storage Temperature

• -10°C - +70°C

Storage Humidity

• 20% - 95%

Working Temperature

• -10°C - +50°C

Working Humidity

• 20% - 80%

Environment Indoor

Interfaces

• USB USB3.0 audio video output interface, Type C.

Supports

• UVC1.1, UAC1.0 and higher

HDMI

• HDMI video output interface, also compatible with HDMI 2.0

Line In

• 3.5mm line input (audio input automatically switches to connected external pickup)

Line Out

• 3.5mm line output for external speakers (audio output automatically switches to connected speakers)

Expansion Mic

• RJ45 interface, able to connect to expansion microphone

Power

• HEC3800 Power socket (DC12V),
• Input AC110V - AC220V, Output
• DC12V/2.5A

Input voltage

• DC 12V ±10%

Input currency

• <1A

Consumption

• <12W

Bar-shaped Indicator

• While displaying working status, it can also be lit where the speaker's voice comes from.
• Bluetooth 5.0 Can be connected to a mobile phone or other device via
• Bluetooth as a Bluetooth microphone and speaker

System Compatibility

• Windows 7, Windows 8, Windows
• 10, Mac OS X, Linux, Android

Accessories

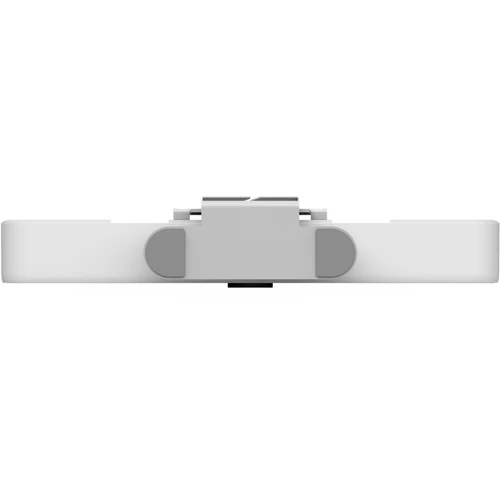

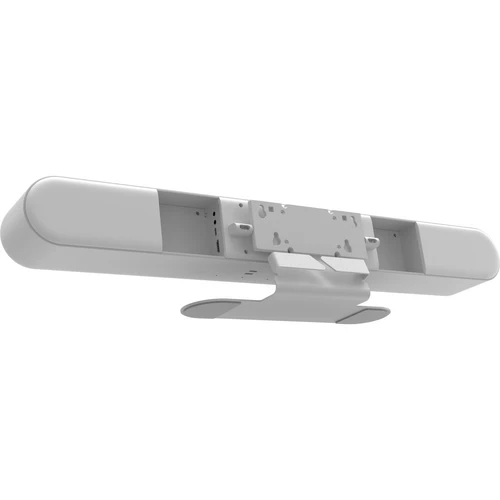

• Standard accessories Comes with brackets for desktop or wall mounting
• Optional accessories TV/monitor mounting

1 X 4K All in One Camera with HDMI/USB-C (White)
