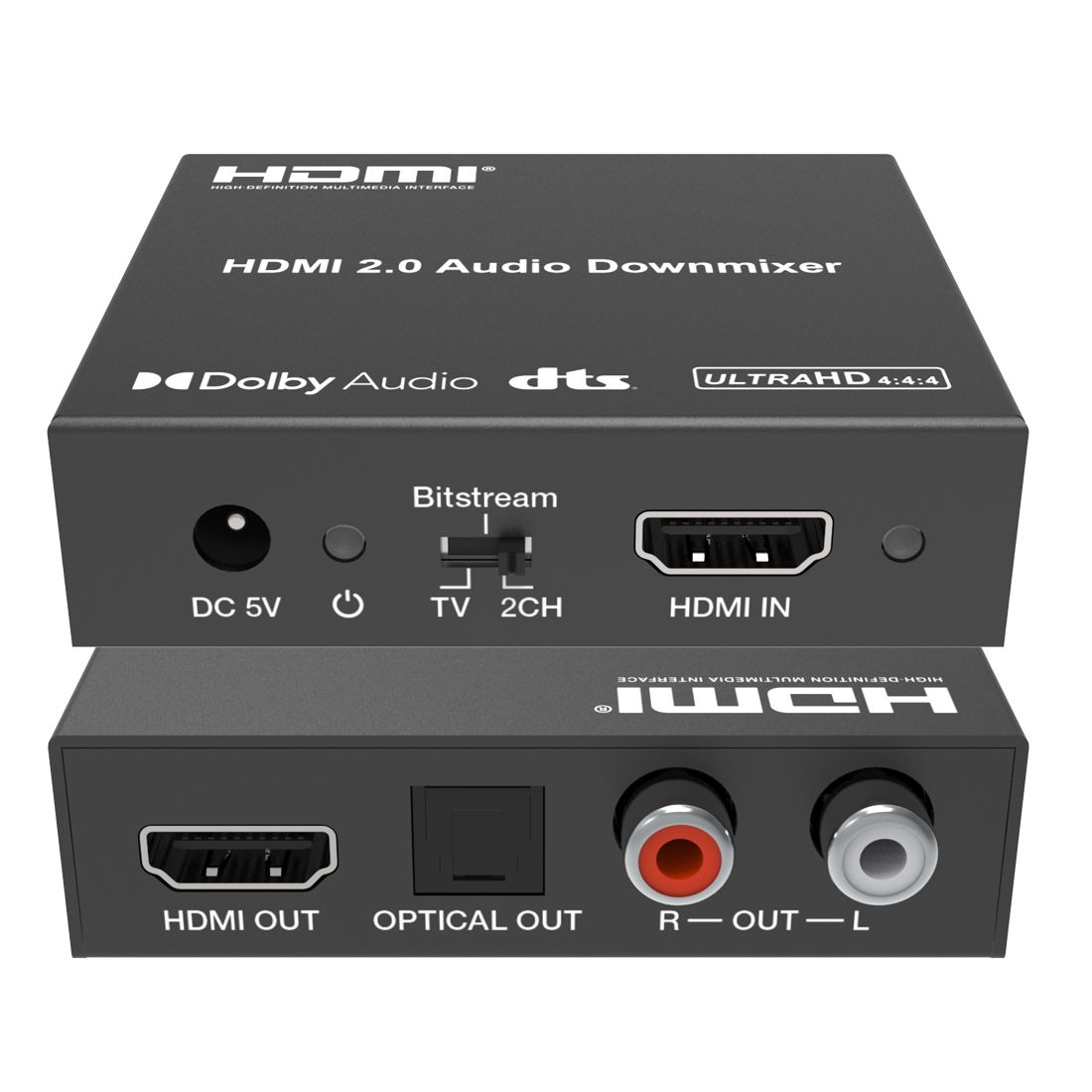

DVDO 4K HDMI 2.0 Audio Extractor

DVDO-AudioE-1 is an HDMI 2.0b audio extractor supporting video resolutions up to 4K@60Hz (Chroma subsampling YUV 4:4:4) and HDCP 2.2.

It extracts audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs.

It passes-through the audio including high resolution digital audio formats (LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio) to the HDMI and optical outputs and provides bitstream audio down-mix to the analog stereo output.

It supports 10bit HDR (High Dynamic Range), HBD (High Bit Rate) audio and CEC pass-through.

Features:

• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
• Video resolutions up to 4K@50/60Hz (YUV 4:4:4)
• Extract HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
• HDMI Pass-through audio input to HDMI and optical audio output
• SPDIF audio output supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH (SPDIF output mutes if the audio input is LPCM 7.1, Dolby Digital Plus or Dolby Atmos)
• Bitstream audio down-mix to L/R analog output for LPCM 2/5.1CH, Dolby Digital 2/5.1CH, DTS
• 2/5.1CH (L/R output sends out 2CH PCM audio if the audio input is LPCM 7.1 and mutes if the audio input is Dolby Digital Plus or Dolby Atmos)
• HDMI High Bit Rate (HBR) audio pass through
• Audio sample rates up to 192kHz
• 10bit HDR (High Dynamic Range) pass through
• CEC pass-through

Compliance

• HDMI 2.0b / HDCP 2.2 & 1.4

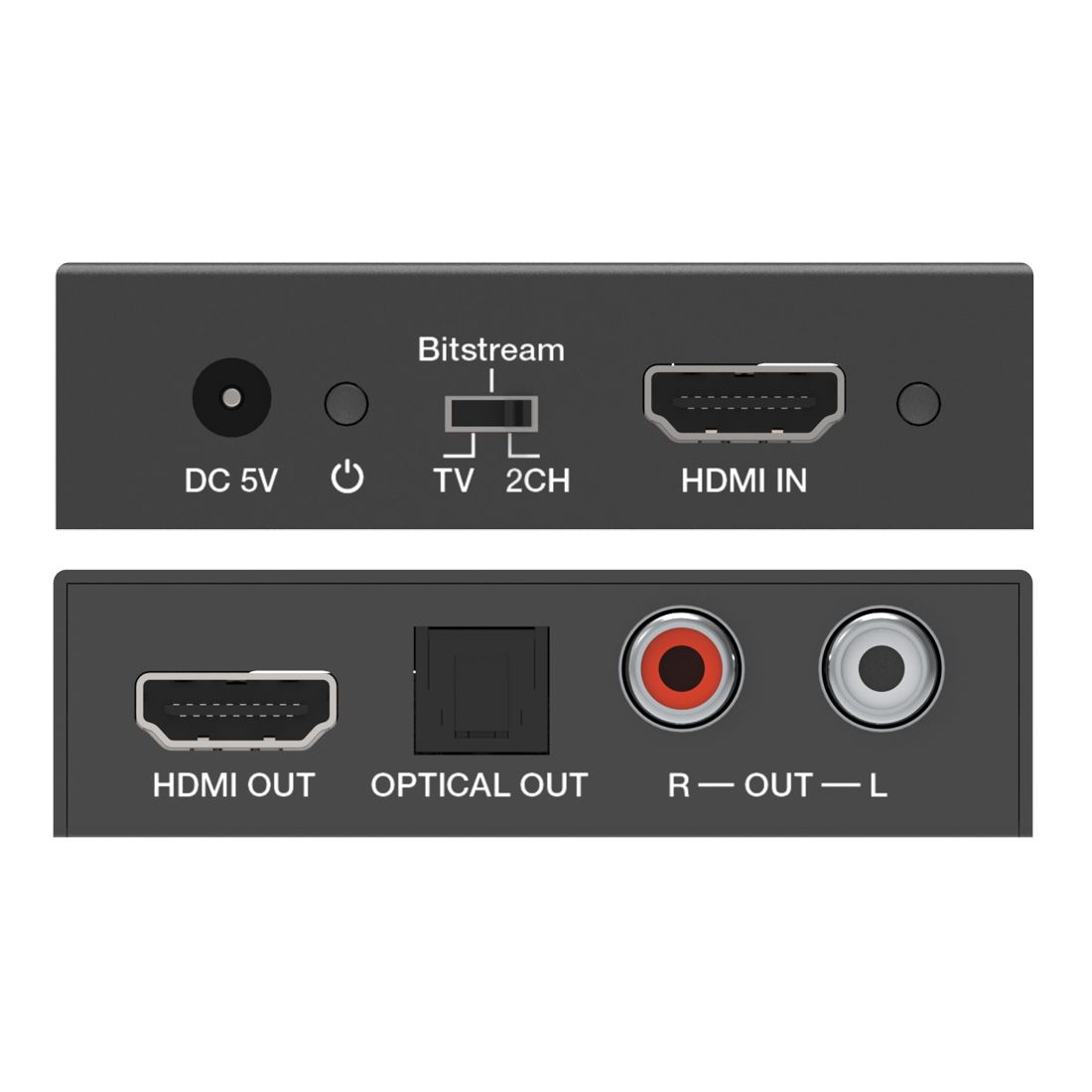

Inputs 1

•  x HDMI Type A [19-pin female]

Outputs

• 1 x HDMI Type A [19-pin female]1 x L/R Audio [RCA]
• 1 x Optical [S/PDIF]

Video Resolutions

• Up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080p@120Hz, 1080p 3D@60Hz

Color Space

• RGB, YCbCr 4:4:4, YCbCr 4:2:2

Color Depth

• 10-bit, 12-bit

Maximum Data Rate

• 18Gbps

Audio Formats

• HDMI (audio pass through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+,
• Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
• L/R Audio: Analog Stereo 2CH
• Optical Audio: LPCM 2CH, Dolby Digital 2/5.1 CH, DTS 2/5.1CH
• General

Enclosure

• Black metal

Operating Temperature

• 0°C to 40°C (32°F to 104°F)

Storage Temperature

• -20°C to 60°C (-4°F to 140°F)

Humidity

• 20% to 90%, non-condensing

ESD Protection

• Human body model - ±8kV (air-gap discharge) & ±4kV (contact discharge)

Power Supply

• Input: AC 100-240V 50/60Hz / Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)

Power Consumption

• 1.25W (Max)

Device Dimensions

• 73.5 x 60.7 x 20mm / 2.9 x 2.4 x 0.8in (W x D x H)

Product Weight

• 0.135kg / 0.3lb

• 1× HDMI 18Gbps Audio Extractor
• 1× 5V/1A Power Adapter
• 1× User Manual
