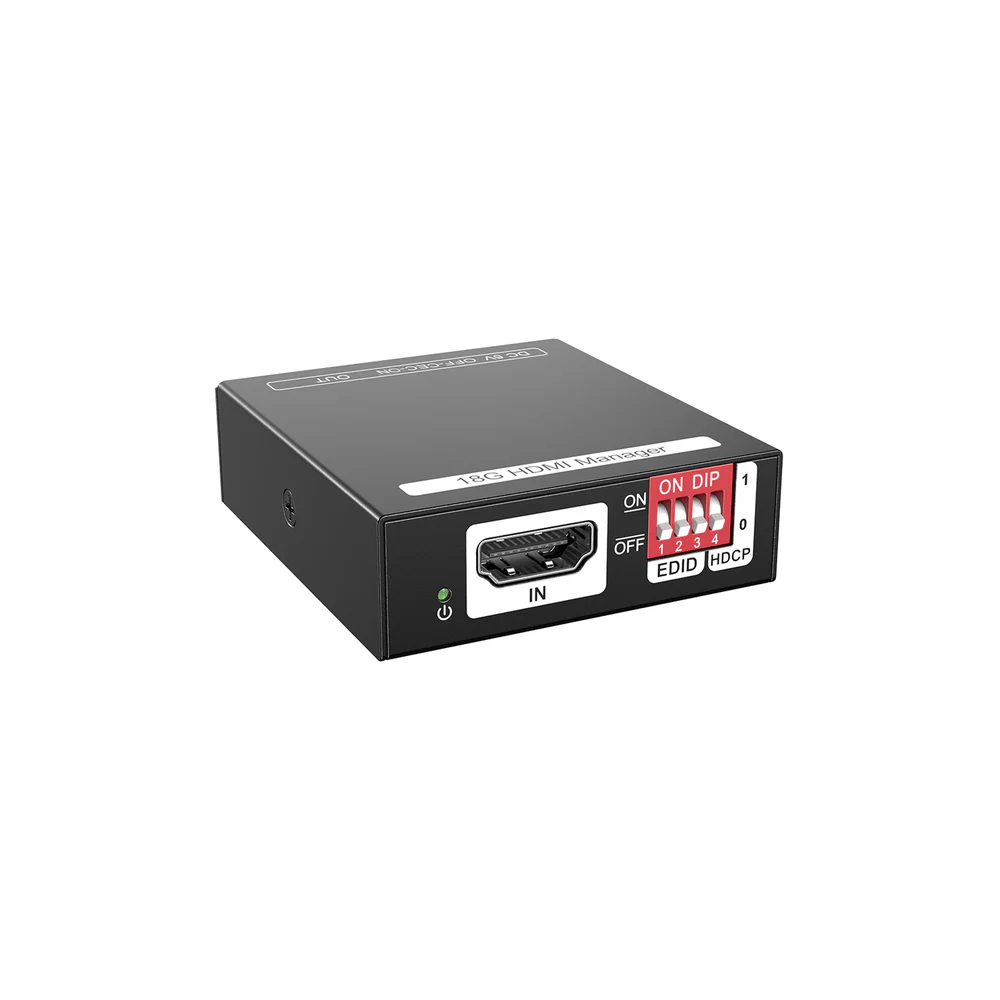

DVDO 4K HDMI Manager

DVDO-HDMI-MGR-1 is an HDMI EDID emulator with HDCP management and CEC support.

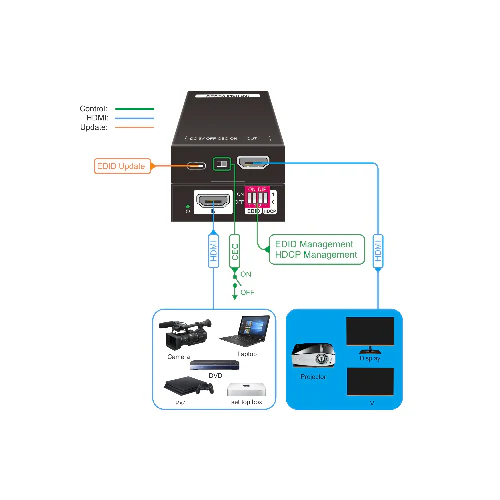

It is designed to eliminate compatibility issues between source devices and displays by manipulating the EDID information provided to the device connected to its HDMI input, making it the ideal troubleshooting tool for AV integrators.

It is HDMI 2.0 / HDCP 2.2 compliant and supports resolutions up to 4K@60Hz 4:4:4 at 18Gbps.

The unit can be powered via an HDMI cable or a USB-C connection, eliminating the need for a separate power adapter.

It includes 8 predefined EDID presets including a user defined preset that can be uploaded via the USB-C port.

It features HDCP management, auto downscaling as well as a CEC blocking mode allowing CEC to be turned on and off.

Features:

• HDMI 2.0, HDCP 2.2 compliant
• Supports resolutions up to 4K@60Hz 4:4:4 at 18Gbps
• Allows for HDCP 2.2 (source) to be converted to HDCP 1.4 (display)
• 8 EDID presets including 1 user defined preset
• 4-pin DIP switch to manage EDID and HDCP settings
• Unit can be powered via HDMI or USB-C
• CEC blocking option allows for CEC function to be turned ON/OFF with toggle switch

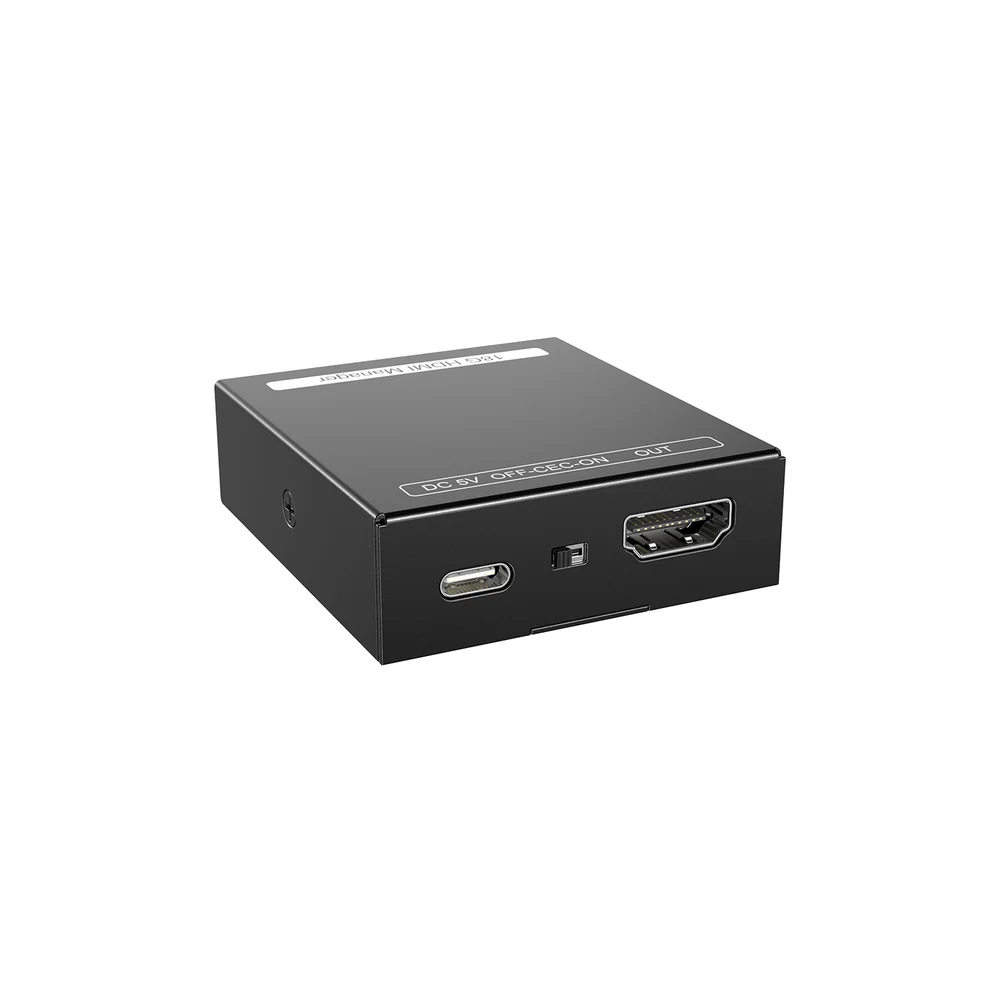

• USB-C port for power, custom EDID upload and firmware update
• Plug and play, compact and portable design

Video Input
Input: (1) HDMI 2.0
Input Connector: (1) Female type-A HDMI
HDMI Input Resolution: Up to 4K@60 4:4:4

Video Output
Output: (1) HDMI 2.0
Output Connector: (1) Female type-A HDMI
HDMI Output Resolution: Up to 4K 4:4:4

General
Bandwidth: 18Gbps
Power Supply: 5V 1A
Power Consumption: 2.4W(MAX)
Dimension (W*H*D): 54x18x60mm

• 1x DVDO-HDMI-MGR-1
• 1xUser Manual
