DVDO 4K HDMI Signal Generator & Analyzer

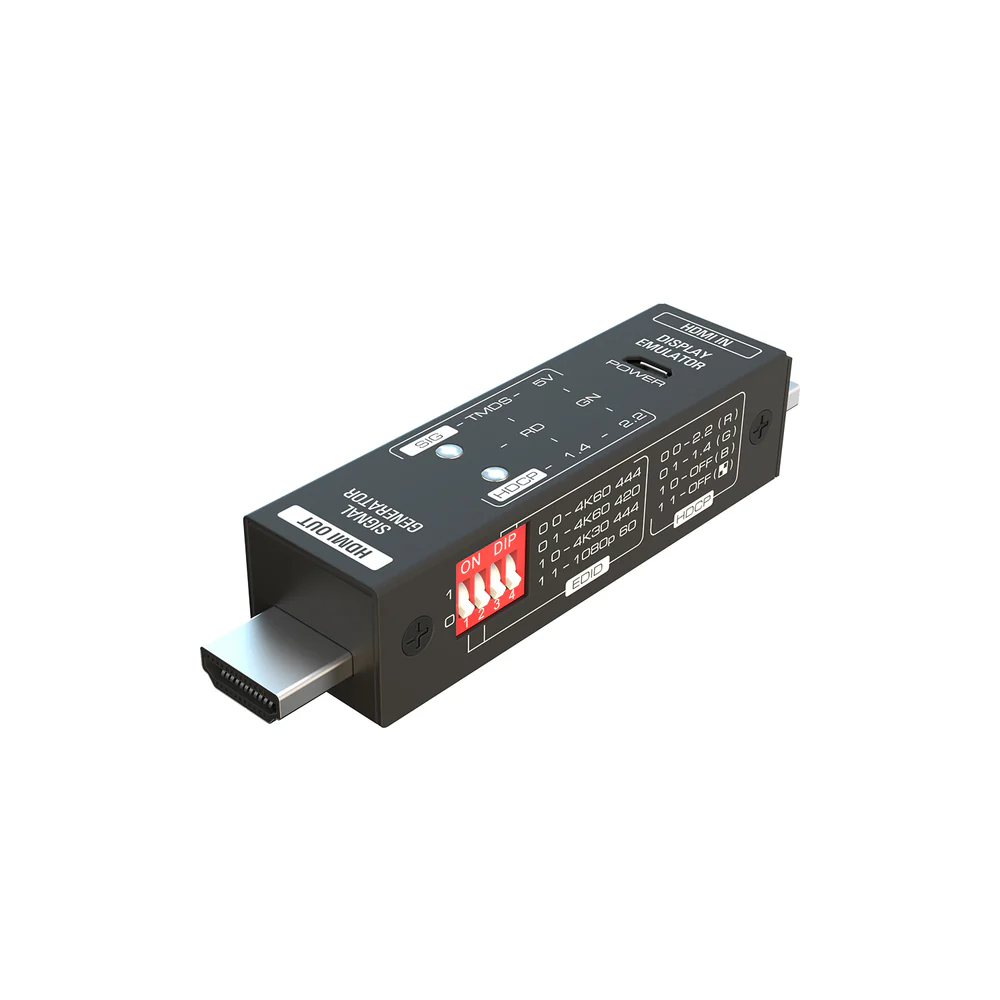

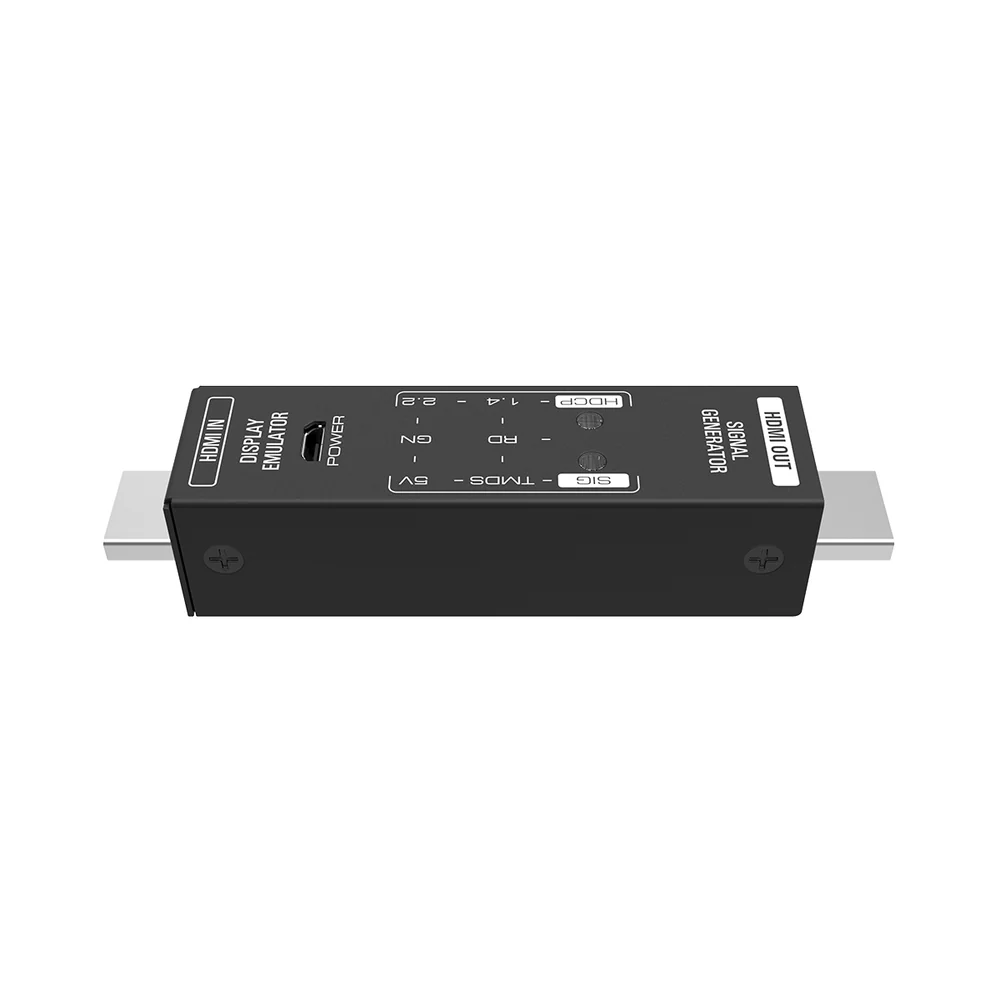

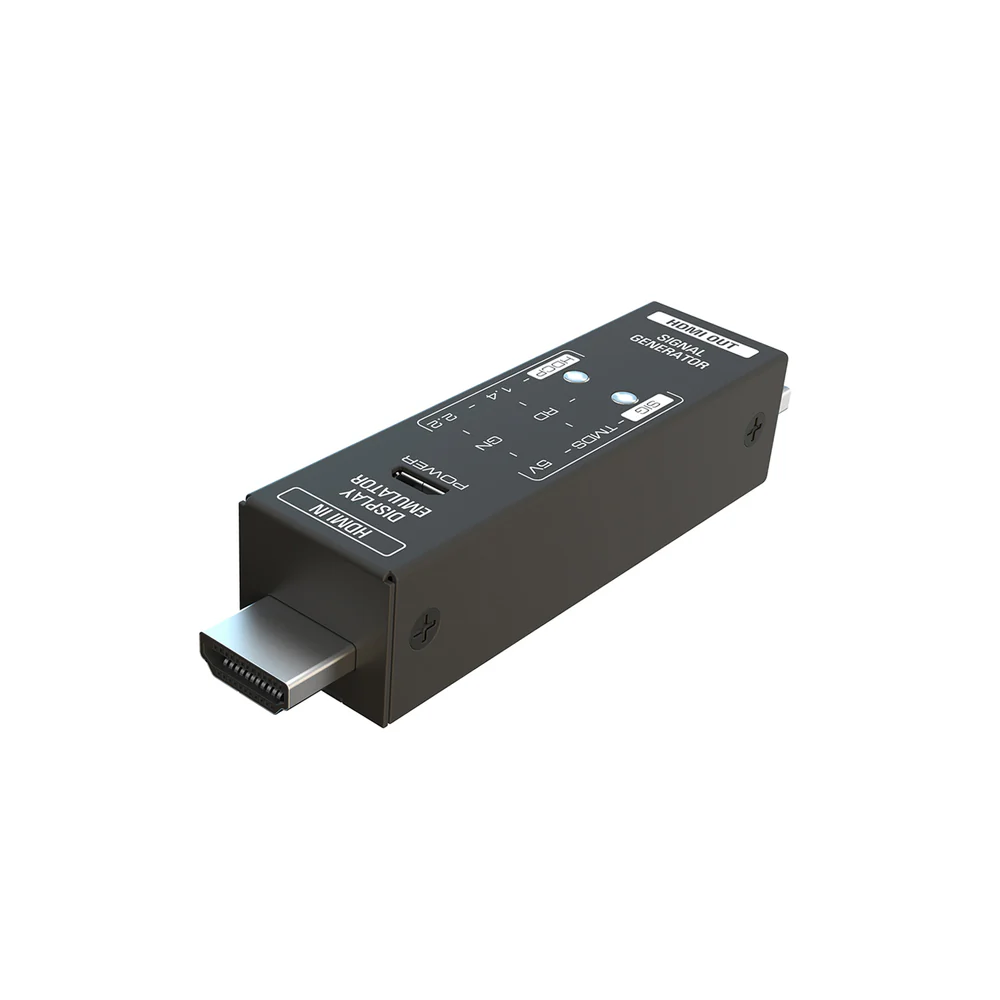

DVDO-4KSGA-1 is a compact 4K HDMI signal generator and analyzer designed to verify the HDMI compatibility of both source and display devices.

It supports resolutions up to 4K60 4:4:4 at 18 Gbps.

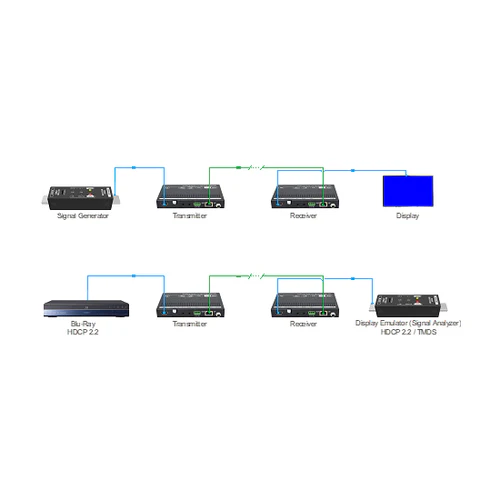

Its HDMI output can connect to a display and generate HDMI signals with different video resolutions or HDCP options to verify the display’s capabilities.

Its HDMI input can connect to a video source and act as a display emulator to analyze the incoming HDMI signal including its HDCP content and signal status (5V, TMDS).

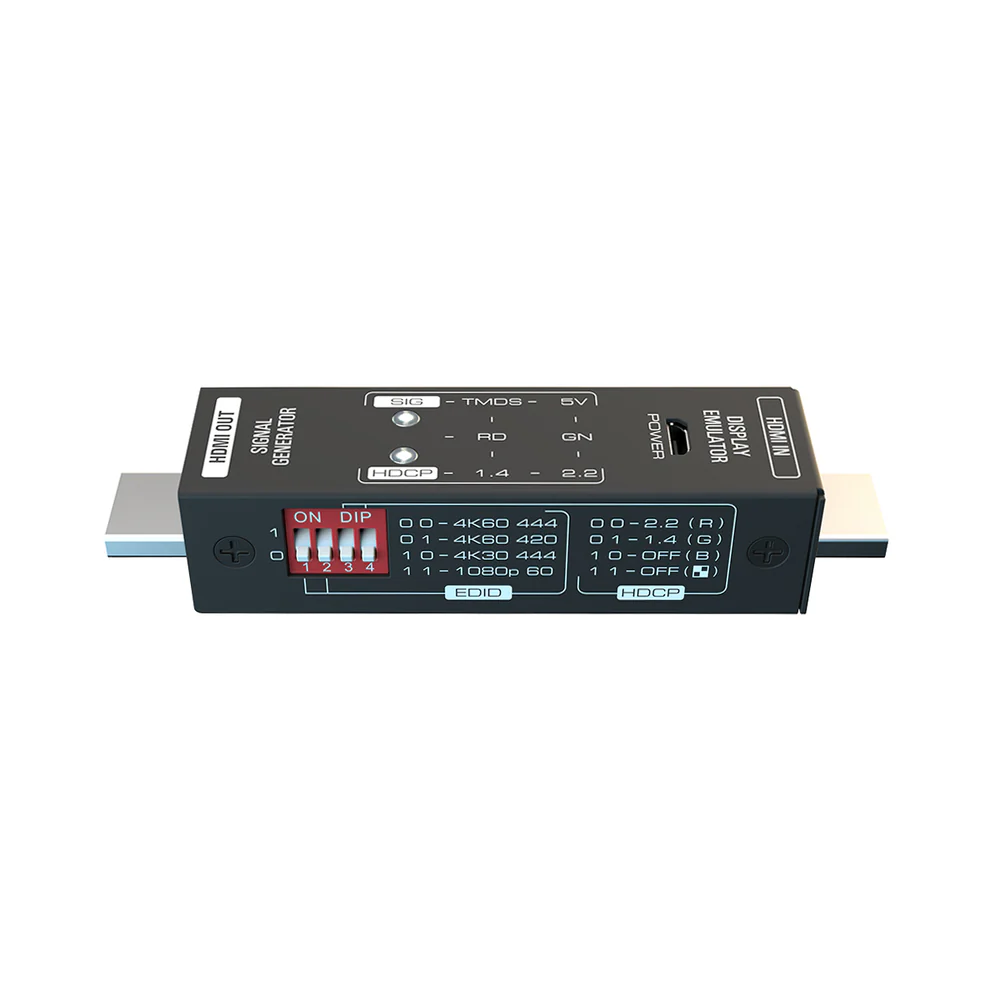

It features a 4-pin DIP switch to select the video resolution and HDCP mode when used as a signal generator and LED indicators showing HDCP and signal status when used as a display emulator.

• Features:
• HDMI 2.0 / HDCP 2.2 compliant, supports resolutions up to 4K60 4:4:4 at 18Gbps
• Two modes: signal generator through HDMI output & display emulator through HDMI
• Signal generator mode:
• Selectable video resolutions and HDCP modes with 4-pin DIP
• Output video resolutions: 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, or 1080p@60Hz
• HDCP modes: OFF, HDCP 1.4 or HDCP 2.2
• Display emulator mode:
• 2 LED indicators for signal link and HDCP status
• USB powered when in signal generator mode. Powered by HDMI source when in display emulator mode
• Plug and play, no software or cables needed
• Extremely compact design

• Input (1): HDMI IN
• Input Connector : 1) 19-pin type-A male HDMI
• Output: (1) HDMI OUT
• Output Connector: (1) 19-pin type-A male HDMI
• Power Connector: (1) Micro-USB
• Control: (1) 4-pin DIP switch
• Input Video Resolution: Up to 4K@60Hz 4:4:4 8bit
• Output Video Resolution: Supports 4K@60Hz 4:4:4, 4K@60Hz, 4:2:0, 4K@30Hz 4:4:4, and 1080p@60Hz to be selected.
• HDMI Version: 2.0
• HDCP Content: 2.2, 1.4
• Power Supply: 5VDC 1A (USB power cord)
• Power Consumption: 2W (Max)
• Operation Temperature: -5 to +55℃ (+23° to +131°F)
• Storage: -25 to +70℃ (-13° to +158°F)
• Relative Humidity: 10% to 90%, Non-condensing
• Dimensions (W*H*D): 75mm x 22mm x 19mm
• Net Weight: 65g

• 1x DVDO-4KSGA-1 HDMI Signal Generator
• 1x USB Power Cord
• 1x Brown Cloth Bag
• 1x User Manual
