DVDO 4K HDMI & USB-C 50m Wall Plate Extender Kit over Ethernet

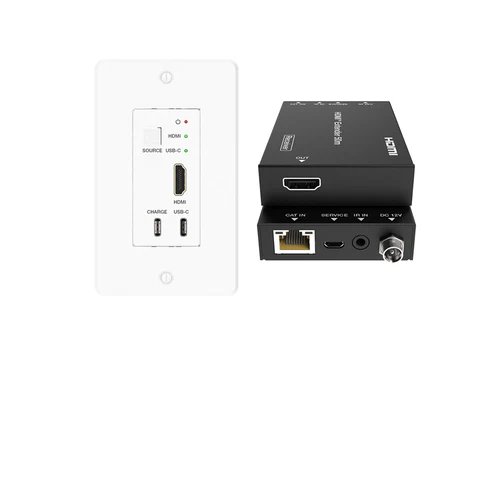

DVDO-RS-4 is an extender over category cable including a wall plate transmitter with switchable HDMI and USB-C inputs and a receiver. The transmitter includes a second USB-C port for charging.

It features a US one-gang enclosure for Decora-style wall plate openings as well as a white wall plate and faceplate.

It supports video resolutions up to 4K60 4:4:4, HDR and various audio formats.

It can extend 4K24 signals up to 164ft / 50m and 4K60 signals up to 115ft / 35m via a single CAT5e/6 cable.

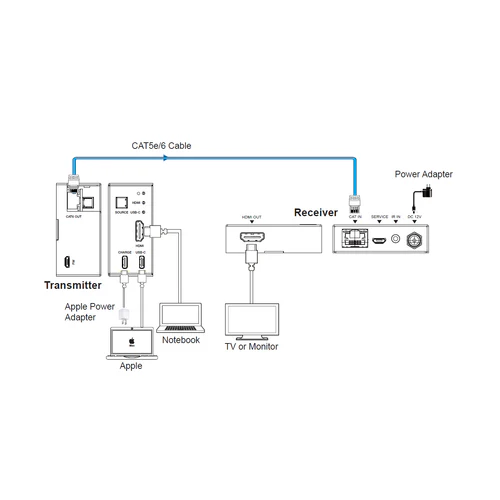

The transmitter is powered by the receiver over the category cable (PoC).

Features:

• HDMI 2.0b / HDCP 2.2 compliant
• 1 HDMI & 1 USB-C inputs + 1 USB-C charging port
• Video resolutions up to 4K50/60 4:4:4
• Video bandwidth: 18 Gbps (HDMI input) / 5.4 Gbps (USB-C input)
• CAT output can extend signals up to 164ft / 50m for 4K@24 or 115ft / 35m for 4K@60 4:4:4 via a single CAT5e/6 cable
• HDMI audio formats supported: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• US one-gang enclosure for Decora-style wall plate openings
• Supports 3D, HDR10 and Dolby Vision
• Automatic & manual input selection
• PoC (only from Receiver to Transmitter)

Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
DP Compliance
Display Port 1.2a
Video Bandwidth
USB-C: 5.4 Gbps
HDMI: 18 Gbps
Video Resolution
480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
Color Space
RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth
8/10/12-bit (1080P@60Hz), 8-bit (4K@60Hz)
HDR
Support
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD, Master Audio, DSD
Transmission Distance
Max distance (4K@24) : 164ft / 50m over CAT5e/6
Max distance (4K@60) : 115ft / 35m over CAT5e/6
ESD Protection
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

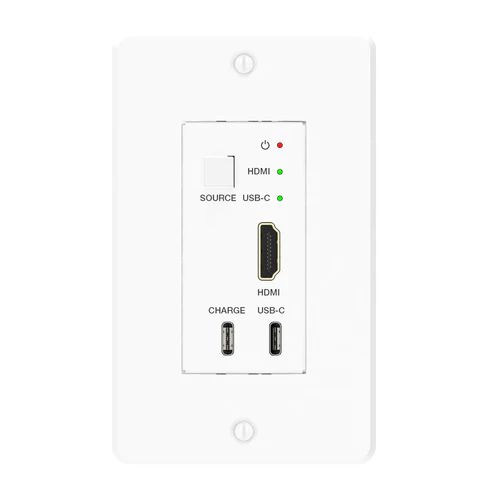

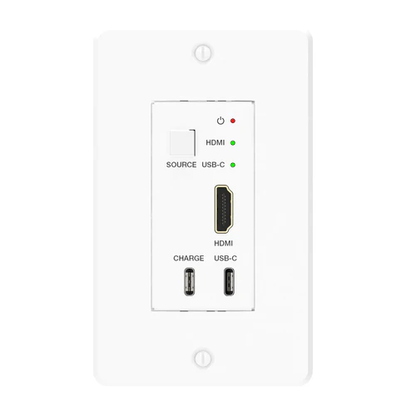

Transmitter
Inputs: 1 x HDMI Type A [19-pin female], 1 x USB-C

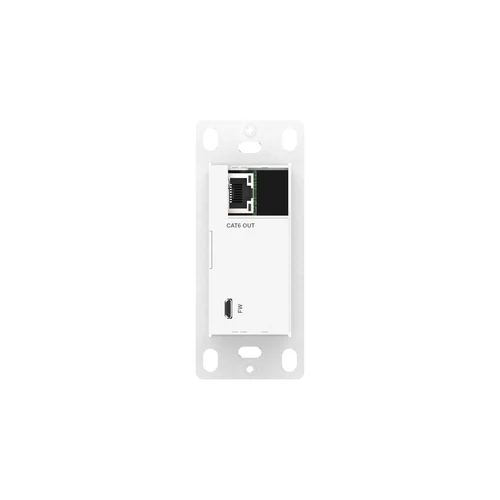

Outputs: 1 x CAT6 OUT [RJ45, 8-pin female], 1x USB-C (only for charging)
Control: 1x FW [Micro USB, Update port]

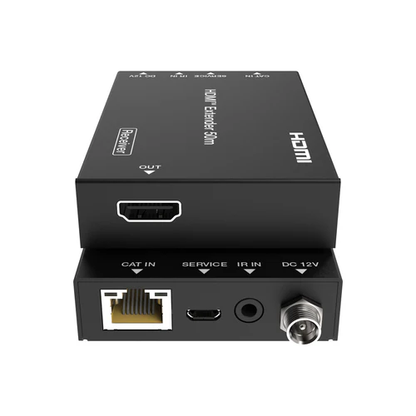

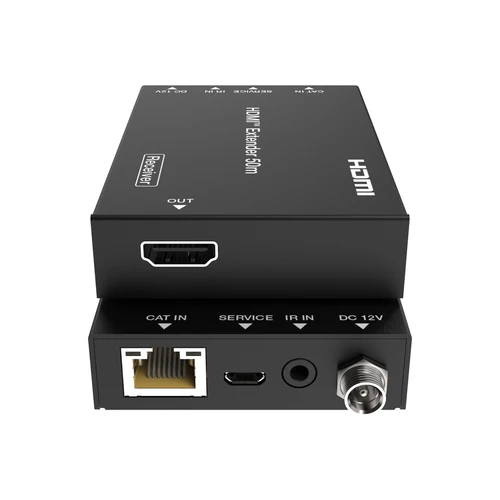

Receiver
Input: 1x CAT IN [RJ45, 8-pin female]
Output: 1x HDMI OUT [Type A, 19-pin female]
Controls: 1x IR IN [3.5mm Stereo Mini-jack], 1x SERVICE [Micro USB, Update port]

Mechanical
Housing
Metal Enclosure
Color
White
Dimensions Wall plate:
33.3mm [W] x 65.7mm [D] x 68.7mm [H]
Dimensions Faceplate:
69.9mm [W] x 3mm [D] x 114.3mm [H]
Dimensions Receiver:
88mm (W) × 61mm (D) × 18mm (H)
Weight Wall plate
195g
Weight Receiver
155g
Power Supply
POC (only from Receiver to Transmitter)
Power Consumption
Wall plate: 3W (Max), Receiver: 3.72W (Max)
Operating Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20- 90% RH (no condensation)

• 1x Wall Plate CAT Transmitter
• 1x CAT Receiver
• 1x Power Supply with Interchangeable Plugs
• 1x Cover Plate with Screws
• 2x Mounting Ears for Receiver
• 1x User Manual
