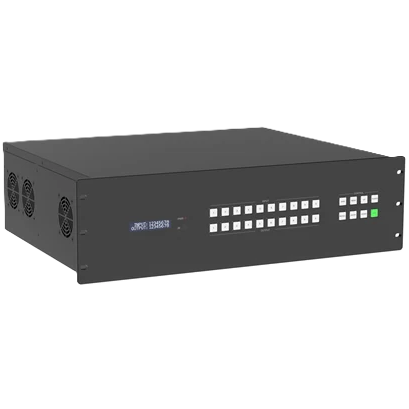

DVDO 4K Modular Seamless Matrix Switcher & Video Wall Controller 16x16 Chassis

DVDO 4K Modular Seamless Matrix Switcher & Video Wall Controller 16x16 Chassis

The DVDO 4K Modular Seamless Matrix Switcher & Video Wall Controller 16x16 Chassis is a powerful, professional AV routing solution designed for demanding broadcast, corporate, education, digital signage, control room, and live event environments. With support for up to 16 inputs and 16 outputs, this modular matrix switcher delivers seamless 4K signal distribution while providing the flexibility to customize your system with multiple input and output card options.

Built around a scalable modular design, the 16x16 chassis supports HDMI, HDBaseT, Fiber, and 12G-SDI connectivity. It allows you to route multiple local or remote video sources to multiple displays without interruption. Built-in scaling, advanced EDID management, and integrated video wall processing simplify complex AV installations while maintaining exceptional image quality.

The DVDO Matrix Switcher supports HDMI 2.0b with up to 18Gbps bandwidth and resolutions up to 4K UHD 3840 x 2160 at 60Hz with RGB 4:4:4. In addition, seamless switching eliminates black screens during source changes, making it ideal for mission-critical applications where continuous video is essential.

System management is simple thanks to multiple control options, including LAN, RS-232, TCP/IP, Web GUI, PC software, IR, and front panel controls. The included software provides real-time monitoring of all inputs and outputs, while the redundant power supply helps maximize system reliability.

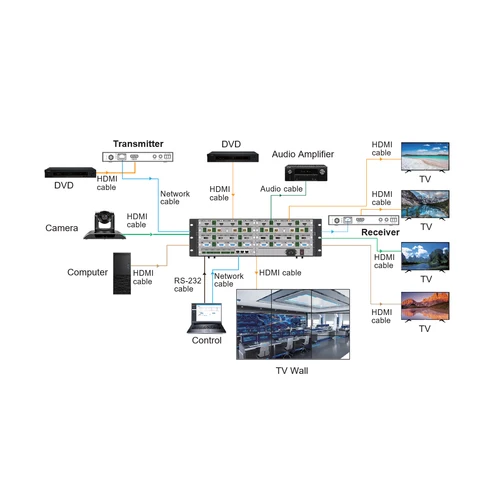

Whether you're building a professional video wall, AV distribution network, broadcast control room, or enterprise presentation system, the DVDO 16x16 Modular Matrix Switcher delivers scalable 4K performance and flexible connectivity.

Key Features

• Supports up to 16 HDMI, HDBaseT, Fiber, or 12G-SDI inputs and 16 outputs
• Modular chassis allows flexible configuration for professional AV systems
• HDMI 2.0b with 18Gbps bandwidth for 4K60 RGB 4:4:4 video
• Seamless switching for uninterrupted source changes
• Built-in scaler with selectable output resolutions
• Integrated video wall processing with flexible layouts
• Supports video wall configurations from 8x8 through 36x36
• Advanced EDID management for reliable display compatibility
• Analog audio embedding and de-embedding with LPCM 2.0 support
• Multiple control options including Web GUI, LAN, RS-232, TCP/IP, IR, PC software, and front panel
• PC software provides real-time input and output monitoring
• Redundant power supply for increased system reliability

Ideal Applications

• Broadcast studios
• Corporate AV installations
• Control rooms
• Command centers
• Digital signage networks
• Live event production
• Houses of worship
• Higher education campuses
• Esports venues
• Video wall deployments

• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2
• Video Bandwidth: 18Gbps
• Video Resolution: 3840x2160p60Hz 4:4:4
• Color Depth: 8/10/12-bit (4K30Hz); 8-bit (4K60Hz 4:4:4)
• Color Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
• HDMI audio: LPCM 2.0 / 5.1 / 7.1CH
• Analog audio: LPCM 2.0CH
• ESD Protection: IEC 61000-4-2: ± 8KV (Air-gap discharge) & ± 4KV (Contact discharge)

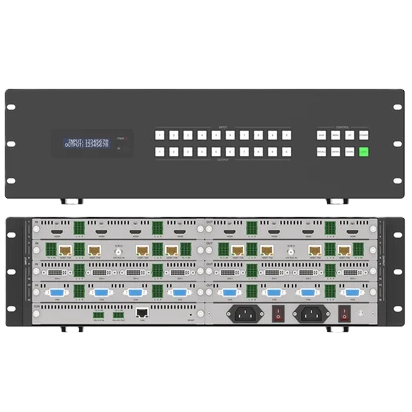

• Input: 4 x Input card (16x16 Matrix)
• Output: 4 x Output card (16x16 Matrix)
• Control: 1 x Main control card
• Housing: Metal Enclosure
• Color: Black
• Dimensions: 483mm (W) × 379mm (D) × 133mm (H)
• Weight: 8.62kg (No input/output cards are included)
• Power Supply: AC 100-240V, 50/60Hz
• Power Consumption: 80W~320W (Match with different input/output cards)
• Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
• Relative Humidity: 20~90% RH (no condensation)

• 1x Modular Seamless Switching Matrix
• 1x IR Remote
• 1x RS-232 Serial Cable (DP9 female connector to 3pin H2.0 Phoenix Connector, 1.5 meters)
• 1× USB to RS-232 Serial Cable (USB A to RS-232 serial DB9 male connector)
• 4× Rubber Foot
• 4× Machine Screw (M3*4)
• 1x 100~240V AC 50/60Hz Power Cord (Note: The dual power card is equipped with two AC power cords.)
• 1x User Manual
