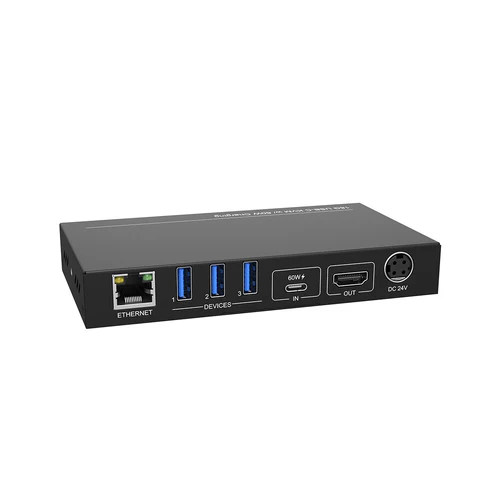

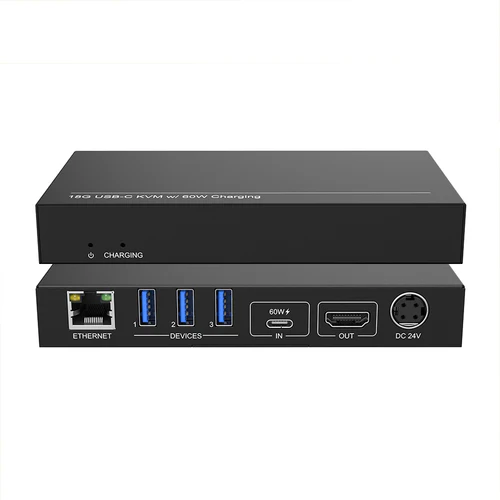

DVDO 4K USB-C to HDMI Converter with USB

DVDO-USBC-HDMI-Conv-1 is a   USB-C to HDMI converter that allows the connection of a USB-C host device (laptop) to an HDMI display.

The USB-C input supports data transfer up to 5Gbps (USB 3.2 Gen 1), video resolutions up to 4K60 4:4:4 (DP Alt mode) as well as 60W power delivery.

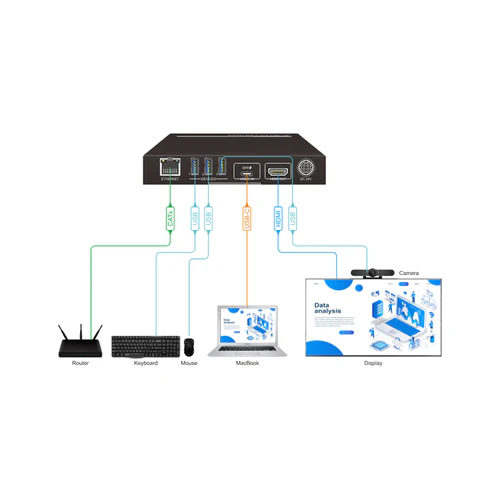

The unit includes three USB 3.2 Device ports for peripherals such as camera, microphone, keyboard and mouse that can connect to the host device.

It features a 1G ethernet port, allowing the host device to connect to the network through the USB-C port.

Features

• HDMI 2.0, HDCP 2.3 & DP 1.4 compliant
• One USB-C input / One HDMI output
• USB-C input supports
• USB 3.2 Gen 1 data transfer (5Gbps)
• DisplayPort Alt mode 4K60 4:4:4 video
• 60W power delivery
• Three USB 3.2 Gen 1 Device ports for camera, microphone, keyboard, mouse, etc…
• 1G Ethernet port allows connection of the USB-C host device to the network
• Charging LED light on front panel
• Mounting ears included
• Plug and Play, no drivers required

Video Input
Input
(1) USB
Input Connector
(1) USB-C
Input Resolution
Up to 4K@60Hz 4:4:4
USB Standard
USB3.2 Gen1

Video Output
Output
(1) HDMI
Output Connector
(1) Female type-A HDMI
HDMI Output Resolution
Up to 4K@60Hz 4:4:4
HDMI Standard
2.0
HDCP Version
2.3（backwards compatible）

USB
Connector
(3) USB-A, (1) USB-C
USB Standard
(3) USB-A: USB 3.2 Gen 1, 5V1A External Power Supply
(1) USB-C: USB 3.2 Gen 1, 60W External Charging

Ethernet
Standard
10/100/1000Base-T

General
Bandwidth
18Gbps
Operation Temperature
-10 ~ +55℃
Storage Temperature
-25 ~ +70℃
Relative Humility
10% - 90%
Power Supply
DC24V5A
Power Consumption
68W(Max)
Dimension (W*H*D)
145mm x 80mm x 22mm
Net Weight
270g

• 1x DVDO-USBC-HDMI-Conv-1 USB-C to HDMI converter
• 2x Mounting Ears with 4 Screws
• 4x Plastic Cushions
• 1x Power Adapter (DC 24V/5A)
• 1x User Manual
