DVDO 4K60 HDMI 100m Extender over HDBaseT with USB (Tx/Rx)

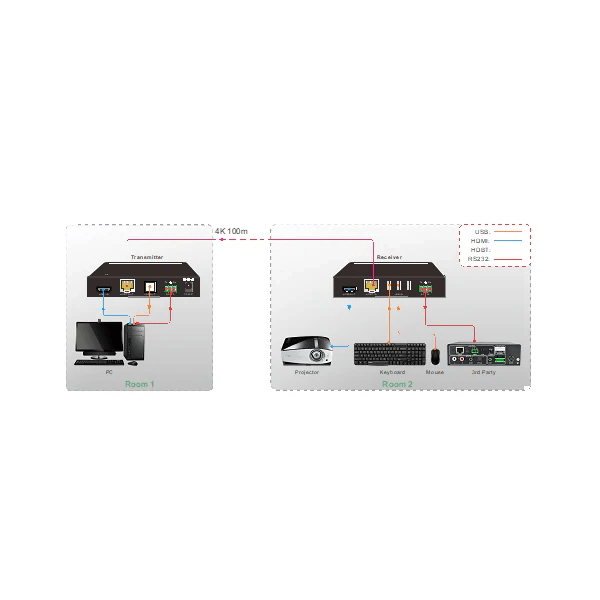

DVDO-Xtend-HDMI-USB is an HDBaseT extender that can transmit HDMI and USB signals up to 328ft/100m via a single CAT6 cable. It supports video resolutions up to 4K@60Hz.

The transmitter includes 1 HDMI + 1 USB-B ports for connections to a host device.

The receiver includes 3 USB-A device ports for peripherals as well as 1 HDMI output to connect to a display.

It supports one-way PoC, allowing the Tx to power the Rx over the category cable.

It can be controlled via RS232 or USB and includes LED indicators on both Tx and Rx front panels for power, HDBT link and HDCP.

Features:

• HDMI 1.4 and HDCP 2.2 compliant
• Supports video resolutions up to 4K@60Hz
• Transmission distance: up to 328ft/100m at 4K60 or 1080p60 with CAT6 cable
• HDMI & USB-B ports for host device on Tx
• Three USB device ports for peripherals & HDMI output on Rx
• EDID pass-through

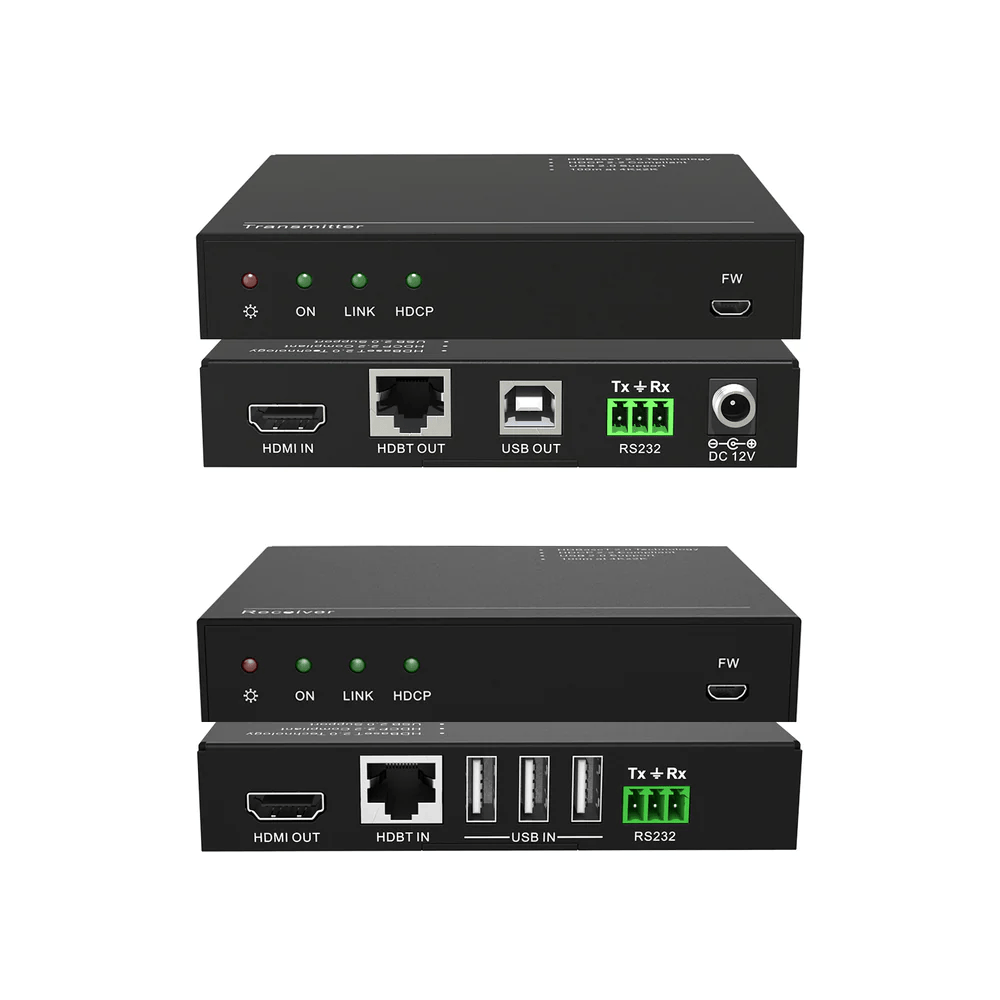

• Front panel LED indicators for power, HDBT link and HDCP
• One-way PoC (Tx powers the Rx)
• RS232 & USB control
• Compact design for easy and flexible installation

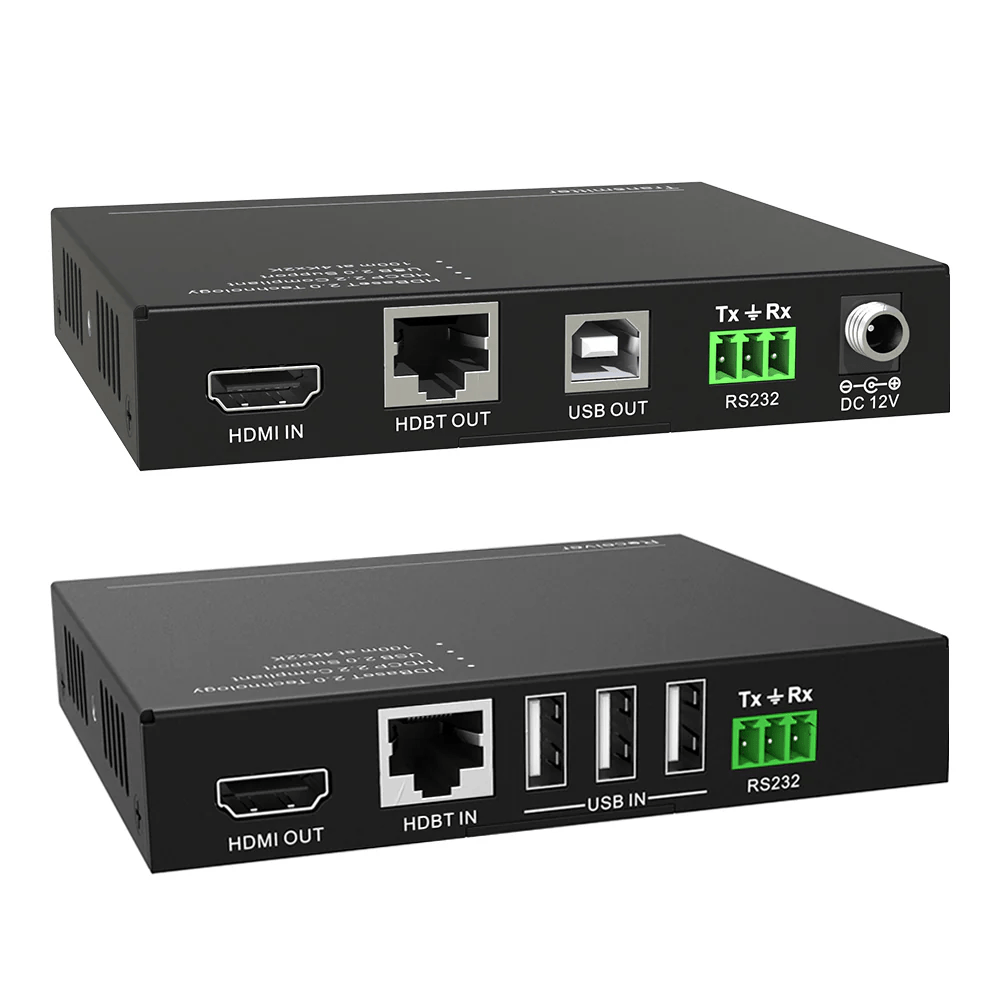

Transmitter

• Input : 1) HDMI
• Input Connector: (1) 19 pin type-A female HDMI
• Output: (1) HDBT, (1) USB OUT
• Output Connector: (1) RJ45, (1) Type-B USB
• Control: (1) RS232
• Control Connector: (1) 3-pin pluggable terminal block

Receiver

• Input: (1) HDBT, (1) USB IN
• Input Connector: (1) RJ45, (1) Type-A USB
• Output: (1) HDMI
• Output Connector: (1) 19 pin Type-A female HDMI
• Control: (1) RS232
• Control Connector: (1) 3-pin pluggable terminal block

General

• HDMI Audio Format: Supports PCM, Dolby Digital, DTS, DTS-HD
• HDMI Standard: 1.4
• HDCP: 2.2
• Transmission Distance: 1080p/4K@60Hz≤100m (Cat6)
• Video Resolution: Up to 4K@60Hz 4:2:0
• Bandwidth: 10.2Gbps
• EDID Management: EDID Pass-Thru
• Operation Temperature: -5 ~ +55℃
• Storage Temperature: -25 ~ +70℃
• Relative Humidity: 10% ~ 90%
• External Power Supply: Input:100V~240V AC; Output: DC 12V 2A
• Power Consumption: 18W(max)
• Dimension (W*H*D): 4.5”x 0.86” x 3.74”/116 x 22 x 95 mm
• Net weight: TX:197g; RX:198g

• 1x Transmitter
• 1x Receiver
• 2x Transmitter Mounting Ears with 2 Screws
• 2x Receiver Mounting Ears with 2 Screws
• 4x Transmitter Plastic Cushions
• 4x Receiver Plastic Cushions
• 2x RS232 cables (3-pin to DB9)
• 1x Power Adapter (DC 12V 2A)
• 1x User manual
