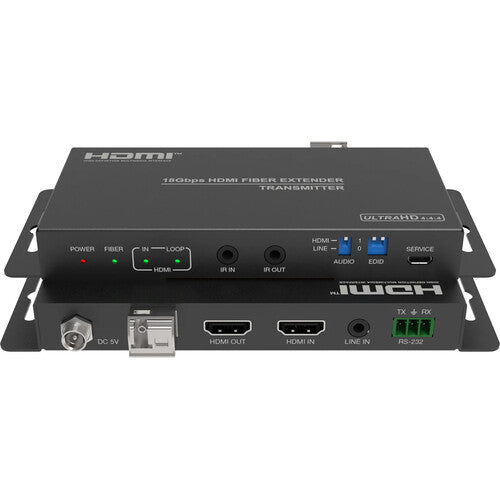

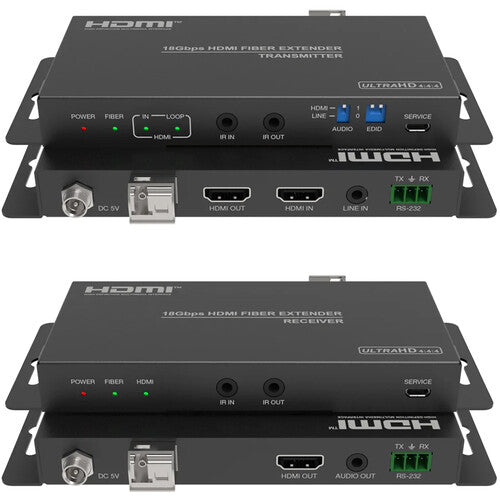

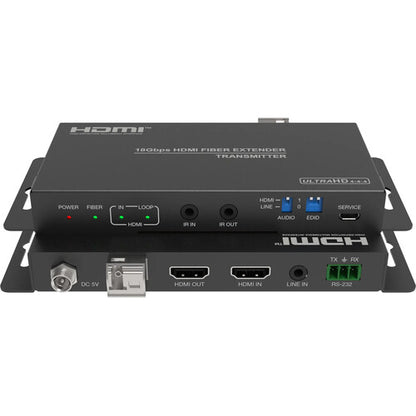

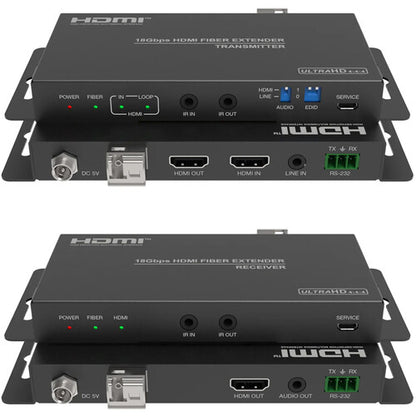

DVDO 4K60 HDMI 10km Extender Over Optical Fiber (Tx/Rx)

DVDO-HDMIFiber-1 is an extender that can transmit HDMI signals up to 33,000ft/10km through a single-mode fiber cable or 1,000ft/300m through a multi-mode fiber cable. It supports video resolutions up to 4K2K@60Hz 4:4:4. Transmitter supports loop output, audio embedding and EDID management function. Receiver supports audio extracting function. In addition, the extender supports bidirectional IR control and RS-232 signal pass-through. It can allow you to easily control the display device on the signal source side or control the signal source device on the display side when using this extender.

• HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
• Support 18Gbps video bandwidth
• Video resolution up to 4K2K@50/60Hz 4:4:4
• HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Support 3D and HDR format video, does not support CEC control
• Transmission distance up to 33,000ft/10km with single-mode fiber cable or 1,000ft/300m with multi-mode fiber cable

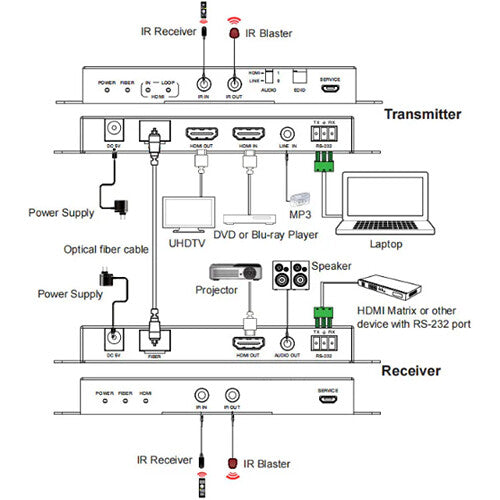

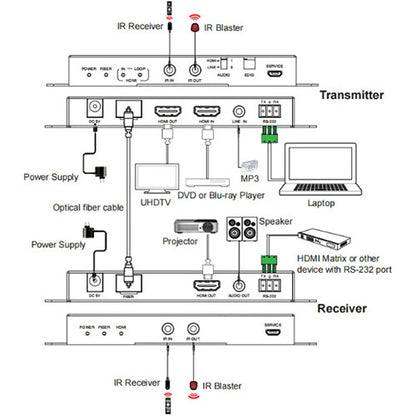

• Support bidirectional IR control, RS-232 pass-through and EDID management for simple and convenient control

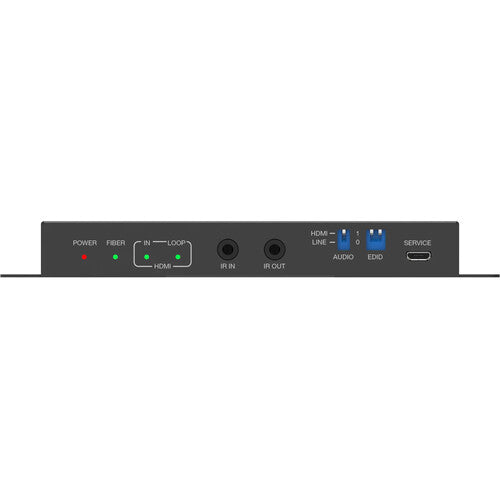

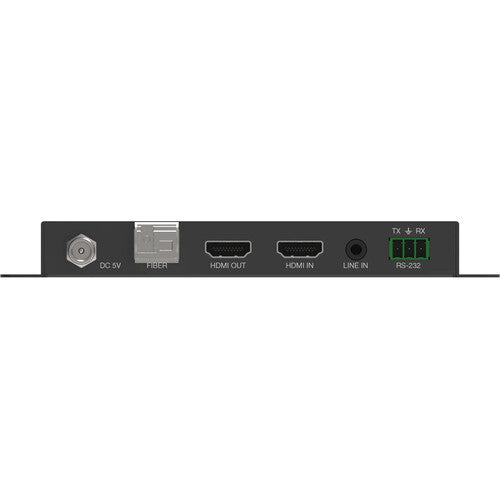

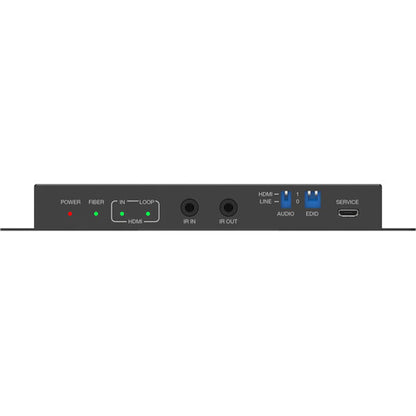

• Transmitter supports loop output (sharing local HD video and audio) and audio embedding function

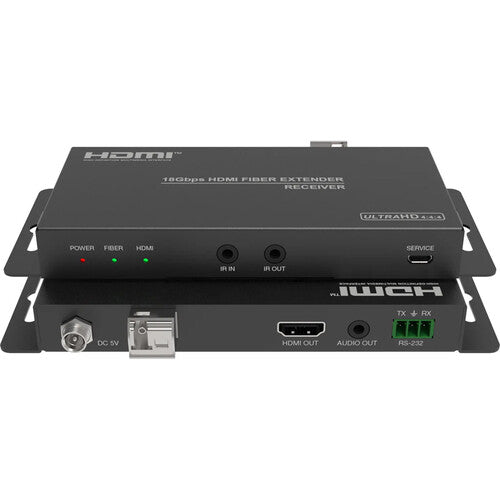

• Receiver supports audio extracting output function
• Compact design for easy and flexible installation
