DVDO 4K60 HDMI 70m Cascading Extender over Category with ARC (Rx only)

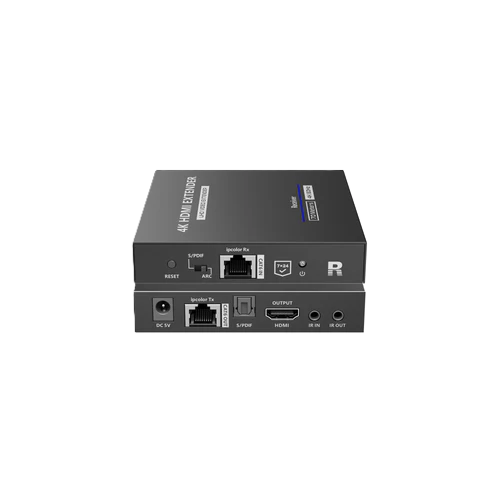

DVDO 4K60 HDMI 70m Cascading Extender over Category with ARC (Rx only)DVDO-CAT4K-70-CC-Rx is a receiver designed to work with the DVDO-CAT4K-70-CC HDMI extender kit. It is used to extend 4K HDMI signals over a category cable.

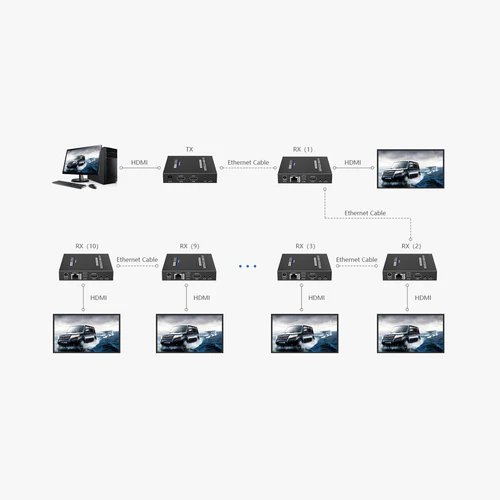

It features a category input, an HDMI output to connect to a local display and a category loop-out, enabling daisy-chaining of up to nine additional receivers.

The unit also features a S/PDIF output for audio de-embedding and supports EDID pass-through, bi-directional IR, and automatic downscaling.

Features:

• Additional receiver for DVDO-CAT4K-70-CC extender
• HDMI 2.0 and HDCP 2.2 compliant
• Zero latency
• Supports video resolutions up to 4K@60Hz
• Maximum transmission distance: 230ft/70m with CAT6/6a/7 cable
• Category loop-out, supports up to 10 receivers in cascade
• HDR10, EDID passthrough, ARC, downscaling auto adapts to display resolutions
• Bi-directional IR (20-60kHz)
• Audio de-embedding with separate S/PDIF output
• Compact design for easy and flexible installation

Technical

• Compliance: HDMI 2.0 / HDCP 2.2
• Video Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
• Audio Formats: LPCM, DTS-HD, DTS-Audio, Dolby Digital 5.1CH, Dolby Atmos
• Input/Output TMDS & DDC Signal: TMDS: 0.7-1.2Vp-p / TTL: 5Vp-p
• Transmission Distance: 70m/230ft for resolutions up to 4K@60Hz (CAT6/6a/7 cable)
• HDR: HDR, HDR10

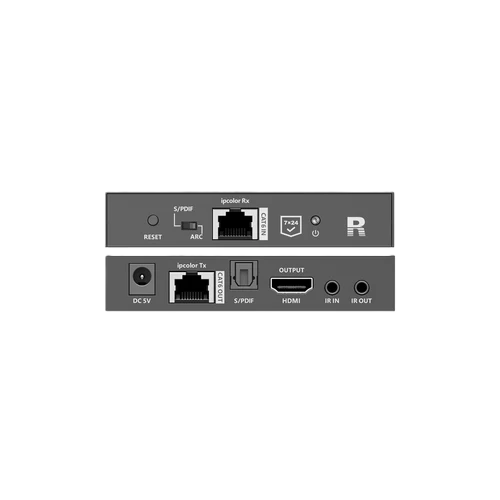

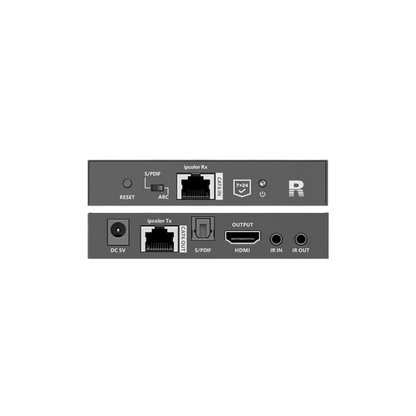

Connections

• Receiver
  • Input: 1 x CAT IN [RJ45, 8-pin female]
  • Outputs: 1 x HDMI Type A [19-pin female] / 1 x CAT OUT [RJ45, 8-pin female] & 1 x S/PDIF [Toslink]
  • Control: 1 x IR IN [3.5mm Stereo mini-jack] / 1 x IR OUT [3.5mm Stereo mini-jack] & 1 x RESET button / 1 x S/PDIF/ARC toggle switc

Mechanical

• Enclosure: Black metal
• Dimensions: 105.5 (W) x 102.5 (D) x 20 (H) mm
• Product Weight: 243g
• Power Supply: DC 5V/2A
• Power Consumption: 4W (Rx) max
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature: -30°C to 70°C (-22°F to 158°F)
• Humidity: 0% to 90% RH, non-condensing

• 1x Receiver unit
• 2x DC5V/2A

• 1x User manual



• 1x IR receiver extension cable
• 4x Mounting brackets
• 10x Screws
• 2x Screws
