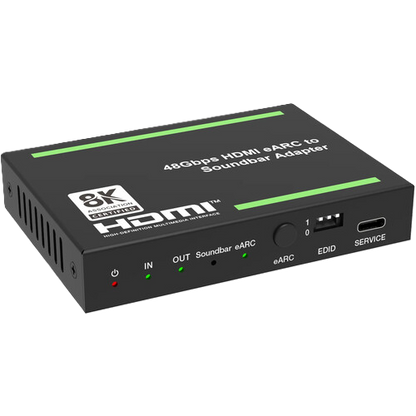

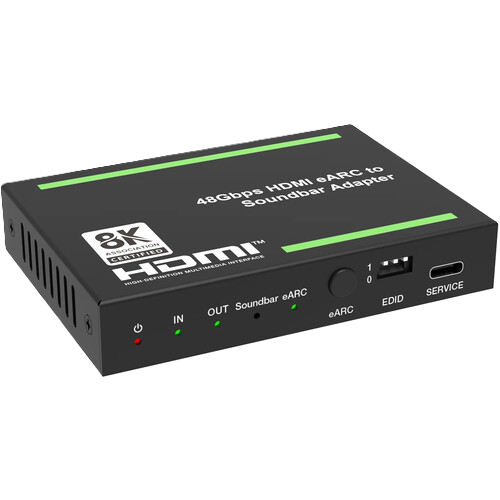

DVDO 8K HDMI 2.1 Audio Extractor with eARC for Soundbars

DVDO-AudioE-3 is an HDMI eARC audio to soundbar adapter designed to de-embed the audio signal from an HDMI source or TV with ARC/eARC and output the HDMI audio signal to a soundbar.

Features:

• HDMI 2.1 and HDCP 2.3 compliant
• Video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
• 48Gbps FRL and 18Gbps TMDS video bandwidth as specified in HDMI 2.1
• VRR, ALLM, QMS, QFT, SBTM as specified in HDMI 2.1
• HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
• LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
• HDMI input audio or TV ARC/eARC audio de-embedded to HDMI audio output
• Full audio up to Dolby Atmos/DTS:x from eARC TV to Sonos® ARC & Beam or any eARC Soundbar
• Supports CEC control from TV to the source and soundbar
• Supports CEC volume control from TV to any sound system
• Advanced EDID management
• Compact design for easy and flexible installation

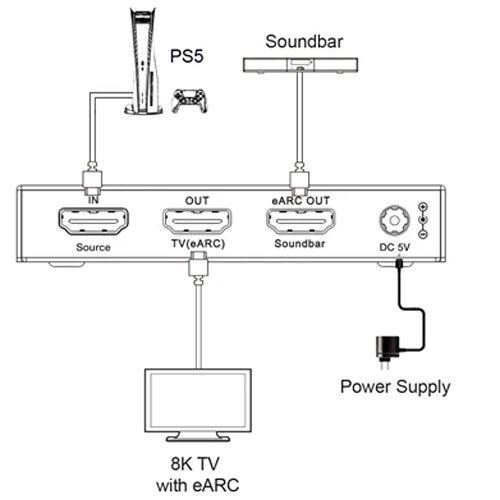

It supports data rates up to 48Gbps complying with HDMI 2.1 and HDCP 2.3 standards. It is compatible with UHDTV 8K@60Hz signals and provides EDID management, cable equalization as well as CEC control from the TV to the source and soundbar. It is the ideal solution for HDMI installations that need to send audio signals from newer generation TVs to soundbars that don’t support eARC.

TECHNICAL

• HDMI Compliance: HDMI 2.1
• HDCP Compliance: HDCP 2.3
• Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
• Video Resolution: Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
• Audio Latency: No Latency
• Video Latency: No Latency
• Color Depth: 8/10/12bit
• Color Space: RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
• Audio Formats
  • HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
  • eARC AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
• HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
• ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

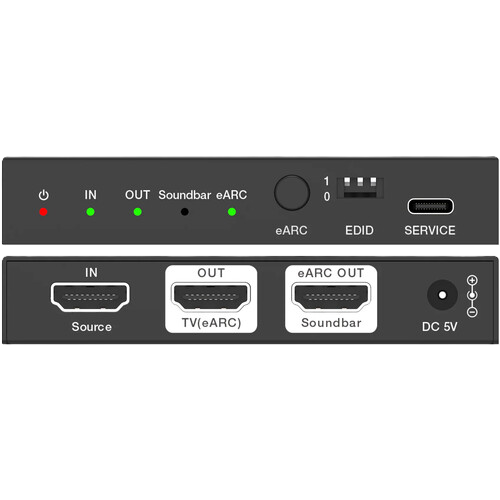

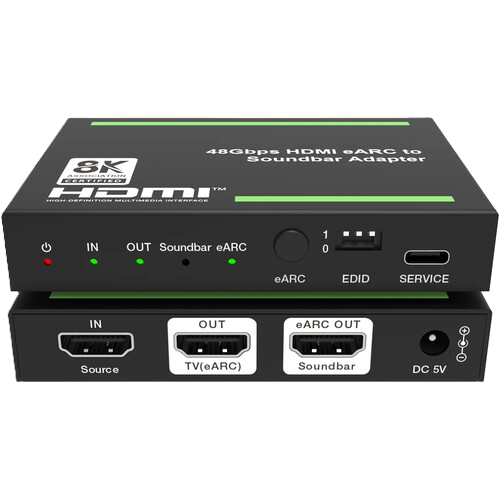

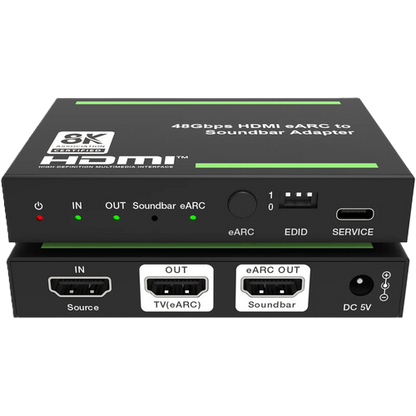

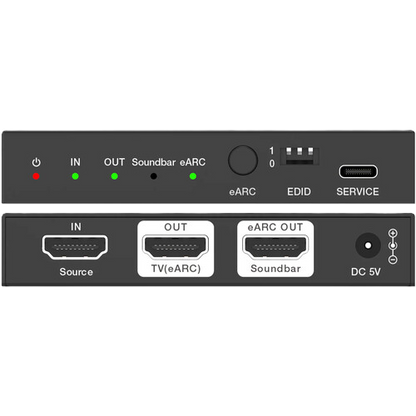

CONNECTION

• Input: 1 × Source IN [HDMI Type A, 19-pin female]
• Output
  • 1 × TV(eARC) OUT [HDMI Type A, 19-pin female]
  • 1 × Soundbar eARC OUT [HDMI Type A, 19-pin female]
• Control: 1 × SERVICE [USB Type C, Update port]

MECHANICAL

• Housing: Metal Enclosure
• Color: Black
• Dimensions: 95mm [W] × 68mm [D] × 18mm [H]
• Weight: 178g
• Power Supply: Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
• Power Consumption: 4.13W (Max)
• Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
• StorageTemperature: -20°C ~ 60°C / -4°F ~ 140°F
• Relative Humidity: 20~90% RH (non-condensing)

• DVDO 8K HDMI 2.1 Audio Extractor with eARC for Soundbars
• 5 VDC, 1A Multinational Power Supply
• Warranty: Limited 3-Year Manufacturer Warranty
