DVDO AV over IP H.265/H.264 4K60 Decoder with Multiview

DVDO-H265-4KDEC-MV-1 is a 4K60 AV over IP decoder with multiview functionality, designed to work seamlessly with DVDO-H265-4KENC-1 encoders and DVDO-H265-4KDEC-1 decoders for high-performance AV over IP distribution.

Features:

• HDMI 2.0, HDCP 2.2 compliant
• Advanced H.265 technology for high quality and low-latency transmission
• Video resolutions up to 4096x2160@60Hz
• Works seamlessly with DVDO-H265-4KENC encoders & DVDO-H265-4KDEC-1 decoders
• System supports up to 256 encoders (input sources) & 256 decoders (displays)

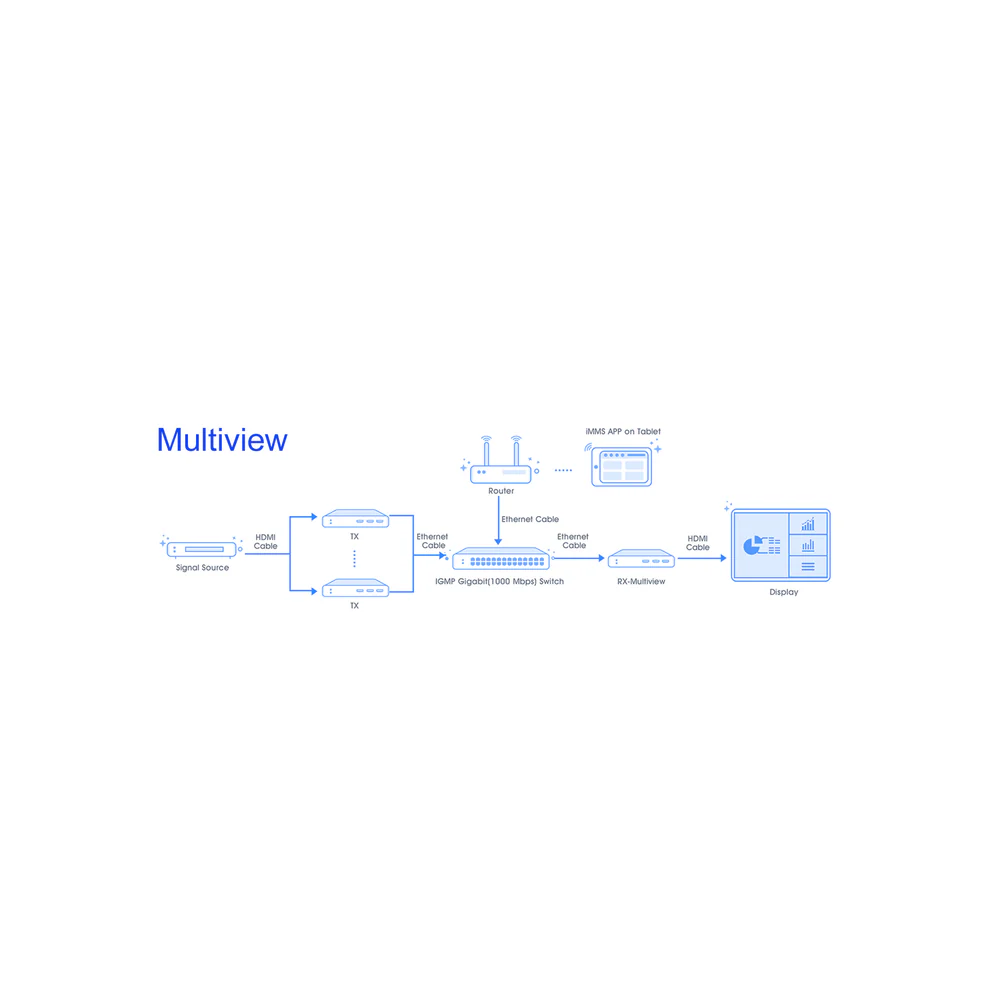

• One-to-one, one-to-many or many-to-many configurations
• Multiview function including PiP, PbP, 2x2, 3x3 & custom modes
• Audio de-embedding with 3.5mm L/R audio output
• Transmission distance up to 120m with Cat6 cables
• PoE (Power over Ethernet)
• Control via free app (iOS or Android), bi-directional IR, RS-232, RS-485 & I/O interface
• Firmware upgrade via micro USB port
• Lightning, surge & ESD protection
• Stable 24/7 operation

Powered by advanced H.265 technology, it delivers low-latency video transmission and supports flexible distribution configurations including one-to-one, one-to-many and many-to-many setups as well as advanced multiview configurations.

A free control app with real-time video preview provides intuitive system management, making deployment and operation simple and efficient. Designed for professional AV integration, DVDO-H265-4KDEC-MV-1 also supports PoE, audio de-embedding, bi-directional IR pass-through, and RS-232, RS-485 & I/O control for seamless third-party integration.

TECHNICAL

• Compliance: HDMI 2.0 / HDCP 2.2 Video Resolutions:
  • 4096x2160@24/30Hz
  • 3840x2160@24/30/50/60Hz
  • 1080p@50/60Hz
  • 720p@50/60Hz
  • 1920x1200@60Hz
  • 2560x1440@60Hz
• Bandwidth: 18Gbps
• Transmission Distance:  CAT6 120m / CAT5E 100m Transmission Latency: 180~250ms
• Video Network Bandwidth: 1G
• HDMI Audio: LPCM 2.0 IR Range / Frequency: ≤ 5m / 20K-60KHz
• RS-232 Baud Rate:
  • Default: 115200
  • Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
• ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

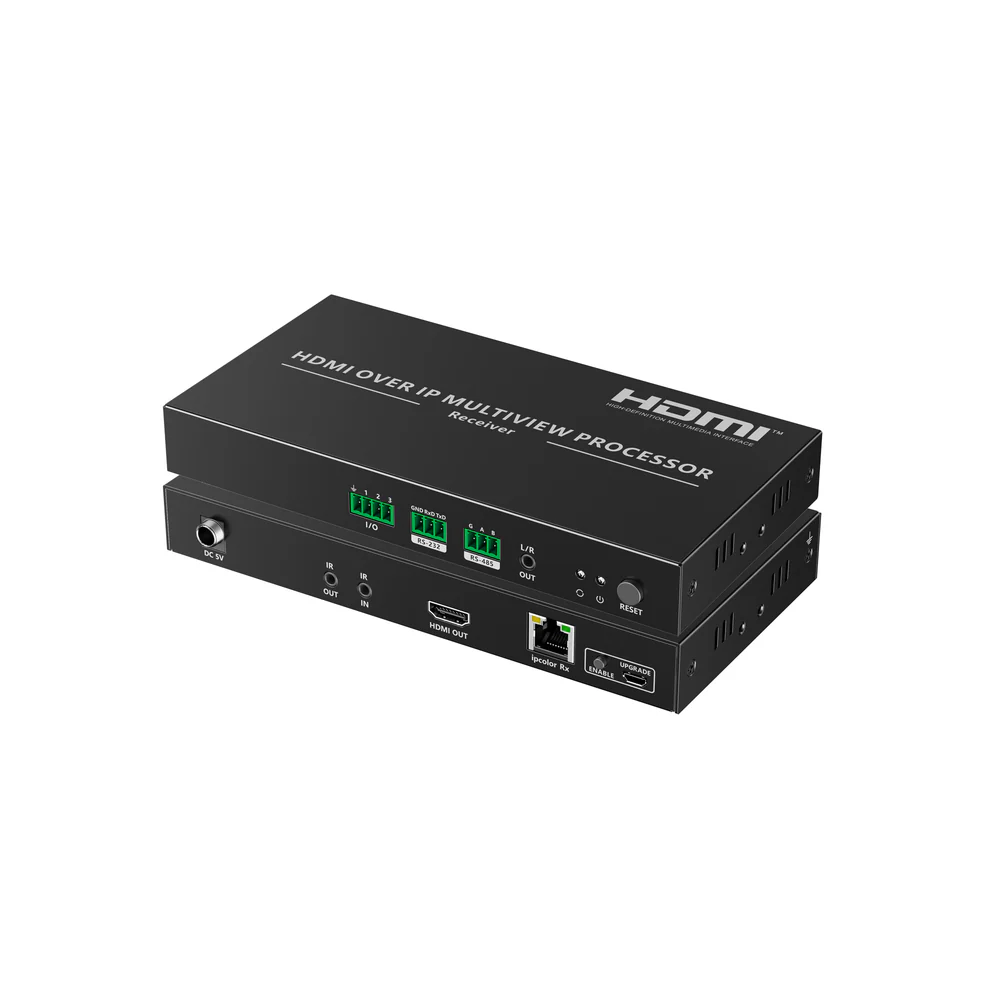

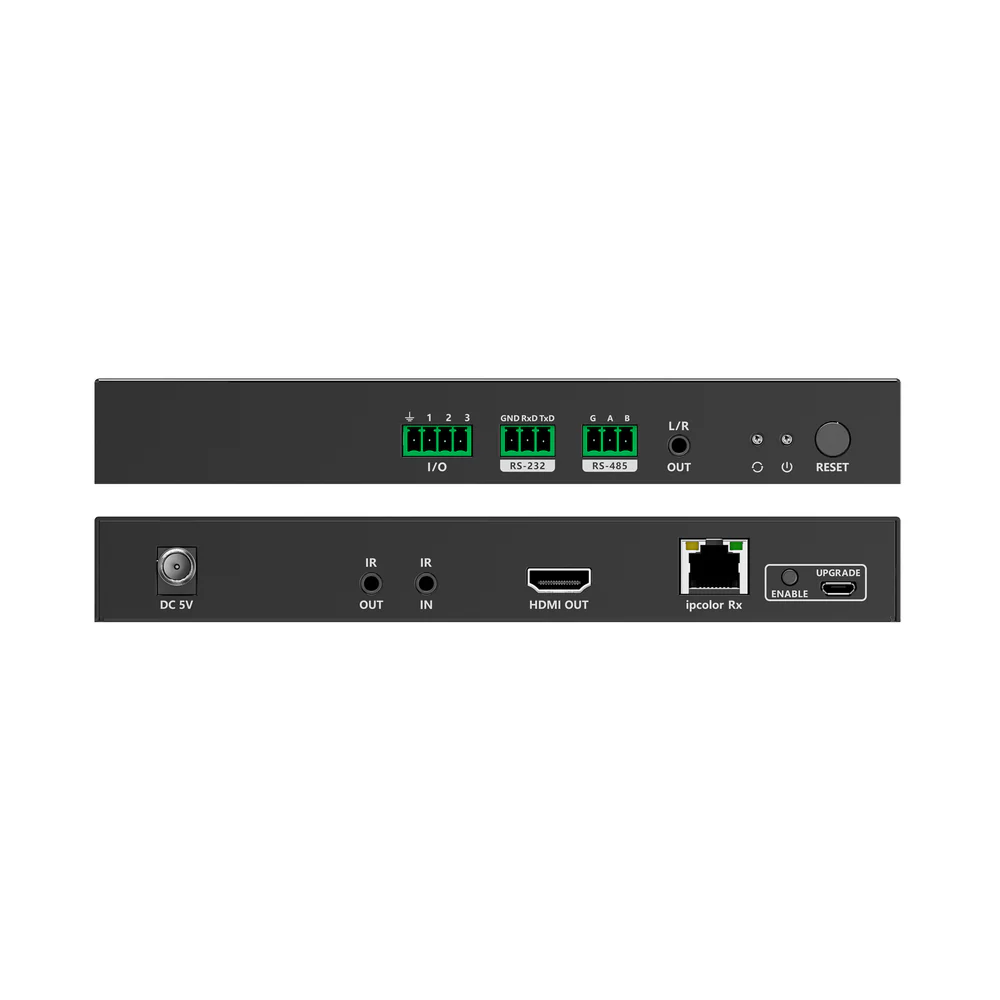

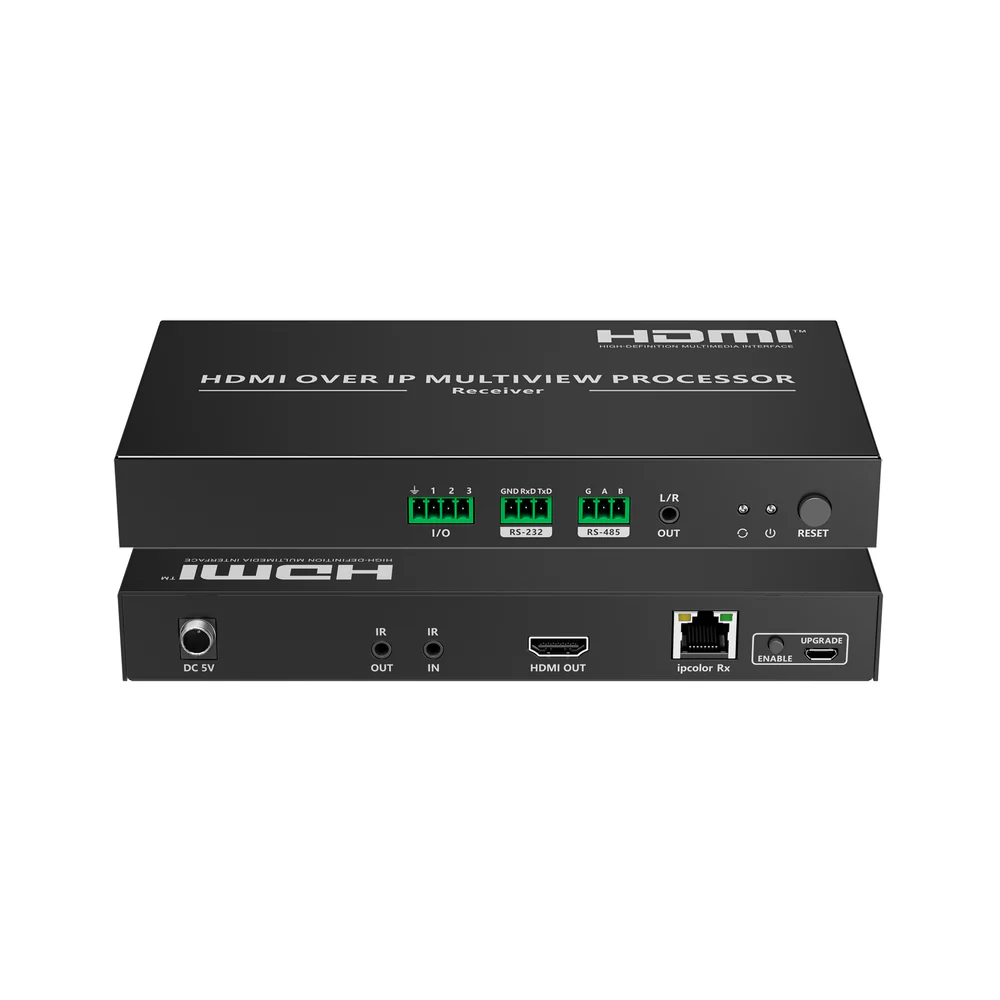

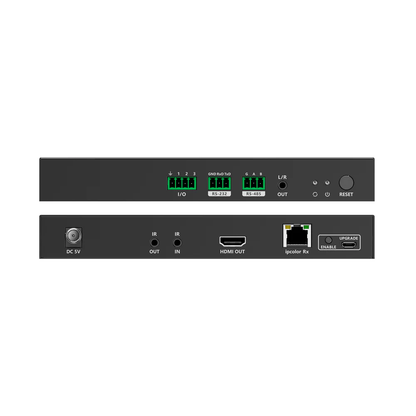

CONNECTIONS

• Input Ports: 1 x LAN [RJ45 connector]
• Output Ports:
  • 1 x HDMI [Type A, 19-pin female]
  • 1 x audio L/R [3.5mm]
• Control Ports:
  • 1 x RS-232 [3-pin 3.5mm phoenix connector]
  • 1 x IR IN [3.5mm stereo mini-jack]
  • 1 x IR OUT [3.5mm stereo mini-jack]

MECHANICAL

• Housing: Black metal enclosure
• Weight & Dimensions: 518g / 1.14lbs
• Dimensions [W x D x H]: 191 x 96 x 25 mm
• Power Supply: DC 5V/2A (if not using PoE)
• Power Consumption: ≤ 8W
• Operating Temperature: -4 ~ 140°F / -20 ~ 60°C
• Storage Temperature: -22 ~ 158°F / -30 ~ 70°C
• Relative Humidity: 0 - 90% non-condensing
