DVDO C5-1 4K NDI PTZ Camera with 25x Optical Zoom & AI Tracking (Black)

DVDO C5-1 4K NDI PTZ Camera with 25x Optical Zoom & AI Tracking

The DVDO C5-1 4K NDI PTZ Camera is a professional pan-tilt-zoom camera designed for live streaming, video conferencing, lecture capture, corporate video production, and broadcast applications. It combines UHD 4K video at up to 60 fps, a 25x optical zoom lens, and AI-powered human tracking to help you capture clear video while reducing the need for manual camera operation.

With NDI|HX, HDMI, 3G-SDI, and USB 2.0 connectivity, the DVDO C5-1 supports flexible video production workflows. Its simultaneous output capabilities, network streaming support, and PoE-enabled LAN connection make it a versatile option for studios, classrooms, houses of worship, meeting rooms, and remote production environments.

Key Features of the DVDO C5-1 4K NDI PTZ Camera

• UHD 4K60 Video: Capture detailed video at resolutions up to 4K UHD and frame rates up to 60 fps.
• 25x Optical Zoom: Frame wide shots and close-ups with a 25x optical zoom lens and 59.2° wide-angle view.
• AI Human Detection and Auto Tracking: Automatically track people with real-time and zone tracking modes.
• NDI|HX Connectivity: Incorporate network-based video into compatible NDI production workflows.
• Multiple Video Outputs: Connect through NDI|HX, HDMI, 3G-SDI, and USB 2.0 for flexible production setups.
• USB Dual-Stream Output: Output main and sub-stream video simultaneously over USB 2.0.
• Power over Ethernet (PoE): Simplify installation by delivering power through a compatible Ethernet connection.
• Flexible Camera Control: Supports VISCA, Pelco-D, Pelco-P, RS-232, and RS-485-compatible control options.
• Up to 255 Presets: Save camera positions for repeatable shots and efficient production.
• External Audio Input: Connect an external audio source through the 3.5mm line input.

4K Video Quality and 25x Optical Zoom

The DVDO C5-1 features a 1/1.8-inch Sony CMOS sensor for detailed UHD 4K video at up to 60 fps. Its 25x optical zoom lens provides the flexibility to capture wide-angle scenes, individual presenters, and distant subjects without relying on digital zoom.

Fast, accurate autofocus helps maintain sharp images as subjects and camera positions change. Advanced 3D noise reduction also helps reduce image noise while preserving clarity in a range of production environments.

AI Auto Tracking for Hands-Free Video Production

Built-in AI human detection enables real-time subject tracking and zone tracking. These features help keep presenters, instructors, and other on-camera subjects in frame, making the DVDO C5-1 useful for automated video production, lecture capture, presentations, and live streaming.

With up to 255 camera presets, operators can also save and recall camera positions for repeatable shots and streamlined production workflows.

NDI|HX, HDMI, SDI, and USB Connectivity

The DVDO C5-1 supports a variety of professional video production connections, allowing it to work in different streaming, conferencing, and broadcast environments.

• NDI|HX and LAN: Send video over a network to compatible production systems and support IP-based streaming workflows.
• HDMI: Connect to compatible displays, switchers, and video production equipment.
• 3G-SDI: Integrate the camera into SDI-based production systems.
• USB 2.0: Connect to compatible computers and conferencing or streaming applications, with simultaneous main and sub-stream output support.
• PoE: Reduce cabling requirements when using compatible network power equipment.
• 3.5mm Audio Line Input: Connect external audio for supported audio embedding workflows.

The camera also supports H.264 and H.265 network video compression, along with network protocols including RTSP, RTMP, RTP multicast, and ONVIF. These capabilities help support a range of IP video distribution and streaming applications.

Flexible Camera Control and Integration

The DVDO C5-1 offers multiple control options for professional AV and video production systems. Supported protocols include VISCA, Pelco-D, and Pelco-P, with RS-232 and RS-485-compatible control interfaces for integration with supported camera controllers and automation systems.

Its combination of network video, traditional video outputs, preset positioning, and AI tracking makes it adaptable to new and existing production environments.

Applications for the DVDO C5-1 PTZ Camera

The DVDO C5-1 4K NDI PTZ camera is suited to a variety of professional applications, including:

• Live streaming and remote video production
• Corporate video conferencing and meeting rooms
• Education, online learning, and lecture capture
• Houses of worship and event production
• Broadcast and webcasting studios
• Telemedicine and remote consultation environments
• Unified communications and professional AV systems

Why Choose the DVDO C5-1 4K NDI PTZ Camera?

The DVDO C5-1 combines 4K60 video, 25x optical zoom, AI auto tracking, and versatile NDI|HX, HDMI, SDI, and USB connectivity in one PTZ camera. It is a flexible choice for organizations looking to improve video quality, simplify camera operation, and support professional streaming or conferencing workflows.

IMAGING

• Image Sensor: 1/1.8"-Type CMOS
• Sensor Resolution: 8.51 Megapixel
• Focus Control: Autofocus & Manual Focus

EXPOSURE

• Shutter Speed: 1/10000 to 1/25 Second
• Signal-to-Noise Ratio: 50 dB
• Minimum Illumination: 0.05 Lux
• Flip / Mirror Support: Image Flip, Mirror (Vertical)
• White Balance Presets: Auto, Color Temperature, Manual, One Push

LENS

• Focal Length: 7.1 to 171.95mm
• Max Optical Zoom: 25x
• Field of View Horizontal: 59.2 to 2.5°
• Field of View Vertical: 34.6 to 1.4°
• Maximum Aperture: f/1.8 to 3.56 & f/1.61 to 5.19

VIDEO CAPTURE

• Video Output
  • via HDMI / RJ45 / SDI/BNC / USB
  • 3840 x 2160 at 25/29.97/50/59.94/60.00 fps
  • 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
  • 1920 x 1080i at 50/59.94/60.00 fps
  • 1280 x 720 at 50/59.94/60.00 fps
• Embedded Audio: HDMI/LAN (RJ45)/USB Output
• Internal Recording: No
• Broadcast Output: NTSC/PAL
• IP Streaming
  • H.264/MJPEG: 3840 x 2160
  • H.264/H.265/MJPE: 320 x 240 to 1920 x 1080 at 30p
  • NV12: 432 x 240 to 640 x 480 at 30p (Simultaneous Multi-Stream) & 800 x 448 at 25p (Simultaneous Multi-Stream)
  • YUY2: 800 x 448 at 25p & 432 x 240 to 640 x 360 at 30p

CONTROL

• Presets: 255
• Pan: 220° (-110 to 110°) at 0.1 to 100°/s
• Tilt: 60° (-30 to 30°) at 0.1 to 70°/s
• Tally Light: No

NETWORKING

• Wireless: IR

INTERFACE

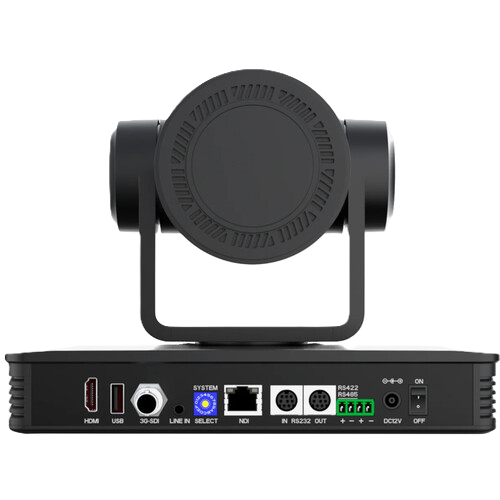

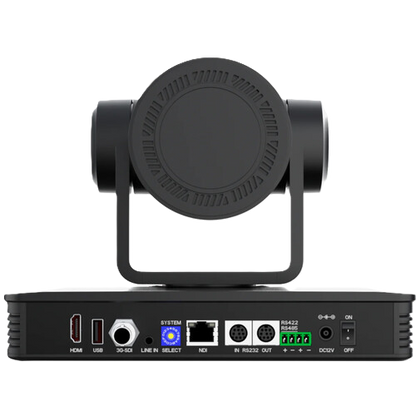

• Video I/O
  • 1x HDMI 1.3 Output
  • 1x BNC (3G-SDI) Output
  • 1x RJ45 LAN Output
  • 1x USB-A 2.0 Output
• Audio I/O: 1x 1/8" / 3.5 mm TRS Stereo Line Input
• Other I/O
  • 1x Mini-DIN 8-Pin (RS-232) Control Input
  • 1x Mini-DIN 8-Pin (RS-232) Control Output
  • 1x Block 4-Pin (RS-422, RS-485) Control
• Built-In Microphone: Yes
• Built-In Speaker: No

POWER

• PoE Support: Yes: PoE 802.3af
• Power I/O: 1x Barrel (12VDC at 2.5 A) Input
• Power Consumption: 12 W

GENERAL

• Operating Conditions: 14 to 122°F / -10 to 50°C at 20 to 80% Humidity
• Storage Conditions: 14 to 140°F / -10 to 60°C at 20 to 95% Humidity
• Impact Resistance: No
• Environmental Resistance: No
• Mounting: 1x 1/4"-20 Female
• Certifications: FCC Class A
• Dimensions (W x H x D): 8.7 x 6.3 x 5.7" / 220 x 159 x 144 mm
• Weight: 4 lb / 1.7 kg (Body Only)

• DVDO C5-1 4K NDI HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking
• Power Supply
• RS-232 Control Cable
• USB 2.0 Cable
• IR Remote Control
• Ceiling Bracket
• Wall Bracket
• Limited 1-Year Manufacturer Warranty (USA & Asia)
• Limited 2-Year Manufacturer Warranty (EU & UK)
