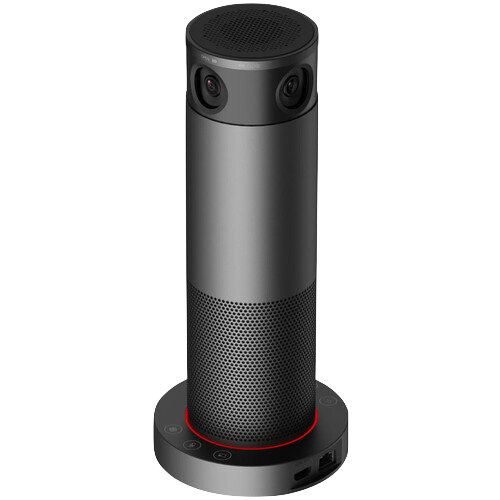

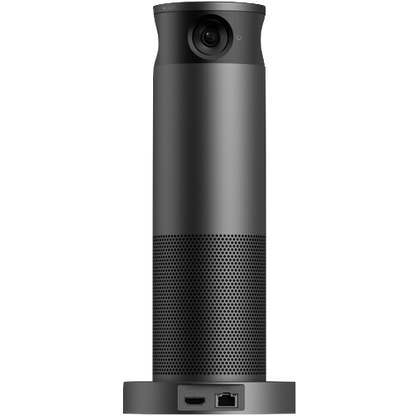

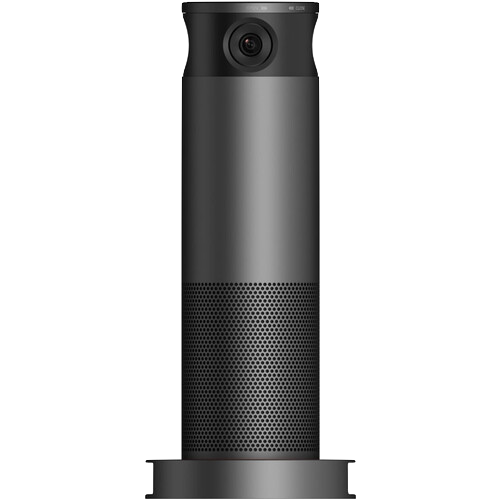

DVDO 4K 360° All-in-One Conference Camera (Gray)

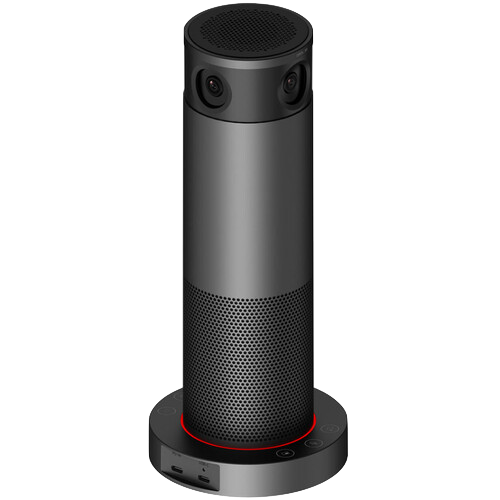

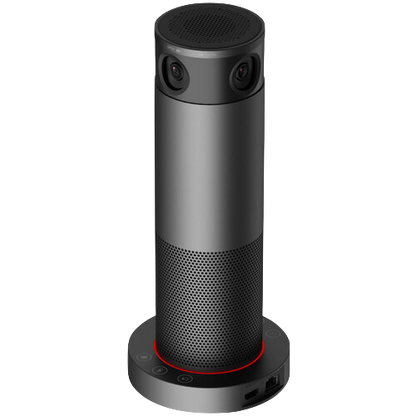

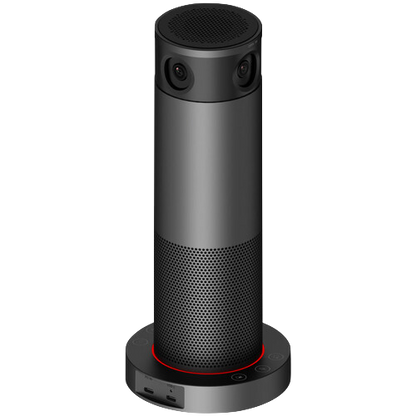

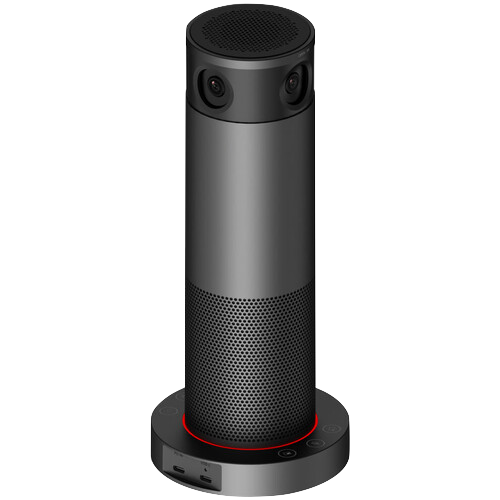

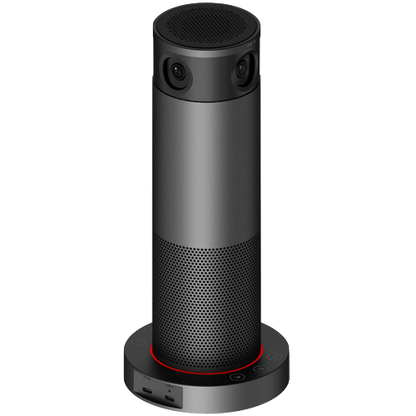

DVDO C9-1-G 4K 360° All-in-One Conference Camera

The DVDO C9-1-G is a 4K 360° conference camera designed for huddle rooms, small meeting rooms, and collaborative spaces. Four synchronized ultra-wide-angle 4K cameras provide panoramic room coverage, while AI-powered video and audio processing automatically frames speakers and manages the meeting experience.

The all-in-one design combines 360° cameras, microphones, an integrated speaker, USB-C BYOM, HDMI, and PoE in a single conferencing solution. The C9-1-G supports Microsoft Teams, Zoom, Google Meet, Cisco Webex, and other major video conferencing platforms.

Key Features

• 4K 360° panoramic video using four synchronized ultra-wide-angle cameras
• Switchable 360° and 270° panoramic modes for flexible room coverage
• 360° Smart Gallery with dynamic layouts for meeting participants
• AI speaker tracking and single-speaker framing
• AI Video Fencing automatically excludes people displayed on in-room screens
• Six-MEMS microphone array with up to 5.5 m / 18 ft pickup range
• AI audio processing with noise suppression, echo cancellation, dereverberation, and automatic gain control
• Integrated full-range speaker for all-in-one audio and video conferencing
• USB-C BYOM for video, audio, data, and power through one connection
• HDMI output for direct connection to a display
• PoE support for network connectivity and power
• Remote device management for simplified deployment and administration
• Built-in physical privacy shutter
• Compatible with Microsoft Teams, Zoom, Google Meet, Cisco Webex, and other major conferencing platforms

4K 360° Panoramic Video Conferencing

The DVDO C9-1-G uses four synchronized 4K ultra-wide-angle cameras to capture a 360° view of the meeting room. Users can switch between 360° and 270° panoramic modes to match the room layout and desired coverage.

Its AI-powered video modes provide multiple ways to display meeting participants, including 360° Smart Gallery, panoramic and grid views, speaker tracking, and single-speaker framing. The system supports up to eight participants in a grid layout.

AI Speaker Tracking and Video Framing

AI-powered framing automatically identifies and follows active speakers, helping remote participants stay focused on the conversation. AI Video Fencing can also exclude people displayed on in-room screens, helping prevent unwanted participants from appearing in the camera view.

Integrated Microphones and AI Audio Processing

The C9-1-G includes a six-MEMS omnidirectional microphone array with a pickup range of up to 5.5 m / 18 ft. Built-in AI audio processing provides noise suppression, echo cancellation, dereverberation, and automatic gain control for clearer conference audio.

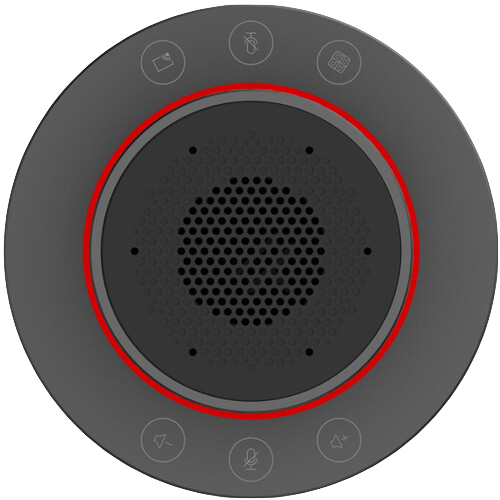

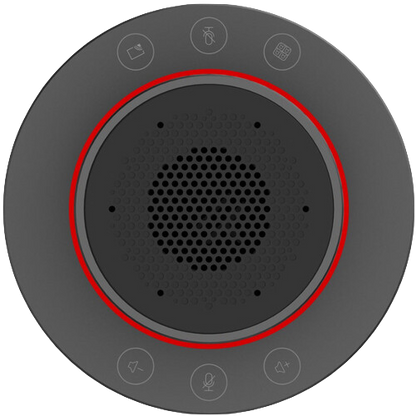

An integrated full-range speaker completes the all-in-one conferencing system without requiring a separate camera, microphone, and speaker setup.

USB-C BYOM, HDMI, and PoE Connectivity

The USB-C BYOM connection allows the C9-1-G to carry video, audio, data, and power through a single cable, making it easy to connect a laptop for bring-your-own-meeting workflows.

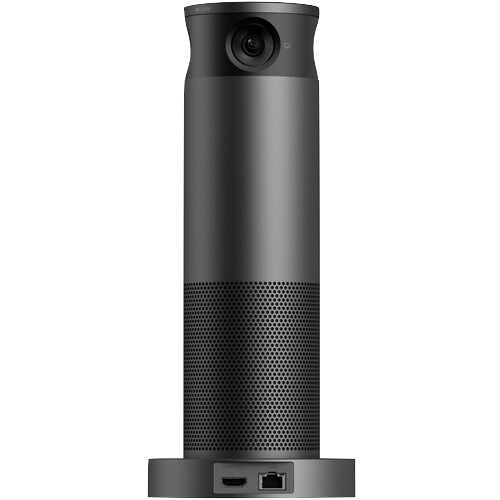

The camera also provides HDMI output for direct connection to a display and PoE support for network connectivity and power. Remote device management helps simplify installation and ongoing administration.

Privacy and Conferencing Platform Compatibility

A built-in physical privacy shutter provides an additional layer of privacy when the camera is not in use. The DVDO C9-1-G is compatible with Microsoft Teams, Zoom, Google Meet, Cisco Webex, and other major video conferencing platforms.

With 4K 360° video, AI speaker tracking, a six-microphone array, integrated speaker, USB-C BYOM, HDMI, and PoE, the DVDO C9-1-G provides a complete conferencing solution in a single device.

CAMERA

• Output Format
  • HDMI: 4KP30, 1080P30, 720P30
  • USB: Up to 4KP30
• Image Sensor: 4 x 1/2.8-inch CMOS
• Lens: 4 × Ultra-wide fixed-focus
• Focal Length / Aperture: f=3mm, F2.3
• Zoom: 3x HD digital zoom
• Shutter: 1/30s – 1/10000s
• Minimum Illumination: 0.5 Lux @ (F2.3, AGC ON)
• Focus: Auto, Manual
• Exposure: Auto, Manual, Shutter Priority, Brightness Priority
• White Balance: Auto, Manual, One Push, Specified Color Temperature
• Backlight Compensation: Supported
• Digital Noise Reduction: 2D & 3D digital noise reduction
• Signal-to-Noise Ratio: ≥50dB
• Stitched Horizontal FOV: 360° / 270° switchable (horizontal)
• Single Lens FOV: 117° (H), 62° (V)
• EPTZ: Supported
• Privacy Cover: Built-in Manual Rotating

MICROPHONE

• Type: 6-MEMS Omnidirectional Array (Beamforming)
• Pickup Range: 5.5m (Effective), 3m (Clear)
• Frequency Response: 50Hz – 20kHz
• Sensitivity: -38dBFS
• Signal-to-Noise Ratio (SNR): 65dB(A)

SPEAKER

• Driver Type: 1 × 1.5" Full-Range, Dual-Diaphragm Acoustic Chamber
• Rated Power / Impedance: 6W/4Ω (max power 8W)
• Frequency Response: 50Hz - 20kHz
• Max SPL: 82dBA @ 1m
• THD: < 3%

AI ENHANCED FEATURES

• AI Noise Suppression (ANS): Supported
• AI Echo Cancellation (AEC): Supported
• AI Dereverberation (DER): Supported
• AI Gain Control (AGC): Supported

I/O INTERFACES

• USB Type-C: 1 × USB 3.2 Gen1 Type-C (Up to 40W PD Reverse Power Delivery)
• HDMI Out: 1 × HDMI 2.0 (Video + Audio)
• Network Port: 1 × RJ45 (10/100/1000 Mbps, PoE IEEE 802.3at, remote management)
• Storage: 1 × Micro SD (Reserved)
• Power Input: 1 × USB-C PD input (65W, optional 100W)

USB FEATURES

• Connection Type: USB 3.2 Gen1, 5Gbps, supports DP ALT mode, backward compatible with USB 2.0
• Video Pixel Format: YUY2 / NV12
• Color Space / Compression: MJPEG / YUY2 / H.264
• USB Video Output: Up to 4KP30
• USB Casting Input
  • USB-C (3.2 DP) up to 4KP30
  • USB-A (3.0) up to 1080P30
• Audio Encoding Format: PCM
• Audio Sample Rate: 48kHz / 16-bit
• USB Audio: UAC1.0
• USB Video Class (UVC): UVC1.1
• UVC EPTZ Control: Supported

AI FRAMING MODES

• Panoramic Stitching: Supported, 360° / 270° modes
• 360° Smart Gallery
  • Grid layout: Supports up to 8 split-screen
  • Grid+Panoramic layout: Up to 4 split-screen cells + 1 panoramic view
  • Panoramic layout: 2x180° layout
  • Speaker+Grid layout: 1 large speaker view + 4 fixed small views + 1 panoramic view
  • Single Speaker layout: Full-screen view showing the active speaker
• Video Fencin: Supported, AI automatically detects and excludes participants displayed on in-room screens, or allow custom-defined video ignore zone.

SYSTEM COMPATIBILITY

• Supported OS
  • Windows 10 and later
  • Mac OS 10.0 and later
  • Linux (with UVC support)
• System Requirements
  • 2.4 GHz Intel® Core processor or higher
  • 2GB RAM or more
  • USB 2.0 or higher (4K requires USB 3.0)
• Cloud Platform Compatibility (BYOM): Microsoft Teams / Zoom / Google Meet / Cisco Webex / VooV Meeting / DingTalk Meeting / Lark Meeting

INSTALLATION

• Installation Methods: Tabletop, Tripod
• Security Kensington: Lock Slot

GENERAL

• Power Supply (PD)
  • Input: AC 100–240V, 50/60Hz
  • Output: PD 20V/3.25A (Max)
• PoE Power Supply: IEEE 802.3at, 48V/0.5A
• Power Consumption (Avg/Max): 16W / 24W
• Temperature
  • Operating: 0°C ~ 40°C
  • Storage: -40°C ~ 60°C
• Humidity: 10% - 95%
• Dimensions (L x H x D): 128mm x 128mm x 302mm
• Net Weight: 1.3 Kg
• Certifications: CE, FCC, UKCA, REACH, ROHS, WEEE

• Camera
• PD Power Adapter
• Power Cable
• USB Cable
• Quick Start Guide
• Warranty: Limited 3-Year Manufacturer Warranty
