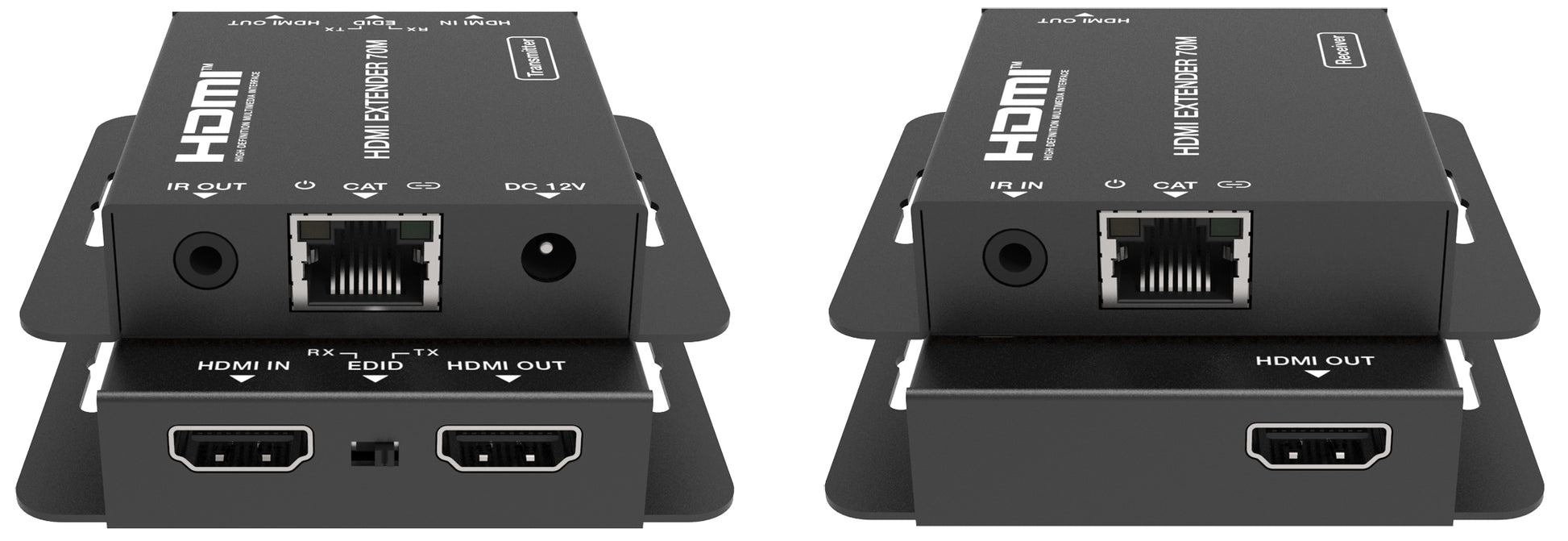

DVDO CAT4K-40 4K30 HDMI 40m Extender Over Ethernet (Tx/Rx)

DVDO-CAT4K-40 is an extender that can transmit uncompressed high definition HDMI signals up to 230ft/70m for 1080p resolution or 131ft/40m for 4K30 resolution via a single CAT6 cable. The transmitter includes an HDMI loop output that can connect to a local display or to another HDMI extender. It supports EDID copy function (you can choose either local or remote EDID) as well as audio formats up to PCM7.1, Dolby True HD and DTS HD.

Features:

• HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
• Supports video resolutions up to 4K2K@30Hz YUV 4:4:4
• Maximum transmission distance: CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30 CAT5e: 197ft/60m for 1080p, 115ft/35m for 4K30
• Can copy EDID from the display connected either to the receiver or to the transmitter’s loopout
• Allows cascading to other HDMI extenders through the HDMI loop out
• One-way PoC (from transmitter to receiver)
• One-way IR signal transmission
• Compact design for easy and flexible installation

Technical
HDMI Compliance HDMI
1.4
HDCP Compliance HDCP
1.4
Video Bandwidth
10.2Gbps
Video Resolution
Up to 4K@30Hz
Audio Support
Up to 7.1CH HD audio
Input TMDS Signal
3.3 volts
Input DDC Signal
5.0 volts/P-P
ESD Protection
Human Body model:
+/- 8 kV (air-gap discharge)
+/- 4 kV (contact discharge)

Connection
Transmitter
Input: 1 x HDMI Type A [19-pin female]
Outputs: 1 x HDMI Type A [19-pin female]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x CAT OUT [RJ45, 8-pin female]
Receiver
Inputs: 1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female]
Output: 1x HDMI Type A [19-pin female]

Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
79.5mm[W] x 69mm[D] x 16.5mm[H]
Weight
Transmitter: 132g, Receiver: 130g
Power Supply
12V/1A DC
Power Consumption
Transmitter: 1.86W, Receiver: 0.87W
Operation Temperature
32 - 104°F / 0 - 40°C
Storage temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)

• 1 x HDMI Transmitter
• 1 x HDMI Receiver
• 1 x IR Blaster Cable (1.5 meters)
• 1 x IR Receiver Cable (1.5 meters)
• 1 x 12V/1A DC Power Adapter
• 1 x User Manual
