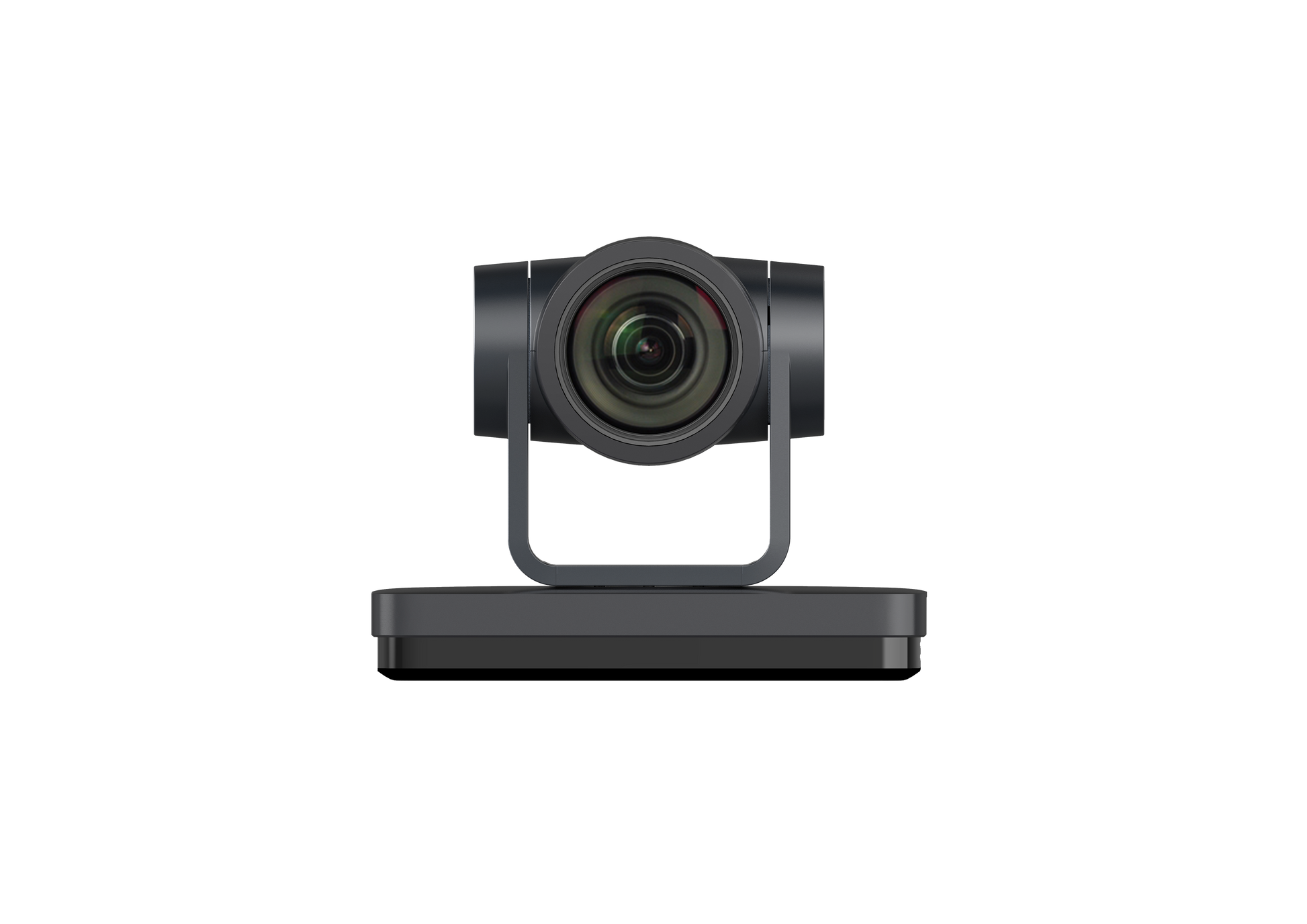

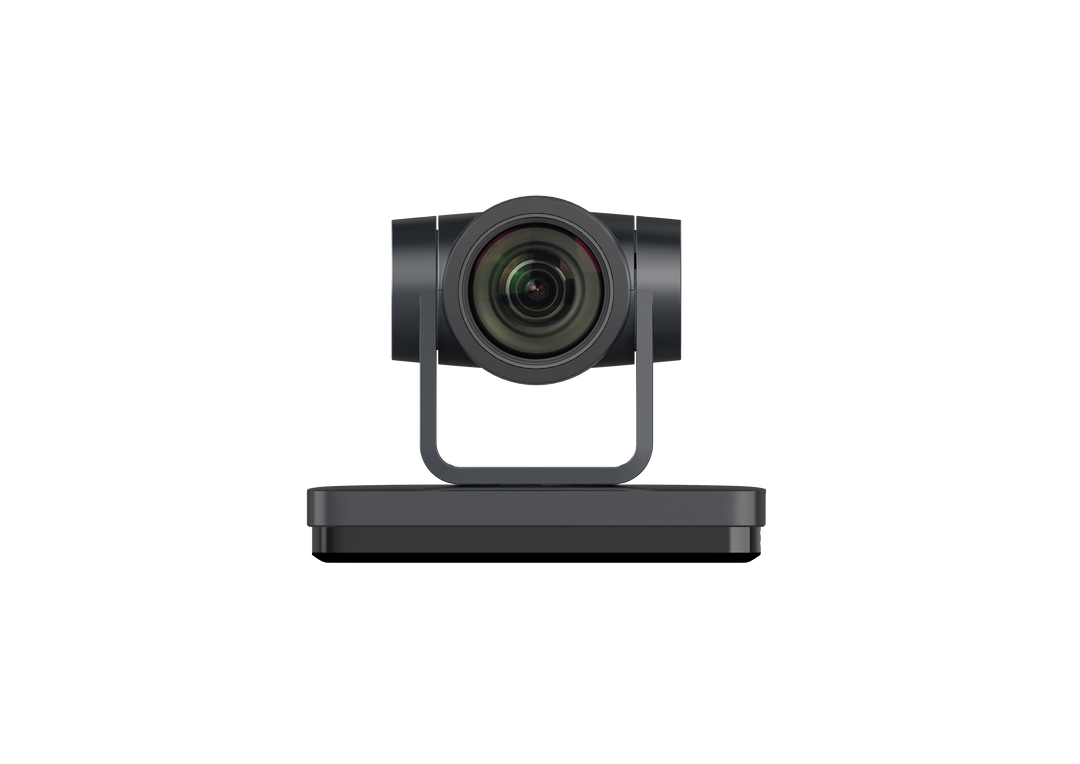

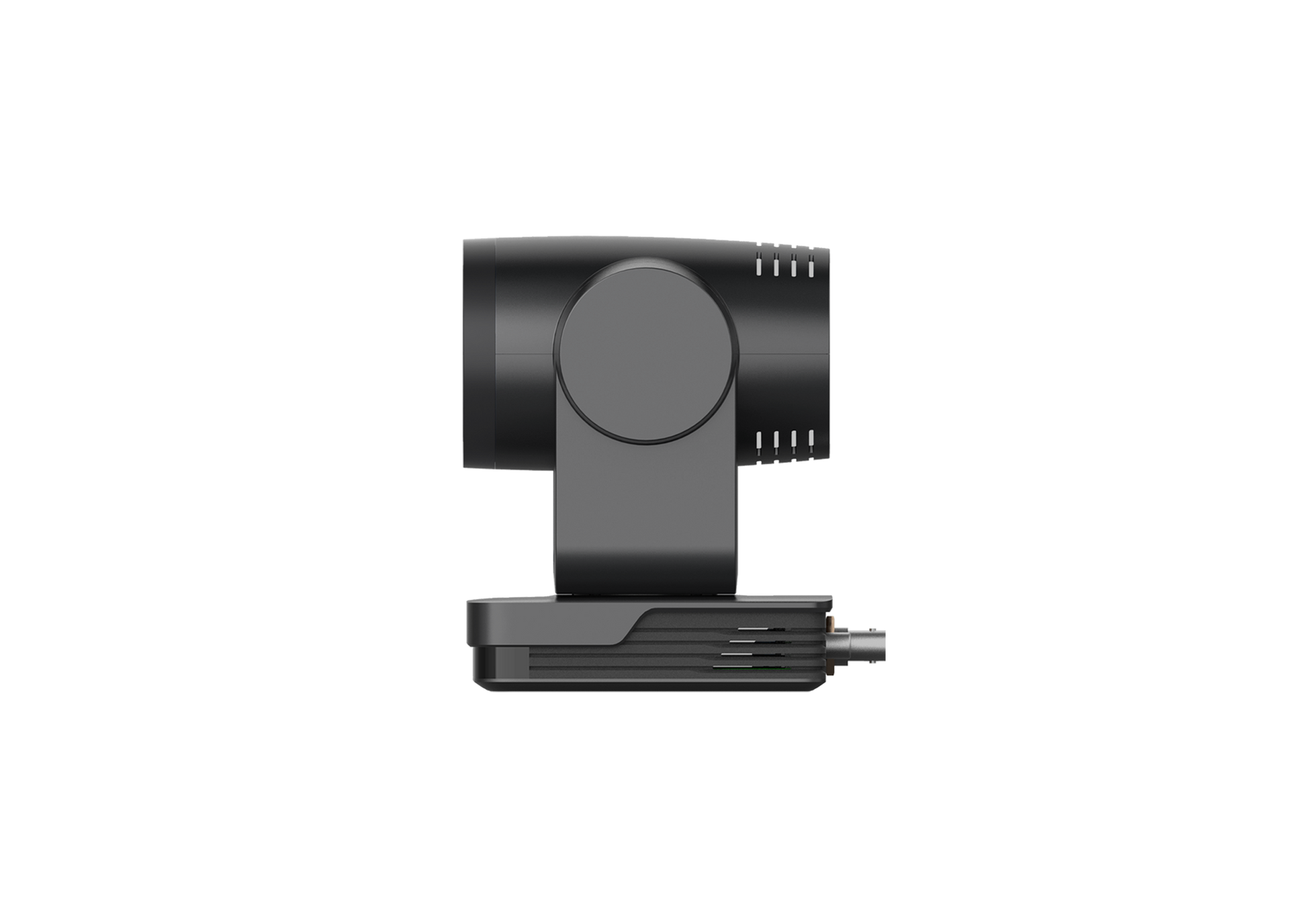

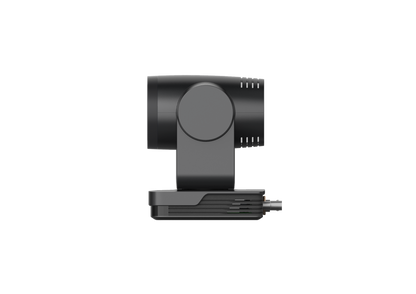

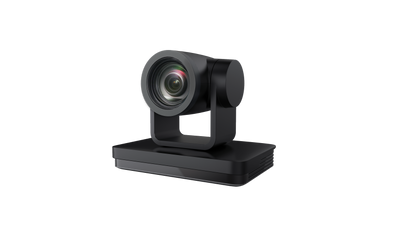

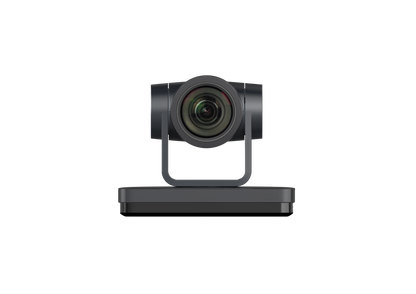

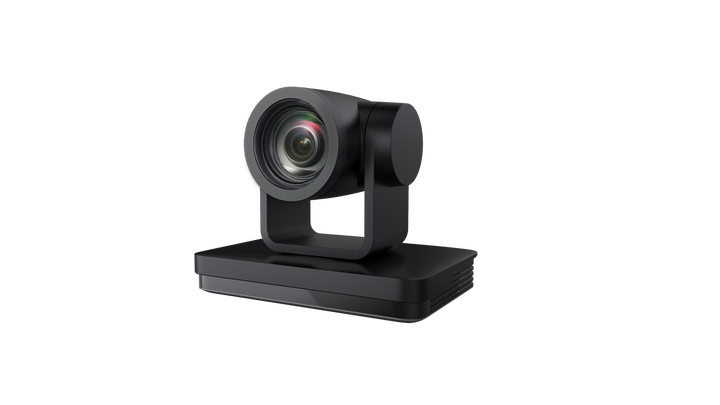

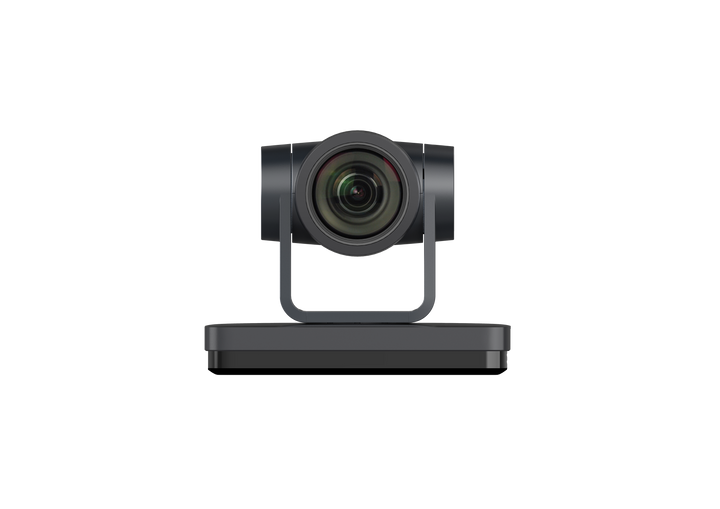

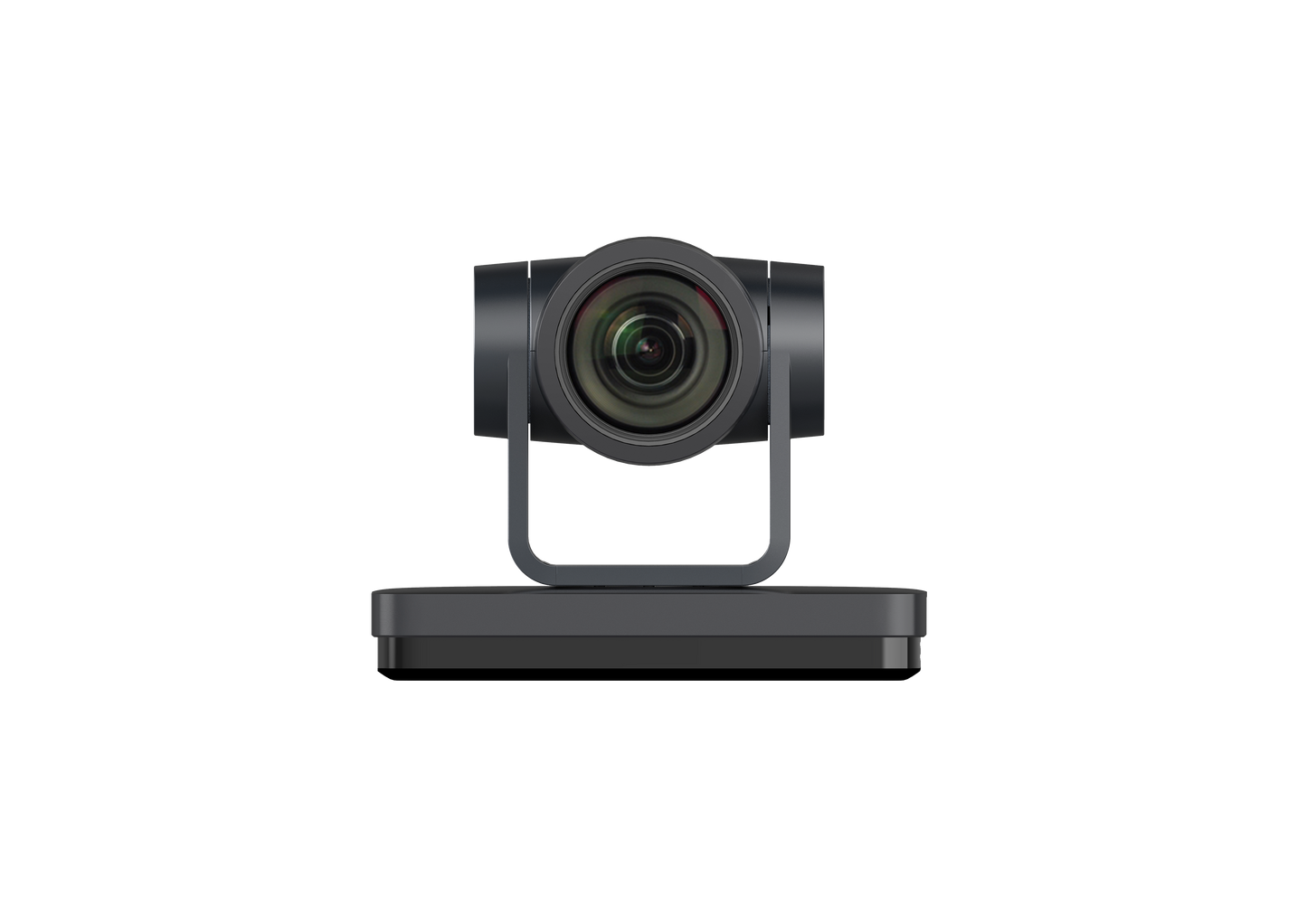

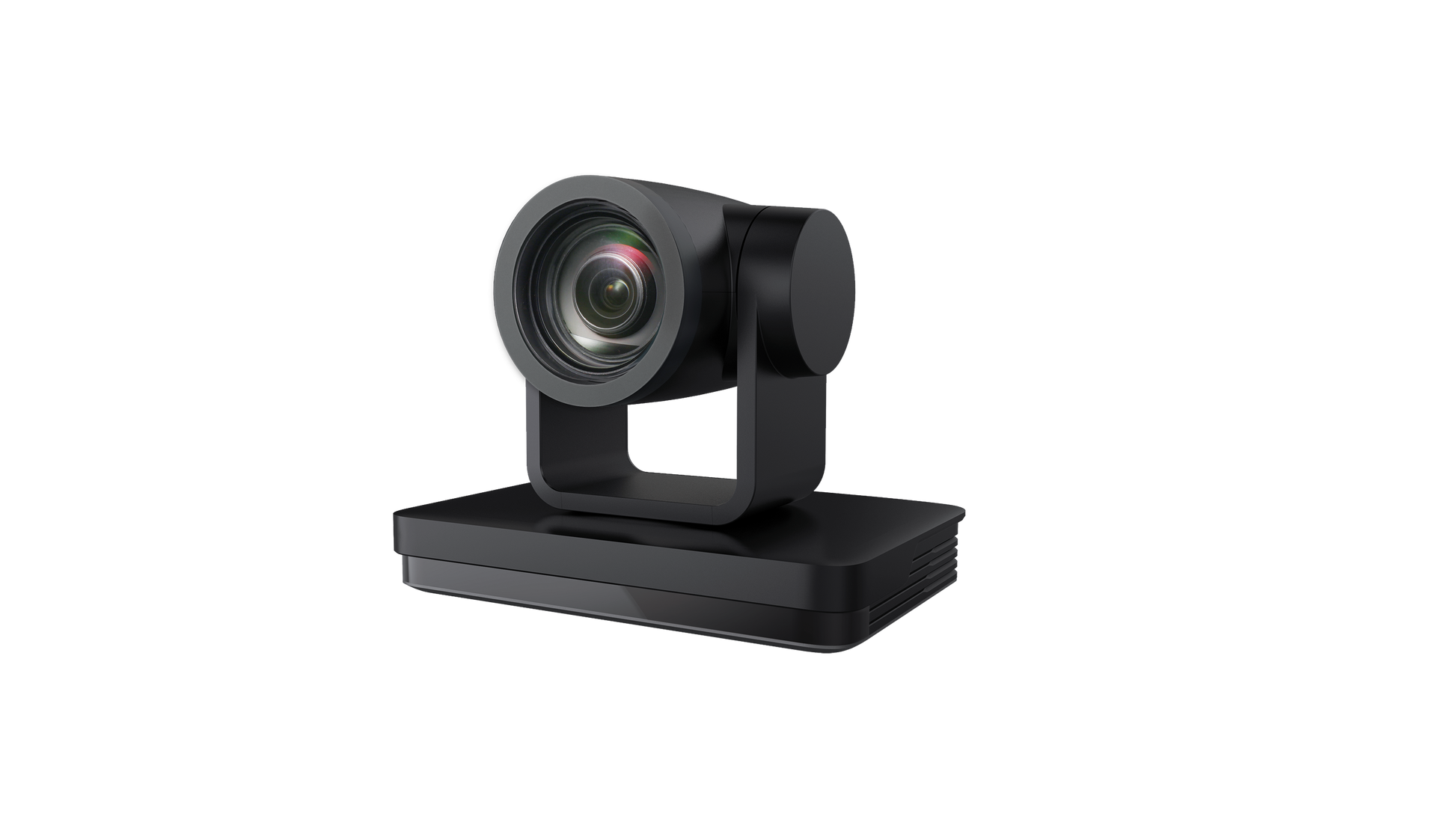

DVDO DVDO-C4-1 Full HD PTZ Camera with HDMI/IP/3G-SDI/USB3.0 & AI Auto Tracking (Black)

The DVDO-C4-1 camera features advanced ISP processing algorithms, offering vivid and high resolution video with a strong sense of depth and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video more fluent and clear under low bandwidth conditions.

• Full HD Resolution: 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60 fps.
• Multiple Optical Zoom Lens: 20X optical zoom lens.
• Leading Auto Focus Technology: fast, accurate and stable auto focusing technology.
• Low Noise and High SNR: super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
• Multiple video output interfaces: HDMI, SDI, USB 3.0, LAN.
• Simultaneously output: audio and video signal via HDMI, SDI and LAN. LAN interface support POE, USB 3.0 support dual code stream, SDI support transmission up to 100m under 1080p60 format
• Multiple Audio/Video Compression Standards: support H.264/H.265 video compression, up to 1920×1080 resolution 60 fps; support AAC, MP3 and G.711A audio compression, 8000, 16000, 32000, 44100,48000 sampling frequency
• USB 3.0 Support Dual Coding Stream: support main stream and sub –stream, and simultaneous output; support YUY2, MJPEG, H.264, NV12, H.265 video coding format
• Built-in Gravity Sensor: support PTZ auto-flip function and easy installation.
• Multiple Network Protocol: support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA & RTMPS protocols; Support RTMP push mode, easy to be connected to streaming server (Wowza, FMS); Support RTP multicast mode;
• Control Interface: RS422 is compatible with RS485, RS232-IN, RS232-OUT, and the RS232 interface supports cascading.
• Multiple Control Protocol: support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
• Quiet Pan / Tilt Movement: with high accuracy step driving motor, camera can pan / tilt extremely quiet and smooth.
• Various remote controls: users can choose infrared remote control or wireless remote control according to the environmental conditions used. The 2.4G wireless remote control is not affected by angle, distance, and infrared interference. Support the remote control signal transparent transmission function, which is convenient for back-end equipment to use.
• AI Human Detection: built-in high-speed processor and advanced image processing and analysis algorithms, users can choose real-time tracking and regional tracking according to the environment.
• Multiple Application: Online Education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.

Camera Parameters
Optical Zoom
20x
Focus
5.2 -- 98mm
FOV
3.2° (N) / 56° (W)
Aperture Value
F1.5 -- F3.0
Digital Zoom
15x
Effective Pixels
2.07, 1/2.8-inch high-quality CMOS sensor
Video Format
HDMI/SDI: 1080p60, 1080p50, 1080p30, 1080p25, 720p60, 720p50, 1080p59.94, 1080p29.97, 720p59.94
USB3.0 (Main stream): - YUY2/NV12: 1920x1080 / 1280x720 / 1024x576 / 800x600 / 800x448 / 640x360 / 640x480 / 480x270 / 320x180 @30/25/20/15/10/5fps
MJPG/H264: 1920x1080 / 600x896 / 1280x720 / 1024x576 / 960x540 / 800x600 / 800x448 / 720x576 / 720x480 / 640x360 / 640x480 / 480x270 / 352x288 / 320x240 @30/25/20/15/10/5fps0
USB3.0 (Sub stream): - YUY2/NV12: 1920x1080 / 1280x720 / 1024x576 / 800x600 / 800x448 / 640x360/ 640x480 / 480x270 / 320x180 @30/25/20/15/10/5fps
MJPG/H264: 1920x1080 / 1600x896 / 1280x720 / 1024x576 / 960x540 / 800x600 / 800x448 / 720x576 / 720x480 / 640x360 / 640x480 / 480x270 / 352x288 / 320x240 @30/25/20/15/10/5fps
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D
AWB
Automatic, manual, one-key white balance, specified color temperature Focus Mode Automatic, manual, one-key focus Exposure Mode Auto, manual, shutter priority, aperture priority, brightness priority
Iris Value
F1.8 -- F11, CLOSE
Shutter Speed
1/25 -- 1/10000
BLC
On/Off
Dynamic Range
Off, 1 -- 8
Image Adjustments
Brightness, chroma, saturation, contrast, sharpness, black and white mode, gamma curve
SNR
≥50dB

AI Function
Real-Time Tracking
Maximum Tracking Range: 6-7 meters. Support speakers to walk at a speed of 3-4 meters
Regional Tracking
Maximum Tracking Region: 4. Can set region within horizontal -170° ~ +170° and vertical -30° ~ +90°

Interface
Product Interface

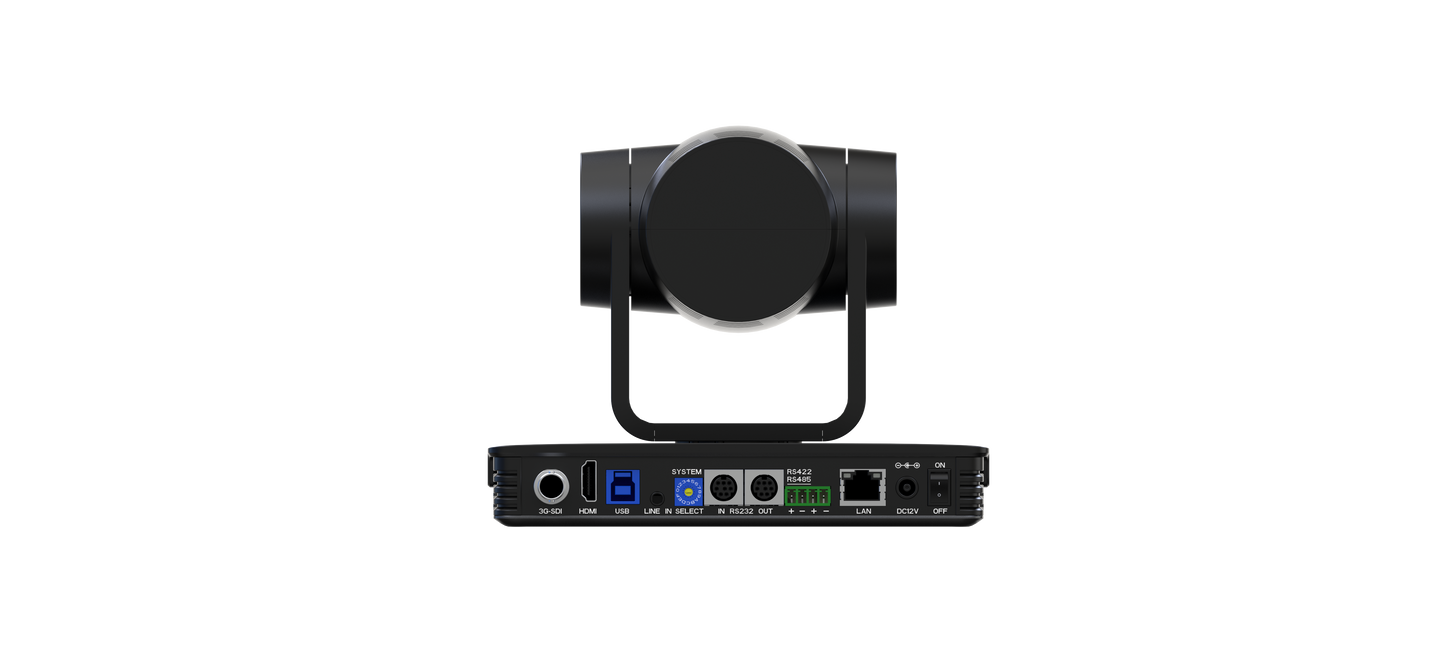

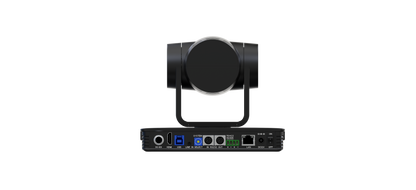

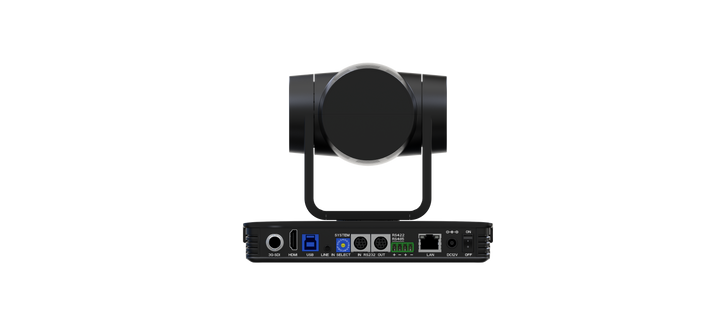

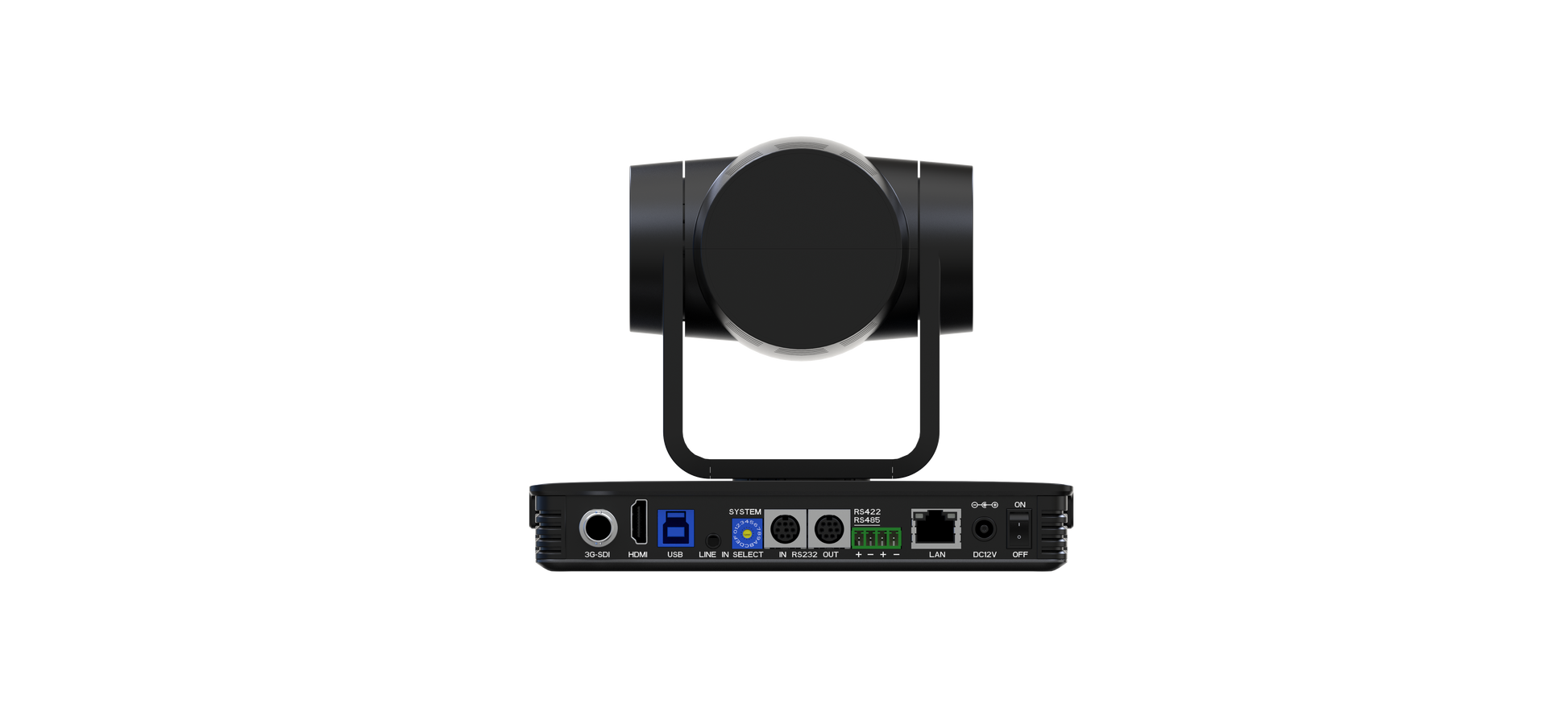

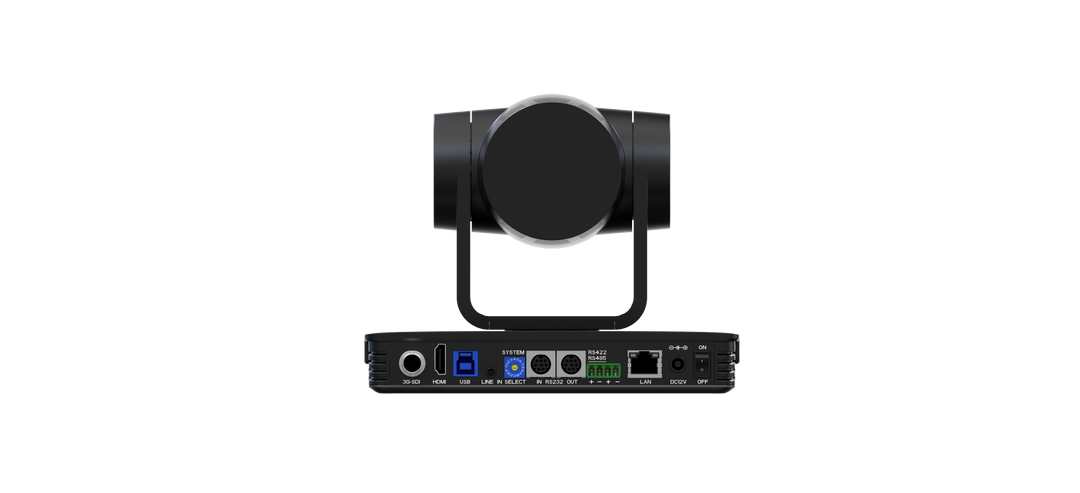

HDMI, LAN (POE), USB3.0 (B-Type, compatible with USB2.0), SDI, AIN, RS232-IN, RS232-OUT, RS422 (compatible with RS485), Rotary Switch, DC12V Power
Video Encoding Format
LAN Interface: support main stream and sub-stream H.265, H.264. USB3.0 Interface: main stream support YUY2, MJPG, H264, NV12
Audio input interface
Dual channel 3.5mm linear input
Audio output interface
HDMI, SDI, LAN, USB3.0
Audio compression
AAC, MP3, G.711A
LAN interface
10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output
Network protocol
RTSP, RTMP, ONVIF, GB/T28181, VISCA over IP, IP VISCA, RTMPS, SRT. Support remote upgrade, remote restart, remote reset
Control Interface
RS232-IN,RS232-OUT,RS422, compatible with RS485 Serial communication protocol VISCA/Pelco-D/Pelco-P; support baud rate 115200/38400/9600/4800/2400
USB communication protocol
UVC (video communication protocol)
UAC (audio communication protocol)
Power interface
HEC3800 Power socket (DC12V)
Power adapter
Input AC110V - AC220V
Output DC12V / 2.5A
Input voltage
DC 12V ±10%
Input currency
<1A
Consumption
<12W

PTZ
Pan rotation
-170° -- +170°
Tilt rotation
-30° -- +90°
Pan speed
0.1°/s -- 100°/s
Tilt speed
0.1°/s -- 45°/s
Preset speed
Pan: 100°/s, Tilt: 45°/s
Preset quantity
Maximum 255 preset positions can be set (10 via remote controls)

Other Parameters
Storage temperature
-10℃ -- +70℃
Storage humidity
20% -- 95%
Working temperature
-10℃ -- +50℃
Working humidity
20% -- 80%
Dimension
181mm x 115mm x 149mm
Weight
1.15kg
Environment
Indoor

• DVDO-C4-1 Camera
• Power adapter
• RS232 Cable
• User Manual
• USB3.0 Cable
• Warranty Card
