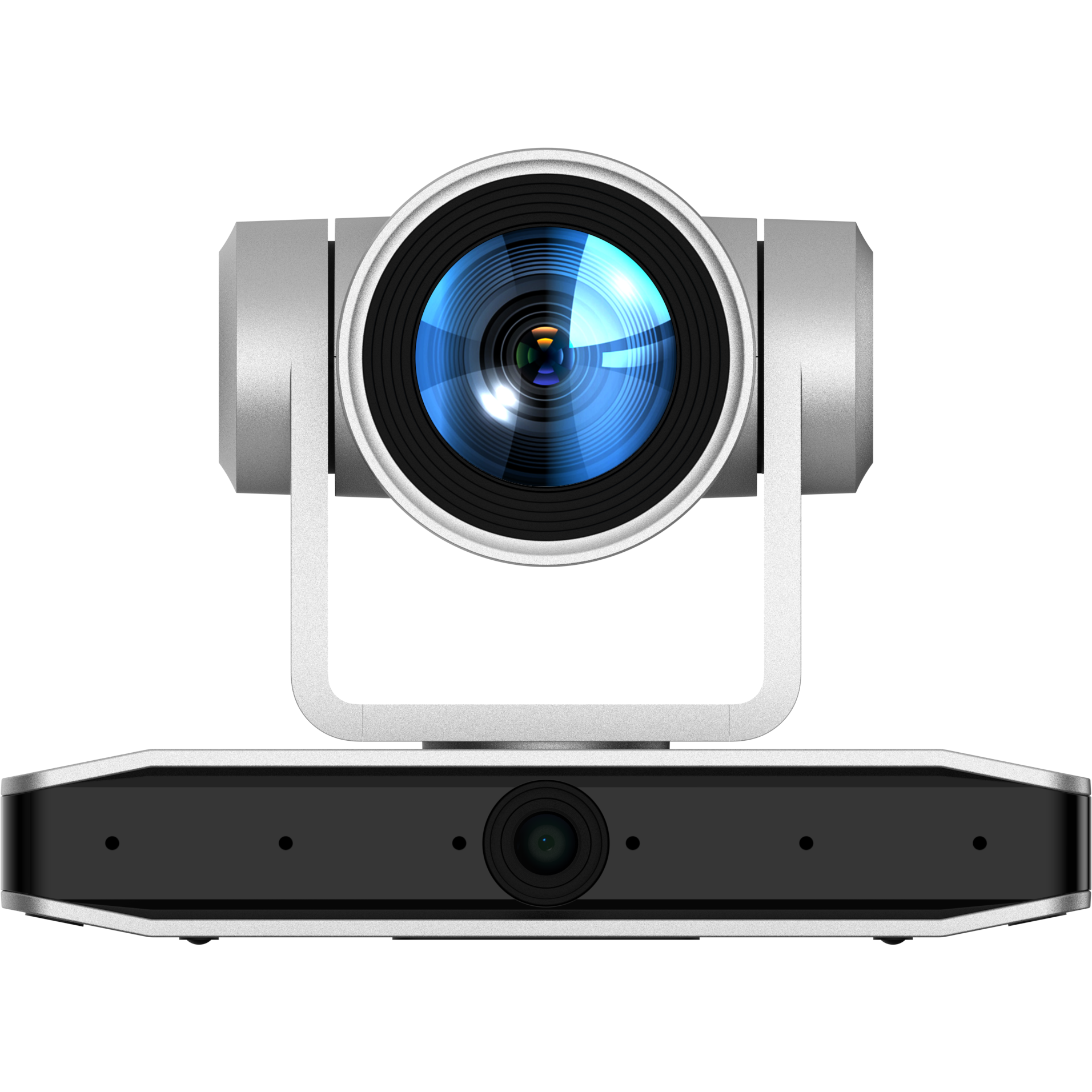

DVDO DVDO-C7-1 4K PTZ Camera with HDMI/IP/USB3.0 & AI Voice Tracking (Silver)

DVDO-C7-1-S is a 4K dual-lens PTZ camera with 12X optical zoom, an 80.5° viewing angle and HDMI, LAN and USB 3.0 outputs. With its dual lens (close-up & panoramic) and 6 built-in omnidirectional mic arrays, it features advanced AI voice tracking and auto framing. Using advanced ISP processing technology and algorithm, it delivers true-to-life image with uniform picture brightness. It supports H.265/H.264 encoding, making the image smooth and clear even under low bandwidth.

• 4K UHD Resolution: Adopting 8.5 million resolution SONY CMOS sensor. Maximum resolution is up to 4K with frame rate up to 30fps.
• AI Voice Tracking
• Optical Zoom Lens: 12X optical zoom 80.5°wide-angle lens.
• Leading Auto Focus Technology: fast, accurate and stable auto focusing technology.
• Low Noise and High SNR: super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
• Multiple Video Output Methods: support HDMI, USB3.0, wired LAN interface; support POE power supply, USB3.0 supports dual stream.
• Multiple Audio/Video Compression Standards: support YUY2, MJPEG, H.264, H.265, NV12 video encoding formats, MJPEG, H.264, H.265 support up to 3840×2160 resolution 30 frames/second compression; support AAC, MP3, G.711A audio compression
• Audio Input Interface: support AAC, MP3, G.711A audio encoding, AAC, MP3 encoding support 16000, 32000, 44100, 48000 sampling frequency.
• Built in Gravity Sensor: built-in gravity sensor, supports automatic gimbal flip function, convenient for engineering installation
• Multiple Network Protocol: support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA & RTMPS protocols; support RTMP push mode, easily link streaming media servers (Wowza, FMS); support RTP multicast mode.
• Control Interface: RS232 IN
• Multiple Control Protocol: support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
• Low Power Sleep Mode: support low-power sleep/wake-up, power consumption during sleep is less than 400mW.
• Multiple Presets: up to 255 presets (10 presets via remote control).
• Multiple Remote Controls: IR remote control and wireless remote control are for options.
• Auto Framing: built in high speed processor and face detection algorithm, it can automatically detect the participants to provide optimal framing.
• Intelligent Voice Tracking: built in 6 omnidirectional mics arrays, intelligent voice localization algorithm, it can track the speaker in the real time.
• Multiple Application: Online Education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.

Close-up Lens
Optical Zoom
12x
Image Sensor
1/2.8-inch high-quality CMOS sensor
Effective Pixel
8.5M, 16:9
Video Format
HDMI: 4K30, 4K25, 1080p30, 1080p25, 1080p29.97
USB3.0 (Main stream): YUY2/NV12: 1920x1080 / 1280x720 / 1024x576 / 800x600 / 800x448 / 640x360 / 480x270 / 320x180 @30/25fps
MJPG/H.264: 3840x2160 / 1920x1080 / 1600x896 / 1280x720 / 1024x576 / 960x540 / 800x600 / 800x448 / 720x576 / 720x480 / 640x360 / 640x480 / 480x270 / 352x288 / 320x240@30/25/20/15/10/5fps
USB3.0 (Sub stream): YUY2/NV12: 1280x720 / 1024x576 / 800x600 / 800x448 / 640x360 / 640x480 / 480x270 / 320x180@30/25/20/15/10/5fps
MJPG/H264: 1920x1080 / 1600x896 / 1280x720 / 1024x576 / 960x540 / 800x600 / 800x448 / 720x576 / 720x480 / 640x360 / 640x480 / 480x270 / 352x288 / 320x240 @30/25/20/15/10/5fps
Viewing Angle
7.6° (N) / 80.5° (W)
Iris Value
F1.8 -- F3.6, Close
Digital Zoom
15x
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D
White Balance
Auto/Manual/One-Button White Balance/Specified Color Temperature
Focus Mode
Auto/Manual/One Button focus
Exposure Mode
Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority
Shutter Speed
1/25 -- 1/20000
BLC
On/Off
Dynamic Range
Off, 1 -- 8
Image Adjustments
Brightness, hue, saturation, contrast, sharpness, B & W mode, gamma curve
SNR
≥50dB
Panoramic Lens
Fixed Focus Lens
Viewing angle
110.2°/101.8°/69.5° (D/H/V)
Iris
F2.0 +/- 5%
Focus
F=1.89mm

Interface

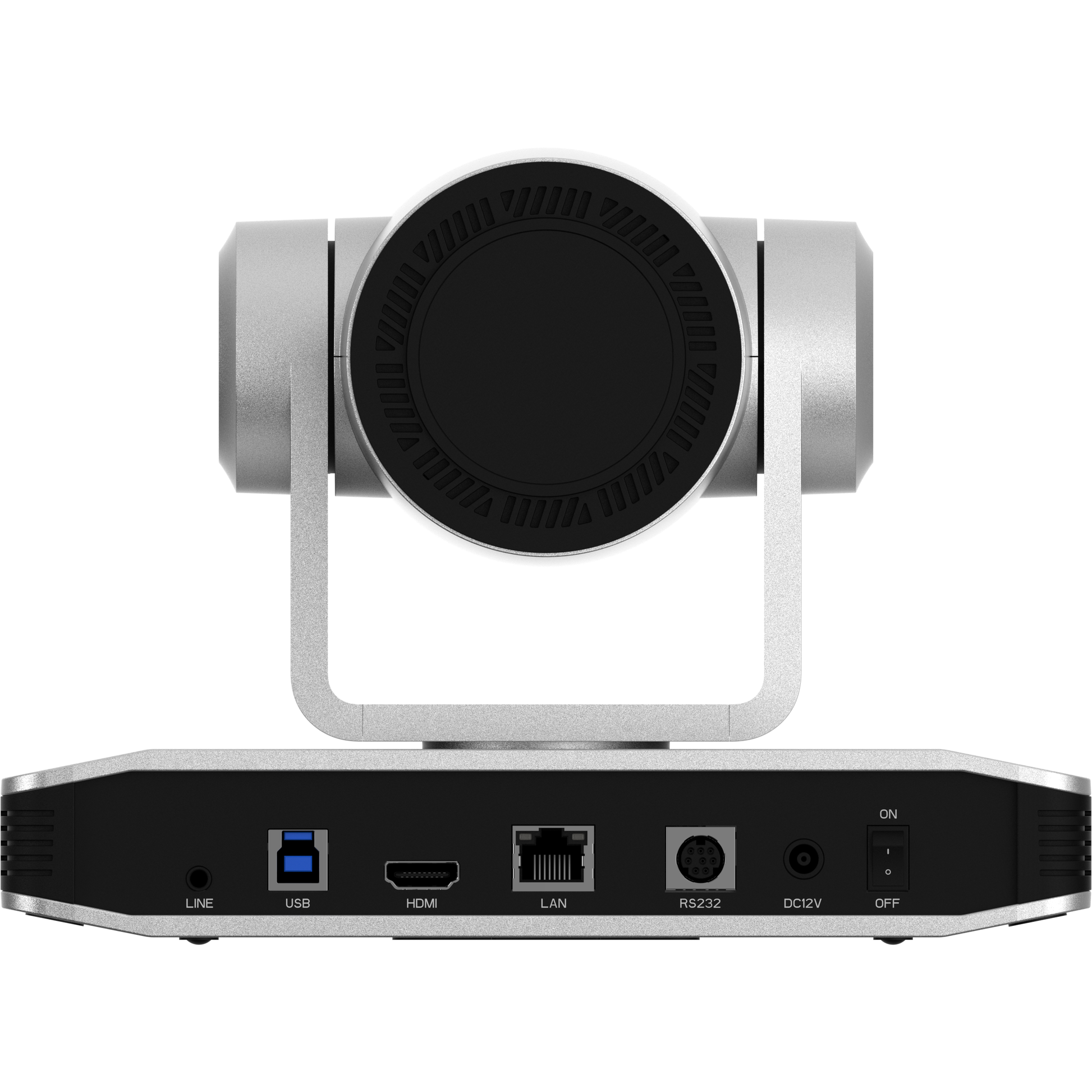

Back Panel
HDMI, LAN (POE), USB3.0, LINE-IN, RS232-IN, DC12V power supply, power switch
Video Output
HDMI, LAN, USB3.0
Video Compression Format
LAN: H.265, H.264
USB3.0: MJPG, H.264, YUY2, NV12
Audio Input
Dual channel 3.5mm line input
Audio Output
HDMI, LAN, USB3.0
Audio Compression
AAC, MP3, G.711A LAN Port, 10M/100M/1000M adaptive, Ethernet port, support POE power supply, support audio and video output
Network Protocols
RTSP, RTMP, ONVIF, GB/T28181, VISCA over IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote restart, remote reset
Control Interface
RS232-IN
Serial Communication Protocols
VISCA/Pelco-D/Pelco-P; baud rate: 115200/38400/9600/4800/2400
USB Communication Protocol
UVC (video communication protocol), UAC (audio communication protocol)
Power Interface
HEC3800 Power socket (DC12V)
Power Adapter
Input AC110V - AC220V
Output DC12V / 2.5A
Input Voltage
DC 12V ±10%
Input Current
<1A
Consumption
<12W

PTZ
Pan rotation
-110° -- +110°
Tilt rotation
-30° -- +30°
Pan speed
0.1°/s -- 100°/s
Tilt speed
0.1°/s -- 70°/s
Preset speed
Pan: 78.8°/s, Tilt: 31.7°/s
Preset quantity
Maximum 255 (10 via remote controls)

Other Parameters
Storage temperature
-10℃ -- +60℃
Storage humidity
20% -- 95%
Working temperature
-10℃ -- +50℃
Working humidity
20% -- 80%
Dimension
220mm x 136mm x 159mm
Weight
1.7kg
Environment
Indoor

• DVDO-C7-1 Camera
• Power adapter
• USB3.0 Cable
• User manual
• RS232 cable
• Plastic pad
