DVDO IP PTZ Camera Controller with Touch Screen & Joystick

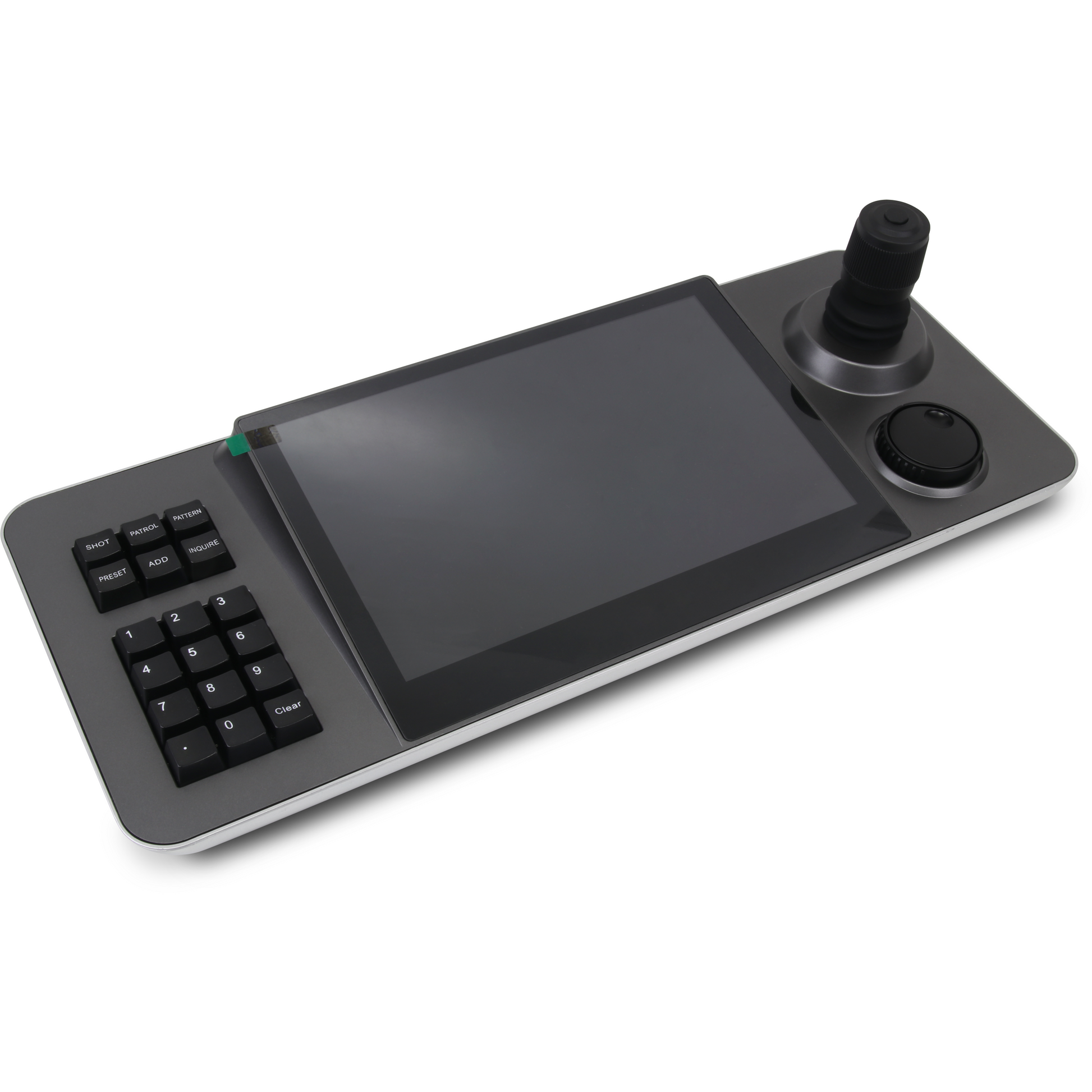

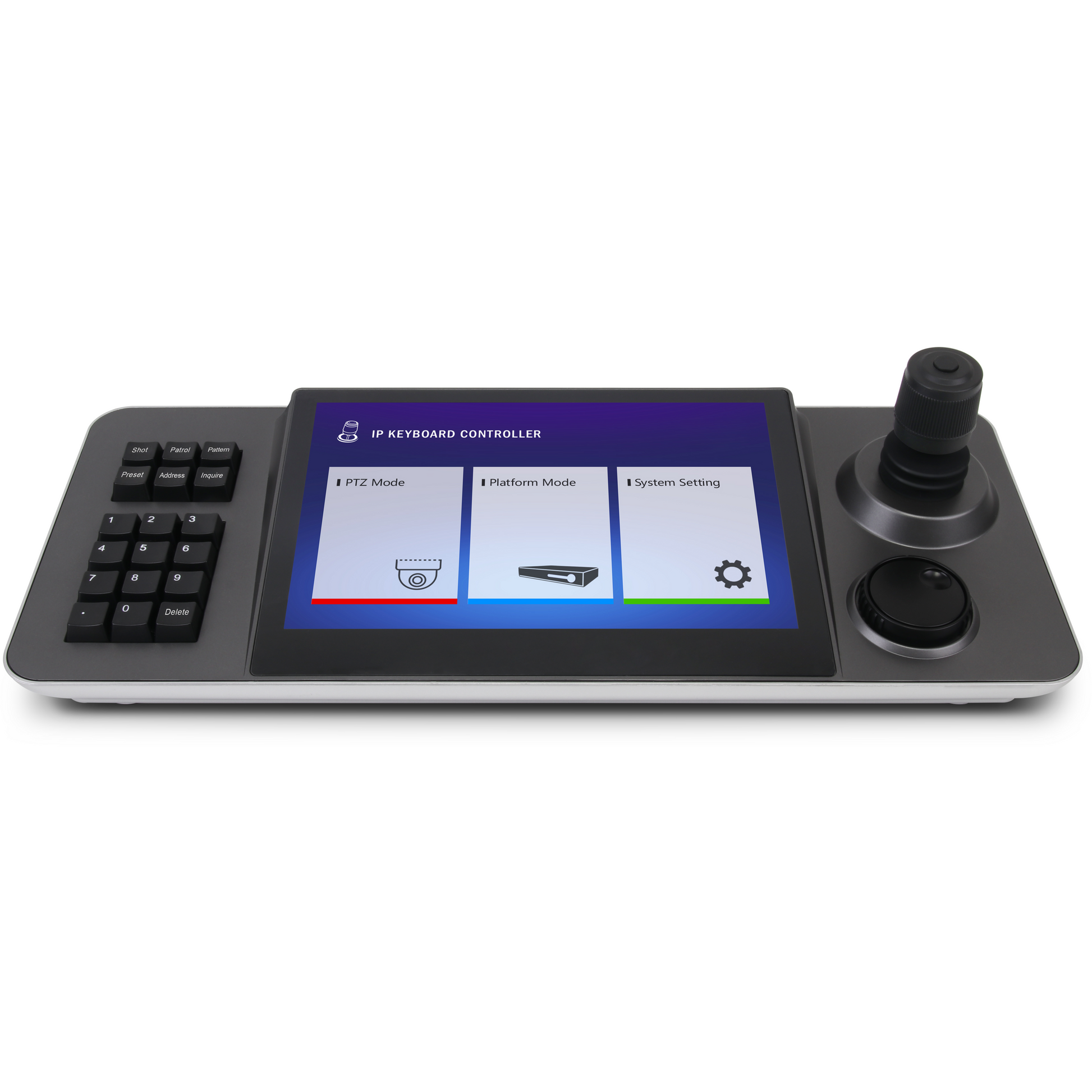

DVDO-Camera-Ctl-1 is a network based PTZ camera controller with a 10.1-inch capacitive touch screen and simple user interface. The integrated touch screen can provide real-time previews from camera feeds, and the system can output the image to an external display via HDMI. It supports single viewing of H.265 4K@30fps or H.264 1080p@60fps; and 4-channel 720p@30fps. DVDO-Camera-Ctl-1 includes a joystick for PTZ control and is suitable for unified control where multiple network cameras are installed such as schools, hospitals, hotels, businesses, etc.

Features:

• 10.1-inch capacitive touch screen
• Android 6.0 operating system
• H.265/H.264 decoding, up to 4 screen partitions
• Supports viewing images on the touch screen or external display via HDMI
• Network access to full range of PTZ cameras
• PTZ control, preset, cruise, track setting and recall
• Supports ONVIF, Pelco-D, Pelco-P and Visca protocols
• Controls up to 1024 cameras
• Supports external mouse

Parameter/model
DVDO-Camera-Ctl-1
Operating system
Android 6.0
Screen size
IPS 10.1 inch screen, resolution 1280*800 capacitive touch screen
HDMI out
HDMI 4K@30fps
Decoding capability
H264/H265
Maximum support h264 1x1080p@60fps
Maximum support h264 4x720p@30fps
Control protocols
Onvif 2.4, Visca, Pelco D/P and other protocols
Special features
Controls up to 1,024 cameras
Pan-tilt control
Up to 255 presets
Cruising
Pattern scanning
System Settings
Language Settings; U disk upgrade
Power Supply
Standard 5.5/2.1 power interface, DC 12V2A±10%

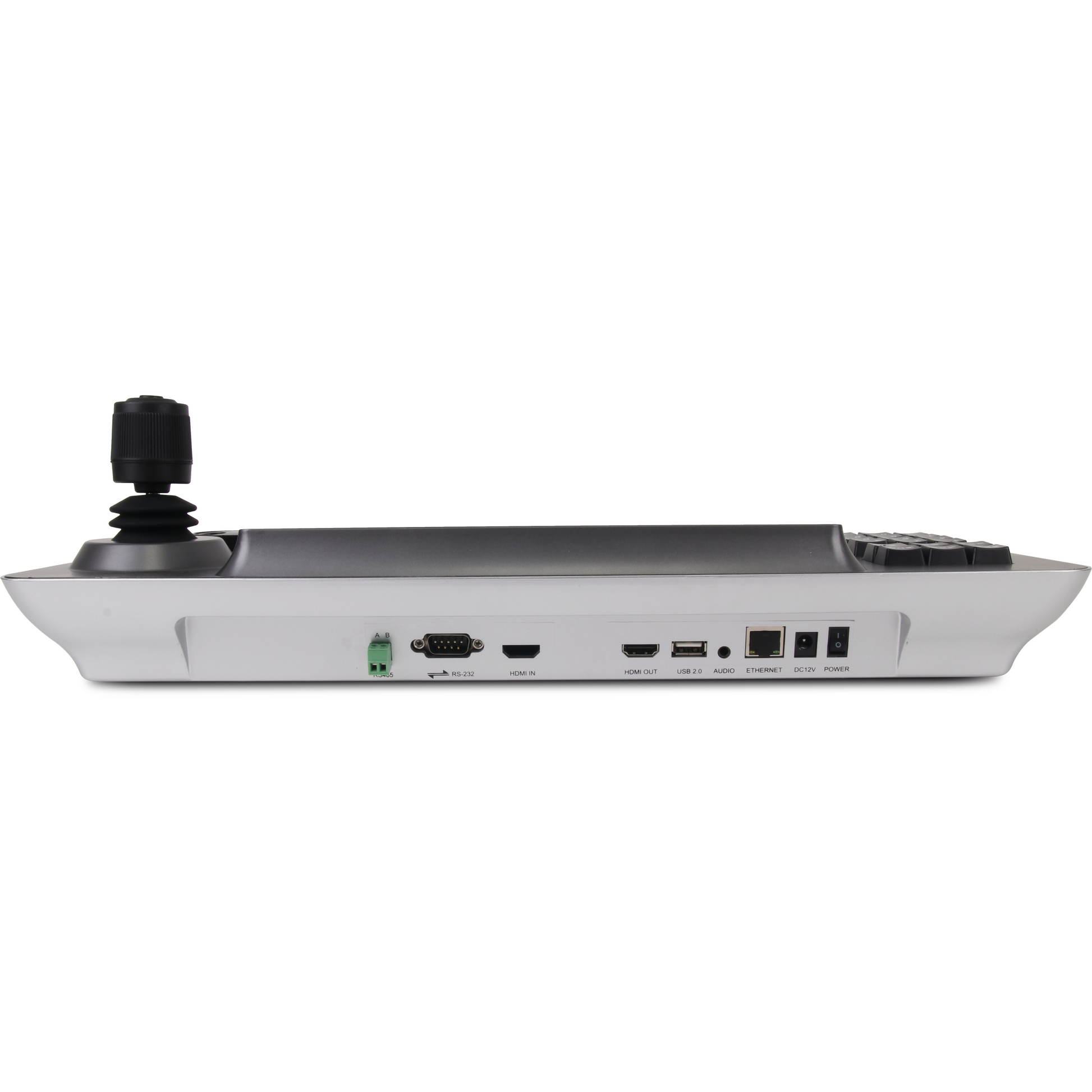

Interface
An RJ45 (network); One RS485; One RS232; One HDMI output, version 1.4 one USB2.0; A standard 3.5mm headphone jack
Interface of operation
4 dimensional joystick; assisted touch control; button shortcut call
Power consumption
< 15W
Standby current
< 100mA
Humidity at work
10%-90% RH (no frost)
Operating temperature
-10°C~40°C
Temperature of storage
-40°C~60°C
Inner package size
517*221*151mm (inner size)
Net weight
1400g
