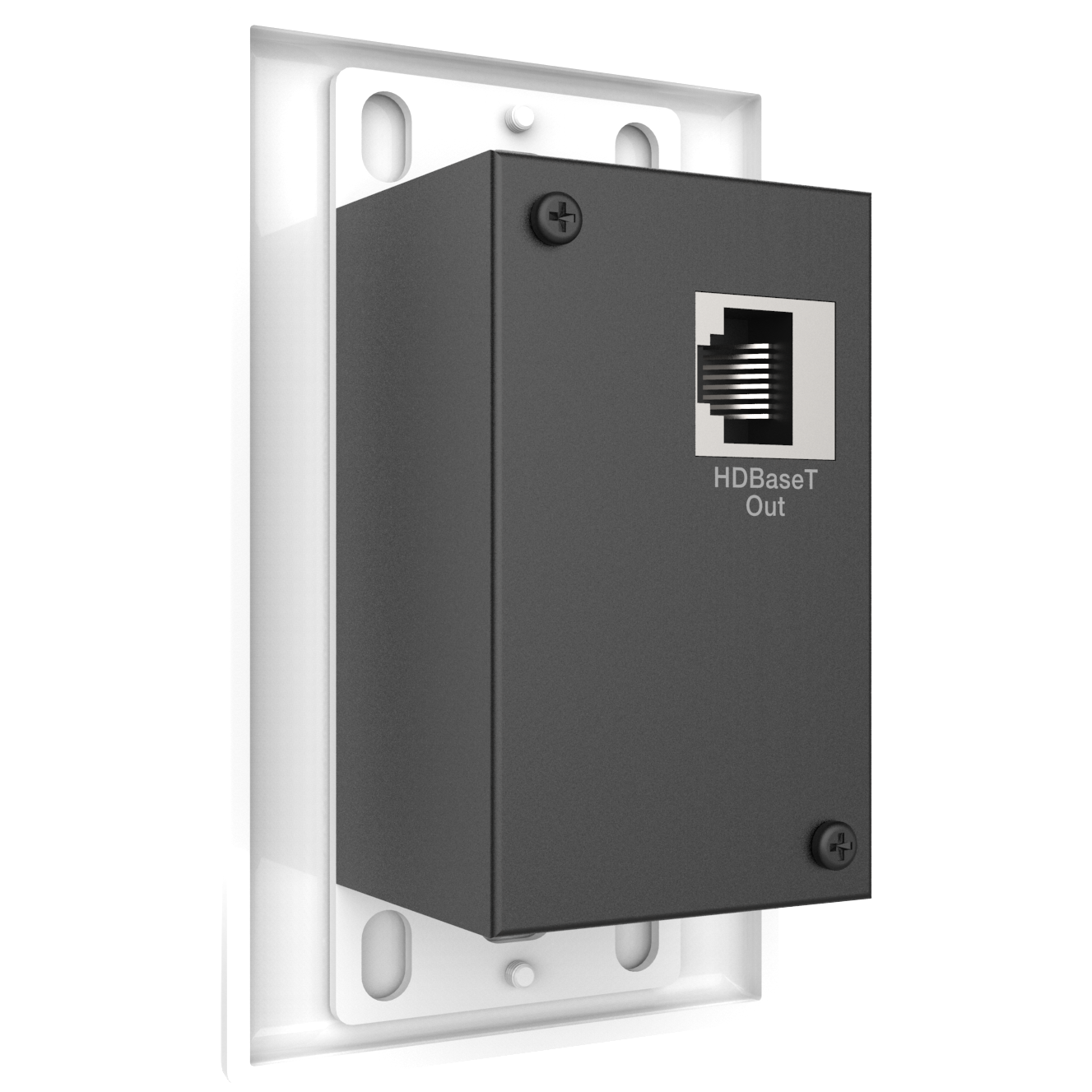

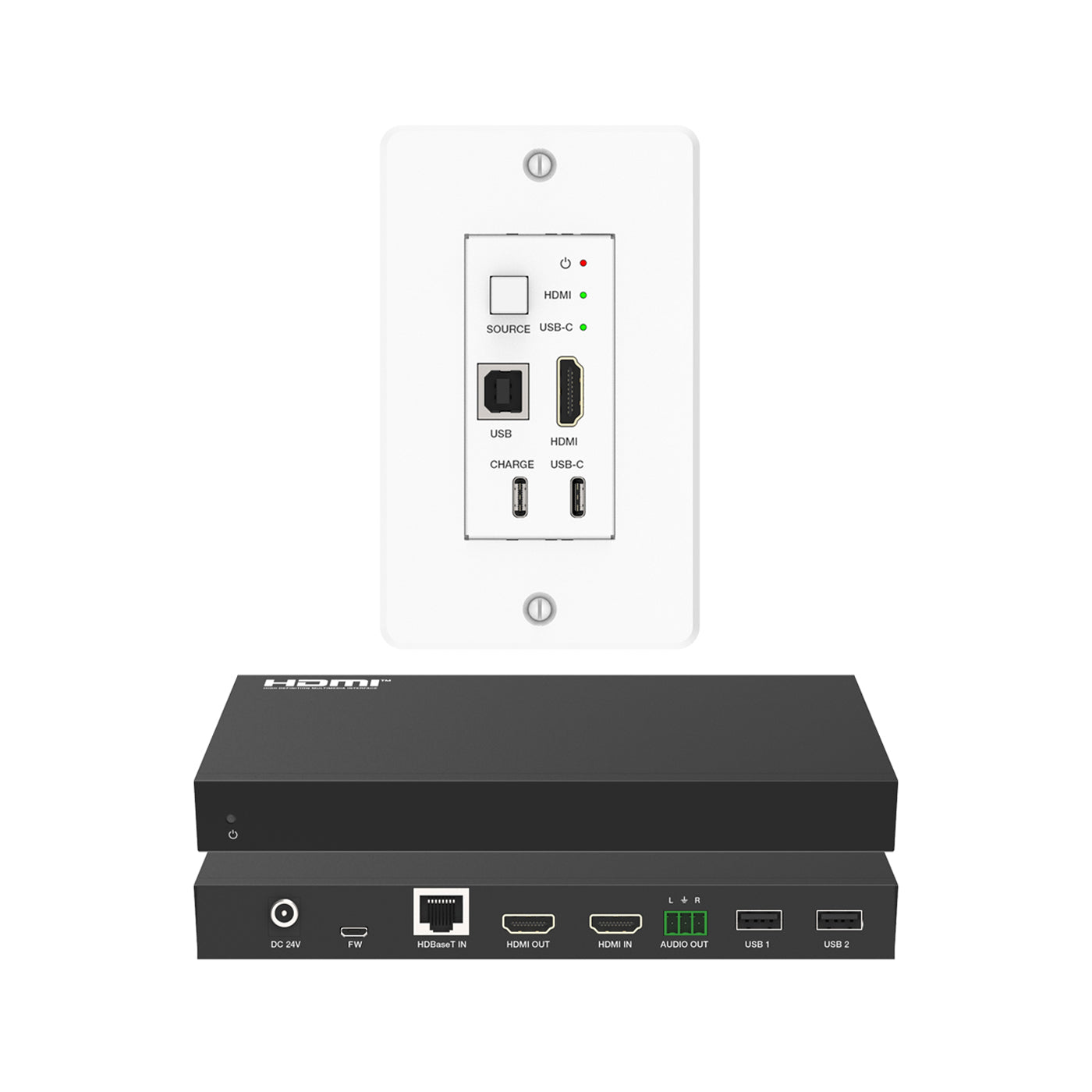

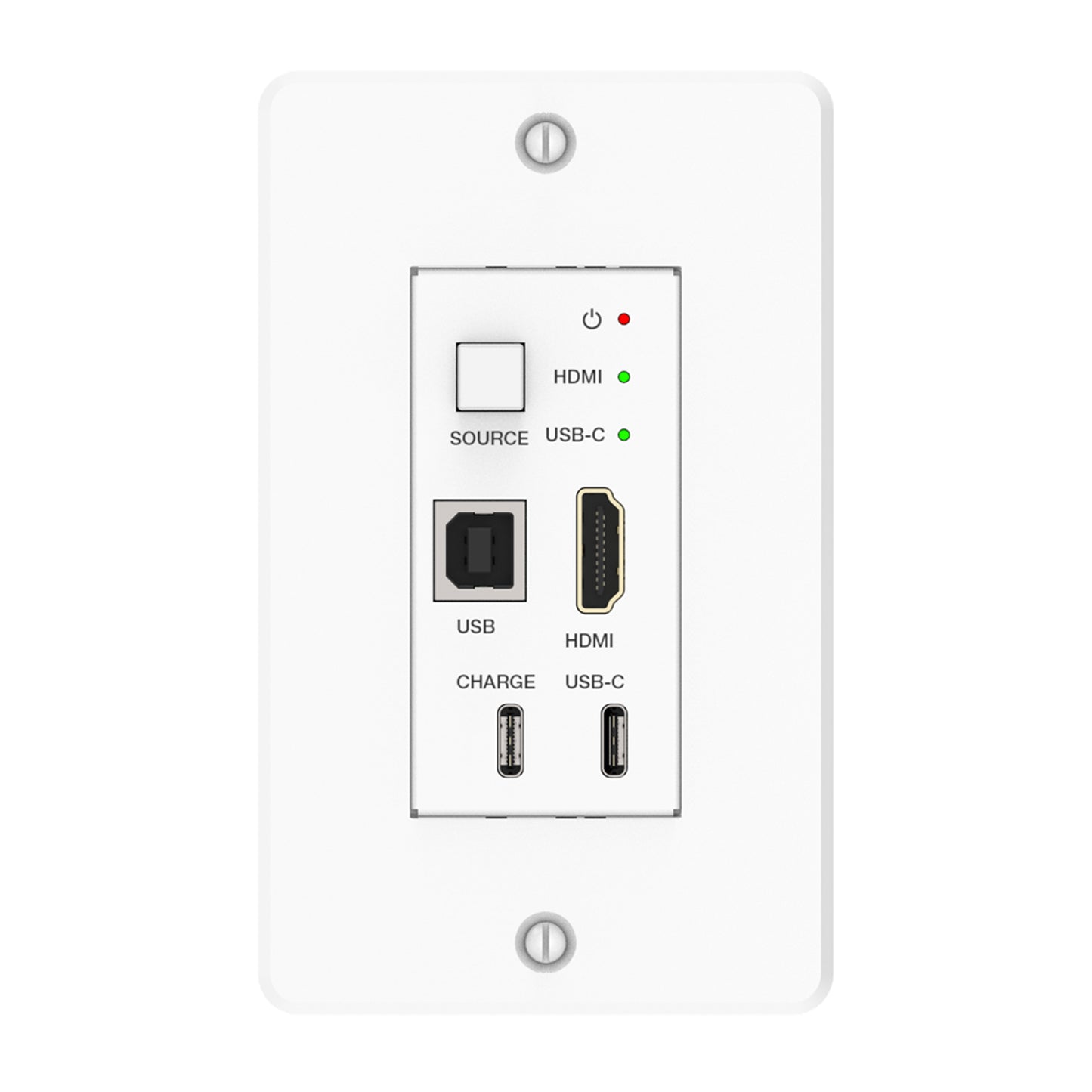

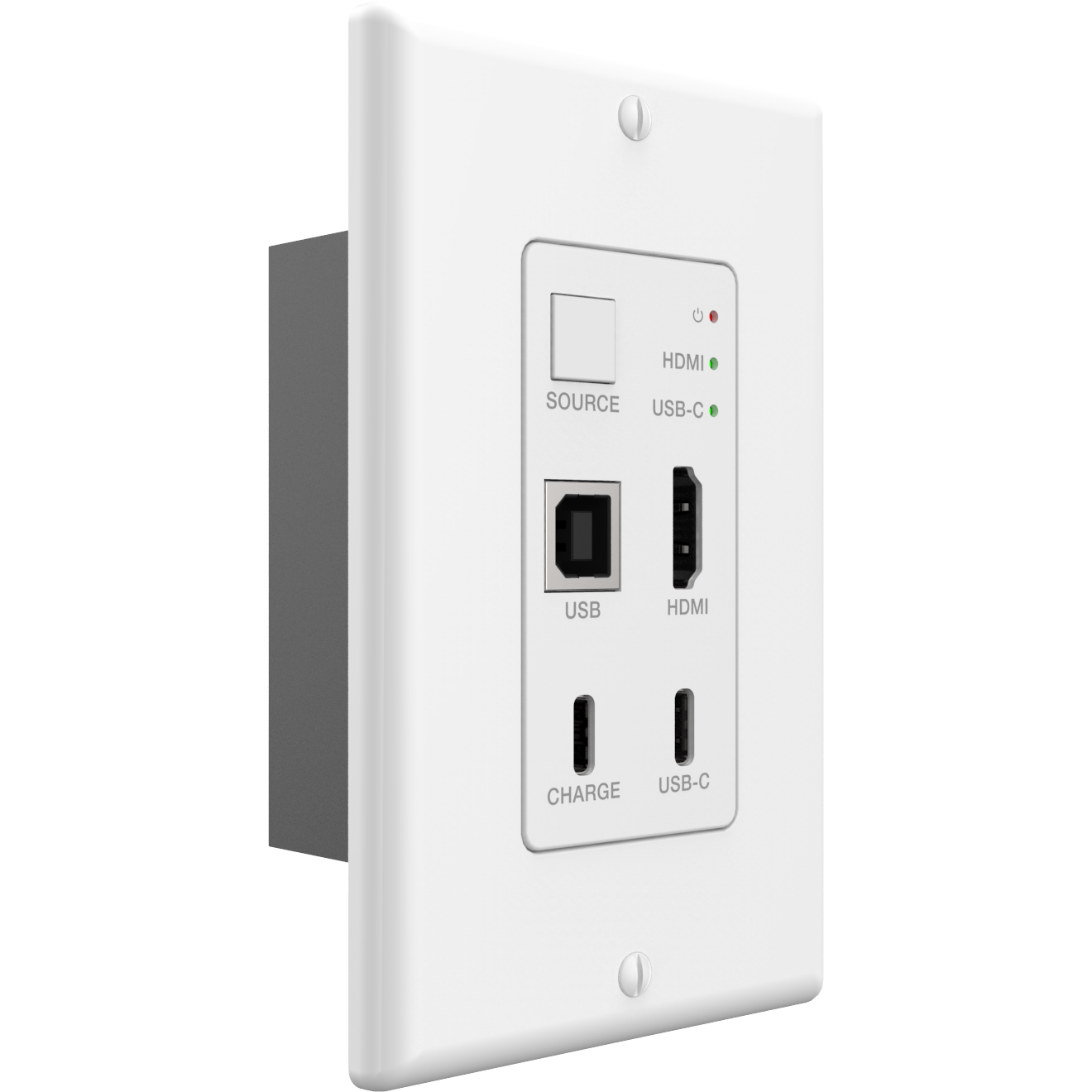

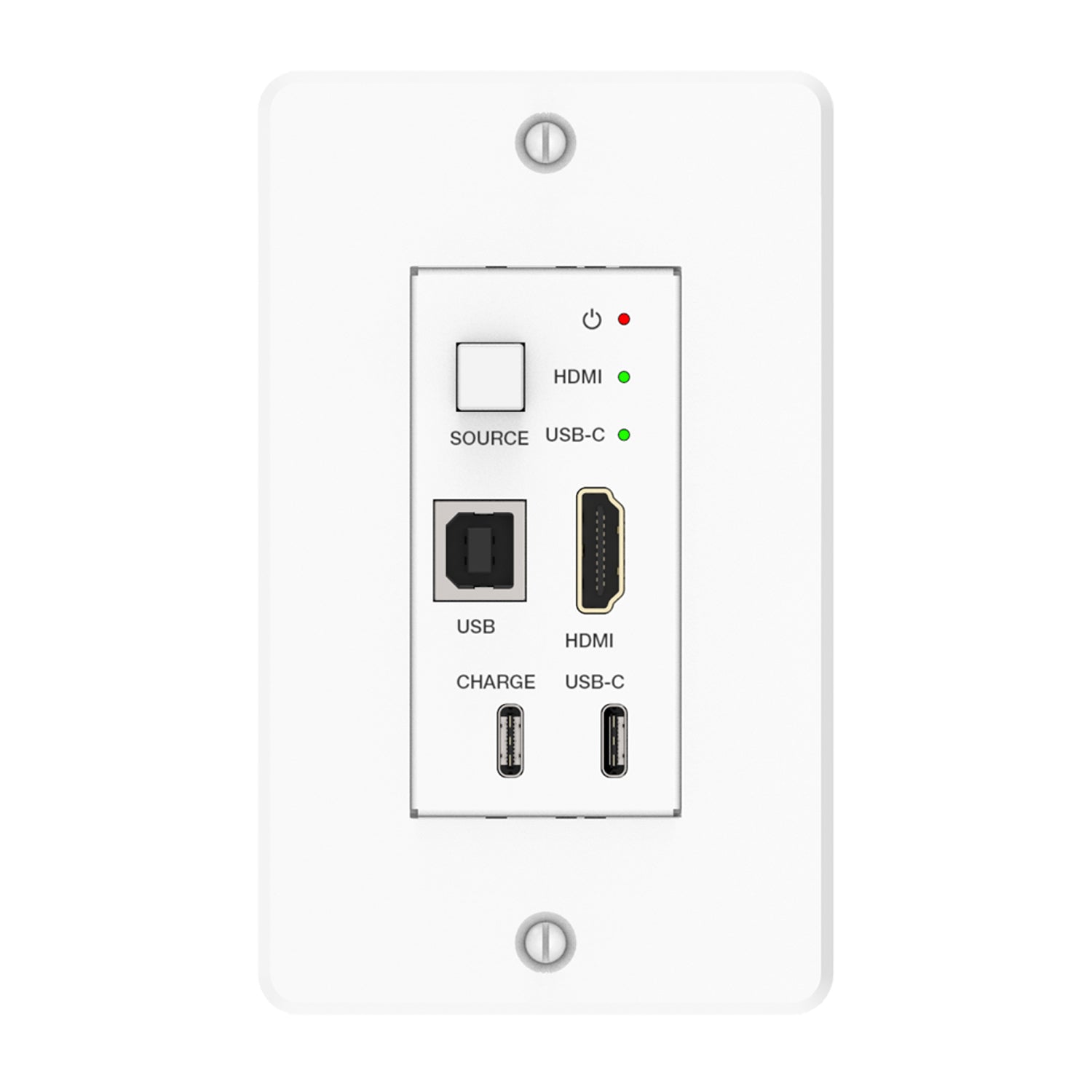

DVDO RS-2 4K HDMI & USB-C 70m Wall Plate Extender over HDBaseT with USB

• Video resolutions up to 4K@60Hz 4:4:4
• Supports HDMI and USB-C input
• USB-C AV Input
• USB-C charging port
• HDMI Input
• USB2.0 extension with Receiver Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
• Supports 18Gbps video bandwidth
• HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single cat5e/6/7 cable
• Supports HDR10 and HDR10+
• Audio formats support Dolby® Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
• US one-gang housing for Decora-style wall plate openings
• Input selection supports automatic mode and manual mode
• Remotely powered via PoE

HDMI Compliance
HDMI 2.0b
Display Port 1.2a
HDCP Compliance
HDCP 2.2
Video Bandwidth
18 Gb/s
Video Resolution Supported
4K DCI: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
2048 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i/p
480i/p
Color Space
RGB
TCbCr 4:4:4
YCbCr 4:22
YUV 4:2:0
Color Depth
8/10/12-Bit
HDR Support
HDR10
HDR10+
HDMI Audio Formats
Dolby Atmos
TrueHD
Digital +
DTS X
HD Master Audio
HD High-Resolution Audio
5.1 PCM 2-8 CH
Transmission Distance
1080p: 230' / 70 m over Cat 5e/6/6a/7
4K: 131' / 40 m over Cat 6/6a/7
Transmitter Input:
HDMI: 1 x Type-A
USB: 1 x Type-C
Transmitter Output:
HDBaseT: 1 x RJ45
USB: 1 x Type-C (For Charging Only)
Transmitter Control:
1 x USB-Micro B (For Firmware)
Receiver Input:
HDMI: 1 x Type-A
HDBaseT: 1 x RJ45
Receiver Output:
HDMI: 1 x Type-A
Audio: 1 x Phoenix
Receiver Control:
Firmware: 1 x Micro USB
Housing
Transmitter: 1-Gang Decora Style
Power Consumption
Wall Plate: 9 W
Receiver: 11 W
Dimensions
Wall Plate: 2.7 x 2.58 x 1.3" /68.7 x 65.7 x 33.3 mm
Faceplate: 4.5 x 2.75 x .12" / 114.3 x 69.9 x 3 mm
Receiver: 7.87 x 3.85 x 0.9" / 200 x 98 x 23 mm
Weight
Wall Plate: 6.9 oz / 196 g
Receiver: 18 oz / 511 g
Package Weight
2.715 lb
Box Dimensions (LxWxH)
14.3 x 7.1 x 3"
