DVDO USB-C (DP Alt Mode) to USB-C 70m Extender over HDBaseT with USB (Tx/Rx)

DVDO-Xtend-USBC2USBC-70 is an HDBaseT 3.0 extender that can transmit uncompressed USB-C video and USB 2.0 high speed data signals up to 230ft/70m (4K30) or 131ft/40m (4K60) via a single CAT6A/7 cable.

The transmitter includes 1 x USB-C input, 1 x dedicated USB-C charging port and 2 x USB Device ports.

The USB-C input supports DP Alt mode with video resolutions up to 4K60 4:4:4 at 18Gbps, USB 2.0 data and power charging up to 100W.

The receiver includes 1 x USB-C output and 3 x USB Device ports.

DVDO-Xtend-USBC2USBC-70 supports HDR, RS-232 pass-through and bi-directional 24V PoC.

Features:

• Compliant with HDCP 2.2 & HDBaseT 3.0
• Video resolution up to 4K@60Hz (4:4:4 8bit) @ 18Gbps
• Extends uncompressed 4K60 signals up to or 131ft/40m and 4K30 signals up to 230ft/70m with CAT6A/7 cable
• Tx includes 1 USB-C input, 1 dedicated USB-C charging port and 2 USB Device ports
• USB-C supports DP-ALT mode for AV (v1.2a), USB 2.0 data and power charging up to 100 watts
• Rx includes 1 USB-C output and 3 USB 2.0 Device ports
• Each USB-A provides power up to 5V/1A
• HDR, HDR10+, Dolby Vision LLM and HLG pass-through
• USB 2.0 high speed over HDBaseT 3.0
• RS-232 signal pass-through
• Audio passthrough: LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X
• Bi-directional 24V PoC

Technical

• HDCP Compliance: HDCP 2.2
• USB Compliance: USB 2.0
• Video Bandwidth: 18Gbps
• Input/Output Video Resolution
  • 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz,
  • 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz,
  • 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59),
  • 720x480p59.94Hz(480p59), 720x576i50Hz(576i50),
  • 720x576p50Hz(576p50), 1280x720p50Hz(720p50),
  • 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60),
  • 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59),
  • 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23),
  • 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25),
  • 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30),
  • 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59),
  • 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23),
  • 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25),
  • 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30),
  • 3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59),
  • 3840x2160p60Hz(2160p60), 4096x2160p23.98Hz, 4096x2160p
  • 24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz,
  • 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Color Depth: 8/10/12bit
• HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
• Audio Formats: USB-C pass-through: LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X
• Transmission Distance
  • Extend 4K60Hz (4:4:4 8bit) signal up to 130ft/40m and 4K30Hz (4:4:4 8bit) signal up to 230ft/70m with CAT6A/7 cable
  • USB 2.0 pass through up to 230ft/70m, connecting to 3x USB devices to the receiver 3 / 12
• ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

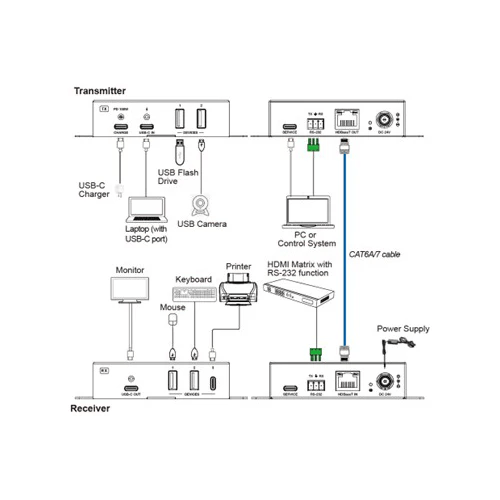

Connection

• Transmitter
  • Front Panel: 1x CHARGE [USB Type C, 24-pin female]
  • 1x USB-C IN [USB Type C, 24-pin female]
  • 2x USB 2.0 DEVICES [USB Type A, 4-pin female]

  • Rear Panel: 1x SERVICE [USB-C with USB 2.0 only, 12-pin

    female, firmware upgrade port]

  • 1x RS-232 [3-pin phoenix with 3.5mm pitch]
  • 1x HDBaseT OUT [RJ45 connector, 24V PoC]
  • 1x Power LED [Red LED, Power indicator]
  • 1x DC 24V [24V/2.7A, 19mm locking connector]

  • Side Panel: 1x PoC ON/OFF [1-pin DIP switch, 24V PoC ON/

    OFF selection]

• Receiver
  • Front Panel: 1x USB-C OUT [USB Type C, 12-pin female]
  • 1x USB 2.0 DEVICES [USB Type C, 12-pin female]
  • 2x USB 2.0 DEVICES [USB Type A, 4-pin female]

  • Rear Panel: 1x SERVICE [USB-C with USB 2.0 only, 12-pin

    female, firmware upgrade port]

  • 1x RS-232 [3-pin phoenix with 3.5mm pitch]
  • 1x HDBaseT IN [RJ45 connector, 24V PoC]
  • 1x Power LED [Red LED, Power indicator]
  • 1x DC 24V [24V/2.7A, 19mm locking connector]
  • Side Panel: 1x PoC ON/OFF [1-pin DIP switch, 24V PoC ON/ OFF selection]

Mechanical

• Housing: Metal Enclosure
• Color: Black
• Dimensions: Transmitter/Receiver: 120mm [W] x 113mm [D] x 25.5mm [H]
• Weight: Transmitter: 353g, Receiver: 352g
• Power Supply
• Input: AC 100 - 240V 50/60Hz
• Output: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified)
• Power Consumption
  • TX/RX with full USB devices (each 5V/1A): 46.8W
  • TX/RX without USB devices: 16.08W
• Operating Temperature: 32°F - 104°F / 0°C - 40°C
• Storage Temperature: -4°F - 140°F / -20°C - 60°C
• Operating Humidity: 20% - 80% relative humidity, non-condensing
• Storage Humidity: 10% - 90% relative humidity, non-condensing

• 1x 18Gbps HDBaseT 3.0 Extender (Transmitter)
• 1x 18Gbps HDBaseT 3.0 Extender (Receiver)
• 2x 3pin-3.5mm Phoenix Connector (male)
• 1x 24V/2.7A Desktop Power Supply
• 1x User Manual
