DVDO Xtend-70 4K60 HDMI & USB-C 70m Extender Over HDBaseT with USB (Tx/Rx)

DVDO-Xtend-USBC-HDMI-70 is an 18Gbps HDBaseT 3.0 extender that can transmit uncompressed HDMI, USB-C and USB 2.0 signals up to 230ft/70m (4K30 / 1080p) or 131ft/40m (4K60) via a single CAT6A/7 cable. It supports video resolutions up to 4K2K@60Hz YUV 4:4:4 as well as bi-directional 24V POC. The transmitter includes 1 x HDMI input, 1 x USB-C input (60W charging), 1 x USB Host and 3 x USB Device ports. The receiver includes 1 x HDMI output and 2 x USB Device ports. Both transmitter and receiver support 3.5mm analog audio de-embedding, EDID management, bi-directional IR and RS-232.

• Compliant with HDMI 2.0b and HDCP 2.3, 18Gbps video bandwidth & HDBaseT 3.0
• Video resolution up to 4K2K@60Hz (YUV 4:4:4)
• Uncompressed video transmission up to 230ft/70m for 4K@30Hz & 1080p signals or 131ft/40m for 4K@60Hz signals over a single CAT6A/7 cable
• Tx includes 1 x HDMI and 1 x USB-C inputs, 1 x HDBT output, 1 x USB 2.0 host and 3 x USB 2.0 clients
• Rx includes 1 x HDMI output, 2x USB 2.0 clients
• USB-C and HDMI signal inputs support auto or manual switching mode
• Auto switching supports HDMI 5V or signal detect selection
• USB-C supports DP-ALT mode for A/V, USB 2.0 data and power charging up to 60 watts
• Tx/Rx USB-A client ports VBUS on or off depends on whether the USB host is connected
• HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
• 4K to 1080p downscaling through HDMI output
• Both Tx and Rx support analog audio de-embedding
• RS-232 signal pass-through and guest-mode control
• Bi-directional IR pass-through, USB 2.0 signal transmission
• Advanced EDID management
• Each USB-A port provides power up to 5V/500mA
• Bi-directional 24V POC, with POC switch

Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.3
USB Compliance
USB 2.0
Video Bandwidth
18Gbps
Video Resolution
Up to 4K@60Hz 4:4:4
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8/10/12bit
IR Level
12Vp-p
IR Frequency
Wideband 20K-60KHz
HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats
HDMI/USB-C/HDBT:
LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,
DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master
Audio, DSD
3.5mm Analog Audio:
LPCM 2CH
Transmission Distance
4K60: 131ft/40m (CAT6A/7)
4K30/1080p: 230ft/70m (CAT6A/7)
ESD Protection
Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge)

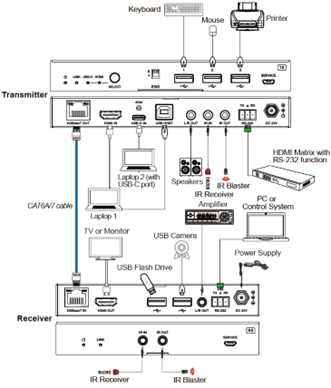

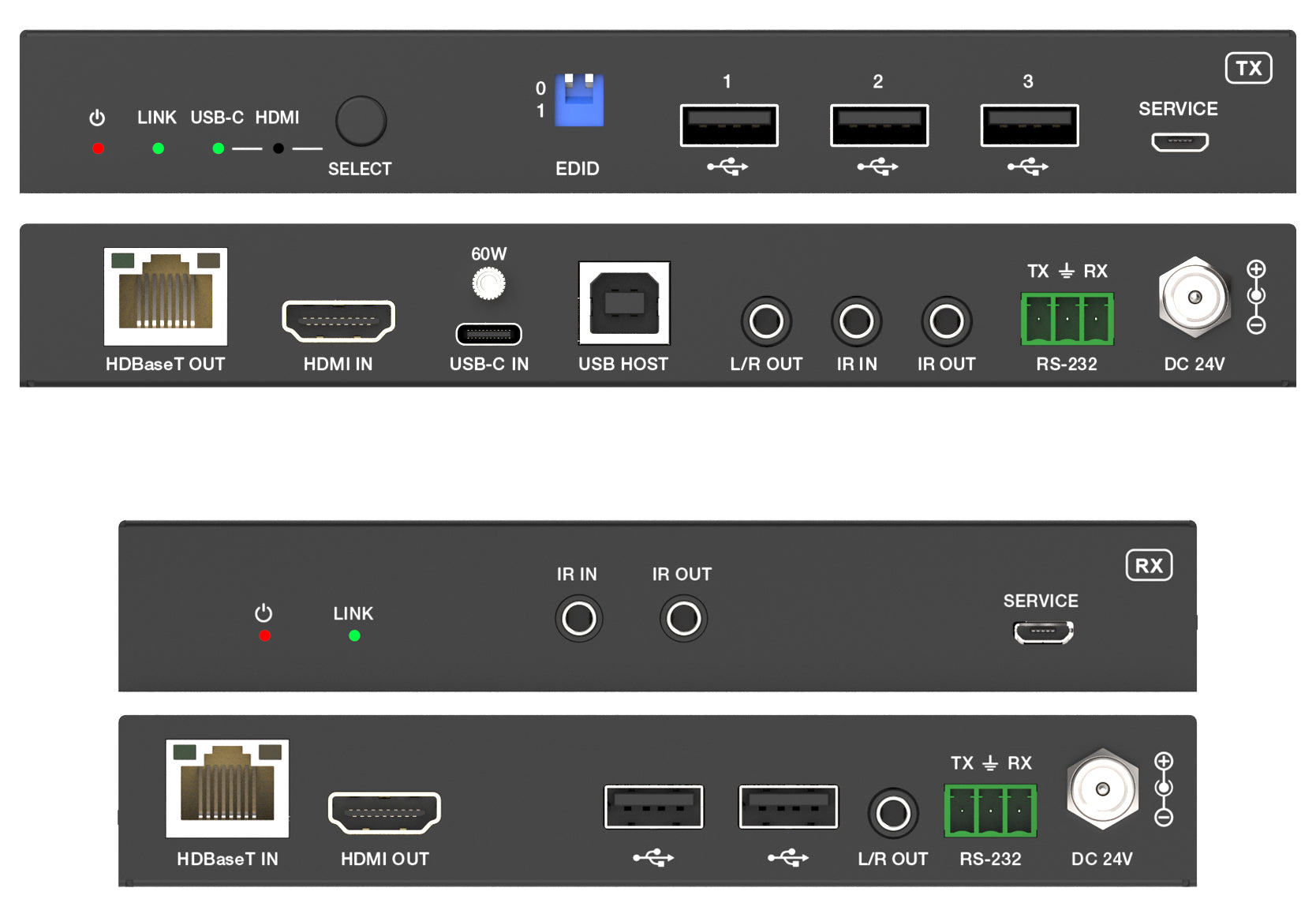

Connection

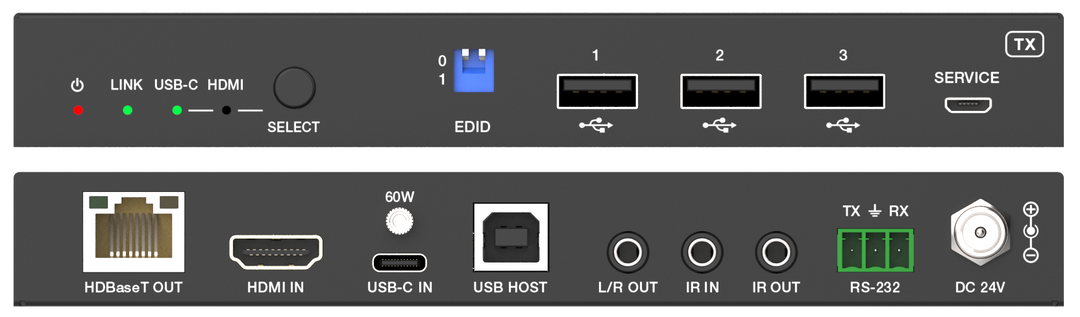

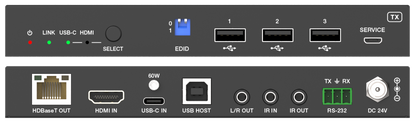

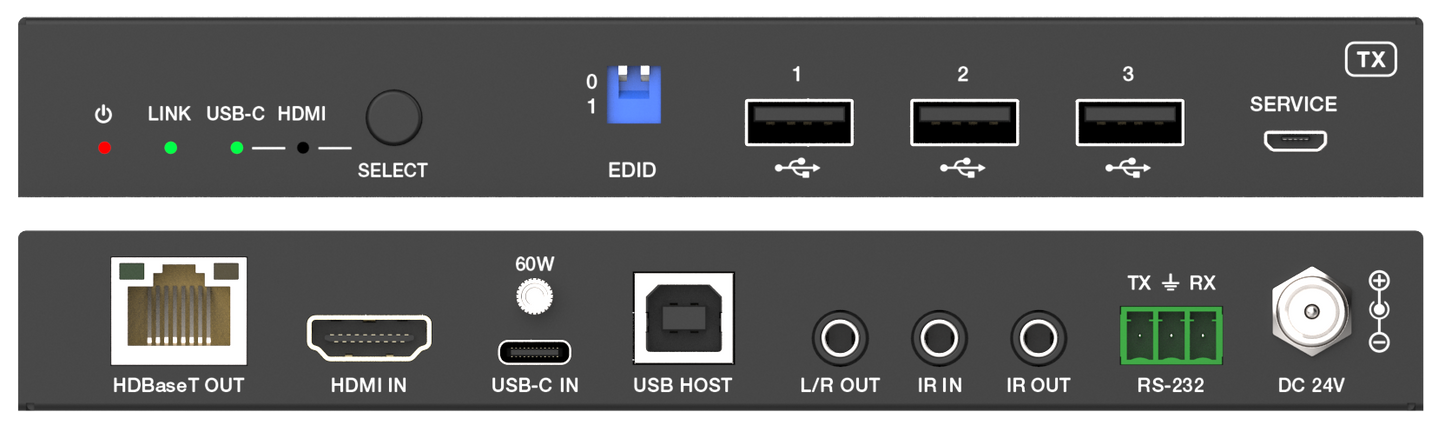

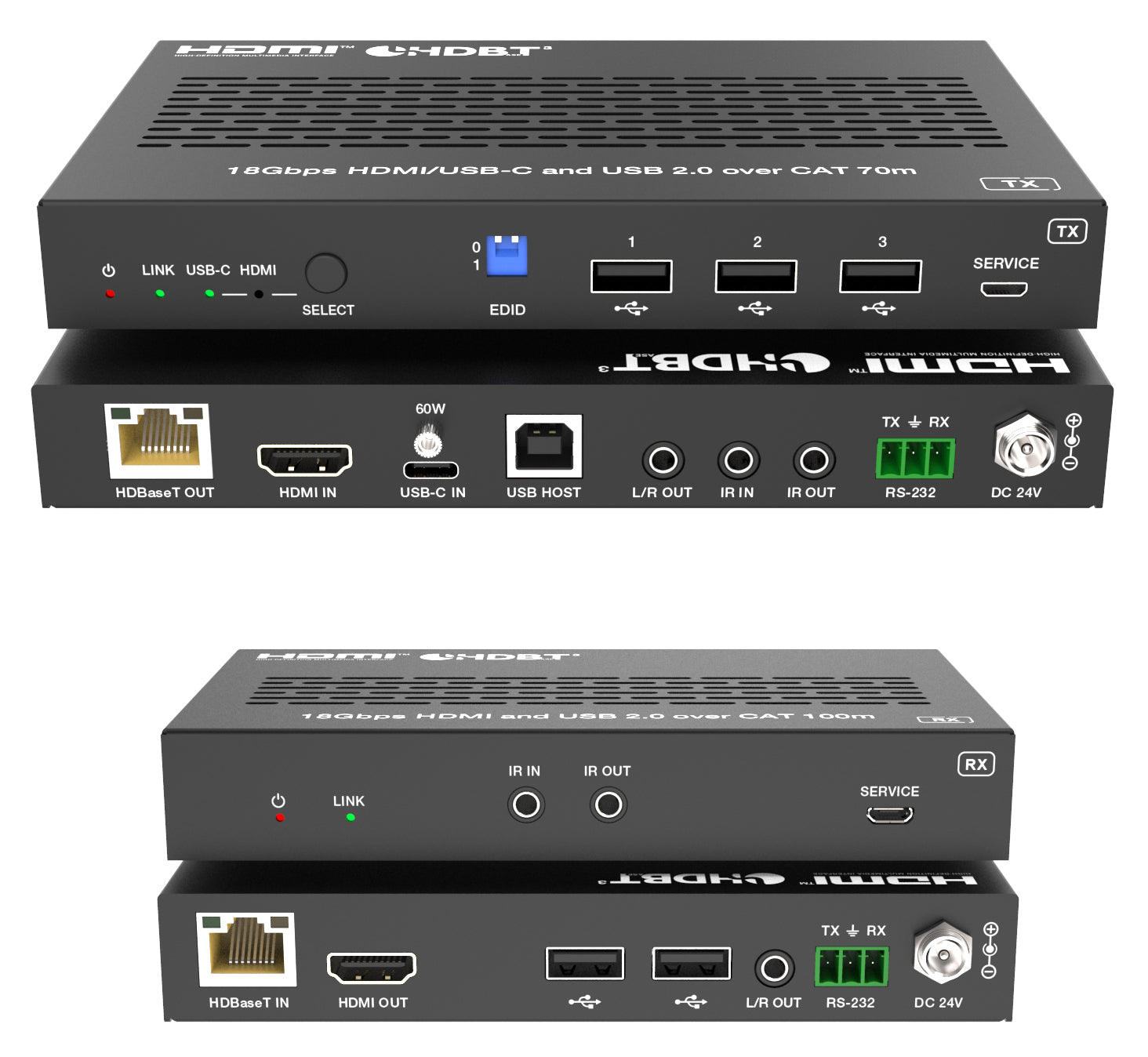

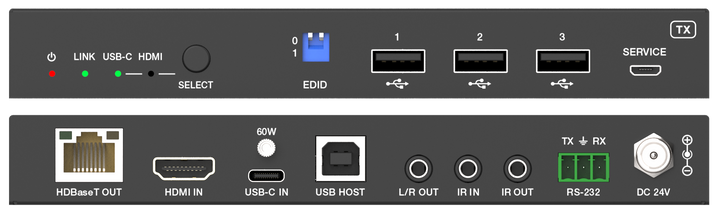

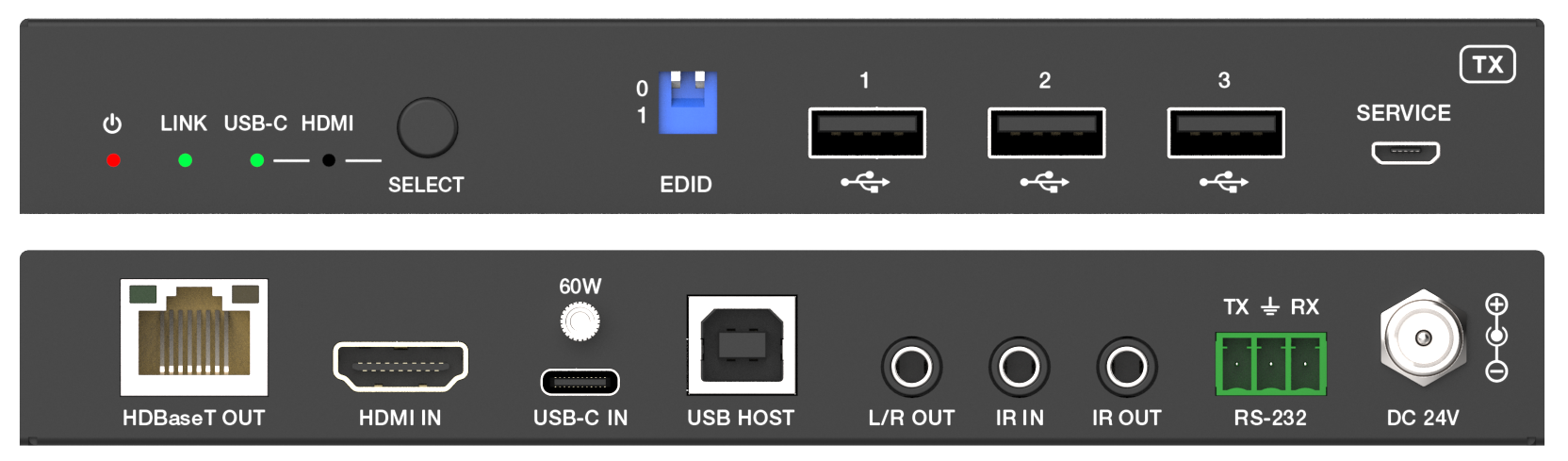

Transmitter
Input: 1 x HDMI IN [Type A, 19-pin female]
1 x USB-C IN [USB Type C, 24-pin female]
Output: 1 x HDBaseT OUT [RJ45, 8-pin female]
1 x L/R OUT [3.5mm Stereo Mini-jack]
Control: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm phoenix connector]
1 x SERVICE [Micro USB, 5-pin female]
1 x USB HOST [USB Type B, 4-pin female]
3 x USB Devices [USB Type A, 4-pin female]

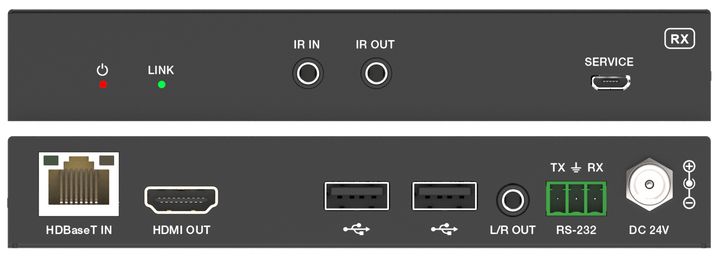

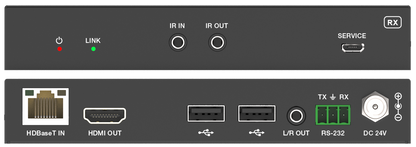

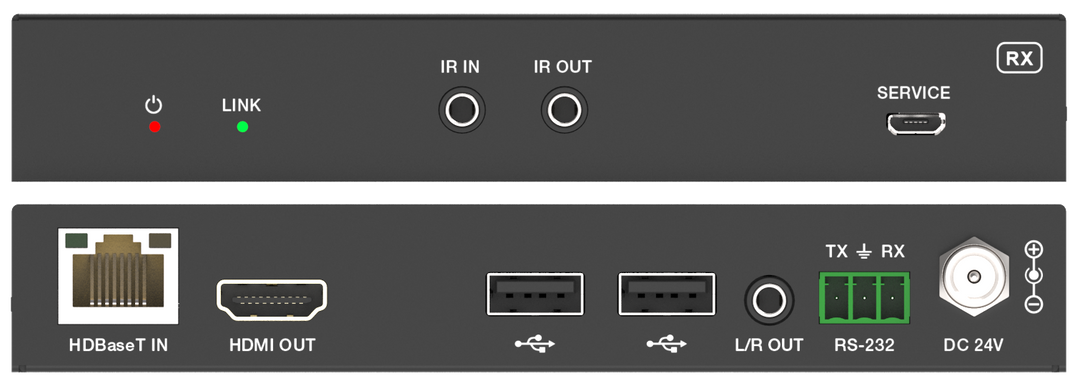

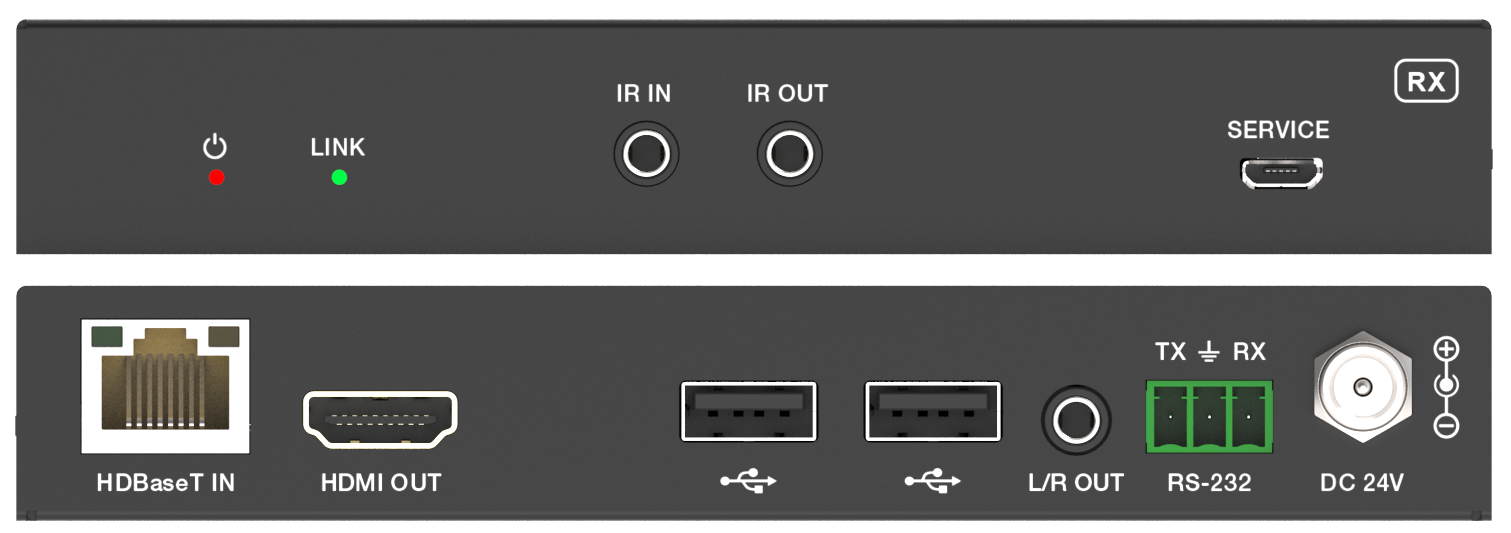

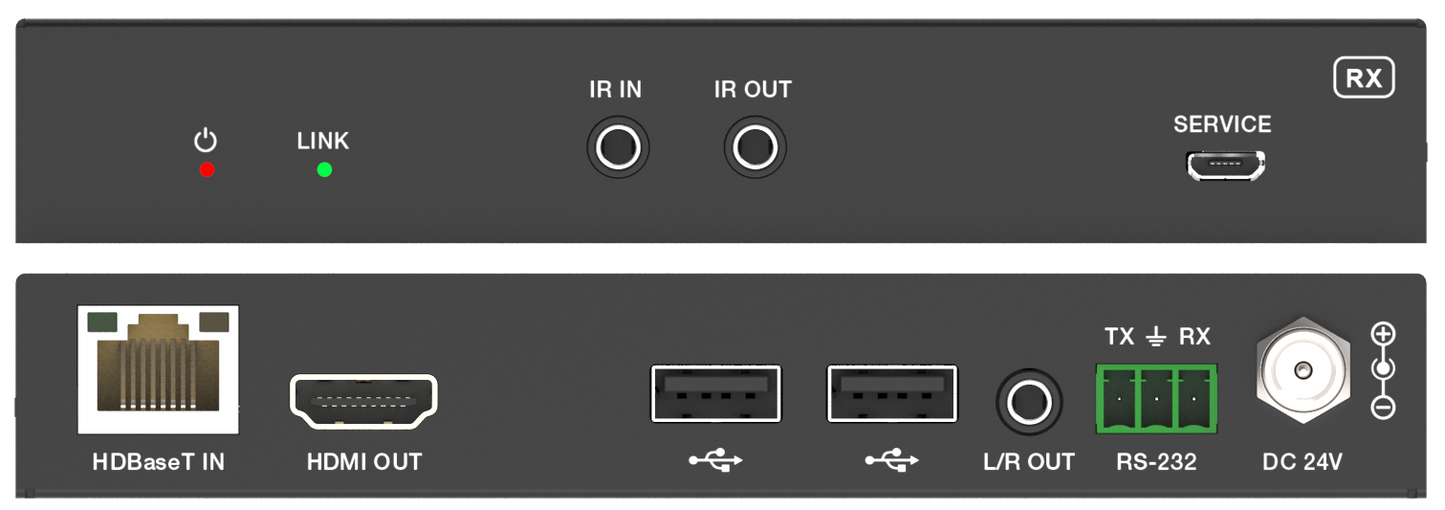

Receiver
Input: 1 x HDBaseT IN [RJ45, 8-pin female]
Output: 1 x HDMI OUT [Type A, 19-pin female]
1 x L/R OUT [3.5mm Stereo Mini-jack]
Control: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm phoenix connector]
1 x SERVICE [Micro USB, 5-pin female]
2 x USB Devices [USB Type A, 4-pin female]

Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
Transmitter: 170mm [W] x 102mm [D] x 22mm [H]
Receiver: 144mm [W] x 78mm [D] x 23mm [H]
Weight
Transmitter: 484g
Receiver: 318g
Power Supply
Input: AC 100 - 240V 50/60Hz
Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified)
Power Consumption (Max)
94.32W (Power supply from TX, 60W USB-C charging, POC to RX)
10.8W (Power supply from TX or RX, without USB-C charging)
Operating Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)

• 1× 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Transmitter)
• 1× 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Receiver)
• 1× IR Blaster Cable (1.5 meters)
• 1× IR Wideband Receiver Cable (1.5 meters)
• 2× 3pin-3.81mm Phoenix Connector (male)
• 4× Mounting Ear
• 8× Machine Screw (KM3*4)
• 1× 24V/3.75A Desktop Power Supply
• 1× User Manual
