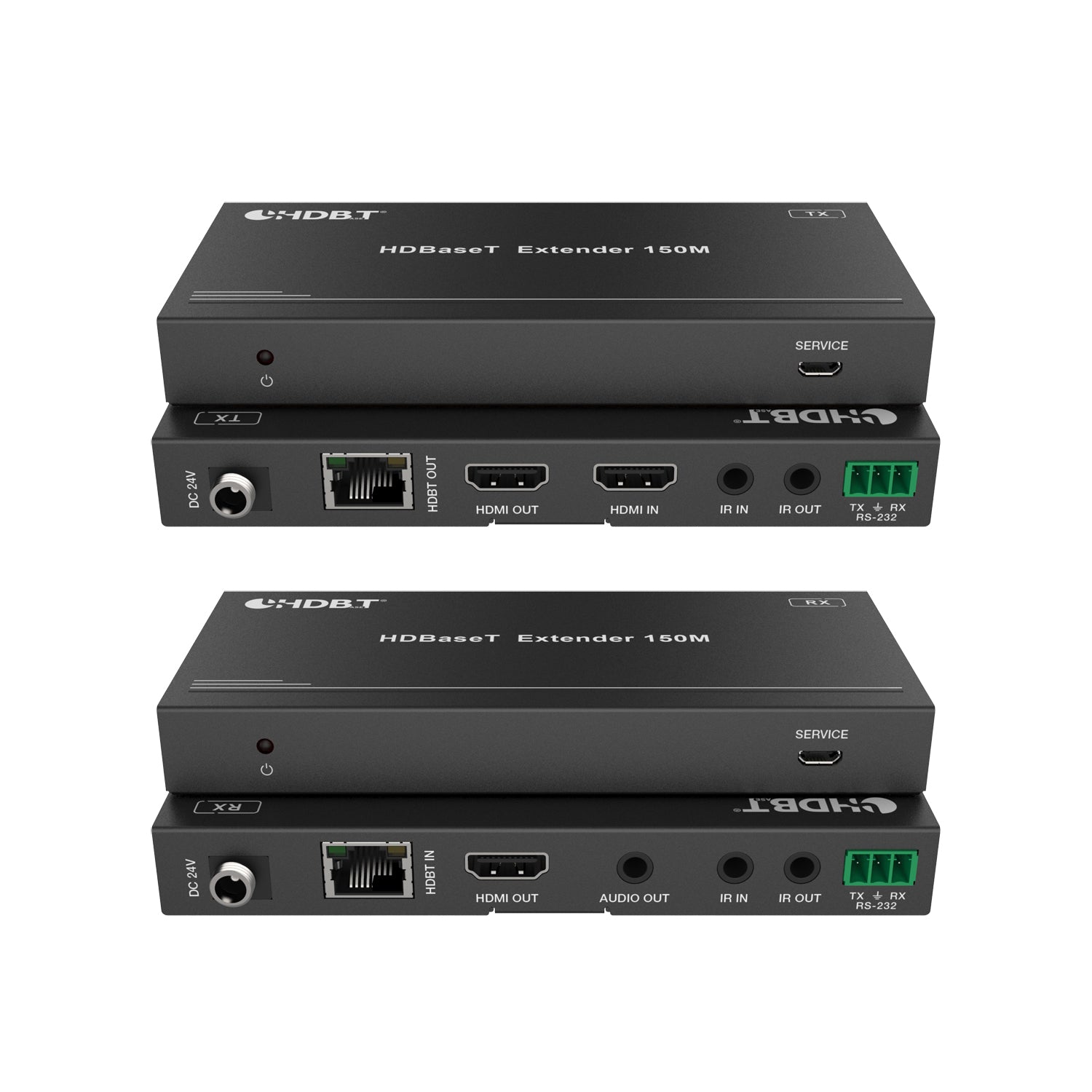

DVDO Xtend Pair150 4K60 HDMI 150m Extender Over HDBaseT (Tx/Rx)

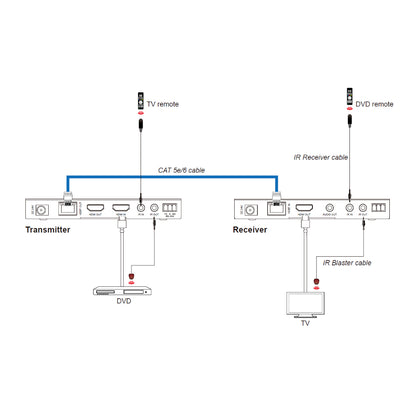

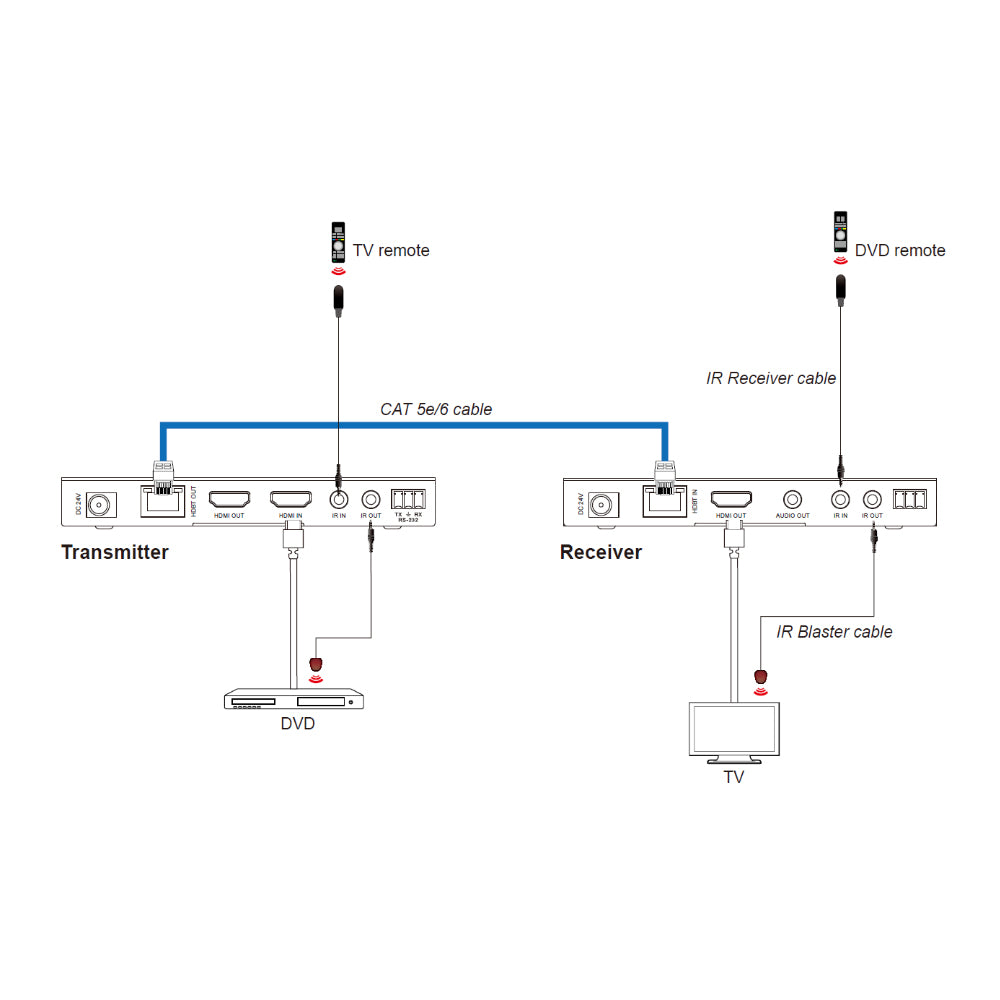

This 18Gbps HDMI extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150m between transmitter and receiver via a single CAT cable. It supports resolutions up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. The extender also supports de-embedded audio for L/R audio output. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

• HDMI 2.0b / HDCP 2.2 & 1.4 / DVI 1.0 compliant
• Support 18Gbps video bandwidth
• The maximum extended transmission distance via a single Cat5e/6 cable:
• 394ft / 120m for 4K2K signals
• 492ft / 150m for 1080p signals
• Support one HDMI loop output on the transmitter
• Extract audio to analog stereo output on receiver
• Bi-directional IR, RS-232 and CEC pass-through
• HDR, HDR10+, Dolby Vision and HLG function supported
• Support PoC (Power over Cable) function
• Compact design for easy and flexible installation

Technical
HDCP Compliance
HDCP 2.2 / HDCP 1.4
Video Bandwidth
18Gbps
Video Resolution
4K2K 50/60Hz 4:4:4
4K2K 50/60Hz 4:2:2
4K2K 50/60Hz 4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All HDMI 3D TV formats
All PC resolutions including 1920 x 1200
Color Space
RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
8-bit (4K60Hz 4:4:4 )
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby
TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS
HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats
PCM 2.0
ESD Protection
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

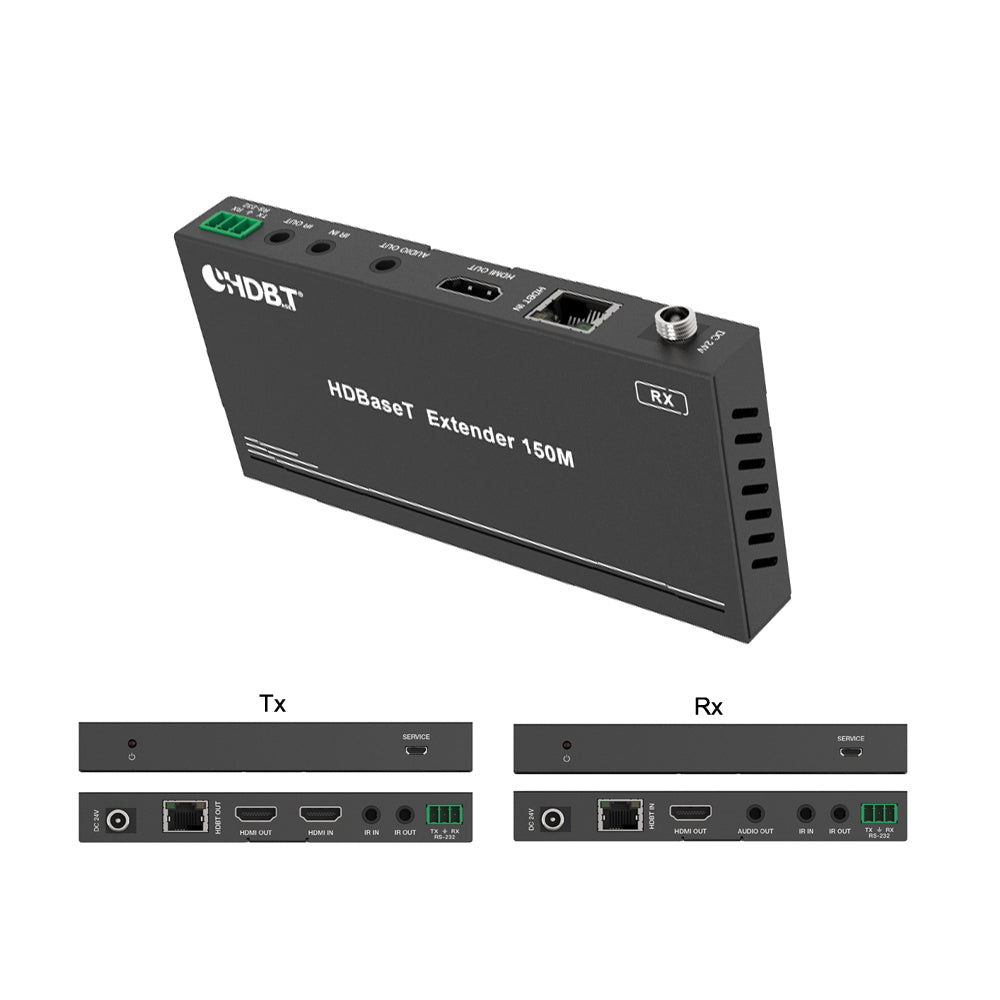

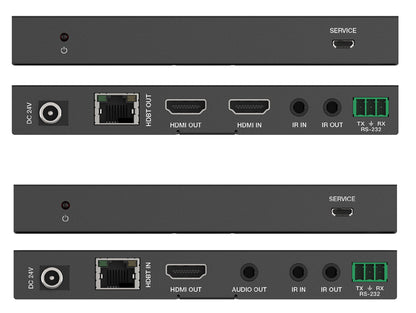

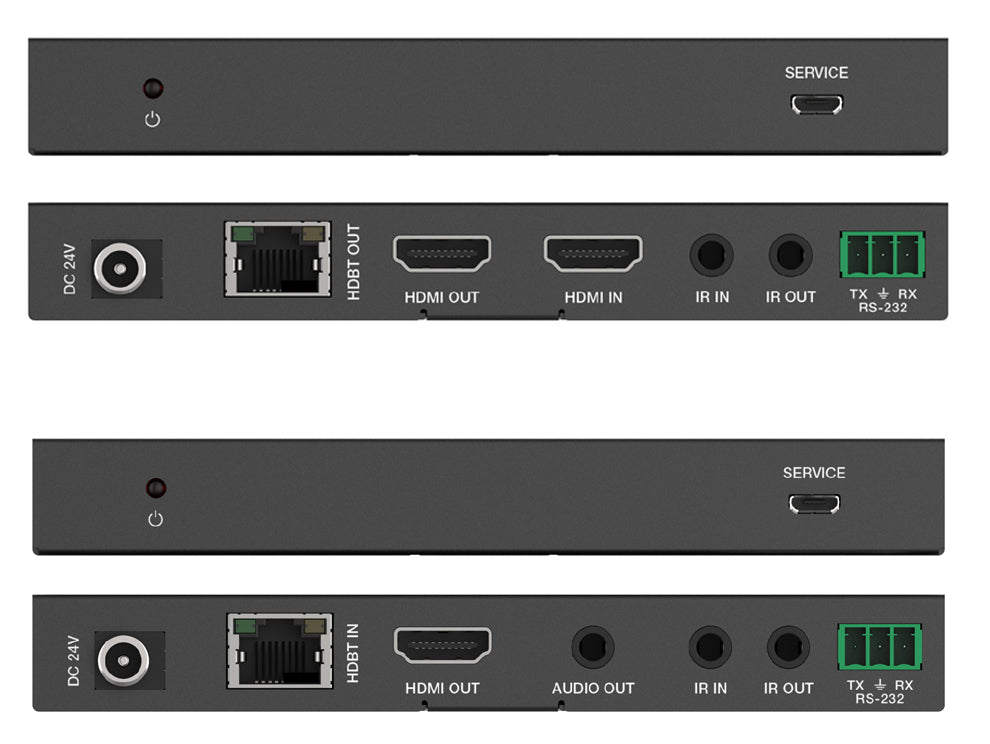

Connection
Transmitter
Inputs: 1x HDMI Type A [19-pin female]
Outputs: 1x HDMI Type A [19-pin female]
1x HDBT OUT [RJ45, 8-pin female]
Control: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port]
Receiver
Inputs: 1x HDBT IN [RJ45, 8-pin female]
Outputs: 1x HDMI Type A [19-pin female]
1x AUDIO OUT [3.5mm Stereo Mini-jack]
Control: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port]

Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions Transmitter / Receiver:
140mm [W] x 65mm [D] x 18mm [H]
Weight
Transmitter: 160g, Receiver: 155g
Power Supply
Input: AC 100 - 240V 50/60Hz
Output: DC 24V/1A (Locking connector)
Power Consumption
9.36 W
Operating Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)

Resolution / Distance
4K2K
394ft / 120M
1080P
492ft / 150M

• 1x 18Gbps HDMI over HDBaseT Extender (Transmitter)
• 1x 18Gbps HDMI over HDBaseT Extender (Receiver)
• 1x IR Blaster cable (1.5 meters)
• 1x 20~60KHz IR Receiver cable (1.5 meters)
• 4x Mounting Ear
• 2x 3-pin Phoenix connector
• 1x 24V/1A Locking Power adapter
• 1x User Manual
