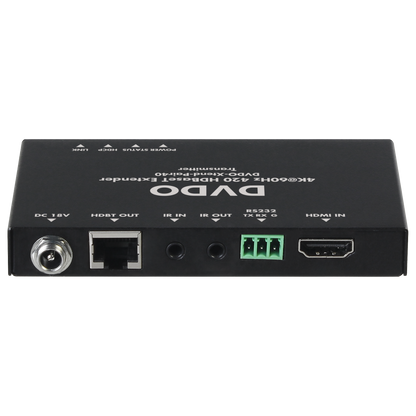

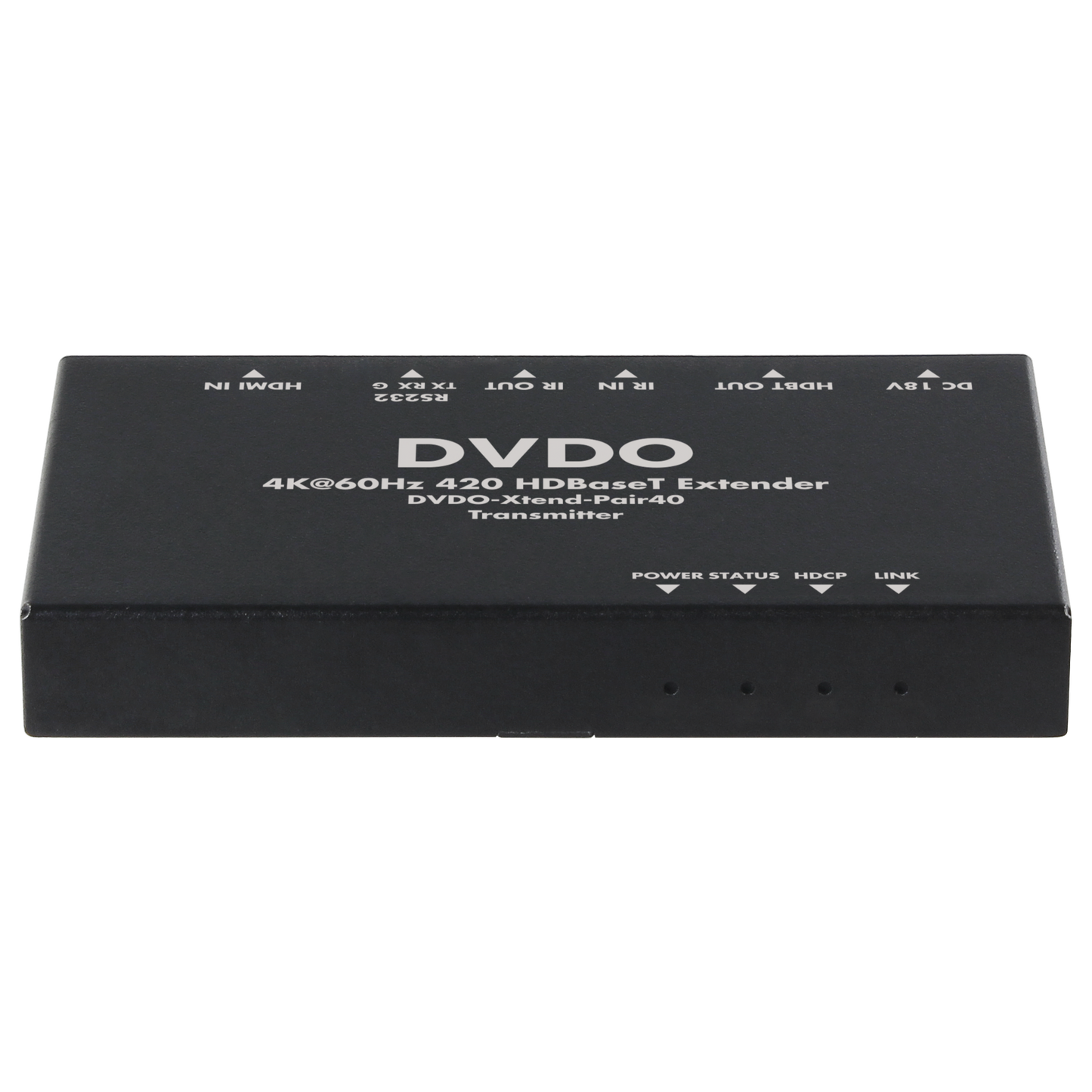

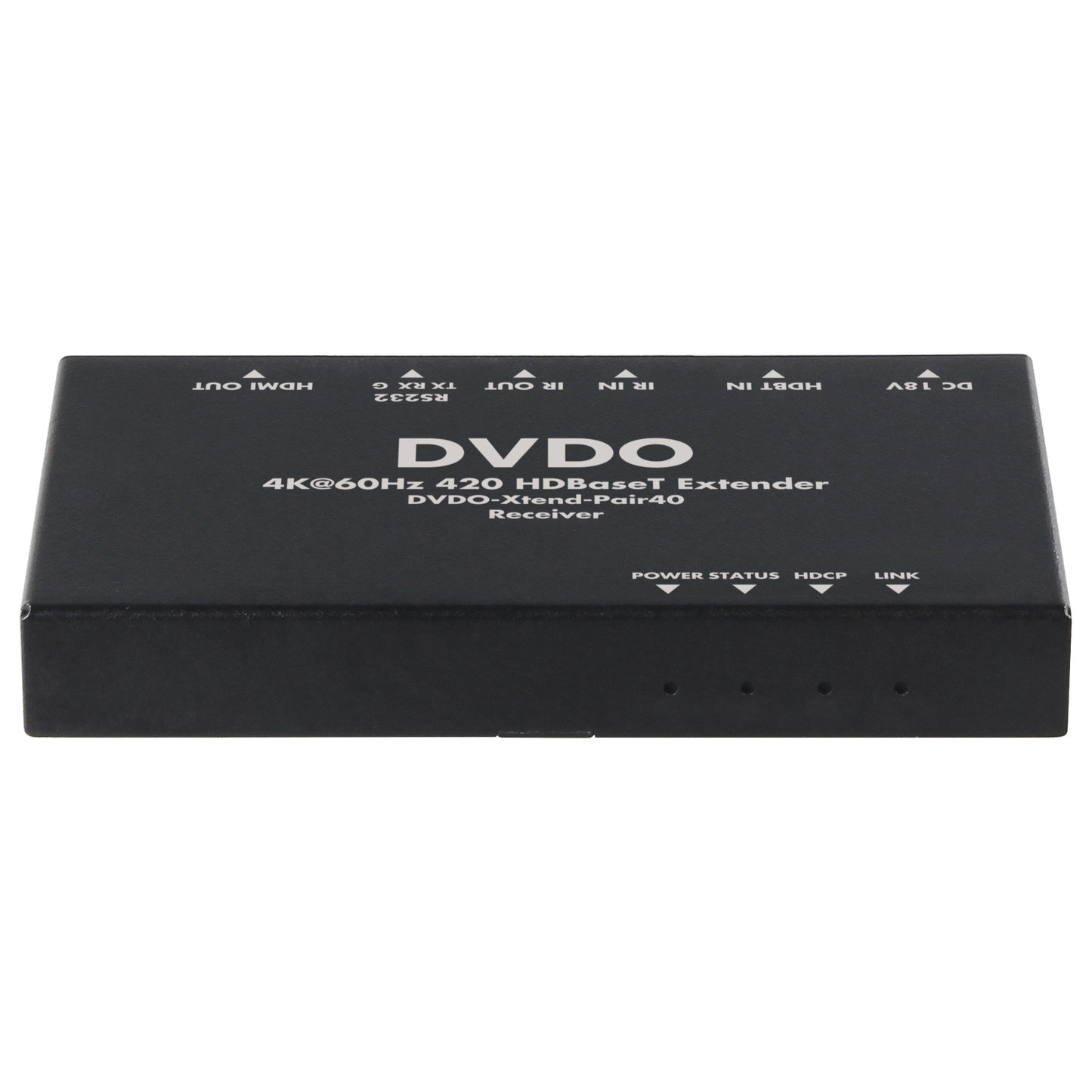

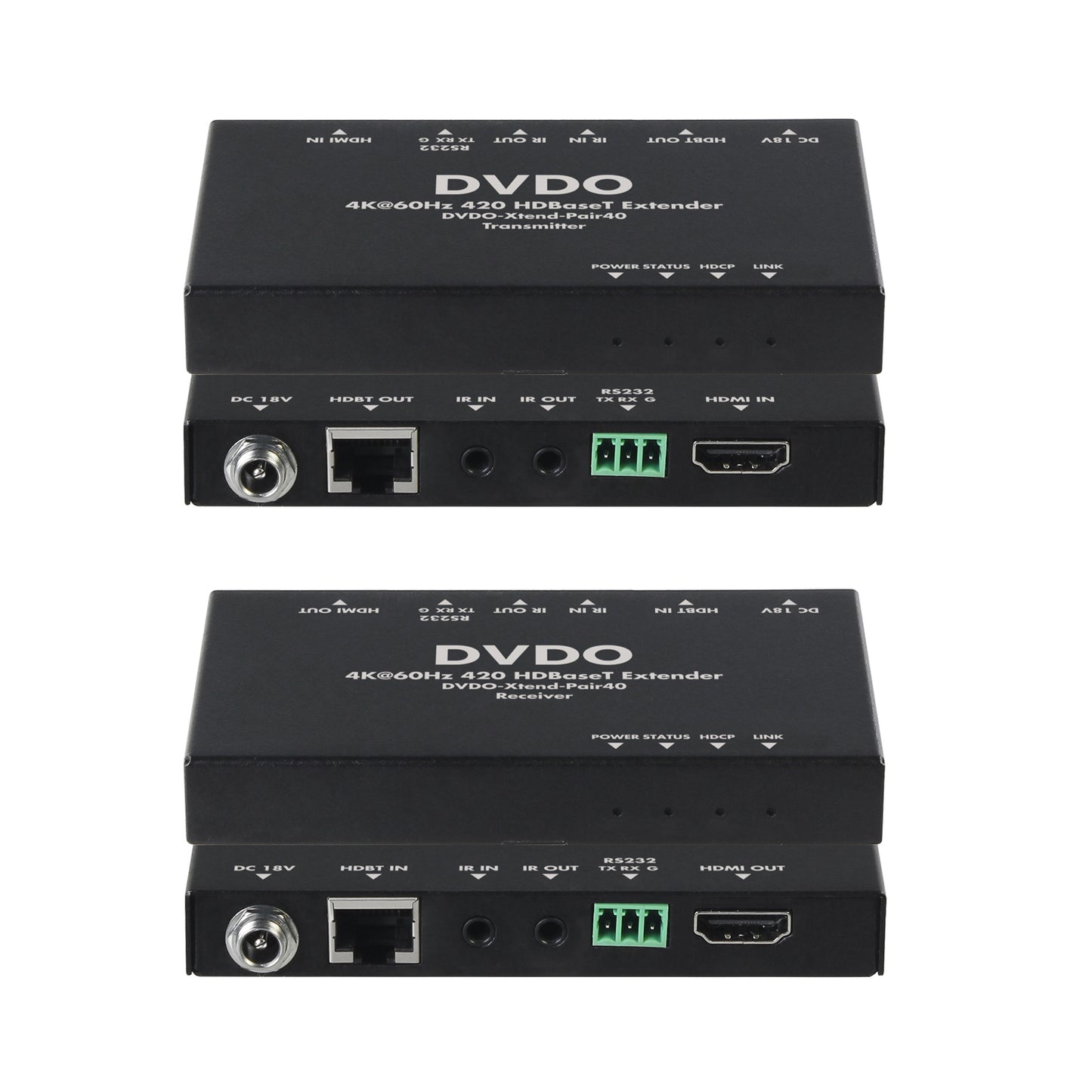

DVDO Xtend Pair40 4K60 HDMI 40m Extender Over HDBaseT (Tx/Rx)

DVDO-Xtend-Pair40 is an ultra-slim HDMI extender over HDBaseT that can transmit 4K60 (4:2:0 8-bit 10.2Gbps) signals up to 40m/130ft and 1080p signals up to 70m/230ft via a single Cat6a/7 cable. With a feature set including HDCP 2.2 compatibility, Dolby and DTS HD audio, RS232 and bi-directional IR control, it offers the added benefit of an incredibly low-profile for a greatly reduced form factor behind the screen for even more convenience and ease of installation at the display zone.  Its proprietary bi-directional PoC (Power over Cable) technology ensures only one power adapter is needed at either Tx or Rx side to power both units, with LED indication for visual power supply to units and signal status to show established connection between connected devices.

• Ultra-slim and cost-effective HDMI extender over HDBaseT
• HDMI 1.4 with 4K@60Hz (4:2:0 8-bit 10.2Gbps) and HDCP 2.2 compatibility
• Extends 4K60 signals up to 40m and 1080p signals up to 70m via single Cat6a/7 cable
• Multichannel audio support including PCM 2.0/5.1/7.1, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X

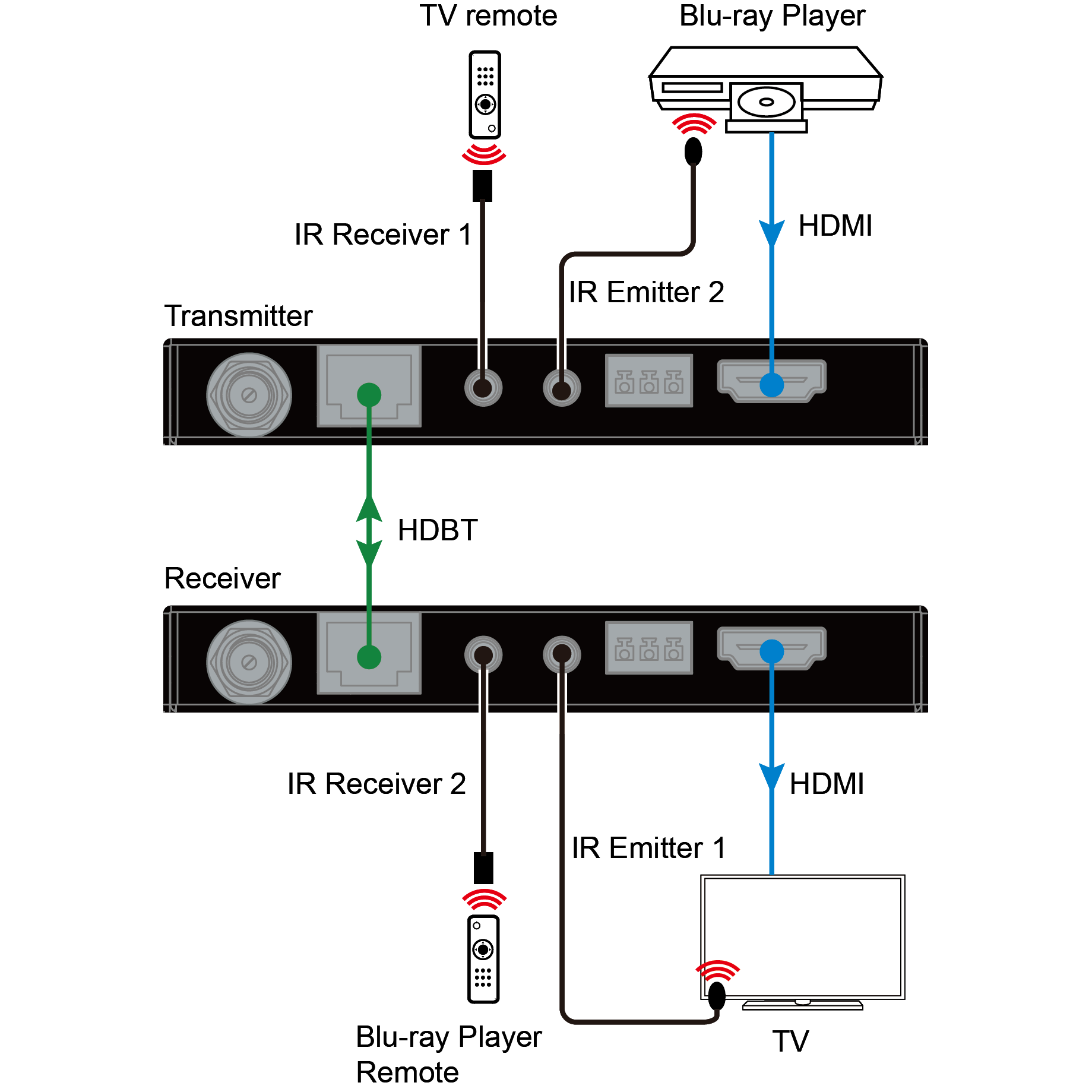

• Bi-directional IR and RS232 pass-through
• Bi-directional PoC, only one power adapter is needed at either Tx or Rx side
• Automatic EDID management

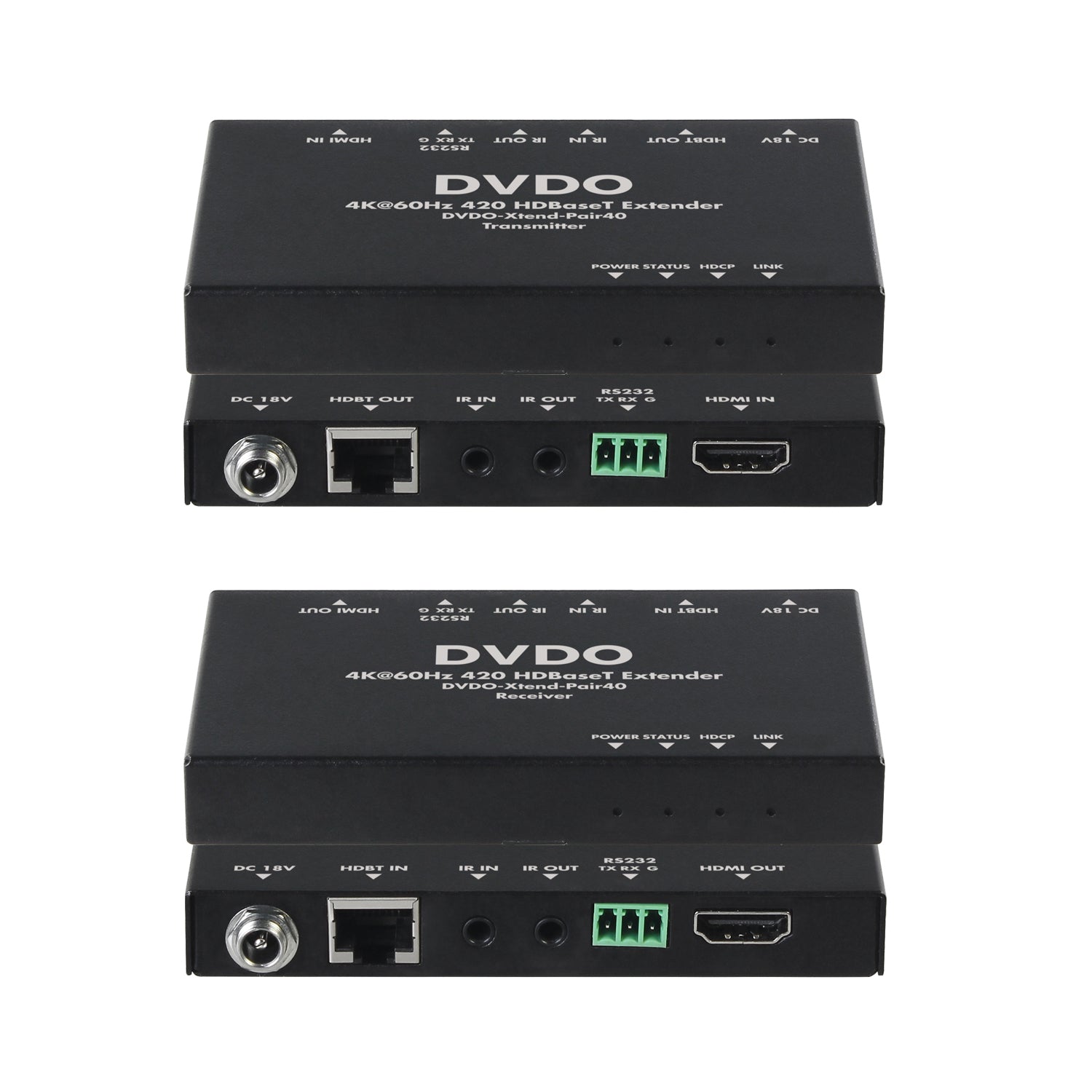

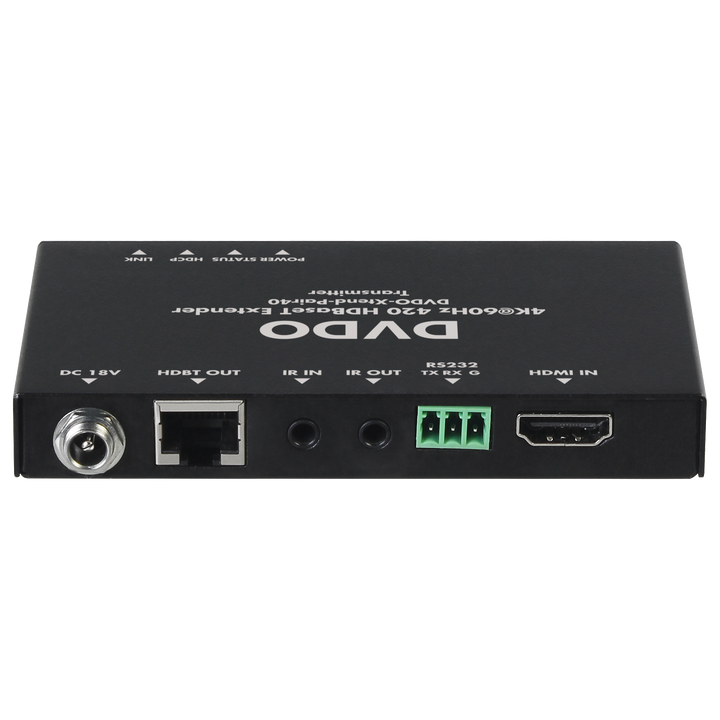

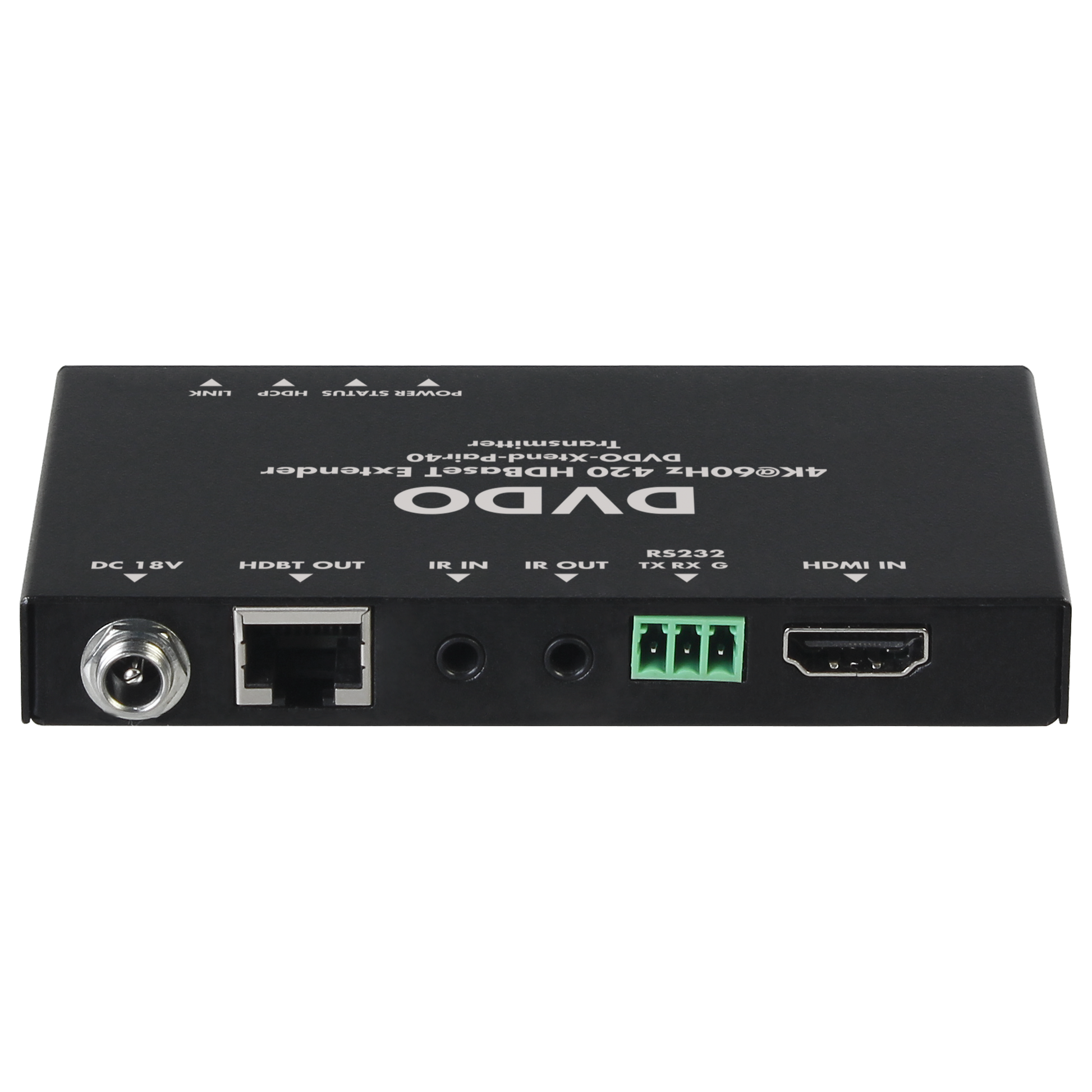

• All connectors in one side and 15mm height for easy installation


Technical
Input/Output Signal Type
HDMI with 4K@60Hz 4:2:0, HDCP 2.2
Input/Output Resolution Supported
Up to 4096x2160@60Hz, including 4K@60Hz/
4K@30Hz/1080P/1080i/720P
Note:4096x2160/3840x2160@50/60Hz is based on chroma sub-sampling 4:2:0 8-bit only.
Deep color
4K: 8/10/12 bit
1080P: up to 16 bit
Maximum Data Rate
10.2 Gbps
Maximum Pixel Clock
340MHz
Audio Format Supported
Supports multichannel audio up to PCM 7.1,
Dolby True HD, DTS HD Master Audio, Dolby
Atmos and DTS:X

General
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
10% to 90%, non-condensing
ESD Protection
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
Power Supply
DC 18V 1A
Power Consumption (Max)
8.88W (Pair, PoC)
Device Dimensions (W x H x D)
108.8mm x 15mm x 64.2mm/ 4.3" x 0.6’’ x 2.5’’ each for TX/RX
Product Weight
0.18kg/0.4lb each for TX/RX

Transmission Distance
Note: The use of T568B straight-through Category cables is recommended.
Cable Type Range Supported Video
HDMI
Input/Output:15m/50ft 1080P@60Hz
Input: 10m/33ft
Output: 15m/50ft 4K@60Hz
Cat 5e/6
60m/200ft 1080P@60Hz
35m/115ft 4K@60Hz
Cat 6a/7
70m/230ft 1080P@60Hz
40m/130ft 4K@60Hz

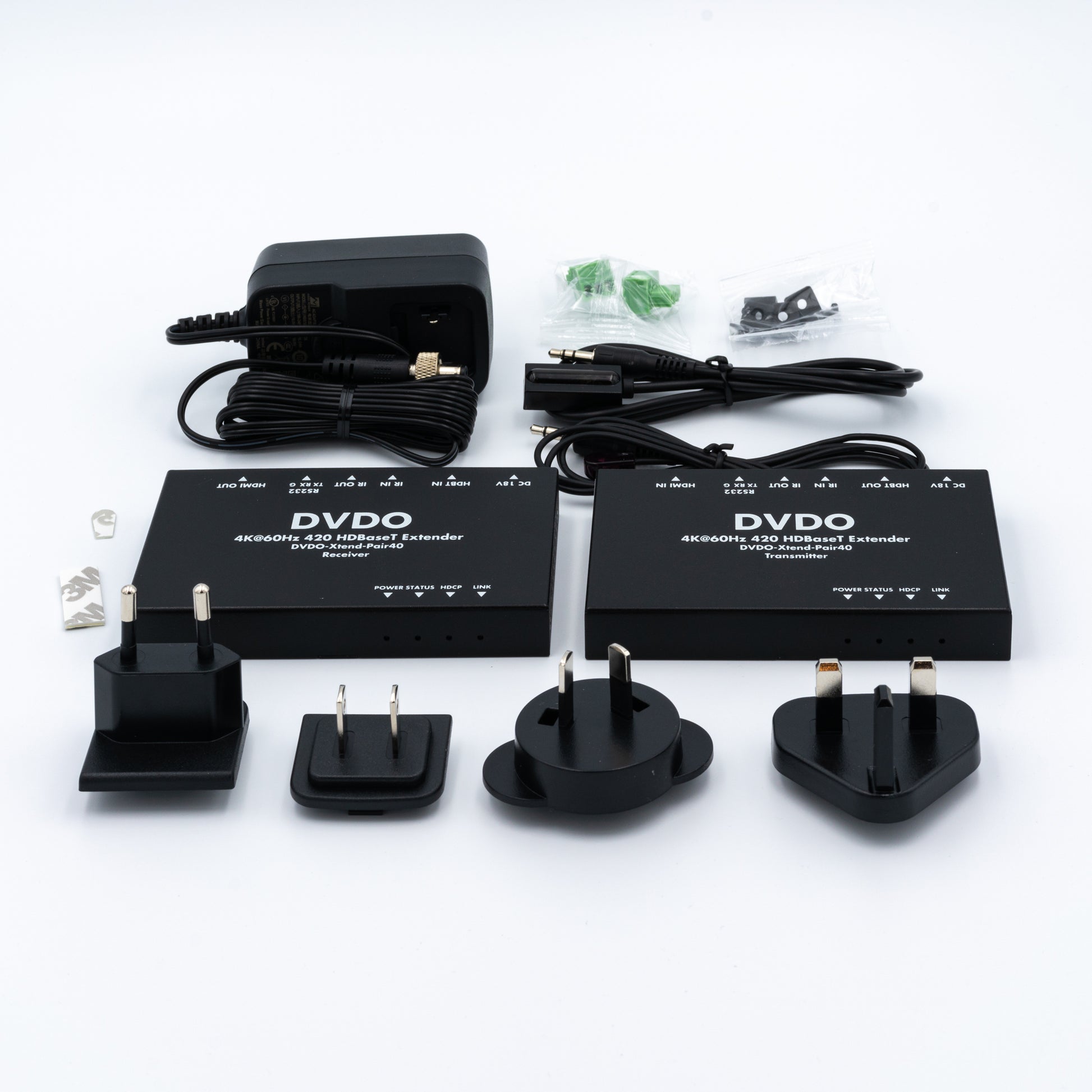

• DVDO-Xtend-Pair40 (Transmitter Receiver Set) x 1
• DC 18V 1A Power Adapter (with US, UK, EU, AU Pins) x 1
• IR Emitter x 1
• Broadband IR Receiver (30-50 KHz) x 1
• Phoenix Male Connectors (3.5mm, 3 Pins) x 2
• Mounting Brackets (with Screws) x 4
• User Manual x 1
