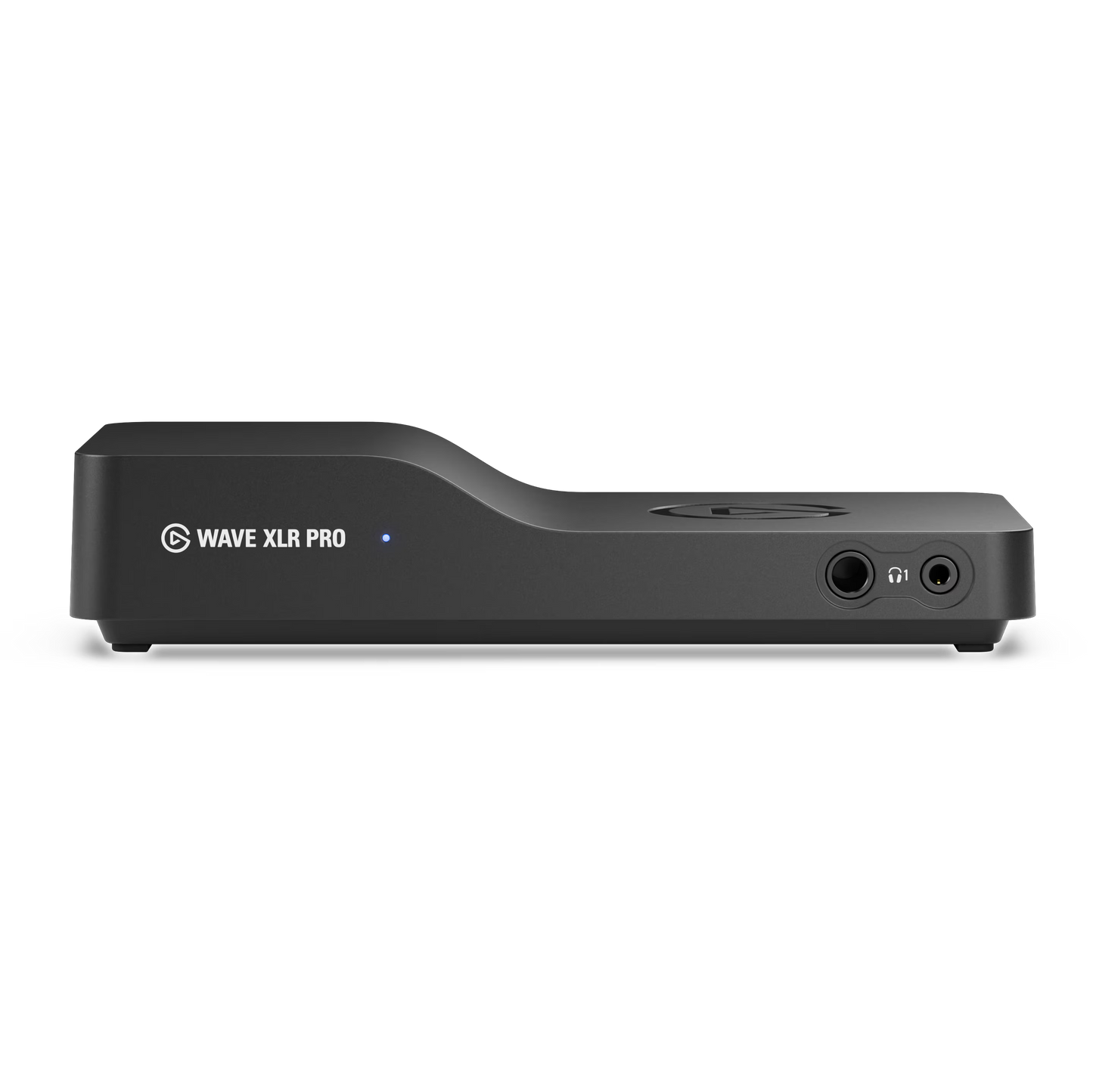

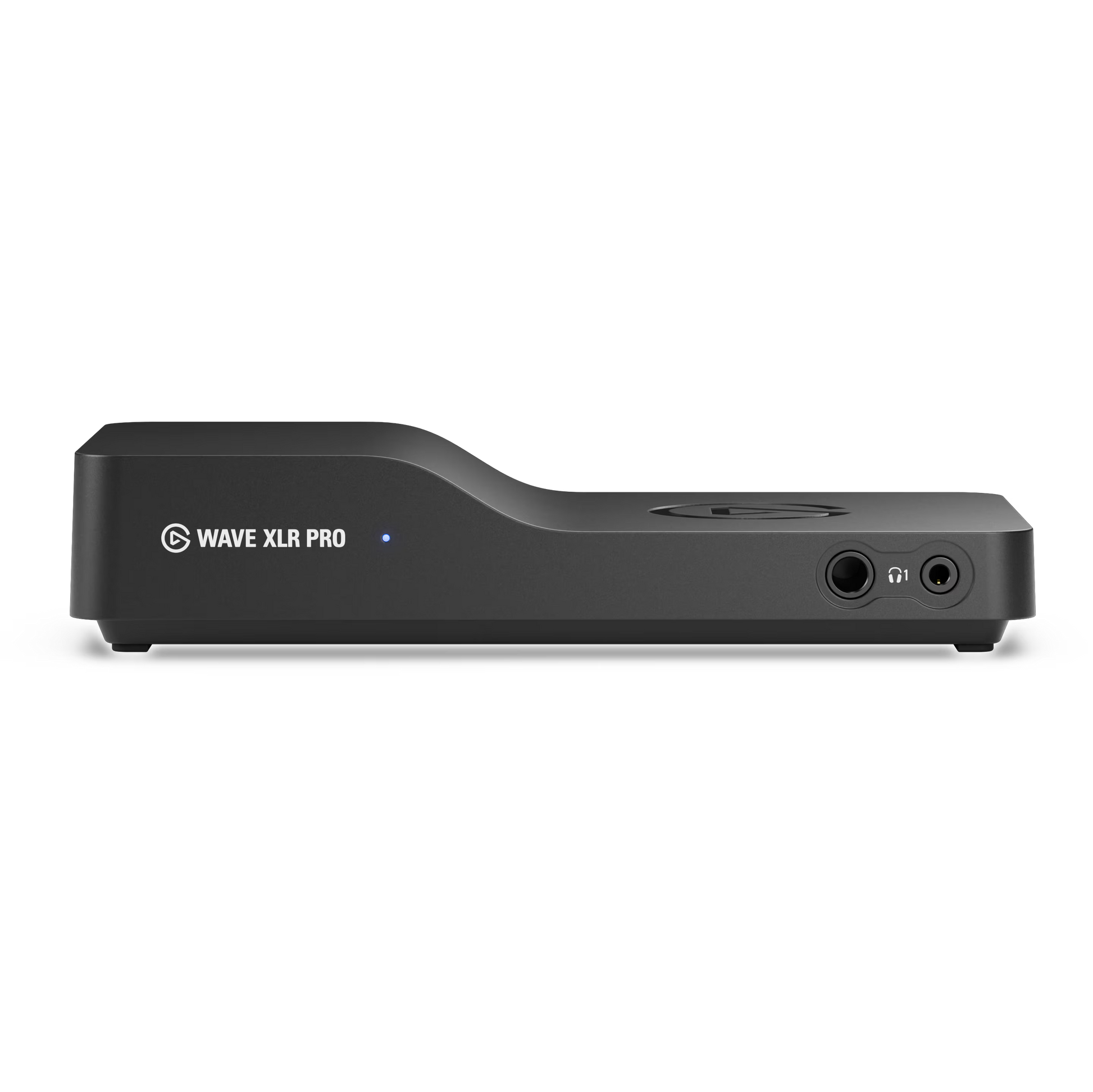

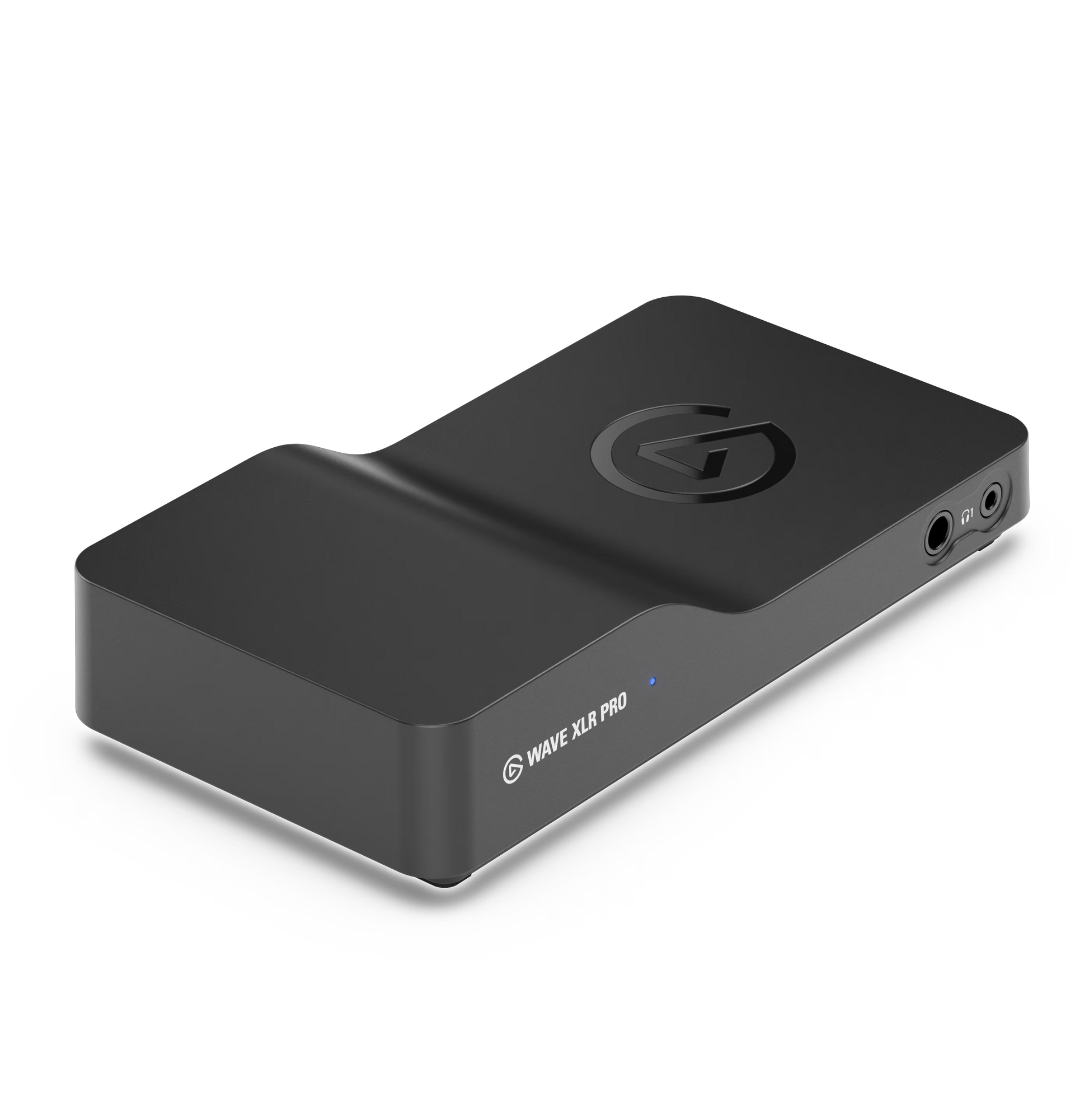

Elgato Wave XLR Pro

Elgato Wave XLR Pro
Route and mix like never before. Wave XLR Pro brings dual mic inputs, onboard processing, and advanced routing together in a single, compact device. With powerful matrix mixing via Wave Link, and optional tactile control using Stream Deck, it replaces complexity with clarity, delivering studio-grade sound and precise monitoring for workflows that demand more.

Features:

• Elite Soundstage: Massive 80dB gain for two XLR mics.
• Wave FX Processor: Runs DSP effects and VST plugins in one signal chain.
• Clipguard 2.0: Proprietary next-gen tech prevents distortion.
• Precision Monitoring: Hear every detail with ultra-low latency.
• Dual USB-C: Connect a second PC, console, or phone.
• Analog I/O: Integrate line-level gear into your setup.
• Flexible Routing: Patch any input to any output.
• Multiple Mixes: Manage up to five independent hardware mixes.
• Works with Stream Deck: Tactile control and setup integration.
• Matrix Mixing: Use Wave Link to mix and route like a pro.

• XLR input:
  • Frequency range: 20 - 20.000 Hz
  • Dynamic range: 135 dBEquivalent Input Noise (EIN) (A-weighted): -130 dBV(A)
  • Gain: 80 d (digital)Phantom Power: 48 V, 7 mA
  • Maximum input level: 6 dBVADC resolution and sample frequency: 24 bit; 48 kHz
• Headphone output:
  • Maximum output level @16R: 50 mW
  • Maximum output level @600R: 18 mWDAC resolution and frequency: 32 bit; 48 kHz
• Line In
  • Frequency range: 20 - 20.000 Hz
  • Maximum input level: 10 dBV
• Line Out
  • Frequency range: 20 - 20.000 Hz
  • Maximum output level: 10 dBV

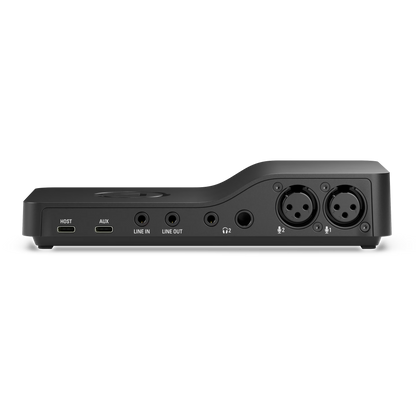

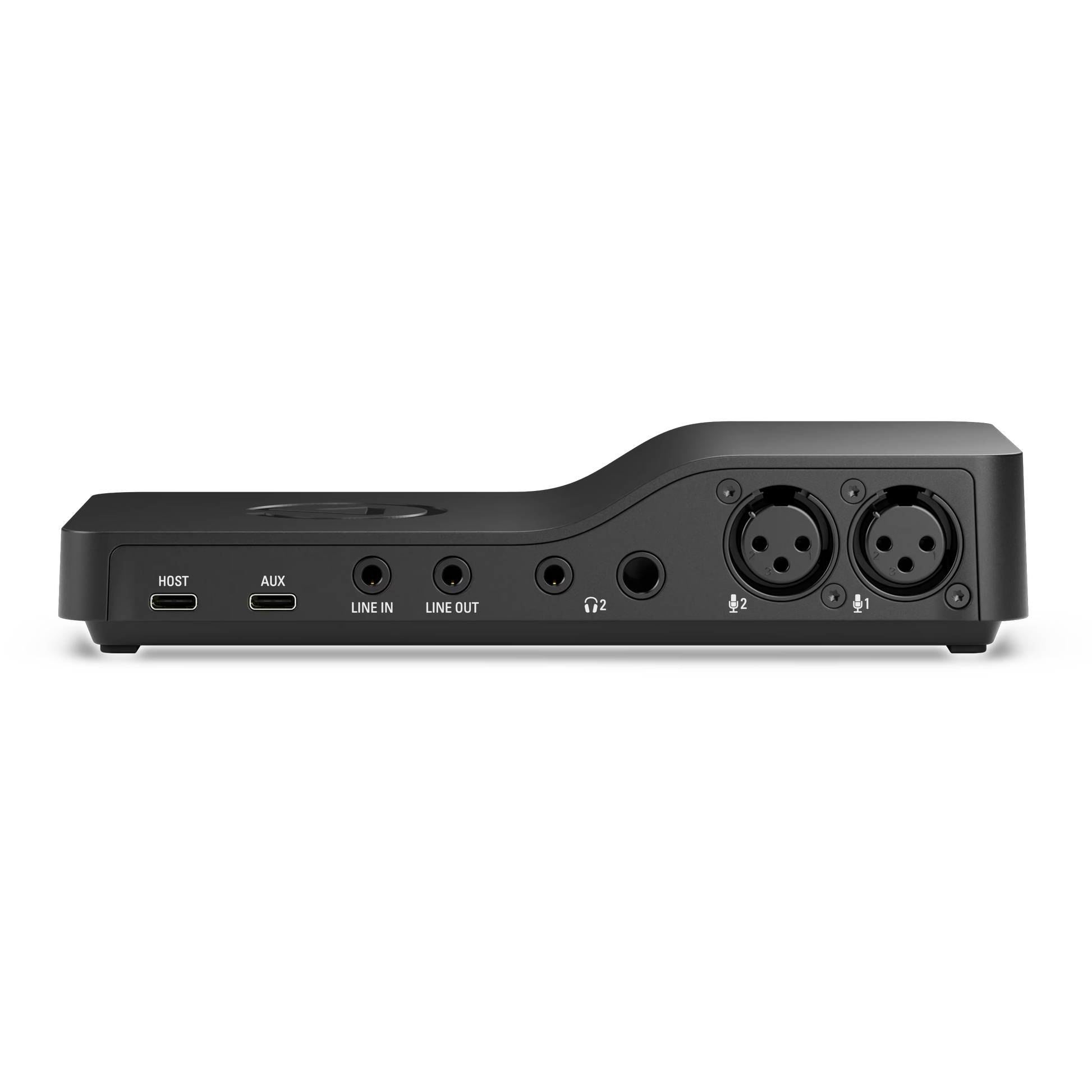

• Connectivity Connectors
  • Microphone 1 (XLR, Mono)
  • Microphone 2 (XLR, Mono)
  • Headphone 1 (6.3 and 3.5 mm TRS Jack, Stereo)
  • Headphone 2 (6.3 and 3.5 mm jack, Stereo)
  • Line Input (3.5 mm TRS jack, Stereo)
  • Line Output (3.5 mm TRS jack, Stereo)
  • Host I/O (USB-C 2.0 High-Speed)
  • Aux I/O (USB-C 2.0 Full-Speed)
  • Mounting Point: 3/8” (housing) and 1/4” (adaptor)
• Power Consumption: 5 VDV 900 mA max
• System Requirements
  • Windows 11 and higher
  • macOS 14.2 and higher
  • Wave Link 3.0 and higher
• Dimensions: (D × W × H): 3.82 × 7.28 × 1.50 in
• Weight: 385 g / 0.85 lbs

• Wave XLR Pro
• USB-C cable (150 cm | 59 in)
• Quick Start Guide
