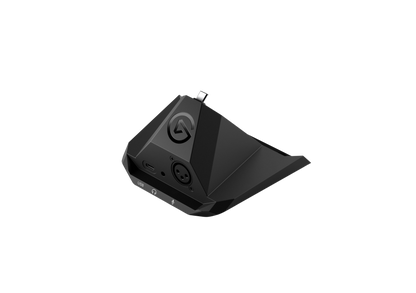

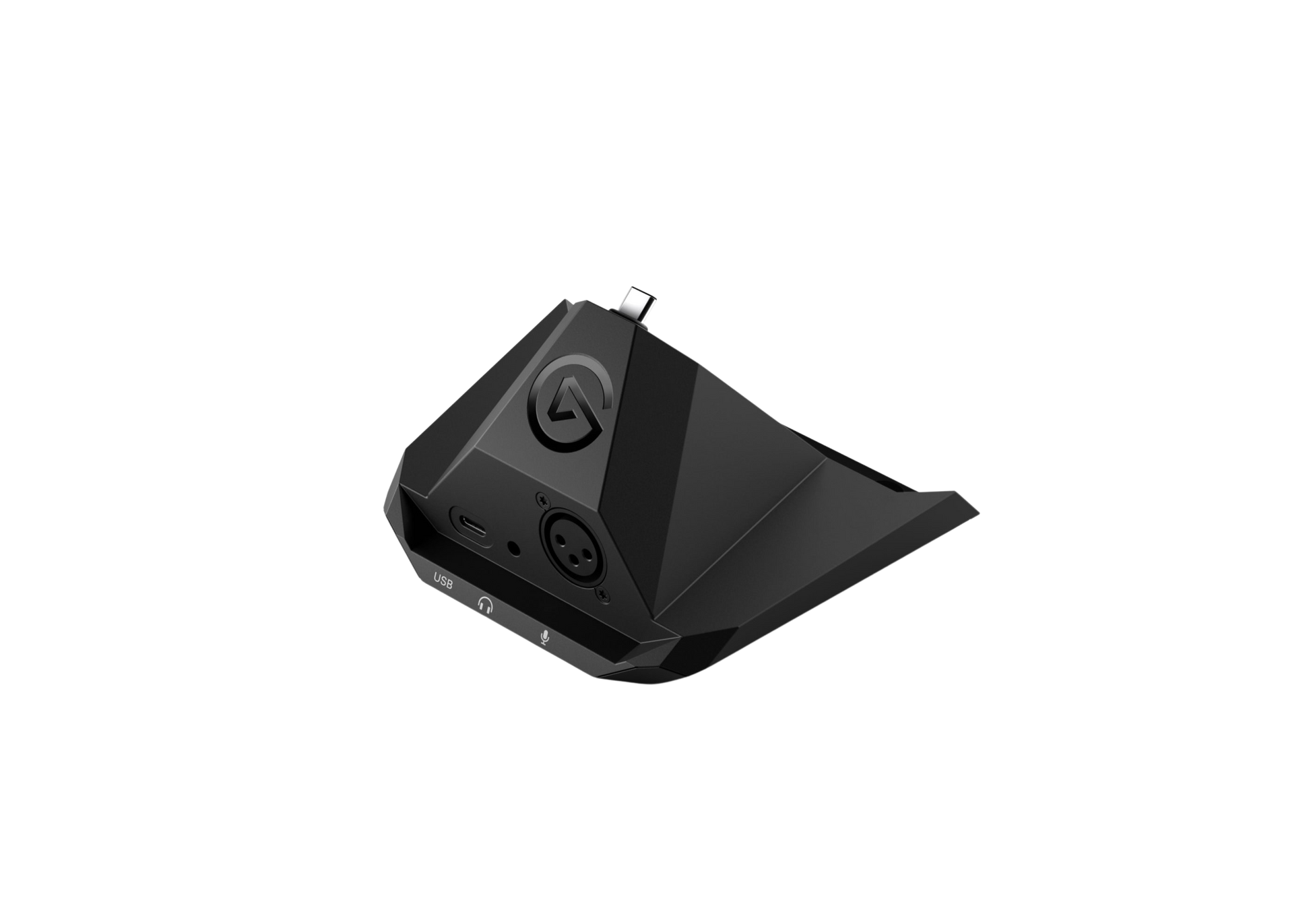

Elgato XLR Dock for Stream Deck +

Mic interface for Stream Deck +


Equipped with XLR Dock, Stream Deck + becomes the ultimate audio station. In back, plug in your XLR microphone for studio-like sound. Up front, customize controls to mix, monitor, or do just about anything. It's all your audio in one place, saving you focus and desk space.

Your Audio controller
Adjust mic gain, mute Spotify, or switch from speakers to your headset

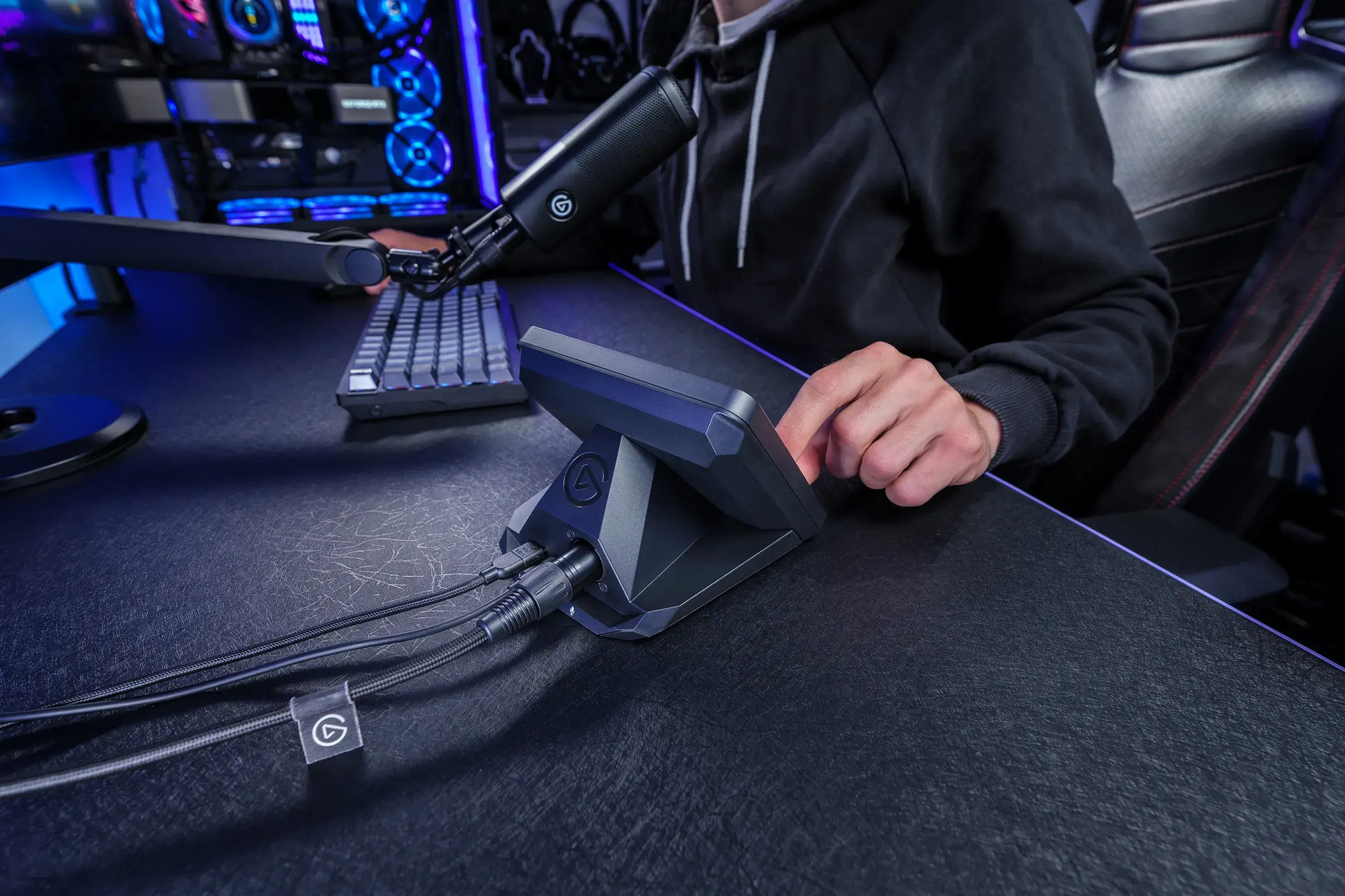

Your Mic Interface
Connect your high-end XLR microphone to any computer

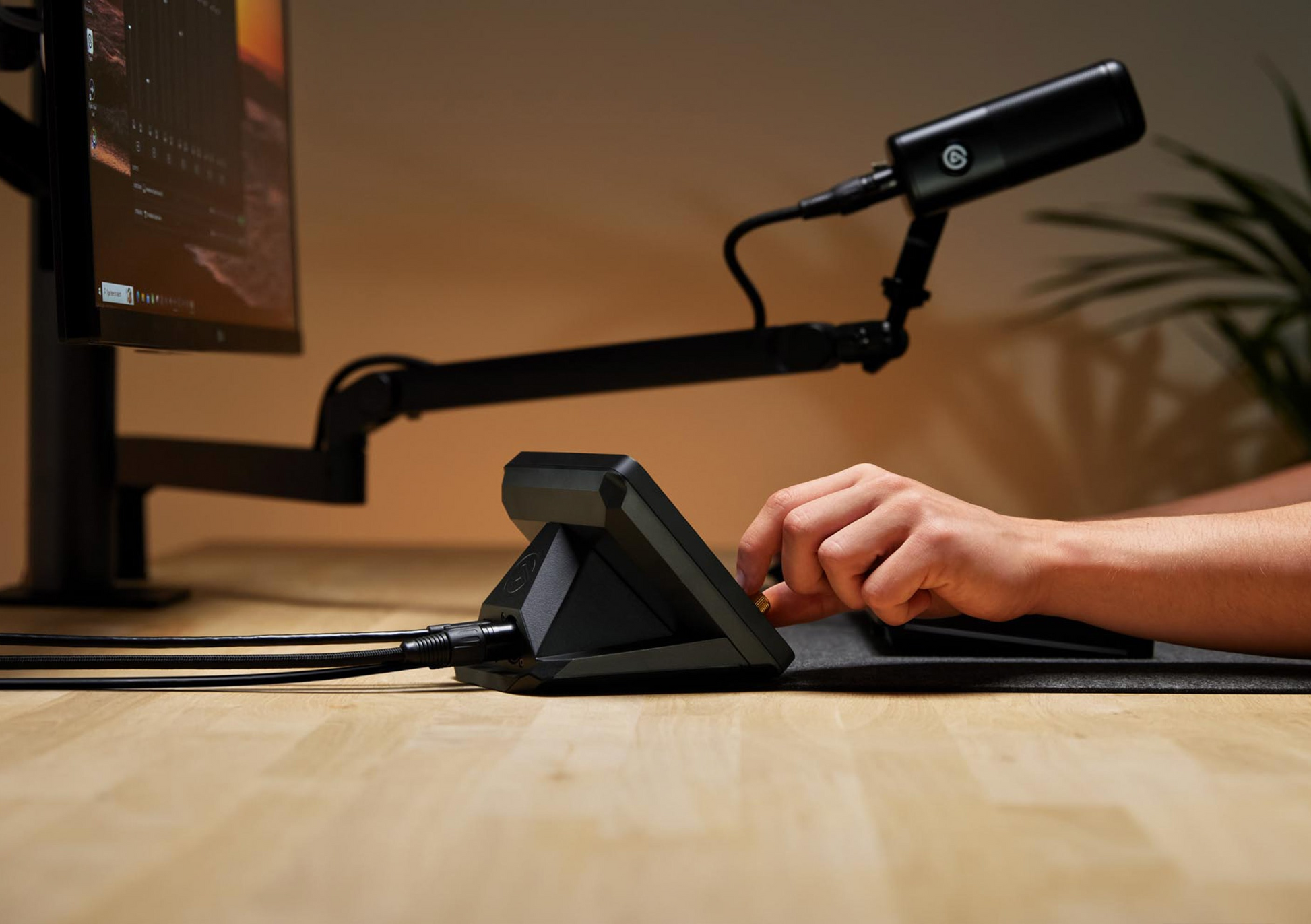

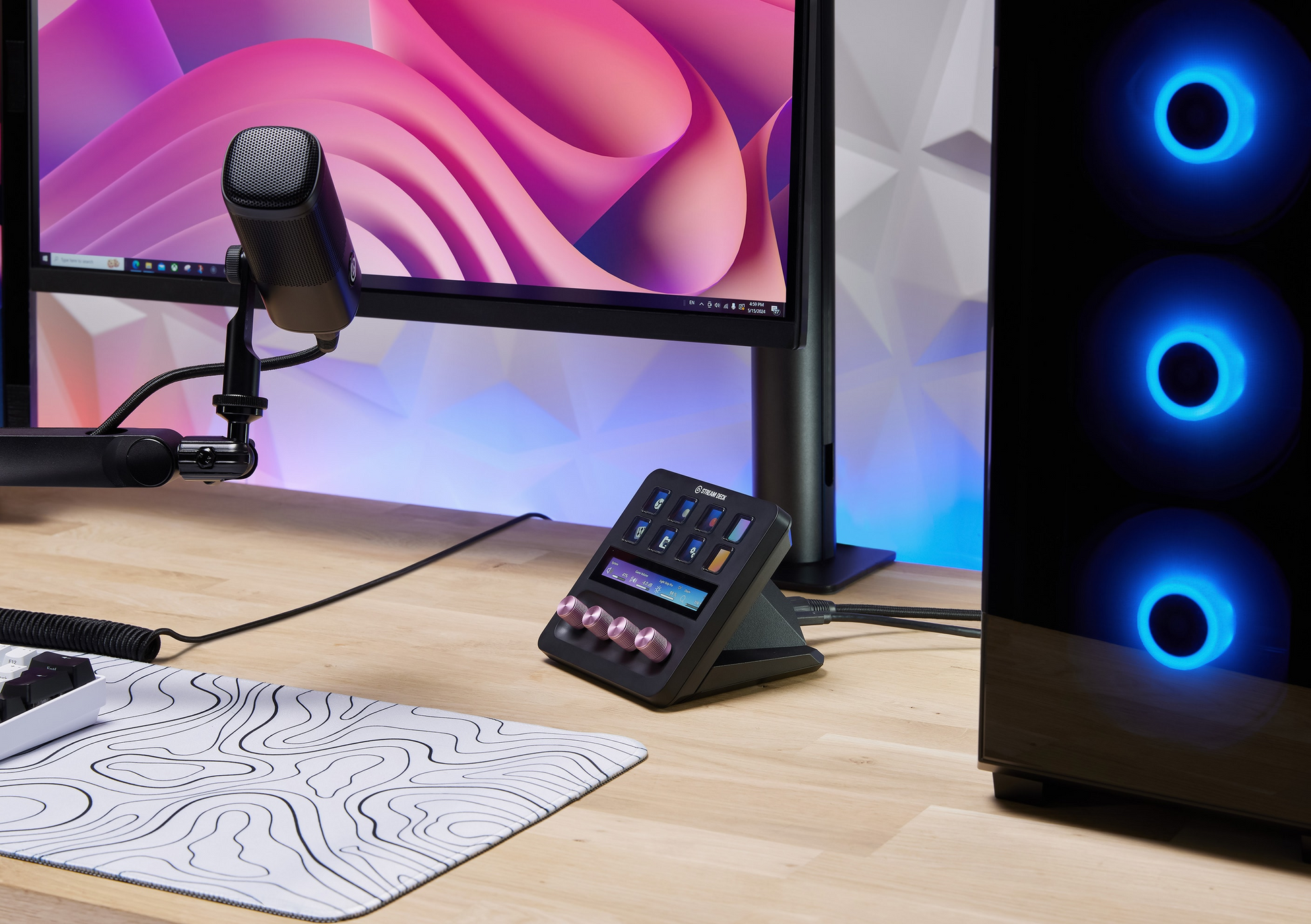

Together As One
So you can free up desk space and do even more from one device

Mini Profile, Big Sound
Not to be underestimated, XLR Dock does everything a professional audio interface can do—and then some.

Studio Preamp
Sound loud and clear without boosters or lifters

Phantom Power
Brings condenser microphones to life with 48 V

Never Clip Again
When you get loud, Clipguard prevents distortion

Zero-Latency Monitoring
Plug in headphones to hear yourself in real time

One Connection
Everything's powered by a single USB cable

It's your mixer. Soundboard. Sampler. And So Much More

Stream Deck + and XLR Dock bring all your audio controls together—not just hardware, but also your apps. Tap to use a voice changer or push to talk in Discord. Turn to adjust headphone volume. Even monitor audio levels in real time. Everything is customizable and it's all in one place.

A Snap To Assemble
Short on DIY skills? No problem. XLR Dock installs in a few easy steps using only a Phillips screwdriver.

FAQ

Can I use XLR Dock without Stream Deck +?
No, XLR Dock is special-made for Stream Deck + and can’t be used independently.

Can I connect any XLR microphone?
Yes, with up to 75 dB of gain and 48-V phantom power, XLR Dock is equipped to handle a wide range of dynamic and condenser mics.

Do I need any special drivers or software?
To use XLR Dock, make sure you're running the latest version of Stream Deck app. For additional audio settings or controls, like multi-channel mixing and effects, get the free Wave Link app.

How do I mute my microphone?
Stream Deck + makes muting your mic as simple as a tap. The fastest way is using Volume Controller plugin, which comes preloaded in Stream Deck app when you first connect XLR Dock. Alternatively, if you use Wave Link, mute your microphone with a touch using the Wave Link plugin

Can I adjust mic gain?
Sure can. In Stream Deck app, drag over a gain-control action onto any open dial using either Volume Controller or Wave Link plugin. Then turn the corresponding dial to adjust your gain as needed.

How do I turn on phantom power for my condenser mic?
Once XLR Dock is set up in Wave Link app, select the dropdown to open its settings panel. Inside, select the 48V Phantom Power checkbox to power your condenser microphone.

How do I turn on Clipguard?
Clipguard is enabled by default when you first set up XLR Dock. You can toggle this setting on and off in Wave Link app; however, for best audio quality, we recommend keeping Clipguard on at all times.

Can I monitor audio levels in real time?
Sure, it's easy. With Wave Link plugin for Stream Deck +, dial actions automatically display your current levels. So you can monitor audio in real time with a quick glance.

Can I add effects like EQ and compression?
Sure can. Once you install Wave Link, visit Elgato Marketplace to start exploring audio effects. Then install your favorites to Wave Link with a few clicks

Is a warranty included with my purchase?
Sure is. When you buy XLR Dock in its original packaging, you’re covered by a two-year limited warranty. It’s important to note, though, that in the United States, this warranty is only valid when purchased from Elgato.com or an Elgato-authorized reseller.

Where can I find help if I run into issues?
Don’t worry, you’re in good hands. For fast solutions, ask our active communities on platforms like Discord, Reddit, or X—where fellow creators and professionals are ready to help. Additionally, our help center and YouTube tutorials are great resources for troubleshooting. If you still need a hand, get in touch with our experts.

FREQUENCY RESPONSE

• 20 Hz – 20 kHz

DYNAMIC RANGE

• 100 dB (120 dB with Clipguard)

EQUIVALENT INPUT NOISE (EIN)

• -130 dBV at 60 dB gain

GAIN RANGE

• 0 – 75 dB

PHANTOM POWER

• 48 V DC, 7 mA

MAX INPUT LEVEL

• 10 V at 0 dB gain (with Clipguard)

MAX OUTPUT LEVEL

• 77 mW

RESOLUTION

• 24-bit

SAMPLE RATE

• 48 kHz

INTERFACE

• USB 2.0, Type-C

DIMENSIONS

• 137 (W) x 115 (D) x 76 (H) mm | 5.39 x 4.53 x 2.99 in

WEIGHT

• 169 g | 5.96 oz

In The Box

• XLR Dock for Stream Deck +
• Quick Start Guide
