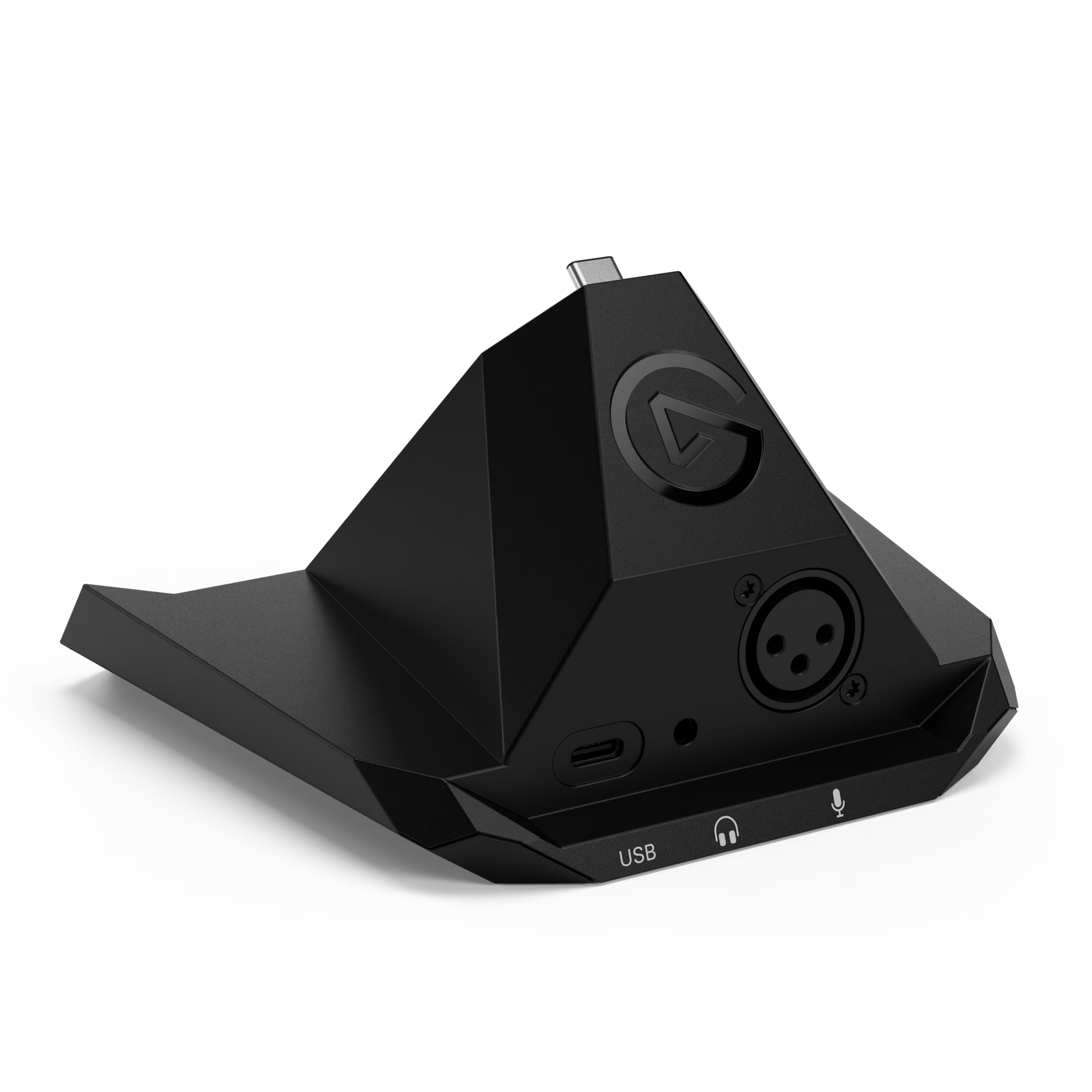

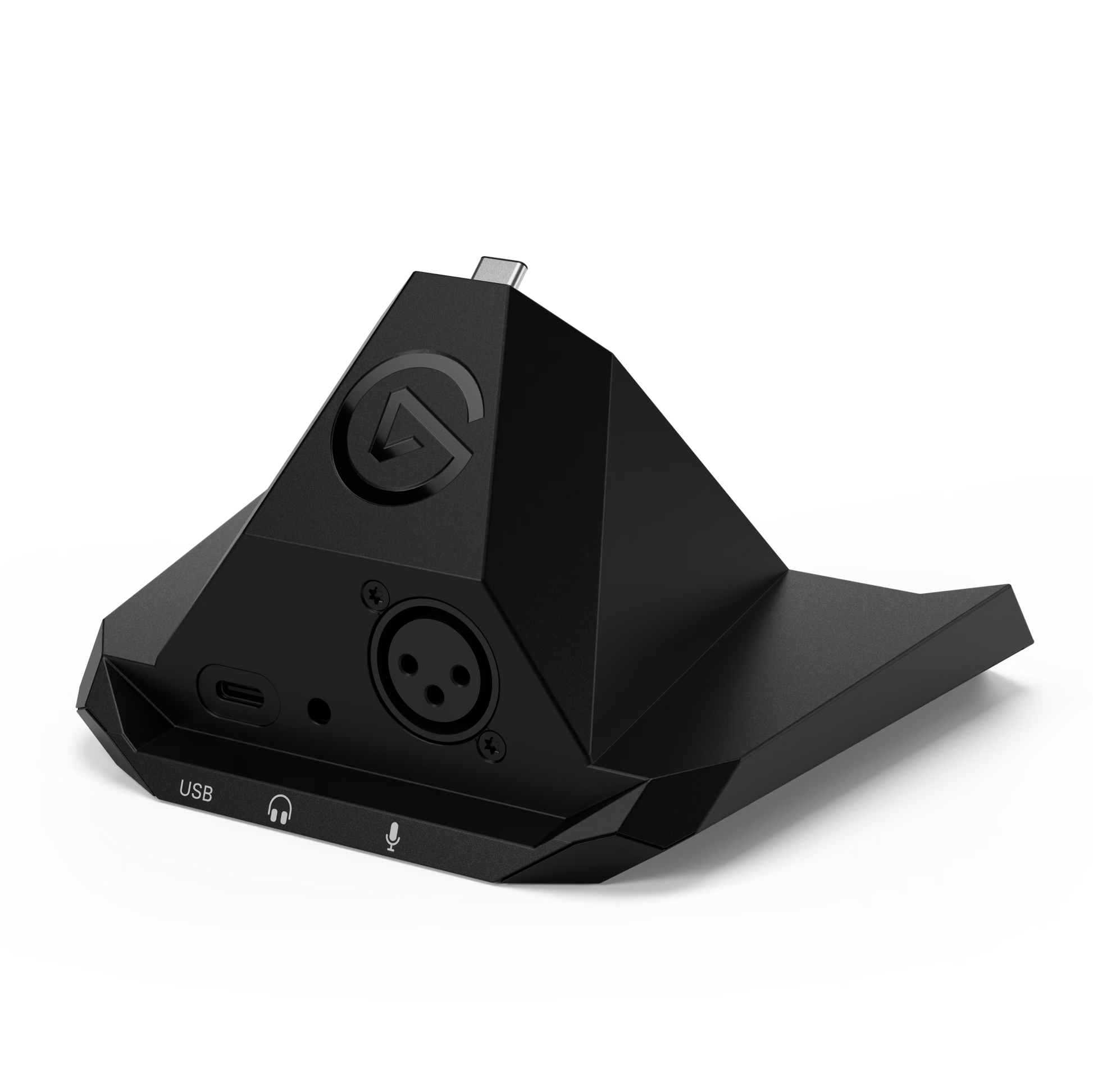

Elgato XLR Dock MK.2 for Stream Deck +

XLR Dock MK.2 for Stream Deck +
Meet XLR Dock MK.2, the audio interface made for Stream Deck +. Plug in any XLR mic, get 80dB gain, onboard effects, and Clipguard protection. Mix and monitor up front, control everything with Wave Link, and keep your desk clear. It’s pro sound,
simplified for creators.

Features:

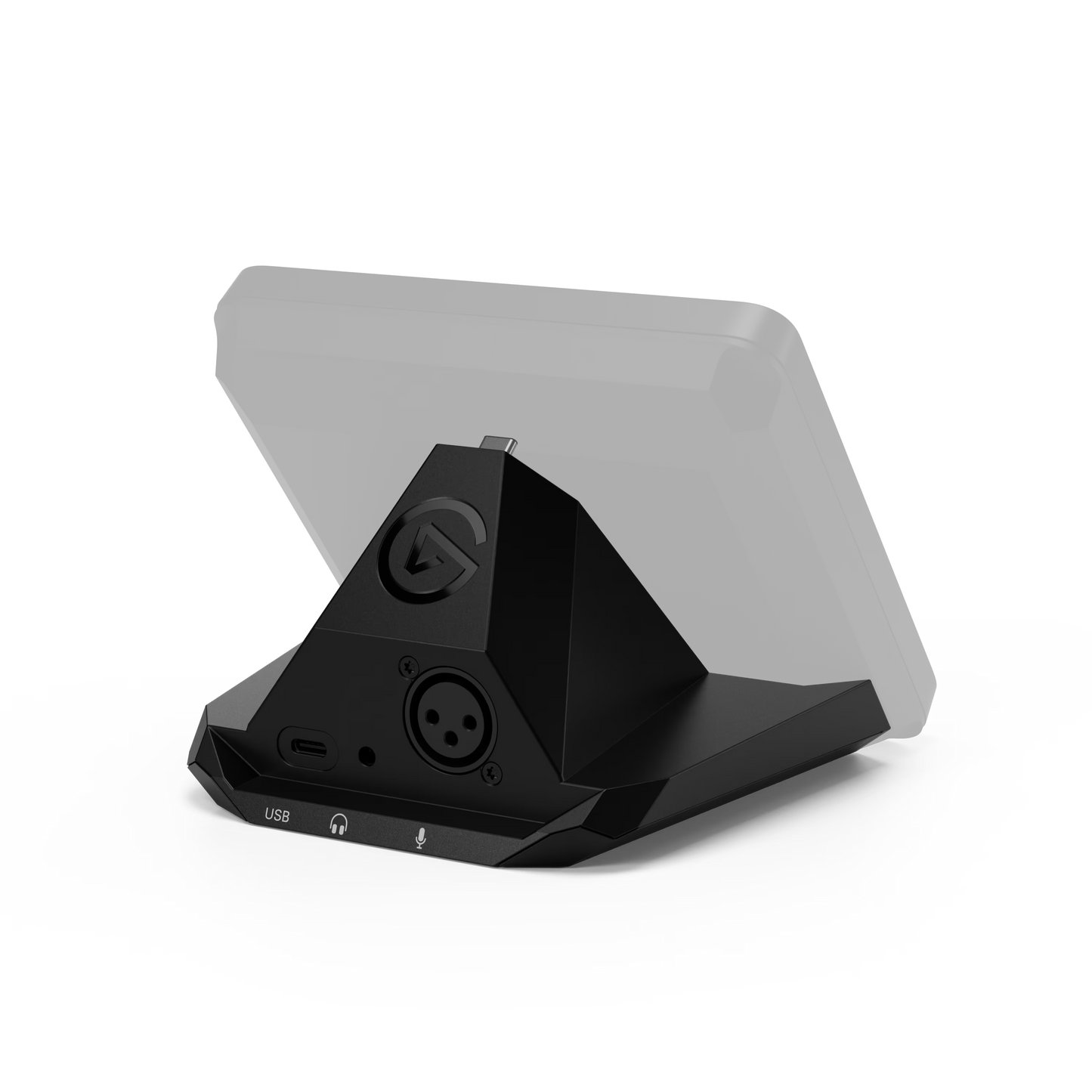

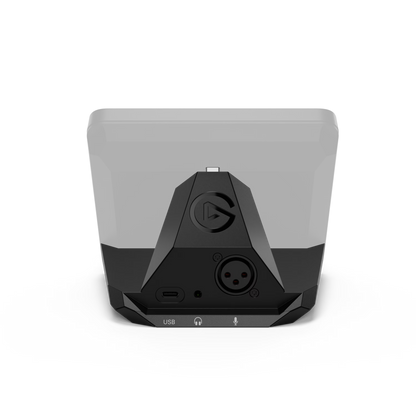

• Two Become One: Mix and monitor up front, plug your XLR mic in back.
• Elite Soundstage: 80dB gain, phantom power, and Clipguard technology.
• Onboard Effects: Built-in voice enhancer, compressor, EQ, and more.
• Wave FX Processor: Runs DSP effects and VST Inserts in one signal chain.
• Wave Link App: Natively integrated for precise routing, effects, and monitoring.

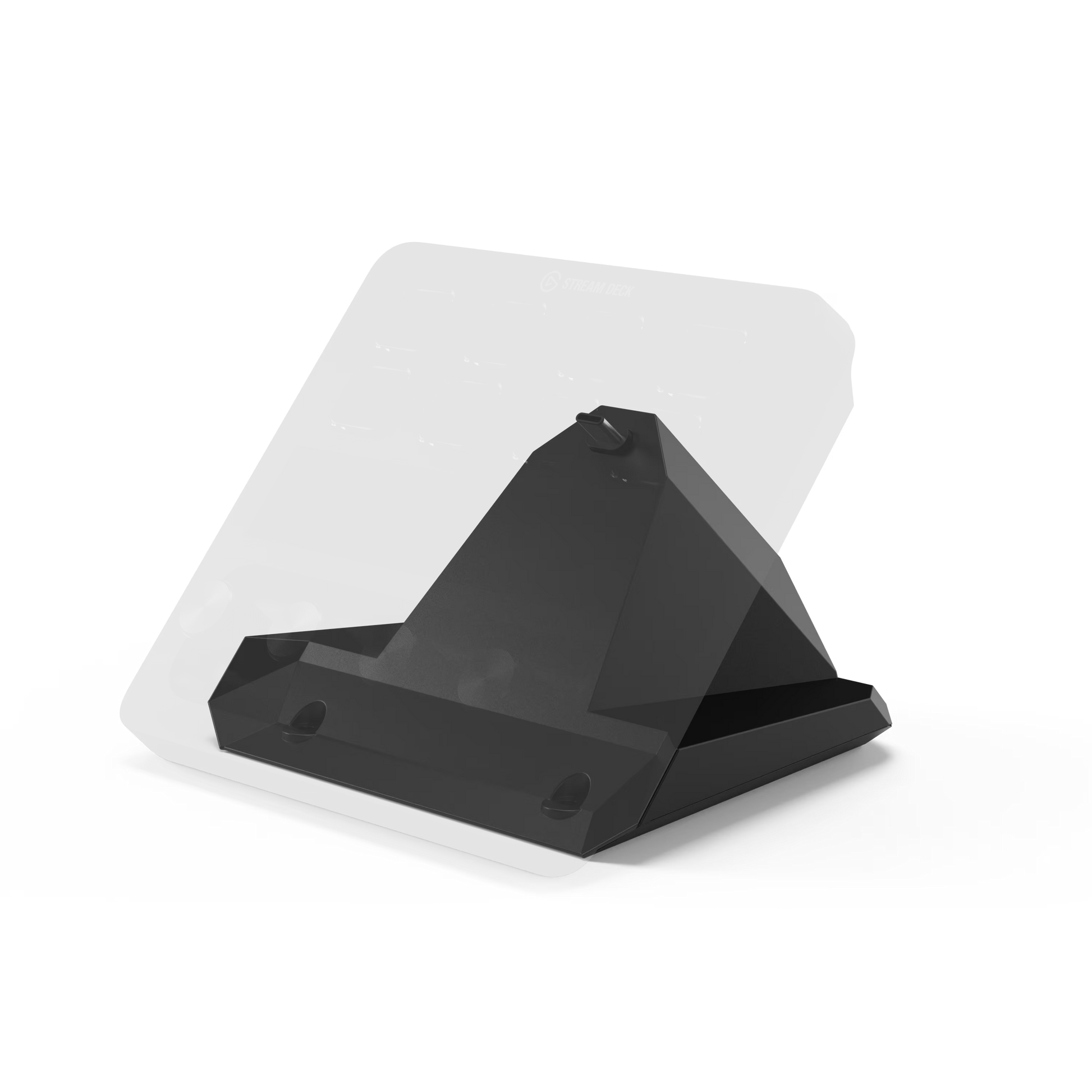

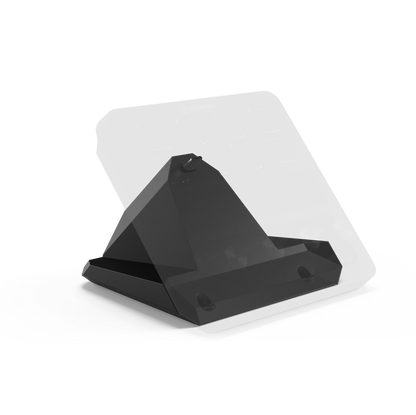

• Easy Setup: Slots in seamlessly, no additional USB cable needed.

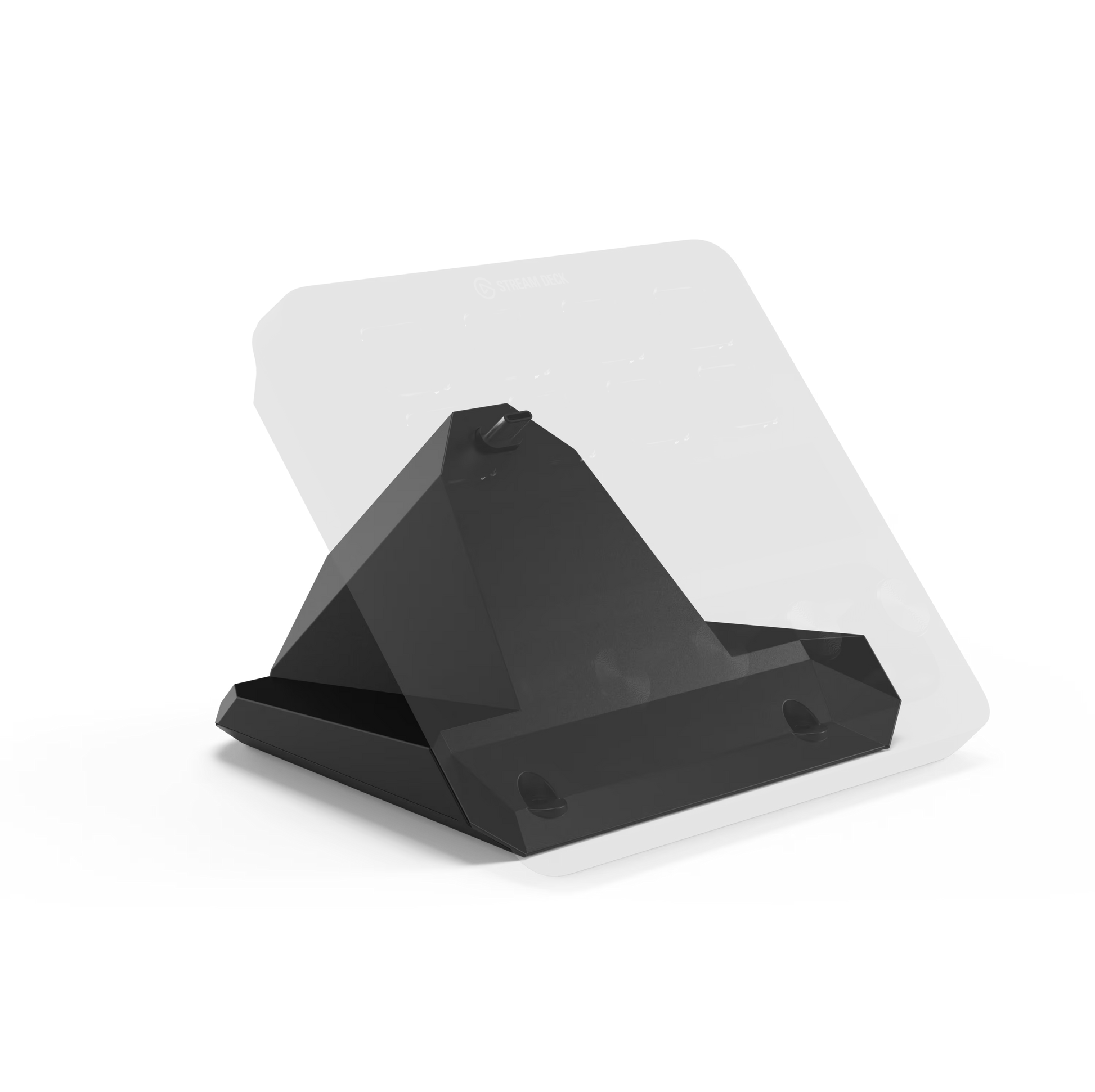

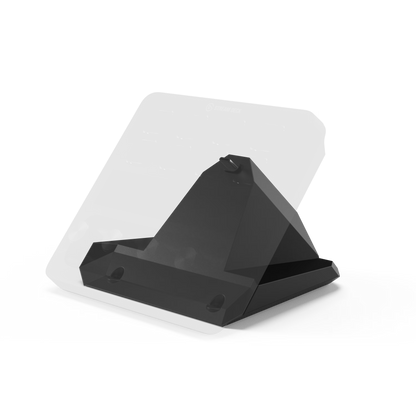

• Save Desk Space: Tucks away out of sight to clear off your workspace.
• Your Audio Station: Control hardware and apps together in one place

• Resolution: 32bit
• Sample rate: 48kHz
• Frequency response (XLR input): max gain deviation 20Hz - 20kHz < 0.3dB
• Frequency response (Headphone, 32 Ohm): max gain deviation 20Hz - 20kHz < 0.3dB
• Dynamic range: 137dB

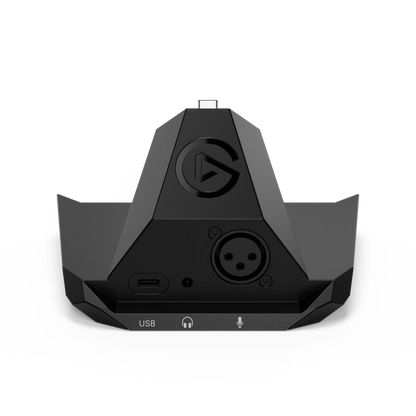

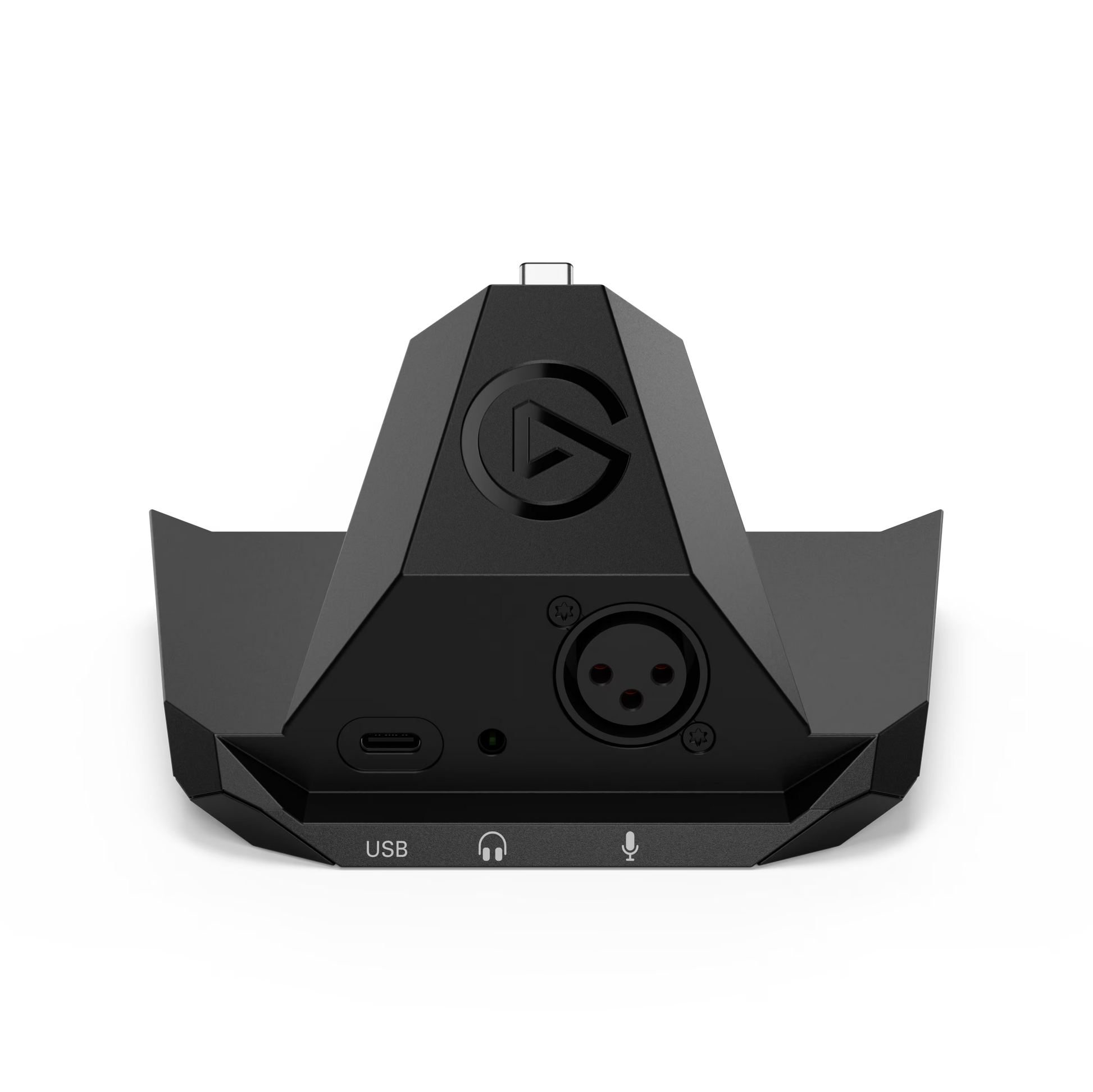

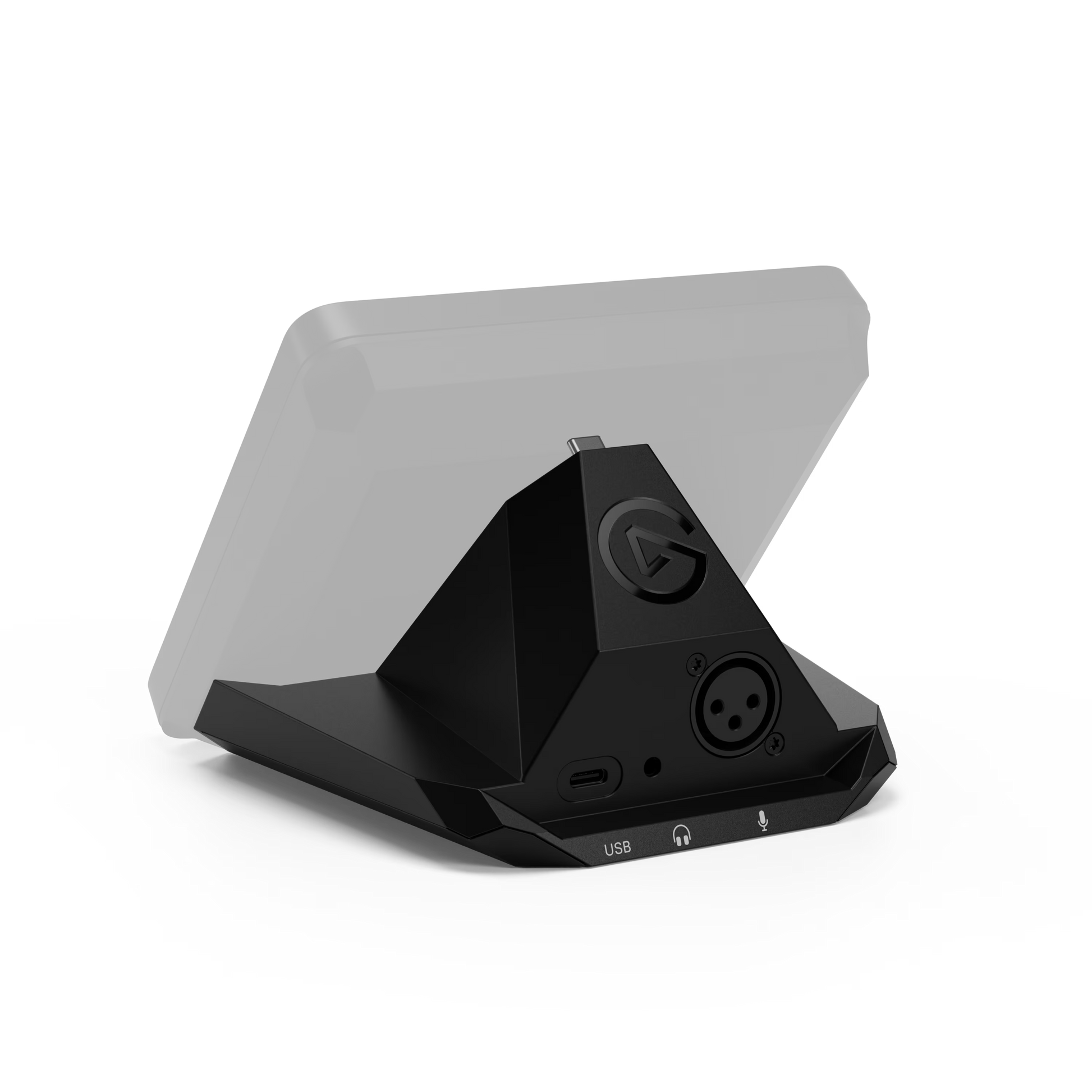

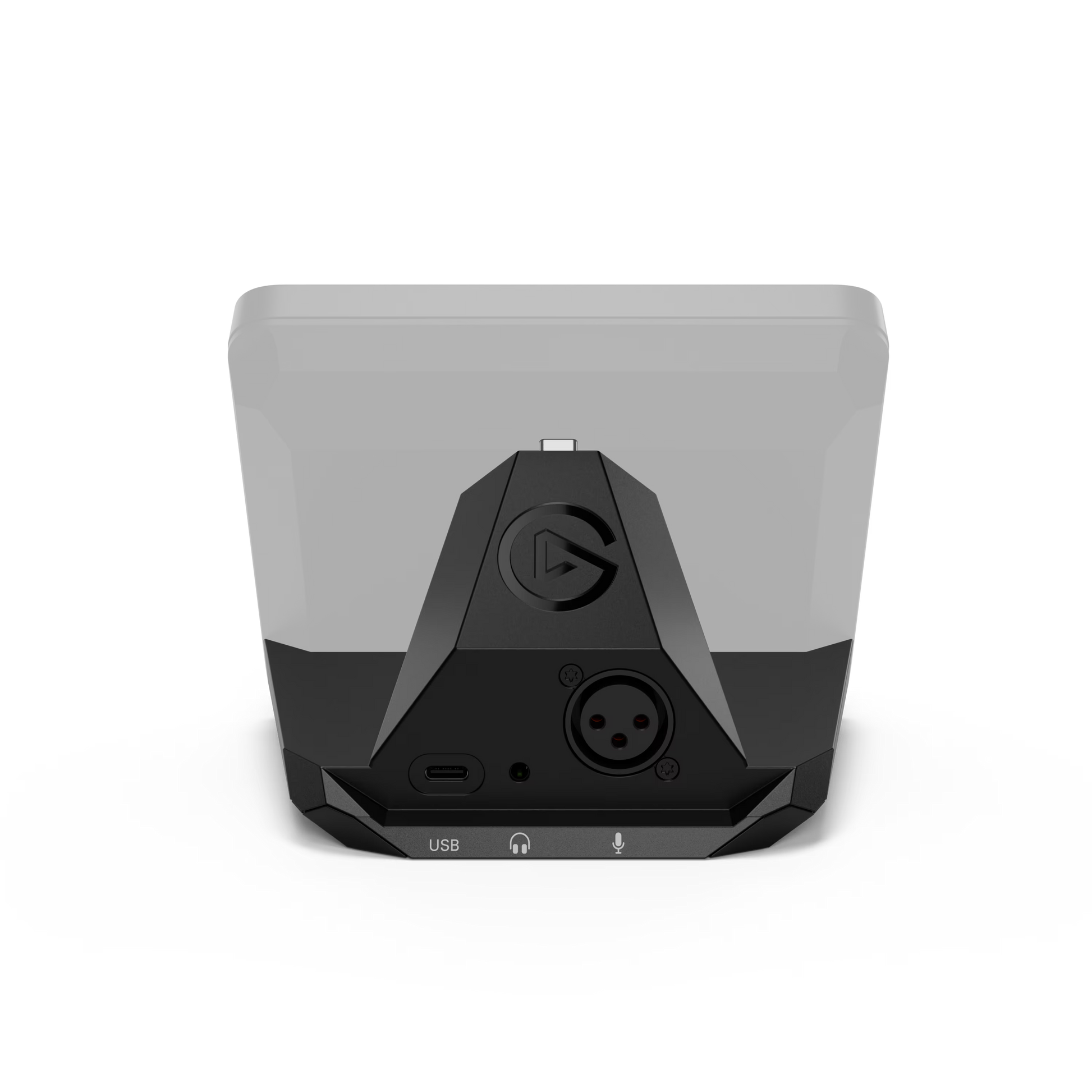

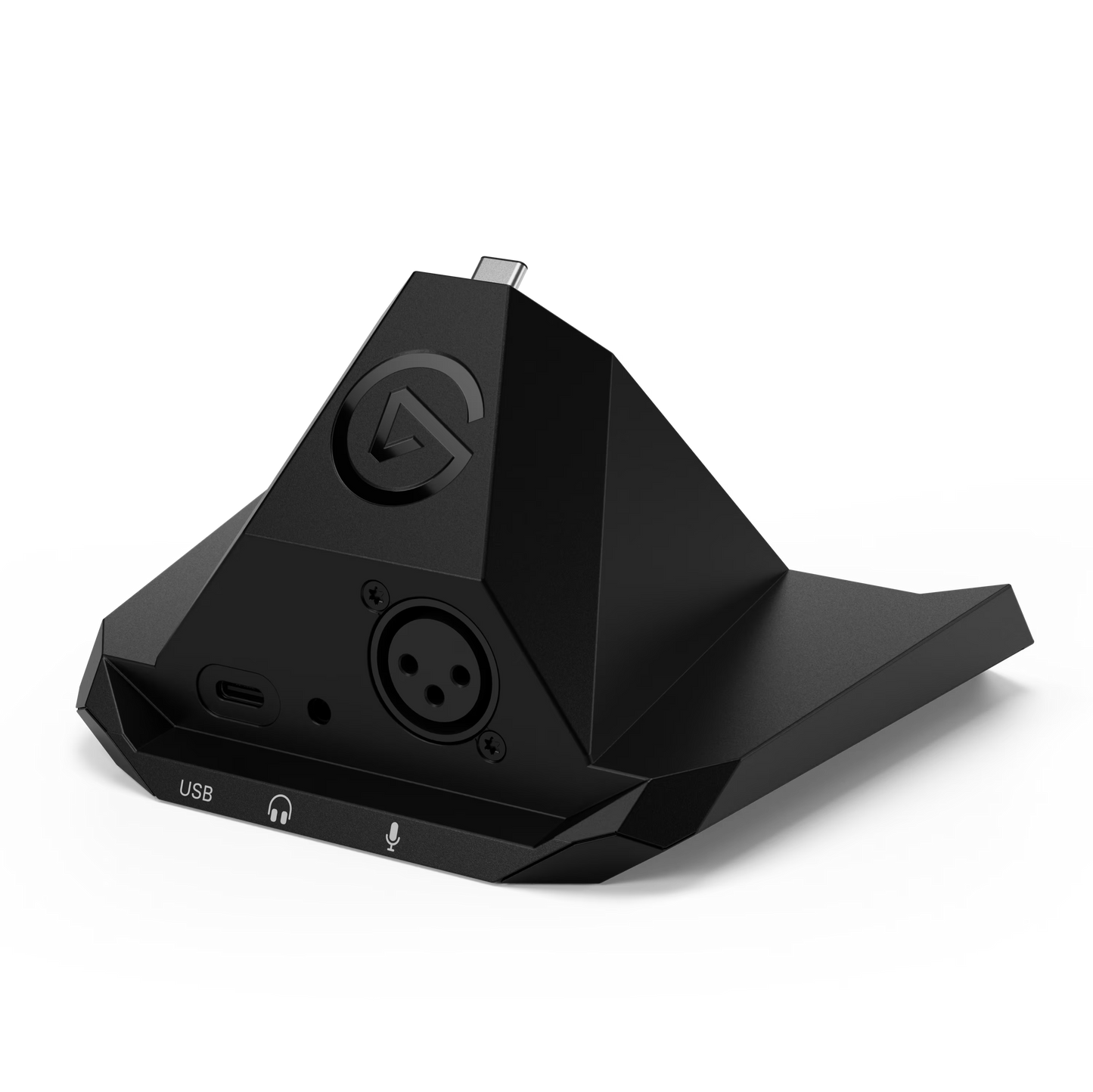

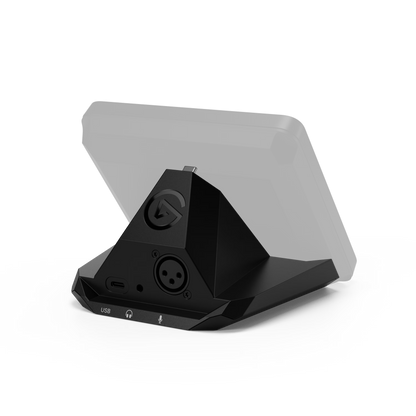

• Connectors: Microphone (XLR, Mono), Headphone (3.5 mm Jack, Stereo), Host I/O (USB-C)
• Power Consumption: rating print 900 mA max, measured 670mA max
• Dimensions (D × W × H): 4.53 x 4.39 x 2.99 in
• Weight: 180 g / 0.40 lbs
• System Requirements
  • Windows 11 (64-bit) or newer
  • macOS Sonoma 14.2 or newer

• XLR Dock for Stream Deck +
• Quick Start Guide
