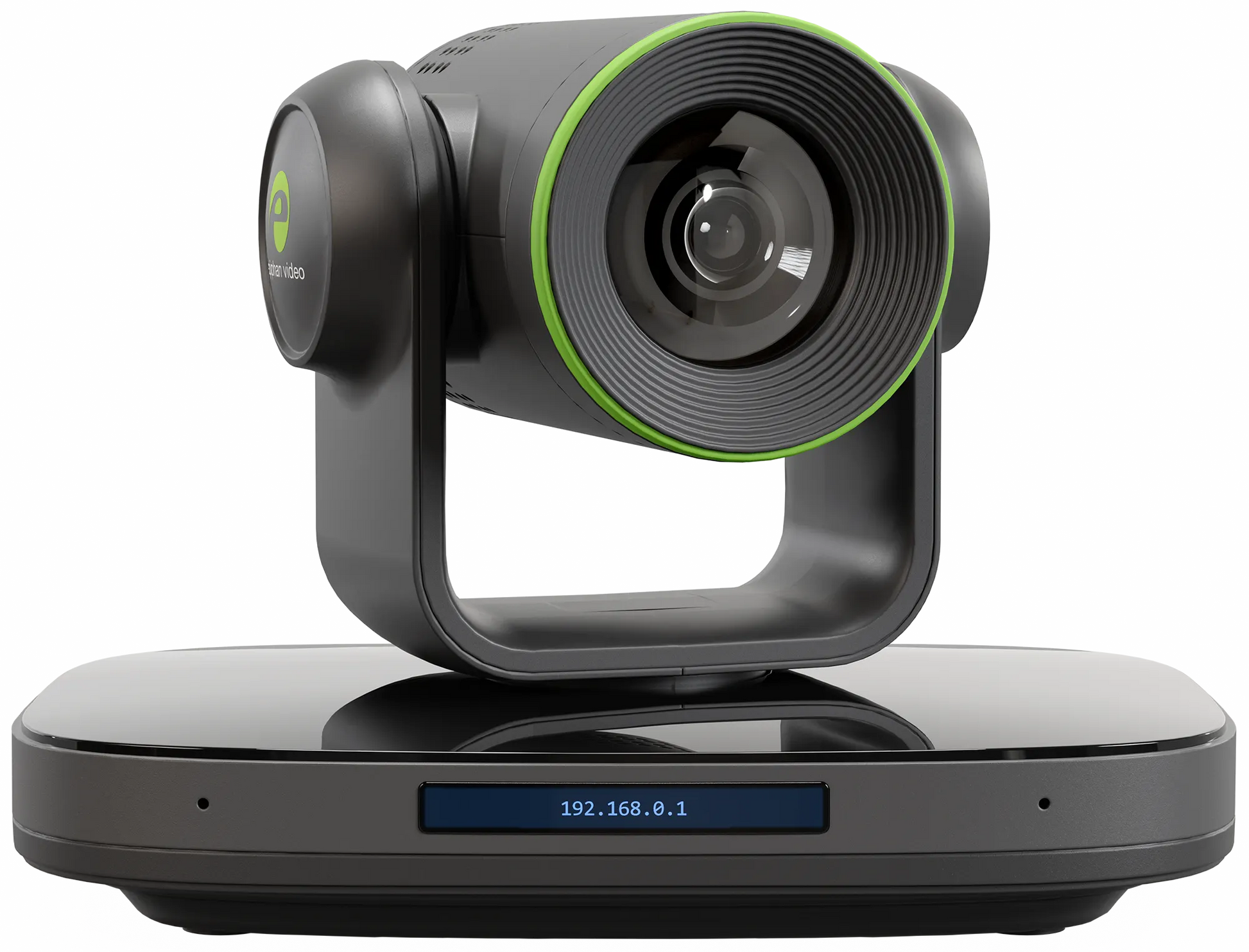

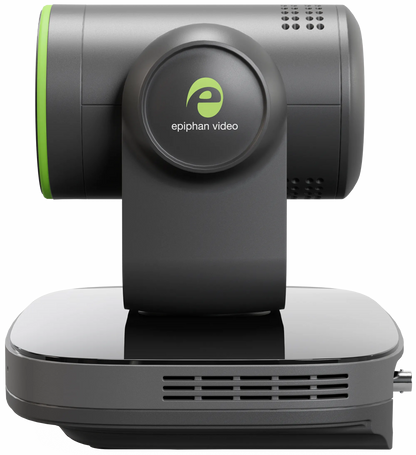

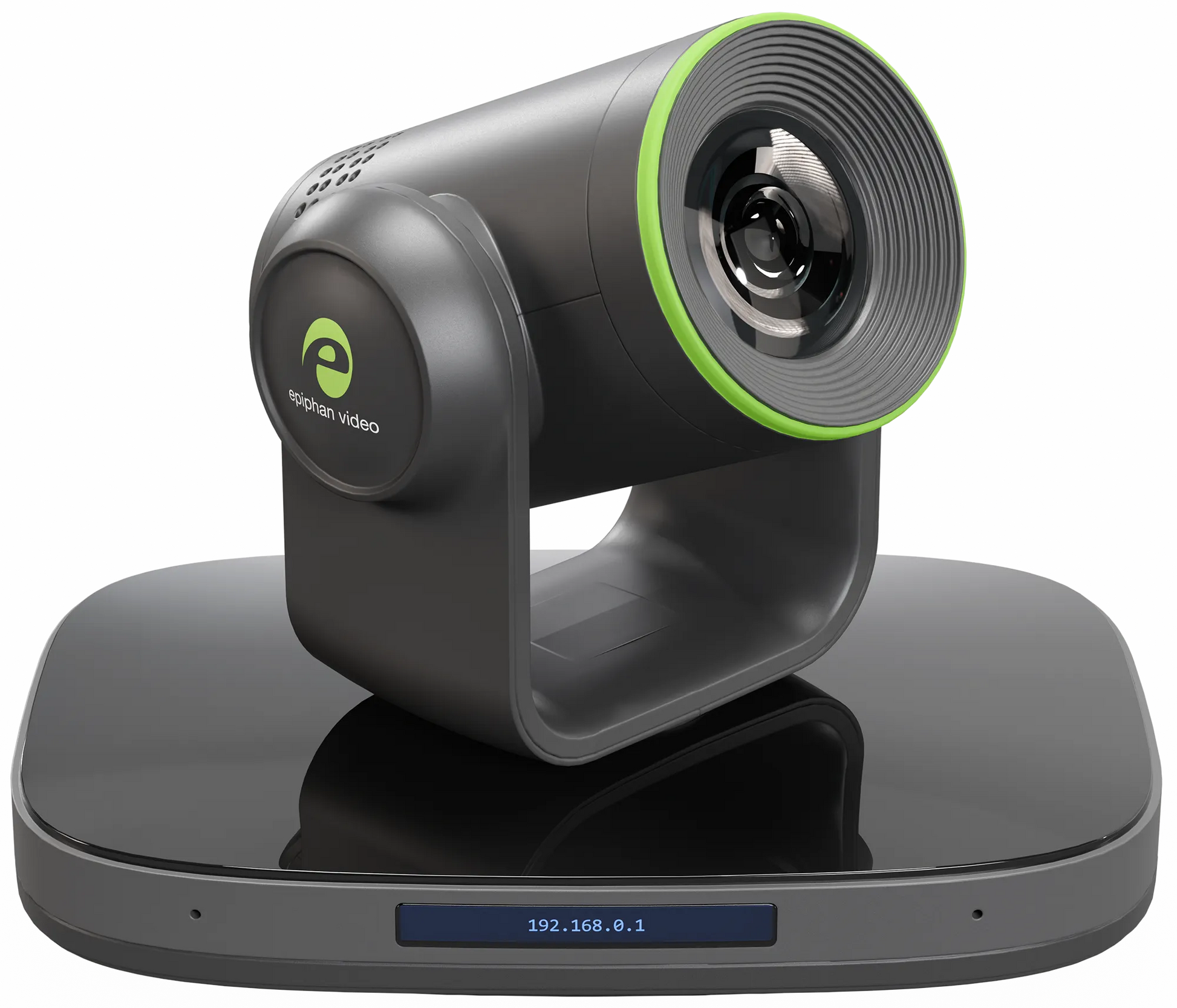

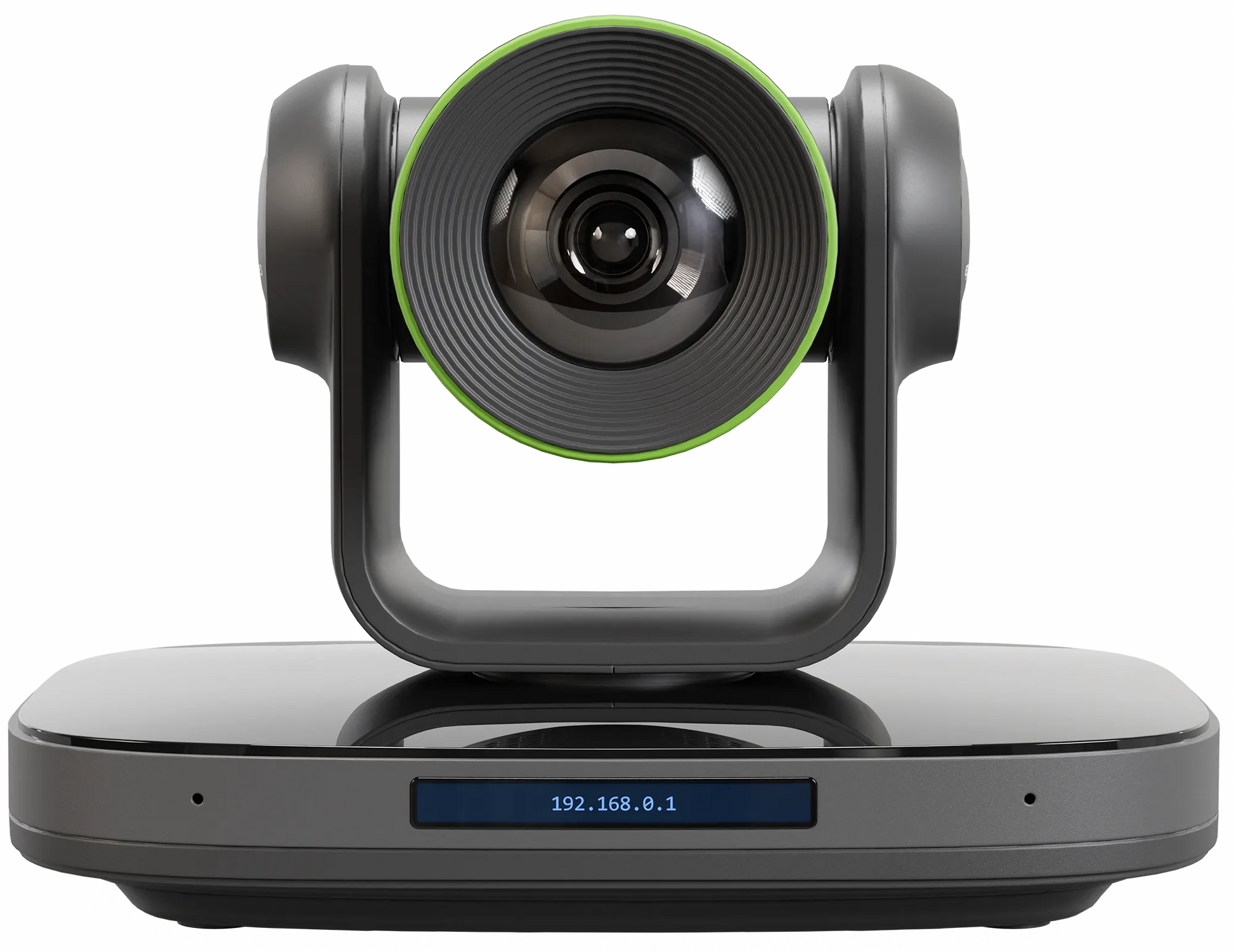

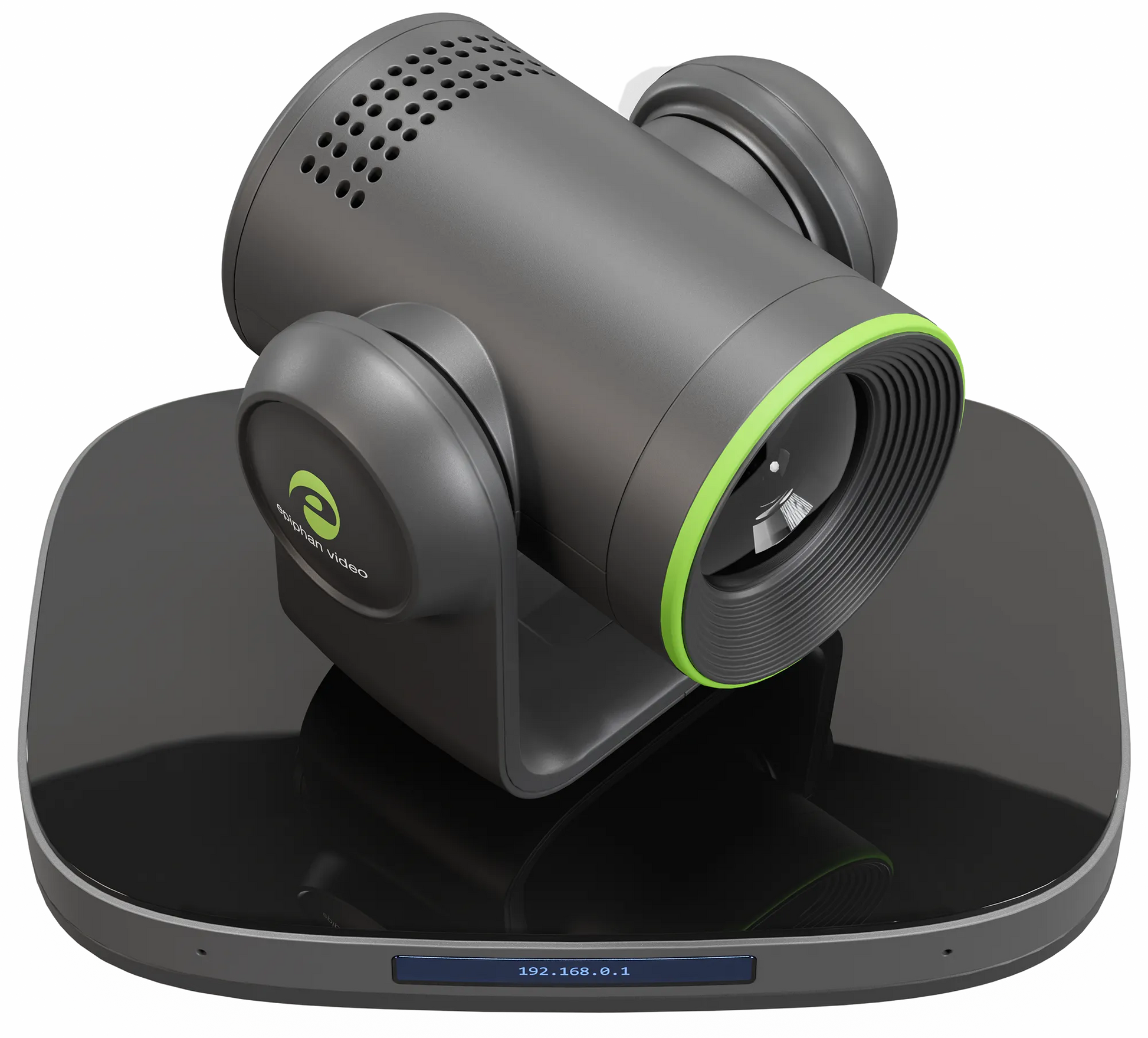

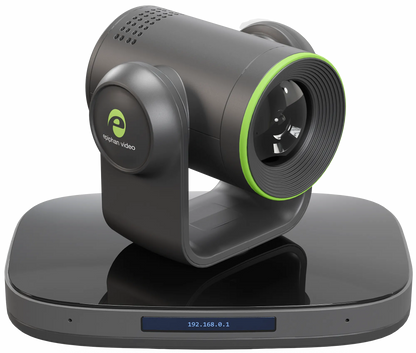

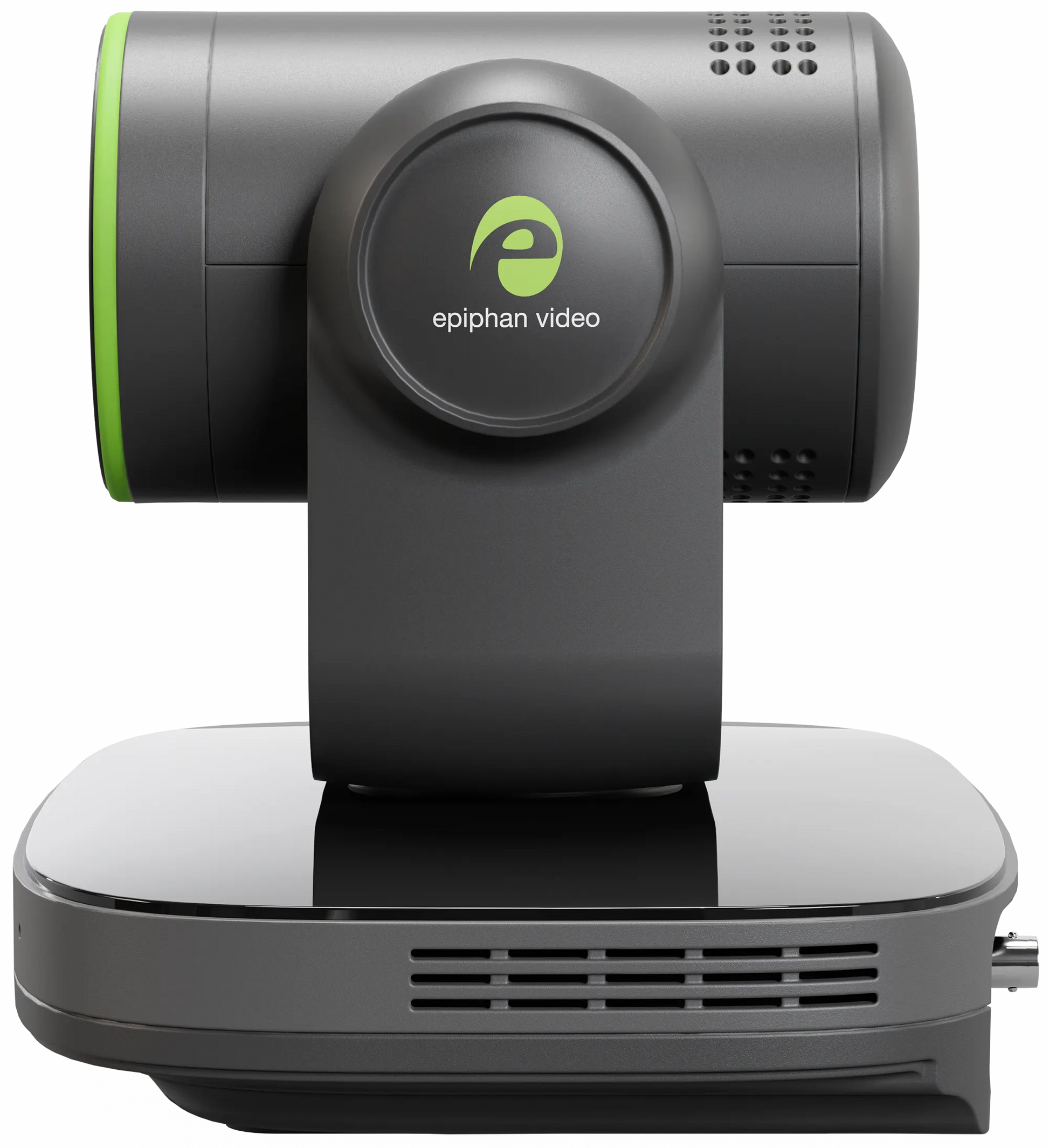

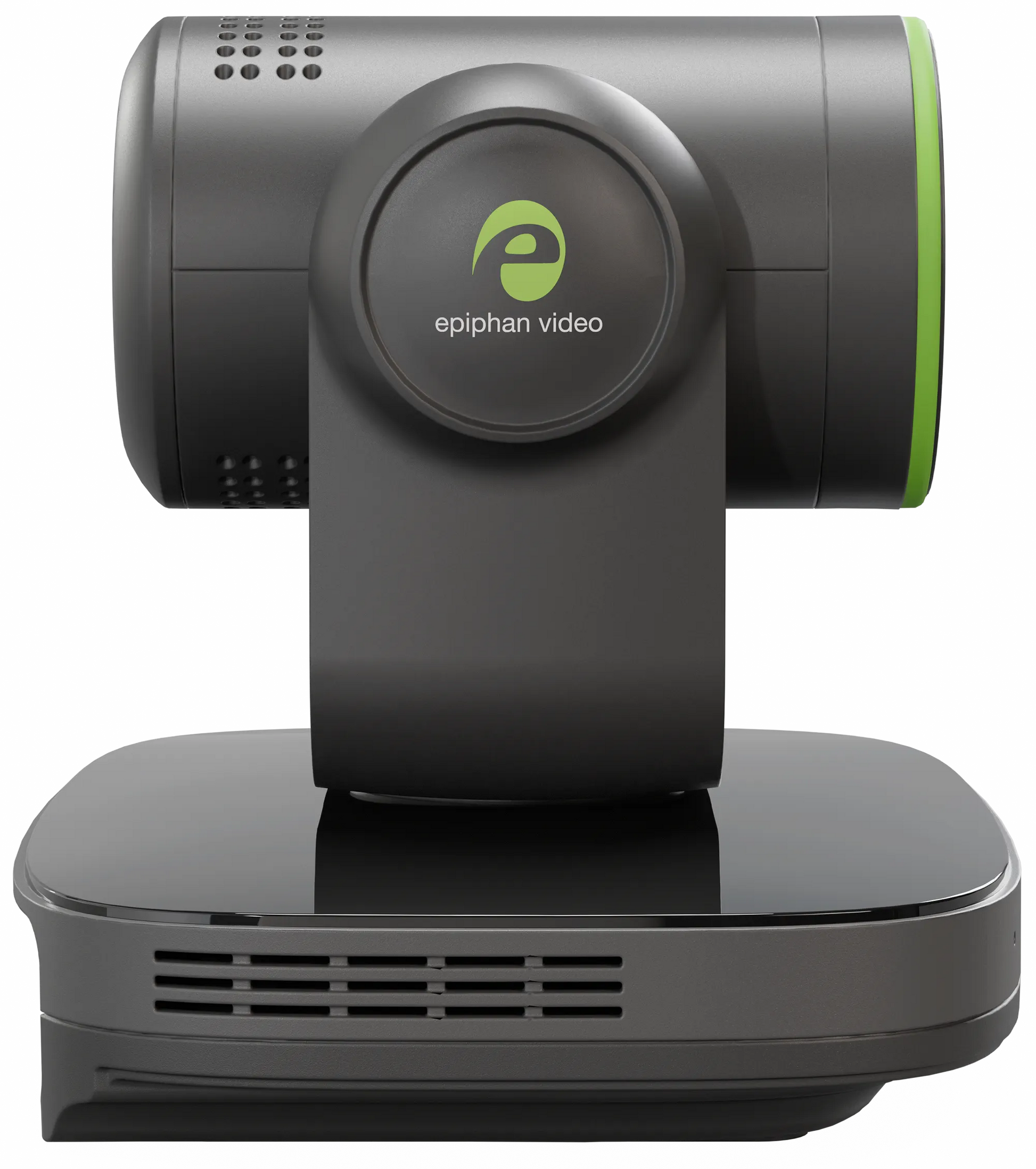

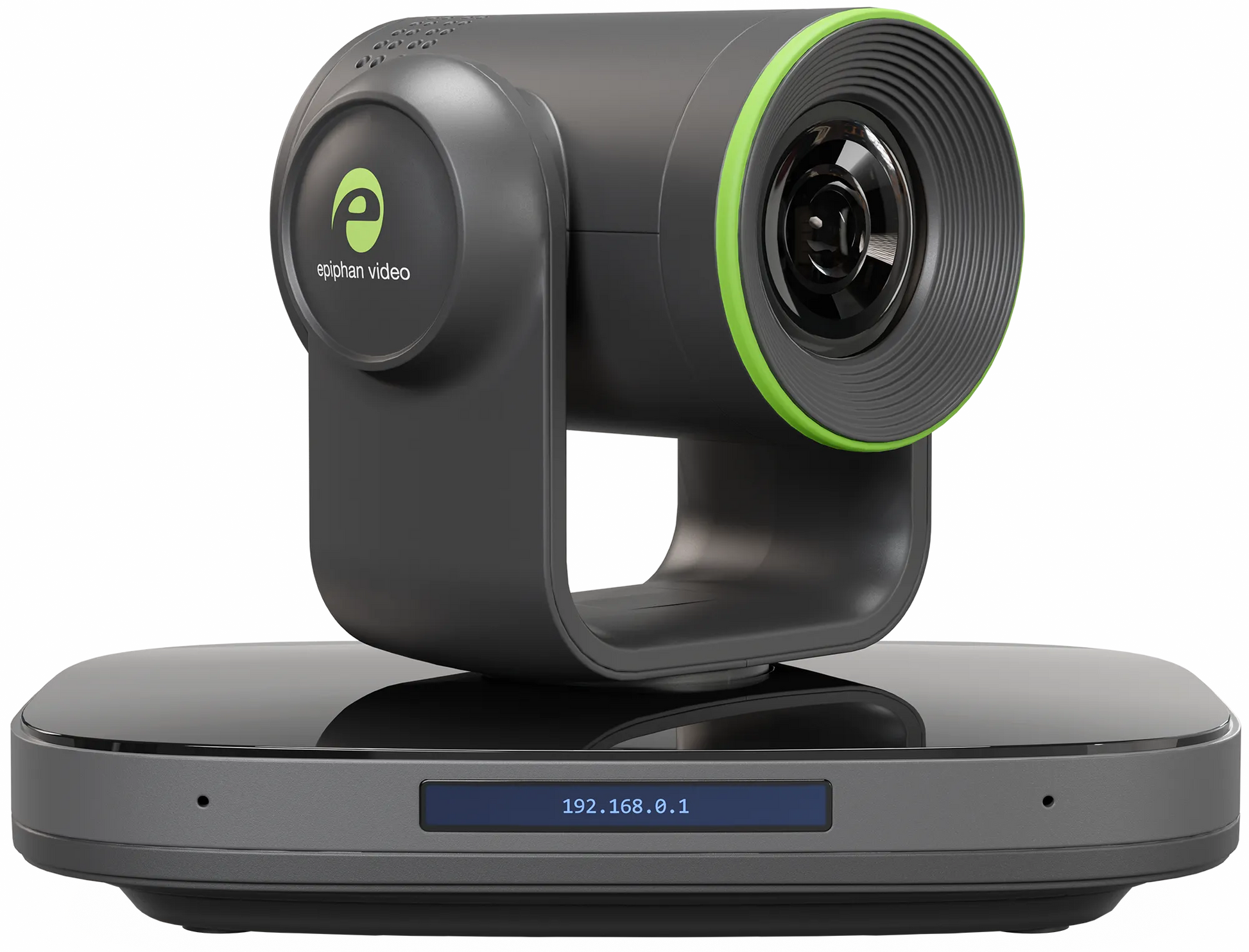

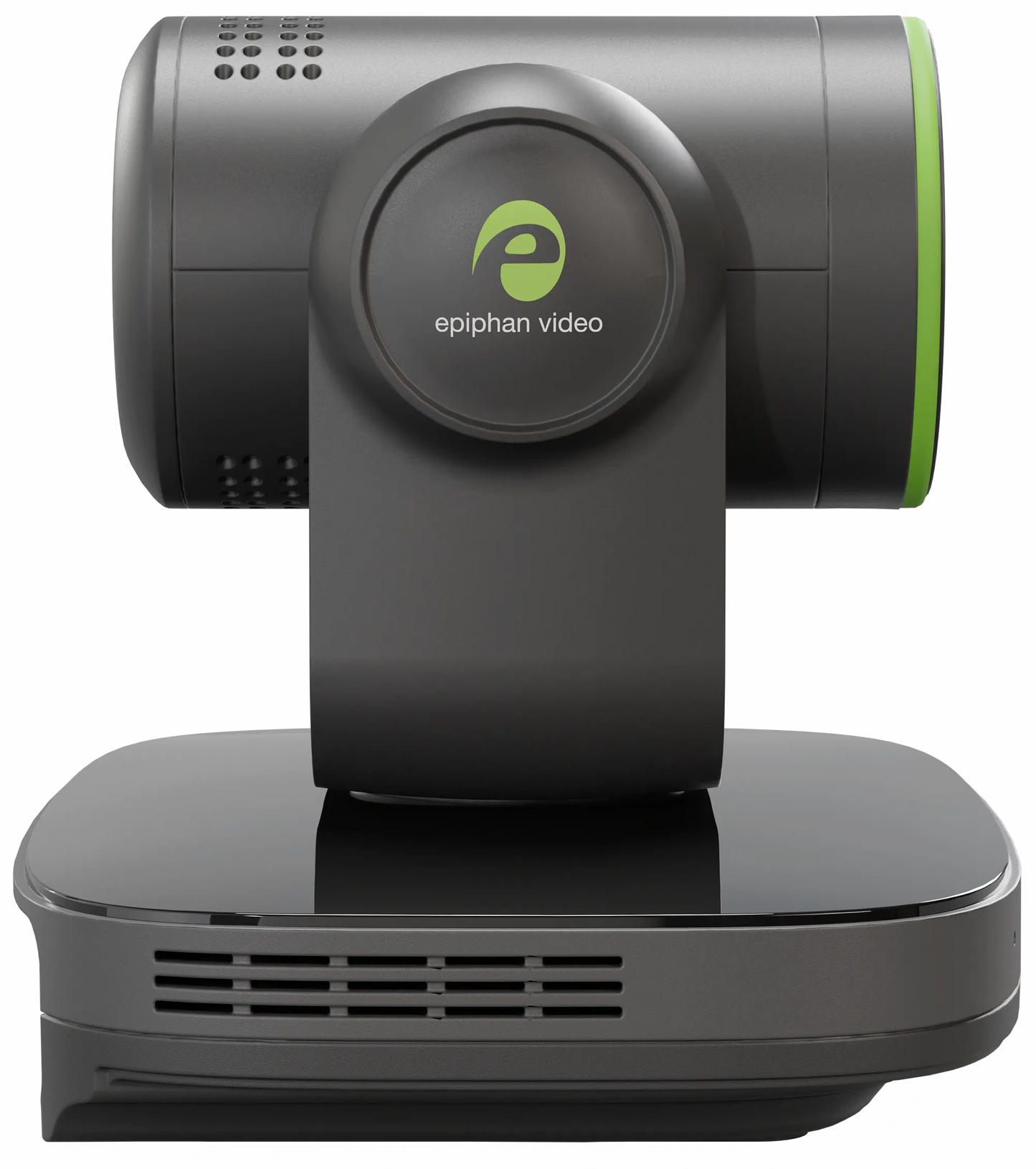

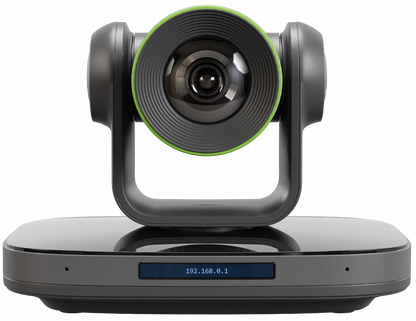

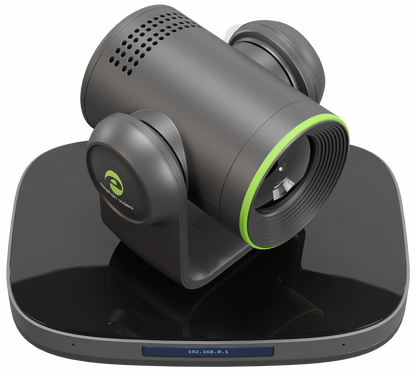

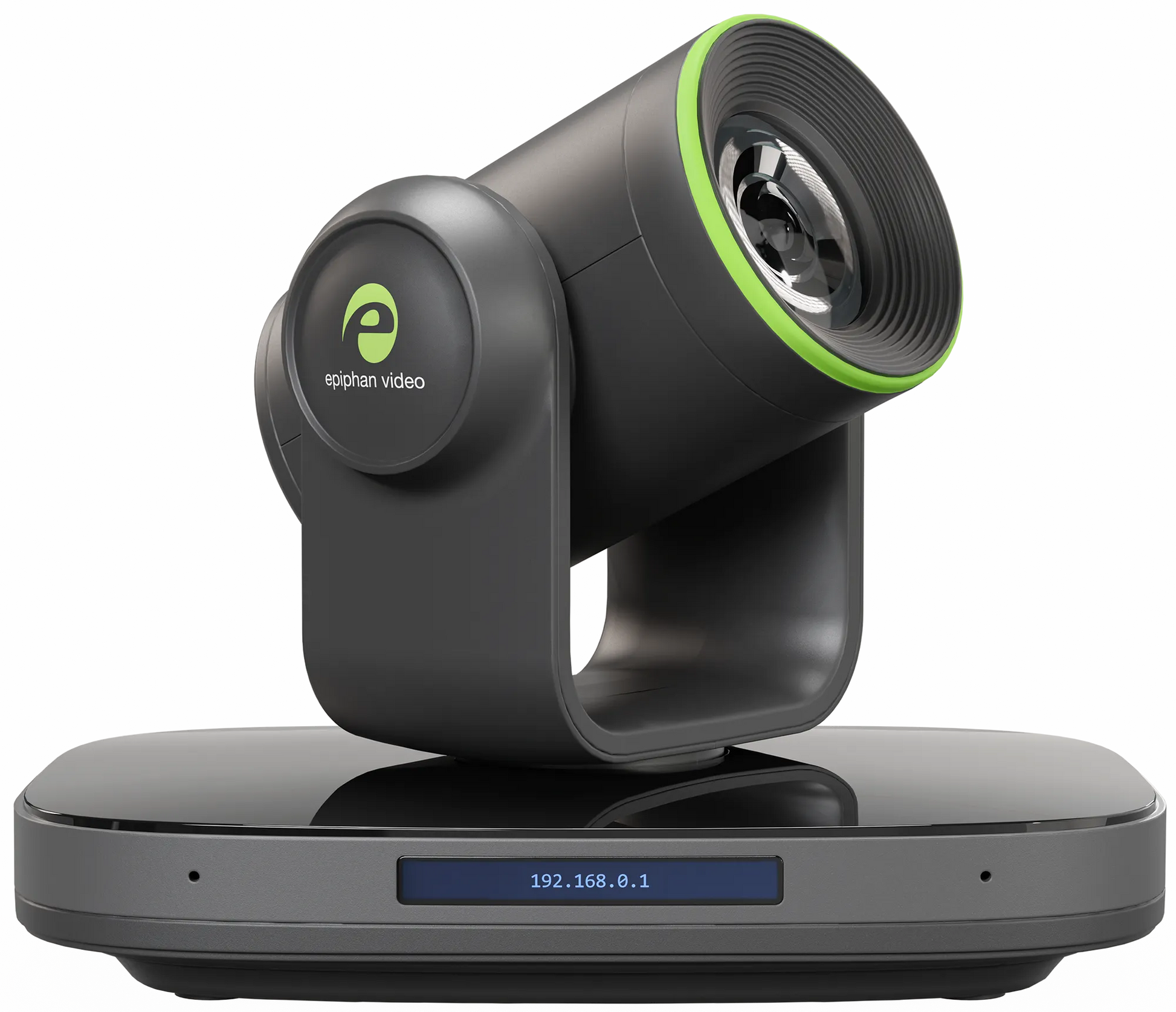

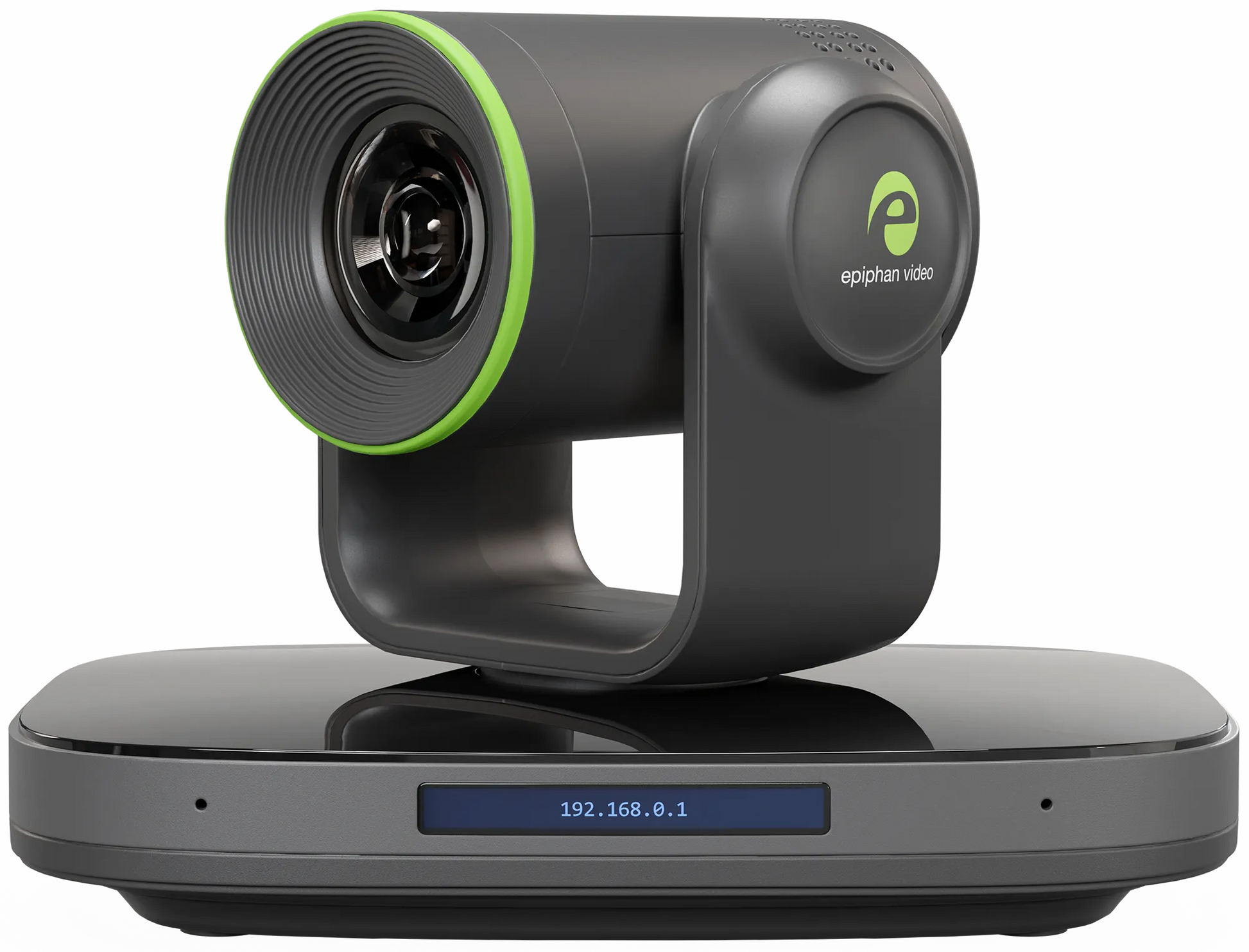

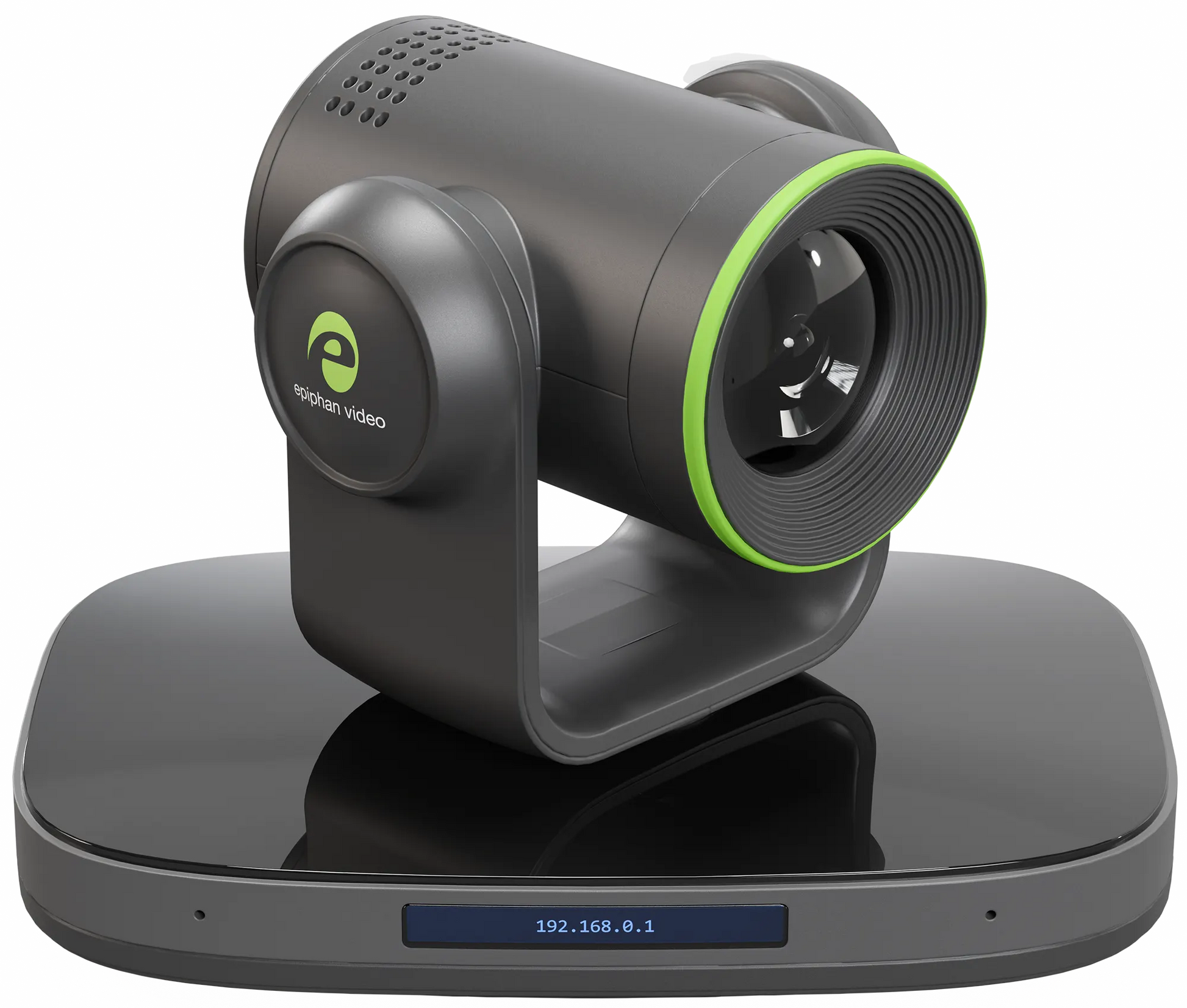

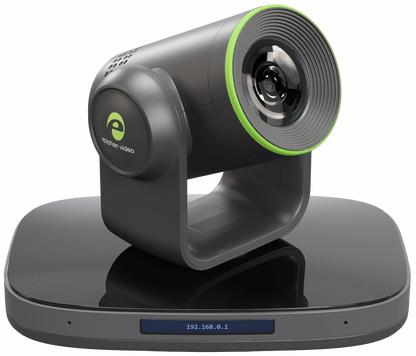

Epiphan EC20 PTZ Camera

Epiphan EC20 PTZ Camera
High-performance PTZ camera built for the Epiphan ecosystem

Native to the Epiphan ecosystem
Native integration lets EC20 communicate seamlessly with Epiphan products. No workarounds, no gaps. It’s optimized for smooth, reliable pro AV performance.

NDI enabled
Eliminate cables, and streamline your workflow with over-the-network NDI video streams.

Advanced AI-powered tracking
EC20 uses best-in-class on-camera intelligence to detect body shape and movement and keeps your subject centered in user defined inclusion-zones.

Pro-grade optics meet Epiphan reliability
EC20 delivers exceptional quality video performance in demanding environments, backed by the same engineering and support that teams trust across the Epiphan lineup.

Get every detail in 4K60
Deliver sharp, detailed visuals with broadcastquality clarity in resolutions up to 4K at 60 fps.

Flexible for any space
A 60° field of view and 20x zoom strikes the perfect balance for most environments, while precise PTZ control lets you frame the action exactly as needed.

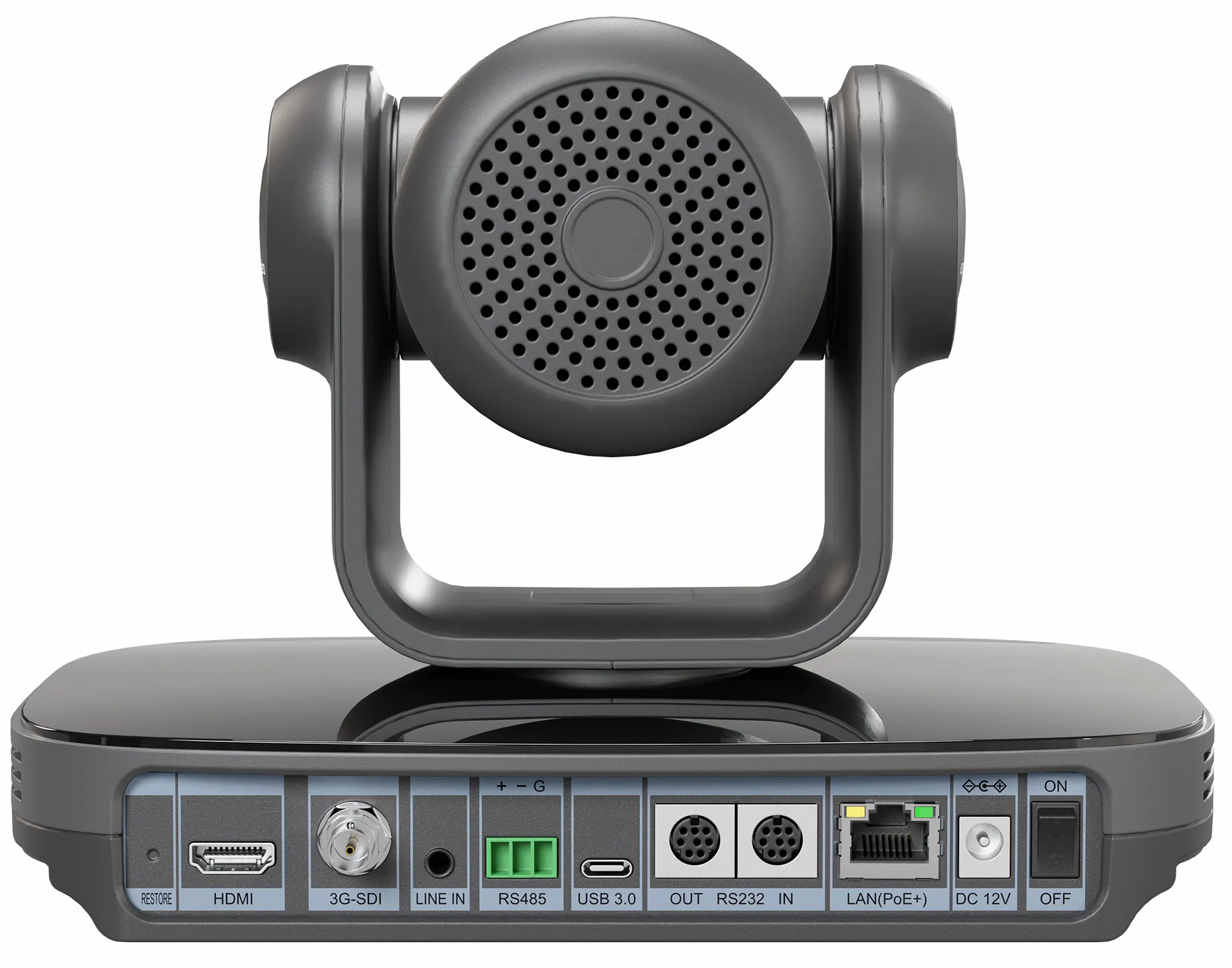

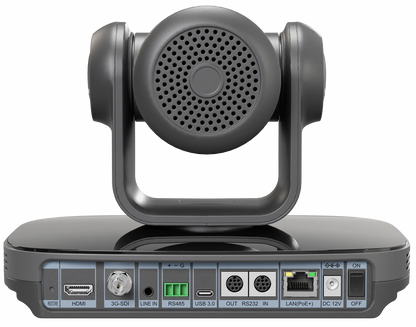

Video output (uncompressed)
HDMI: Up to 4K60
SDI: Up to 1080p60
Network output protocols
NDI|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s)
Network stream resolution
First stream: Up to 4K
Second Stream: Up to 480p (preview)
Dedicated audio input
1 × 3.5 mm Line in
Sensor
1/1.8 inches CMOS
8.42 Megapixels
Zoom
20x optical, plus 16x digital
White balance
Auto, Manual, Indoor, Outdoor, One Push, VAR
Backlight compensation
Yes
3D Digital Noise Reduction
Yes
Advanced low-light performance
0.5 Lux @ (F1.8, AGC ON)
Field of view (FOV)
Horizontal: 60° – 3.5°
Vertical: 35.7° – 2.0°
Pan Angle
+162.5°
Image flip
Yes
Presets
Up to 255
Power supply
DC 12V or PoE+
Control
RS232, RS485: VISCA /Pelco-D / Pelco-P, USB: UVC, RF: Remote control unit, NDI, ONVIF
Tally light
Yes
