Epiphan Event Streaming Bundle

Epiphan Event Streaming Bundle

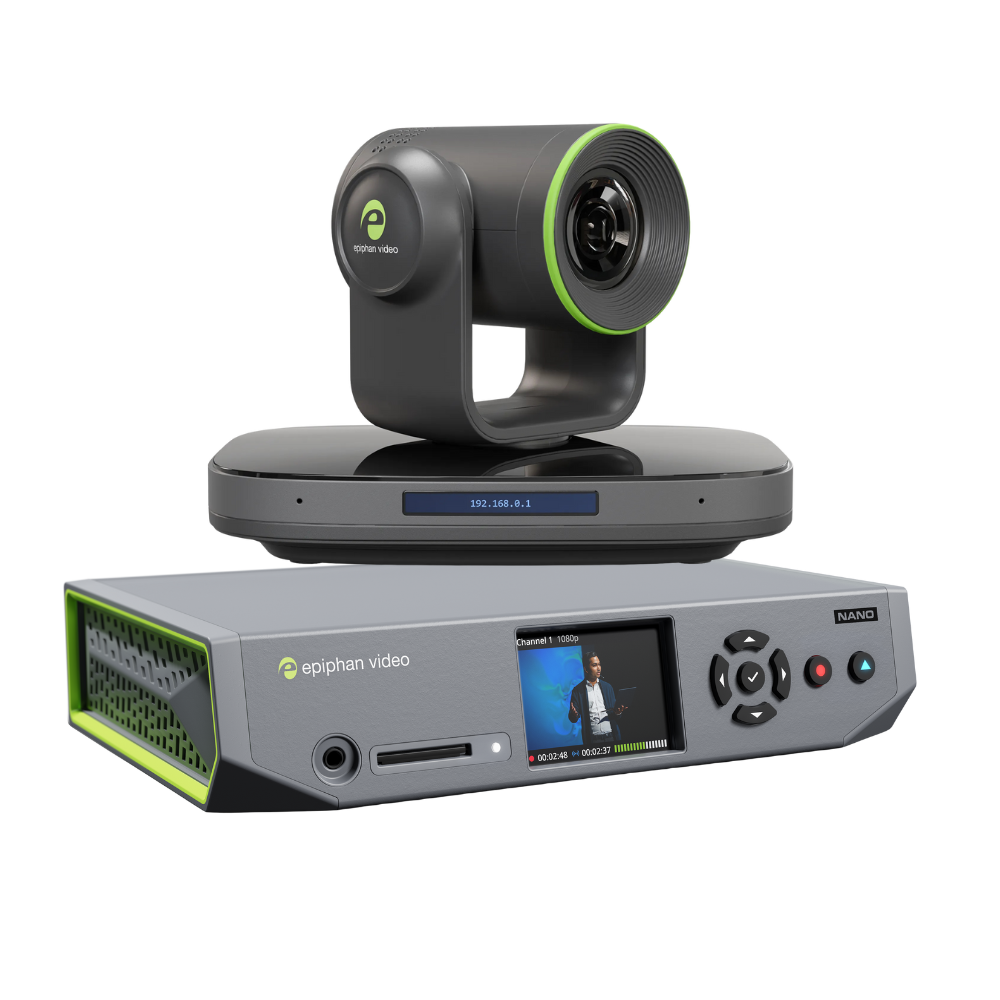

A compact all-in-one kit with a PTZ camera and encoder that makes it easy to stream and record professional-quality events, from corporate town halls to live productions, without the complexity of a full control room. A compact all-in-one kit with a PTZ camera and encoder that makes it easy to stream and record professional-quality events, from corporate town halls to live productions, without the complexity of a full control room.

Epiphan EC20 PTZ Camera
The Epiphan EC20 PTZ Camera is a high-performance solution designed for seamless integration within the Epiphan ecosystem, ensuring smooth, reliable, and professional AV performance without workarounds. With native NDI support, it eliminates excess cabling and streamlines workflows through over-the-network video streaming. Its advanced AI-powered tracking intelligently detects body shape and movement, keeping subjects centered within user-defined zones for dynamic, hands-free operation. Combining pro-grade optics with Epiphan’s trusted reliability, the EC20 delivers exceptional 4K60 video quality and broadcast-level clarity. Featuring a 60° field of view and 20x optical zoom, this flexible camera is perfectly suited for a wide range of environments, offering precise PTZ control to capture every detail effortlessly.

Epiphan Pearl Nano
Epiphan Pearl Nano offers the ultimate blend of portability and versatility with a refined yet robust feature set that includes ingestion, encoding, HDMI pass-through, and recording. Use Nano as a powerful and reliable video distribution device or contribution encoder, or leverage the device’s streaming and recording functions as part of a more complex setup with additional production capabilities.

Video output (uncompressed)
HDMI: Up to 4K60
SDI: Up to 1080p60
Network output protocols
NDI|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s)
Network stream resolution
First stream: Up to 4K
Second Stream: Up to 480p (preview)
Dedicated audio input
1 × 3.5 mm Line in
Sensor
1/1.8 inches CMOS
8.42 Megapixels
Zoom
20x optical, plus 16x digital
White balance
Auto, Manual, Indoor, Outdoor, One Push, VAR
Backlight compensation
Yes
3D Digital Noise Reduction
Yes
Advanced low-light performance
0.5 Lux @ (F1.8, AGC ON)
Field of view (FOV)
Horizontal: 60° – 3.5°
Vertical: 35.7° – 2.0°
Pan Angle
+162.5°
Image flip
Yes
Presets
Up to 255
Power supply
DC 12V or PoE+
Control
RS232, RS485: VISCA /Pelco-D / Pelco-P, USB: UVC, RF: Remote control unit, NDI, ONVIF
Tally light
Yes

• 1x EC20 PTZ Camera
  • 1x Ceiling Mount
  • 1x Wall Mount
• 1x Pearl Nano
  • 1x Universal Power Supply
  • 1x Quick Start Guide
